Radeon RX 570 8GB 256-bit GDDR5 is a performance-segment Metal graphics card modified for Mac Pro models 4,1 - 5,1 (2009-2012) to show -
• Apple Logo Boot Screen
• Boot Menu Selector
• Progress Bar
• Verbose Single User Mode
• Recovery Mode
• FireWire Target Mode
• Firmware Updates
• OS X Installer Setup
• OpenCore Setup
This cards power limits have been tweaked and modified within safe range for Mac Pro power limit requirements in mind to prevent crashing under full load for a smooth and crash free experience.
This video card is Plug ’n Play (gpu power cables mandatory)
Native support starts on Mac OS X Sierra 10.12.6 and High Sierra 10.13.4 with official Radeon drivers up to Monterey 12.x. OCLP provides support on Sequoia 15.x and Sonoma 14.x and Ventura 13.x
Tested working on Mac Pro 4,1 - 5,1 up to Sequoia 15.x
Tested working on Windows 7 - 11 Boot Camp
Cable adapters, tv's / monitors, port functionality, performance, resolutions, refresh rates, may act differently between different operating systems. Behavior in one version may be different than in another.
Card has been fully stress tested and monitored on all output ports and works perfectly in both either OS X versions or Windows Boot Camp.
Supports 4+ multiple displays. Adapters that are 'Active' or 'Passive' will yield different results.
Maximum Resolutions:
- DisplayPort 1.4a: 4096 x 2160 @ 60Hz, 5120 x 2880 @ 60Hz
- HDMI 2.0b: 4096 x 2160 @ 60Hz, 3840×2160 @ 60Hz
- Dual Link DVI: 2560 x 1600 @ 60Hz
- VGA (w/adapter): 2048x1536

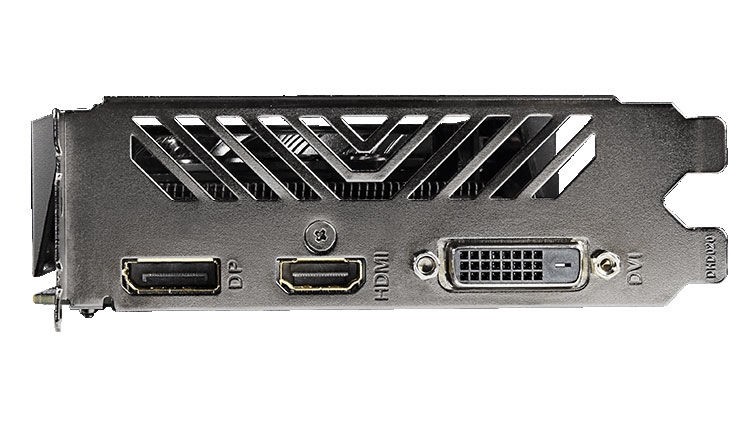

Output ports come in different variations depending on stock:
3 x DisplayPort, 1 x HDMI, 1 x DVI
OR
1 x DisplayPort, 1 x HDMI, 1 x DVI
Graphics Features
Metal Support
DirectX 12
OpenGL 4.6
OpenCL 2.1
Vulkan 1.3
Shader Model 6.7
Clock Speeds
Base Clock
1244 MHz
Boost Clock
1340 MHz
Memory Clock
1750 MHz
7 Gbps effective
Render Config
Shading Units
2048
TMUs
128
ROPs
32
Compute Units
32
Theoretical Performance
Pixel Rate
42.88 GPixel/s
Texture Rate
171.5 GTexel/s
Bandwidth
224 GB/s
*Main image is only a representation in the Mac Pro and actual card will look different upon arrival.
*Cables included upon request at checkout. Strongly urged to re-use your existing 6pin cable if applicable.
Don't forget to check out my other listings for similar cards. Happy Shopping !
