Ravel Fire Alarm Control Panel Conventional 4 Zone C/Red UL-Listed
corp2018
US
$296
CONTACT SELLER
SEE ON EBAY

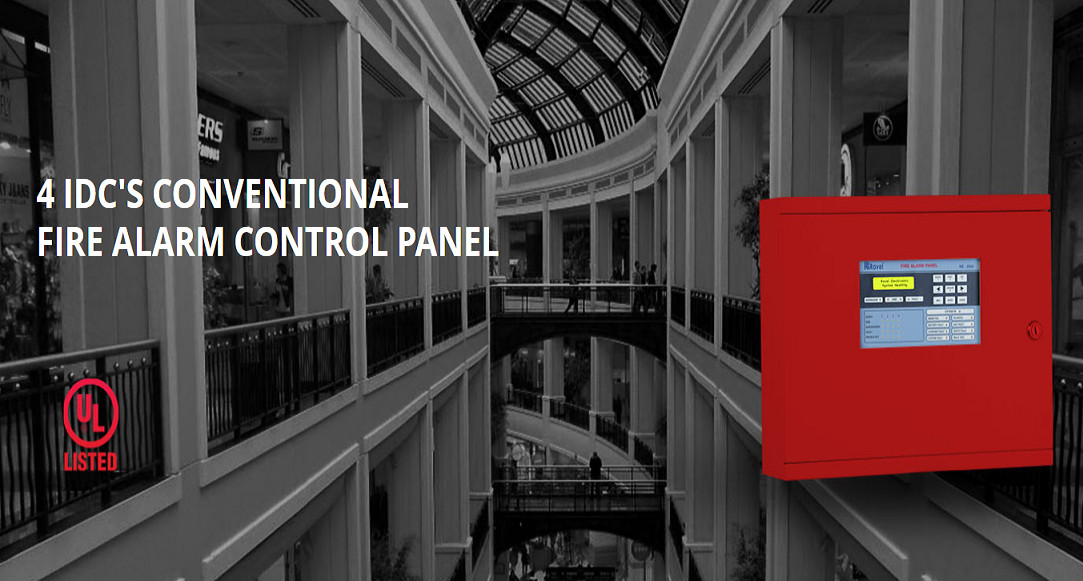

Ravel Fire Alarm Control Panel Conventional 4 Zone C/Red UL-Listed
corp2018
US
$296
DESCRIPTION
Fully complies with UL -864 and NFPA-72.
Rugged CRCA sheet with powder coated finish.
Operates on 110 - 220VAC 50 /60 Hz, AC mains power supply.
16x2 Dot Matrix LCD display.
4/8 Class B Style ?B ? or Style ?C? Initiating Device Circuit (IDC).
All zones accept smoke detectors and normal open contact devices.
Any zone can be configured as alarm or supervisory zone.
2 Class B Notification Appliance Circuits (NAC).
NAC shall be programmed as silenceable or non-silenceable.
Supervisory zone shall be latching or resettable.
Standby (battery) backup 24VDC power supply with built in charger.
Error free Fire / Fault status in unambiguous colored LED indication.
System ON indication.
Main & Standby status with audible and visual indication.
Battery low visual warning with audible tone.
Form C relays for fire, fault and supervisory.
Resettable / Steady 24VDC Output.
RS 485 Communication facility (Optional).
Lamp test facility.
All field wiring circuits are power limited except 110-220VAC and battery.
All field wiring circuits are supervised.
Walk test facility.
Zone isolation facility with loop voltage cut off.
Earth fault annunciation facility at 0 ohms.
AC low voltage cutoff.
Programmable AC loss delay.
Programmable alarm verification.
Programmable trouble reminder.
Special Features
Switched Mode Power Supply.
Modular Construction.
Auto Resettable Fuse.
Surge Protection for all Input and outputs.
Battery polarity reversible protection.
Surface Mount Technology.
Over all current consumption is low.
