1.Package included
Same As the Picture
2. Note
Before buying or installing the window regulator&motor Assembly, please confirm that this item is suitable for your vehicle to avoid a bad shopping experience for you.
3.What is a Window Regulator in a Car?
A window regulator is a mechanical device in a car that is responsible for raising and lowering the windows. It is a crucial component of a car's power window system. The window regulator converts the rotational motion of an electric motor into linear motion, which raises and lowers the window.
4.The Working Principle Of Window Regulator
- A car's window regulator converts an electric motor's rotational motion into linear motion, which raises and lowers the window. When the driver or passenger activates the switch on the door panel, an electrical signal is sent to the motor. The motor rotates, and the gear assembly moves the window along the track.
- The track is a guide that the window moves along and is responsible for keeping it in the correct position as it moves up and down. The window is attached to the regulator mechanism, which is the part that moves the window up and down. The gears and motor are all part of the regulator mechanism, hence the name window regulator.
- The window regulator is a crucial component of a car's power window system, as it allows the driver and passengers to control the windows with a button and ensures that the window is in the correct position when it's closed and opened.
5.How to Test a Window Motor?
- To gain access to the motor connector, remove the door panel by taking out screws and pressure clips. Some panels are difficult to remove than others, and the procedure you use will depends on your particular car
- Disconnect the wire connector that goes to the motor
- Set the multimeter to the volt scale
- Connect the multimeter probes to the window motor connector
- Press the window switch down and observe the readings. It should indicate 12V
- Press the up switch and again observe the multimeter. It should read -12V to indicate a change of polarity
6.How to Replace a Window Regulator on Your Car?(For reference only, highly recommended professional installation)
Window Regulator Replacement Steps
Step 1 Remove Window Regulator
Cars use either manual or power windows, so we will look at how to remove both types. Here is the window regulator removal process when you have either mechanism.
How to Remove a Manual Window Regulator?
- Start by disconnecting the battery. Next, remove the crank by taking out the screw that holds it to the door. After the crank is out, remove the door panel by prying it with a screwdriver. Many cars will have a moisture barrier. Remove it as well.
- Detach the glass from the regulator mechanism by removing the clips or bolts that fasten it. Hold the glass up using painter’s tape or suction cups. You can now take out the bolts that secure the window regulator to the door. In some cars, you may need to remove rivets by drilling then out.Slide the mechanism out.
?How to Remove a Power Window Regulator?
- Disconnect the battery. Using a screwdriver, pry loose and remove the window regulator switch and detach its electrical connector. Cars with power windows will have several other fittings in the way. Remove them before proceeding.
- Next, remove the door panel and the weather barrier beneath it. Then, disconnect the window regulator motor connector. Remove the bolts or clips that fasten the window to the regulator assembly.
- Lift the window all the way up and secure it away from the mechanism with tape (painter’s tape) or any other secure safe way. After that, remove the old window regulator by unfastening the bolts (or any other fasteners) that hold it to the door. Take the entire assembly out
?
Step 2 Install New Window Regulator
Once the old window mechanism is out, it’s time to install the new one. Grease the assembly first to ensure smooth operation and prevent rust or wear. Let’s now see how to replace a window regulator, both manual and powered.
How to Install a Manual Window Regulator?
Insert the new assembly into the door space. Position it inside the door and lower the glass that you had held with tape. Next, attach the window to the regulator by replacing the fasteners as before. Bolt the window regulator to the door frame. Replace the weather barrier and the door panel. Lastly, replace the crank and rotate it to test the new window. Replace the battery cable.
How to Install an Electric Window Regulator?
- Start by attaching the window regulator mechanism to the motor if the motor was removed earlier. If the motor is part of the assembly, the new mechanism will have it in place. Next, push the window regulator into the door space and align it with the mounting holes. Insert and tighten the bolts to secure the regulator assembly.
- Once the window regulator is in place, lower the glass and attach it using the fasteners that you had removed earlier. Replace the weather barrier. Reconnect the motor connector and replace the switch. Finish by replacing the battery cable and testing your new window regulator.
| Item Specifics | |
|---|---|
| Type | Regulator & Motor Assembly |

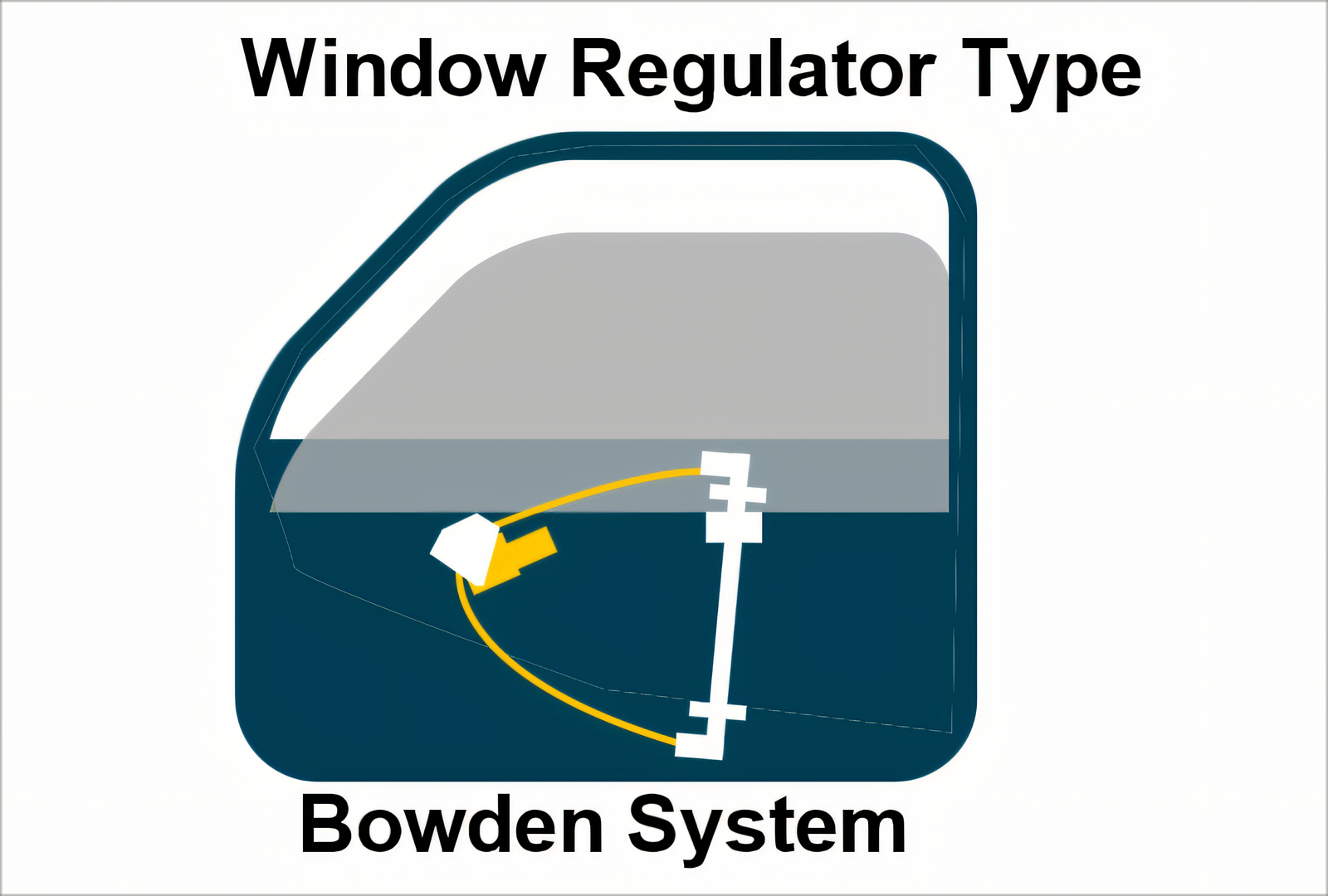

| Part Type | Rear Left Driver Side Bowden Window Regulator & Motor Assembly |
| Window Regulator Style | Factory |
| Window Regulator Motor Included | Yes |
| Placement on Vehicle | Rear Left |
| Number of Pieces | 1 |
| Package Included | Same AS The Picture |
| Packaging Style | Box |
| Model | For X5 Sport Utility 4-Door Only |
| Window Regulator Working Principle | Moves a window up and down when power is supplied to an electric motor or with manual windows the window crank is turned. |
| Window Regulator Parts Structure | Drive Mechanism Lifting Mechanism Window Bracket |
| Operating Mode | Electric |
| Gear Material | ABS Plastic |
| Material | Stainless Steel Plastic |
| Color | Same AS The Picture |
| Attachment Type | Bolt On |
| Fitment Type | Direct Replacement |
| Manufacturer Warranty | 5 Years |
| Universal Fitment | Yes |
| Performance Part | Yes |
| Vintage Part | Yes |
| Item Weight | 1.69 kg / 3.72476 lb |
| Instructions & Mounting Hardware Included | Not Included |
| Fitment | Verify this part fits your vehicle using the compatibility chart |
| Finish | Smooth |
| OE/OEM Part Number | 741-412 |
| Interchange Part Number | 741-412 |
| Manufacturer Part Number | APL106075WRM |
| Brand | autoparts_lights-Window Regulator |
| Shipping Address | Shipped from Ontario California |
| Applicable Regions | Auto Window |
Item will be shipped out within 24 hours after payment cleared, except for weekends and holidays.
For Accurate And Fast Service, Please Update Your Shipping Address or Choose The Correct Shipping Address Before Submitting Payment.
All domestic orders will be shipped via USPS, UPS or Fedex from our US warehouse and usually arrives to your door in about 2-7 business days.
All of our brand new items come with a 30-Days money-back guarantee.
Any question, please contact us on working days.
Welcome to autoparts_lights, your ultimate destination for premium automotive parts and accessories! Specializing in eBay Motors, we cater to enthusiasts and everyday drivers alike, offering a vast selection of top-quality components to enhance your vehicle’s performance and style. Explore our extensive categories, where you'll find everything from essential lighting solutions to durable engine parts. Our commitment to quality and customer satisfaction ensures that you receive only the best for your ride. Whether you're upgrading your car or maintaining it, autoparts_lights is here to illuminate your journey. Experience seamless shopping and expert advice – drive with confidence!
Rear Left Driver For 2000-2006 BMW X5 E53 SUV Power Window Regulator & Motor
