Features:
◆Bus Truck Trailer 4 Pin Rear View Reverse Camera
◆1/3 inch CCD image sensor, 2.8mm lens
◆With IR LEDs used in dark up to 33-50ft (Night Vision Automatic)
◆Built-in IR-CUT, eliminate chromatic aberration at day time
◆DC 12V-DC24V power
◆140 degree view angle
◆IP69 Waterproof
◆Easy and safe to mount
! The camera is no guide line, rear view mirror image and tv system is PAL.
Specification:
● TV system: CVBS-PAL
● Horizontal Resolution: 1000 TV Lines
● Waterproof: IP69
● Auto Gain Control: Auto
● Usable Illumination: 0LUX with 14 IR LED
● IR project distance: 50 fit
● Connector: 10mm 4Pin
● Video Output:1.0Vp-p 75Ω, Negative
● Electronic Shutter Time: Auto: PAL 1/50-1/100,000Sec
● Gamma Characteristic: 0.45
● The lens focal length: 2.8mm
● White Balance: Auto
● Scanning System: PAL 625 Lines 50Field/Sec
● Sync System: Internal Synchronization
● Power Supply: DC12V -DC24V, 250mA
● Size: as picture shown
● Operation Temperature: -10℃- +50℃ RH 95% Max
● Storage Temperature: -20℃- +60℃ RH 95% Max

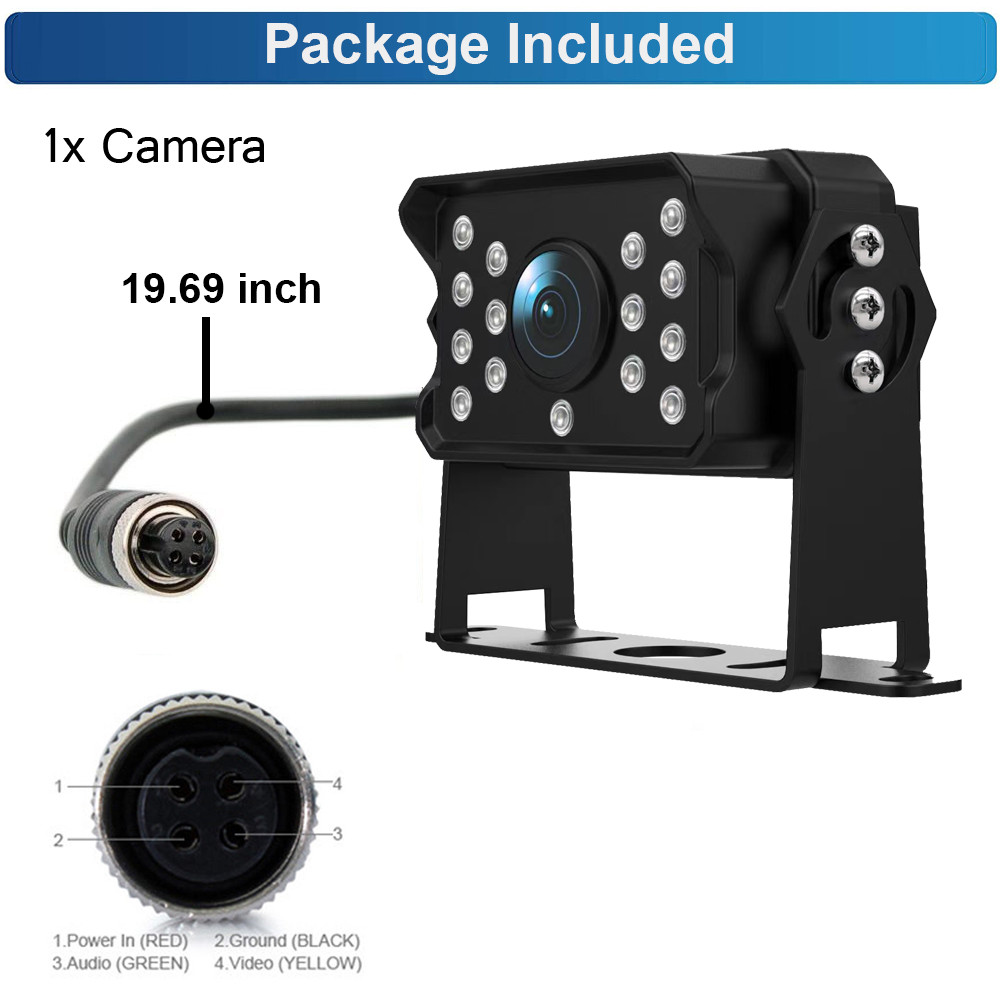

Package included: 1 x 4 Pin Rear View Camera
