Renishaw TP20 Touch Probe and Medium Force Module Fully Tested with Warranty

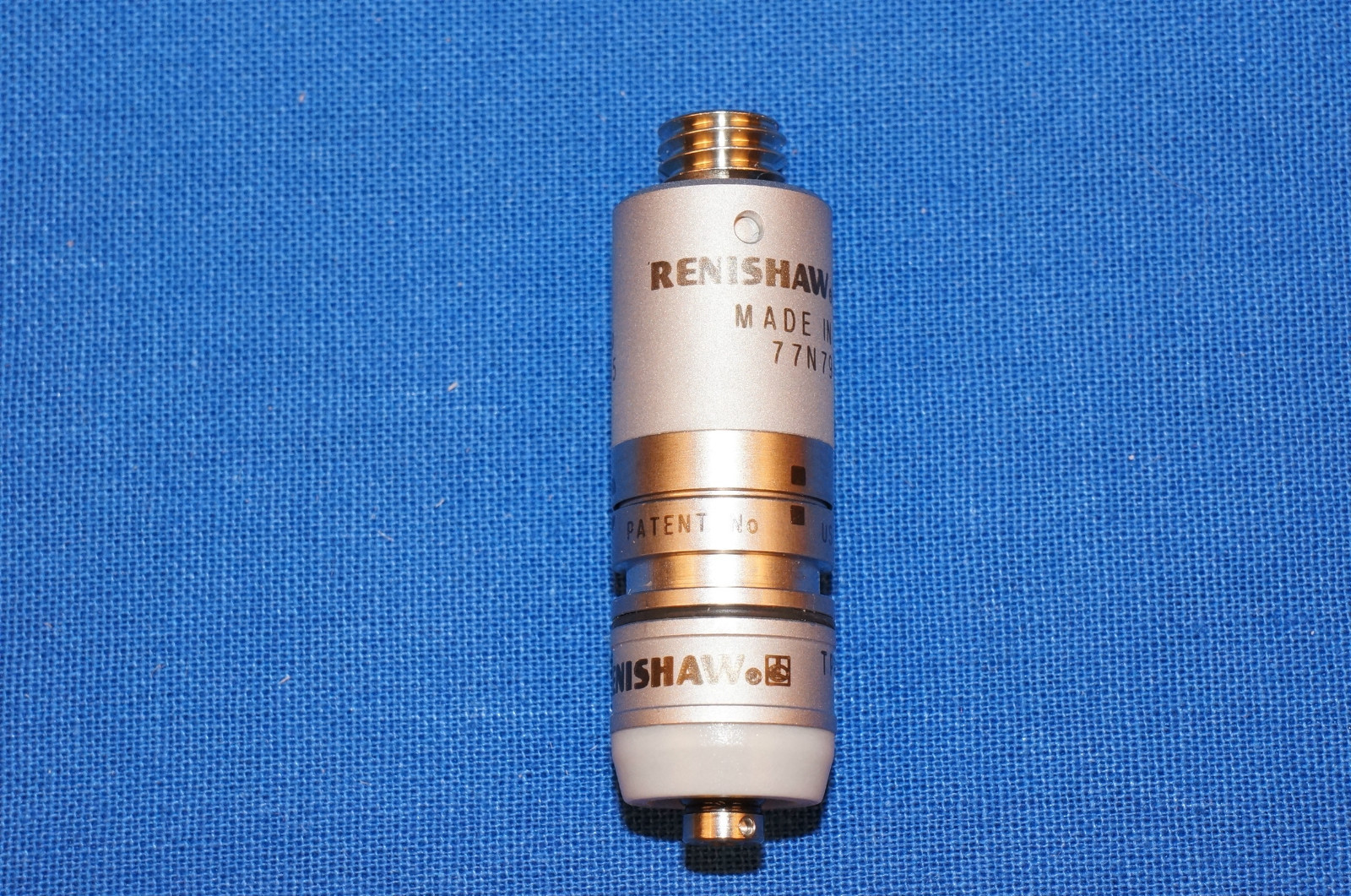

Fully Tested Renishaw TP20 Body and One Medium Force Stylus Module with 90 Day Warranty.
This probe has been tested and guaranteed to meet Renishaws original specifications.
If your application requires an NI body or other than the Medium force stylus module please contact us for availability.
About TP20
The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines.
Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range.
The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors.
System components
The system components are:
- TP20 probe body
- TP20 probe module - seven variants allow optimisation to suit application
- MCR20 module changing rack - automatic operation
- MSR1 module storage rack - manual operation
- Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200
TP20 specification
| Sense directions |
All modules except 6W 6W |
±X, ±Y, +Z ±X, ±Y, ±Z |
| Suitable interface | PI4-2, PI7-2, PI200, UCC | |
| Pre-travel variation |
LF SF / EM1 / EM2 MF EF 6W |
±0.60 µm (± 0.000023 in) ±0.80 µm (± 0.000032 in) ±1.00 µm (± 0.000039 in) ±2.00 µm (± 0.000079 in) ±1.50 µm (±0.000058 in) |
| Unidirectional repeatability |
LF / SF / EM1 / EM2 MF EF 6W |
±0.35 µm (± 0.000014 in)
±0.50 µm (± 0.000020 in) ±0.65 µm (± 0.000026 in) ±0.80 µm (± 0.000032 in) |
| Repeatability of stylus changing |
MCR20 Manual |
±0.50 µm (± 0.000020 in)
±1.00µm (± 0.000040 in) |
| Stylus range | M2 | |
| Mounting method | M8 thread |
Probe modules
A range of seven, application specific, probe modules is available and are identified by coloured caps.
| Module | Application | Trigger forces | Stylus lengths | |
|---|---|---|---|---|
| SF - Standard force |  |
Suited to the majority of applications |
XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 - 50 mm GF |
| LF - Low force |  |
Low trigger forces applications - e.g. rubber seals |
XY: 0.055 N Z: 0.65 N Stylus: 10 mm |
10 - 30 mm |
| MF - Medium force |  |
Where a higher trigger force than standard is required |
XY: 0.1 N Z: 1.9 N Stylus: 25 mm |
10 - 60 mm |
| EF - Extended force |  |
Large stylus assemblies or where vibration causes spurious 'air' triggers |
XY: 0.1 N Z: 3.2N Stylus: 10 mm |
10 - 60 mm |
| 6W - 6-way |  |
Measurement in the -Z direction - e.g. undercuts |
XY: 0.14 N Z: 1.6N Stylus: 10 mm |
10 - 50 mm |
| EM1 STD - 50 mm extension |  |
Majority of applications requiring a 50 mm extension |
XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 - 50 mm |
| EM2 STD - 75 mm extension |  |
Majority of applications requiring a 75 mm extension |
XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 - 50 mm |
This is by far the best price you will find for a Renishaw TP20 body with one Medium force stylus module with warranty
Why pay retail when you can purchase with warranty from Metrology parts.
Purchase with confidence from a Paypal verified retailer with 90 Day Warranty.
If what you order is not what you receive you will be refunded the full purchase price for this sale.
Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs.
If your application for this item requires expedited shipping please contact us prior to purchase and we will do our best to accommodate your needs.
If you have any questions feel free to contact us. With 32 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support.
