Round Rocker Switch 12V Black On Off On Mini Circle Switch 3 Pin 250V 6A 125V 10A KCD1 Round Toggle Switches for RV Car Truck Boat (Pack of 10pcs)
Product Details
Style: 10Pcs 3 Pin ON/OFF/ON - Black
Brand: VEXUNGA
MPN: vr-3 Positie 3p-Zwart
UPC: Does not apply
EAN: Does not apply
- Operation Mode: ON-OFF-ON
- Current Rating: 6 Amps
- Operating Voltage: 125250 Volts
- Contact Type: Normally Closed
- Connector Type: Clamp
- Brand: VEXUNGA
- Terminal: Screw

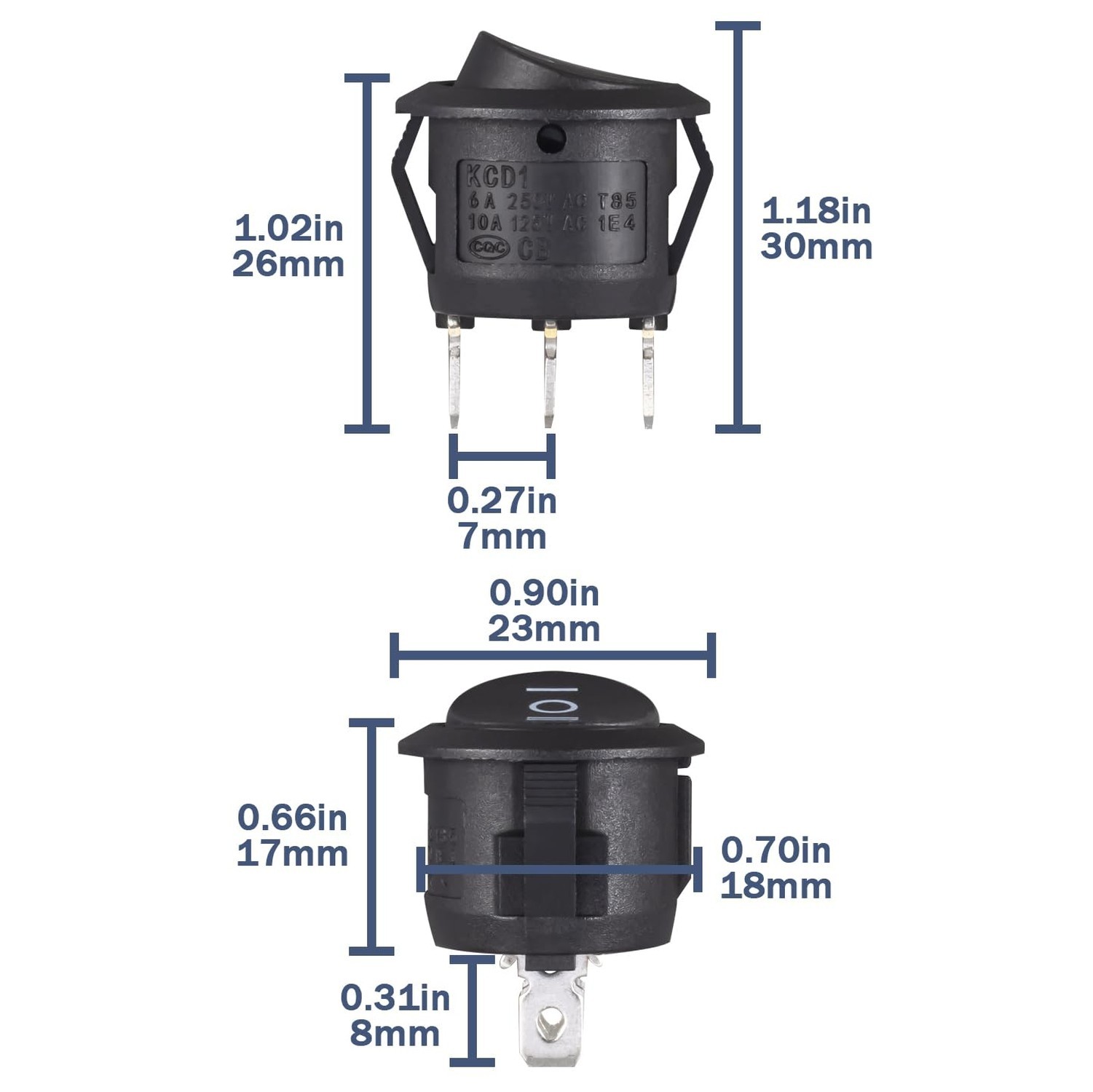

- Item dimensions L x W x H: 1.02 x 0.79 x 0.71 inches
- Circuit Type: 3-way
- Contact Material: Copper
- Product Dimensions : 1.02 x 0.79 x 0.71 inches; 2.4 ounces
- Date First Available : October 12, 2024
- Manufacturer : VEXUNGA
- Best Sellers Rank: #48,334 in Automotive (See Top 100 in Automotive) #126 in Automotive Replacement Toggle Switches
- #126 in Automotive Replacement Toggle Switches
- Customer Reviews: 4.6 4.6 out of 5 stars 110 ratings
- VEXUNGA 3 pin black round rocker switch
- Rated current & voltage: 6A 250V AC / 10A 125V AC
- Circuit properties: 3 position ON-OFF-ON (ON/OFF/ON); Type: SPDT; Installation hole: approx. 20mm
- Material properties: The round rocker switch is made of sturdy plastic. Rocker rocker switches are small but practical. With contact plugs made of conductive metal, they can be quickly installed without soldering and are suitable for use in the home (6A 250V) or in the car (12V)
- What you get: 10pcs black switches in a sturdy and easy-to-carry box
VEXUNGA 3 pin circle toggle switch (On/Off/On) Product parameters Material: plastic Contact resistance: ≤50M Ω Insulation resistance: ≥100M Ω Dielectric strength (between poles): 1500VAC / 5S Electrical life: 10,000 cycles Operating temperature: -25°C - 85°C Mounting type: snaps into place when inserted Contact material: silver-plated copper Shell material: flame- retardant shell Area of application: Whether in the home as an on/off/on switch, in the car (12V) or in the hobby & craft sector. The circle toggle switches can be used in many ways. The self-locking mechanism ensures that every single switch retains its position after being operated (for example when switching on) until it is operated again (for example to switch off). e.g. to switch lights or motors. How do you install? -Insert into the prepared drill holes (20mm) and secure by snapping into place. (Benefited from the spring clips on the side of the switch, installation is quick and easy) No soldering required - simply attach to the contact plugs and the switch can be connected to the power source. Note: Please switch off before installation. Packing list: 10 x KCD1 black round rocker switch
