Product Features:

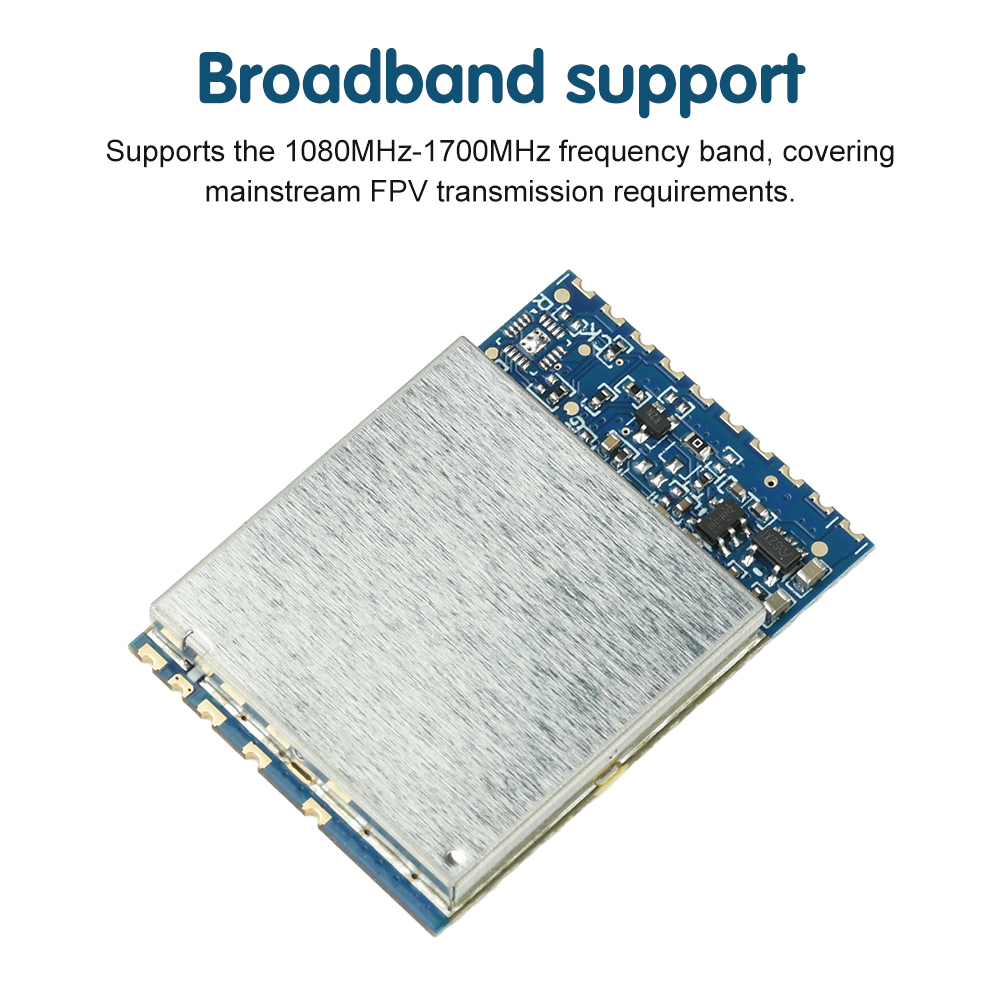

1. Supports 1080MHz-1700MHz frequency bands, covering mainstream FPV transmission needs.

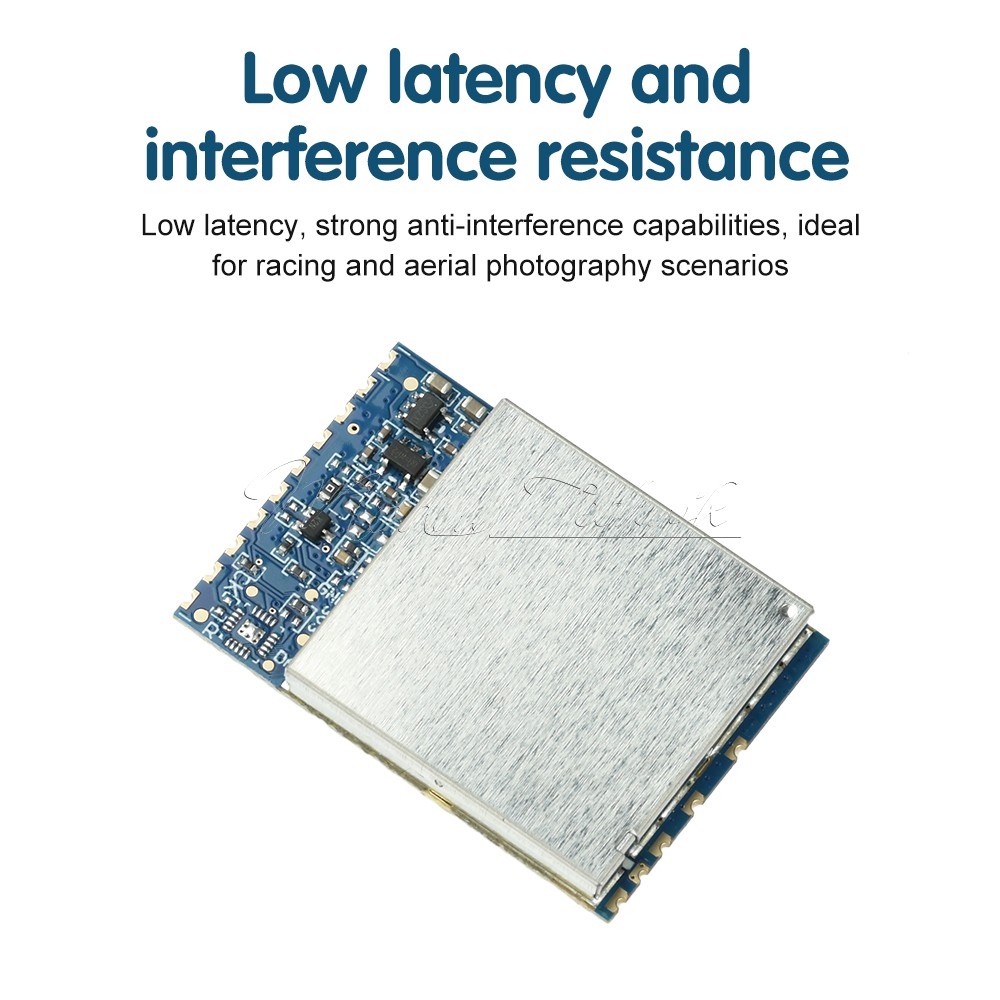

2. Low latency and strong anti-interference capabilities, ideal for racing and aerial photography scenarios.

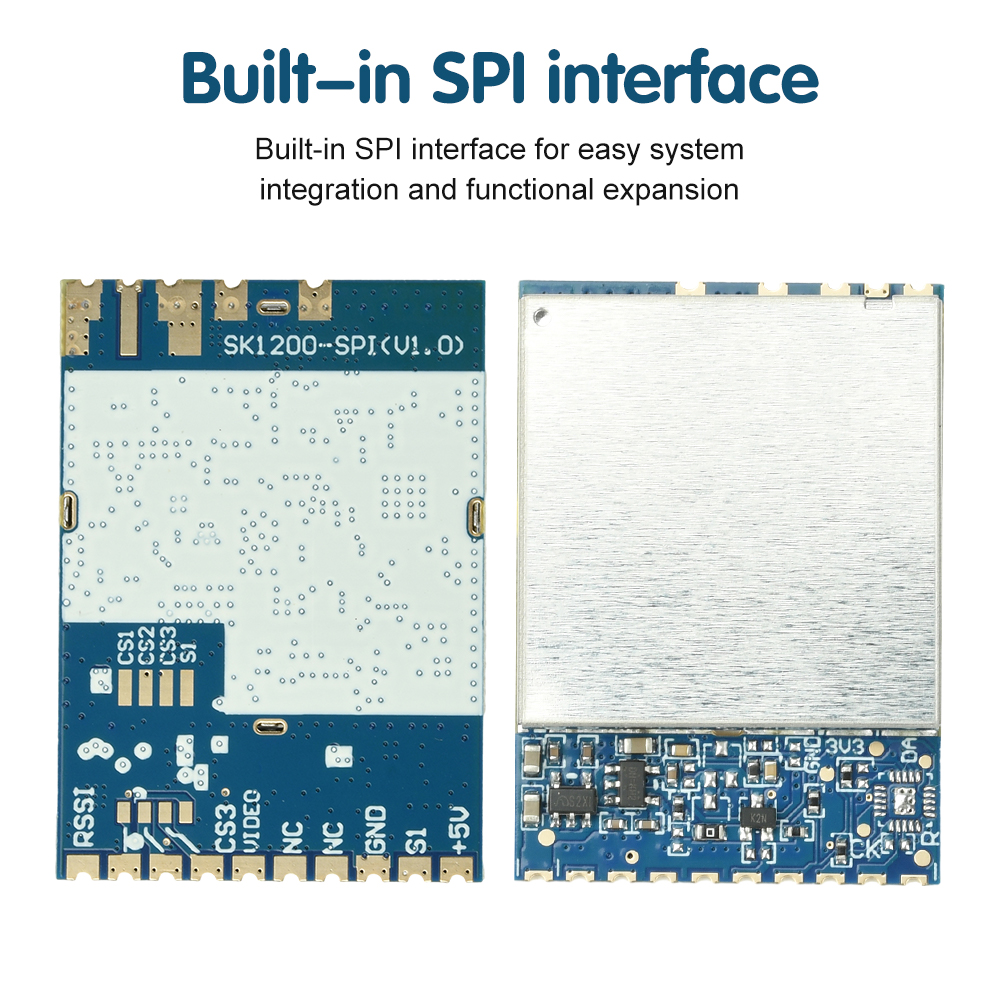

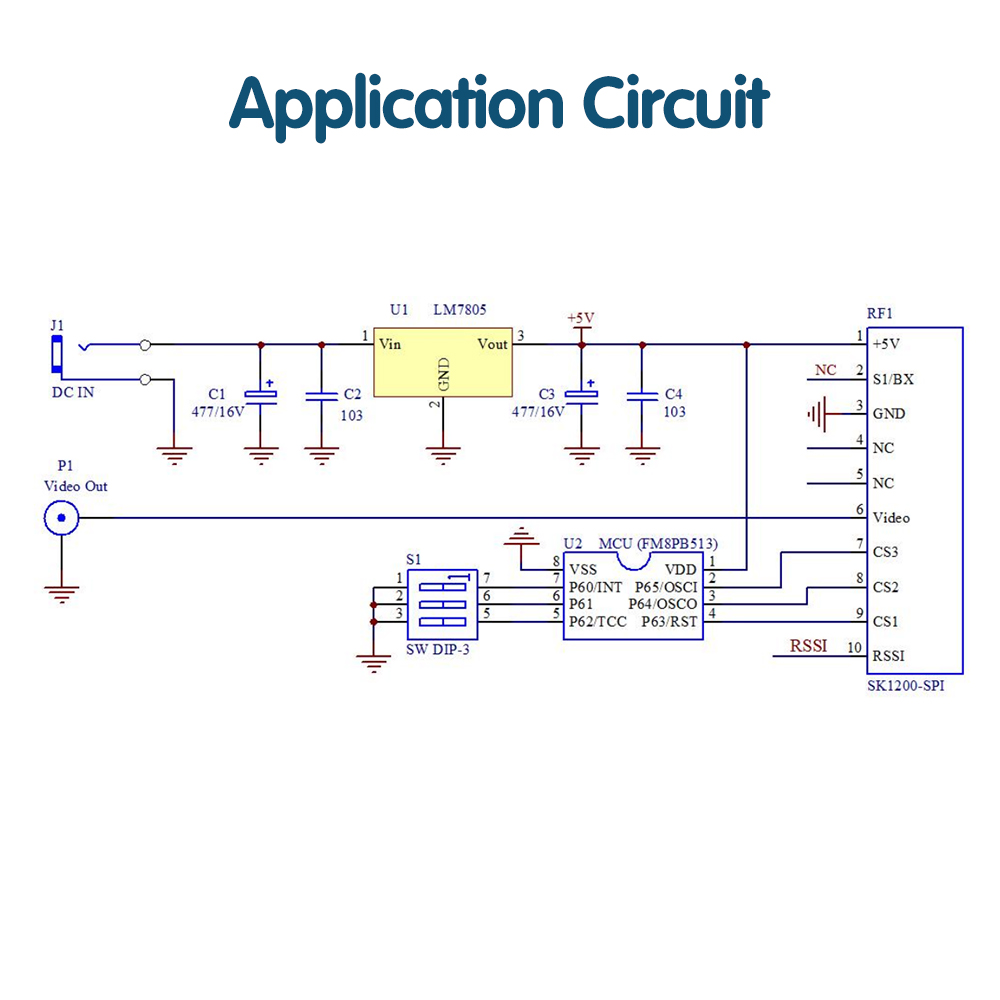

3. Built-in SPI interface for easy system integration and functional expansion.

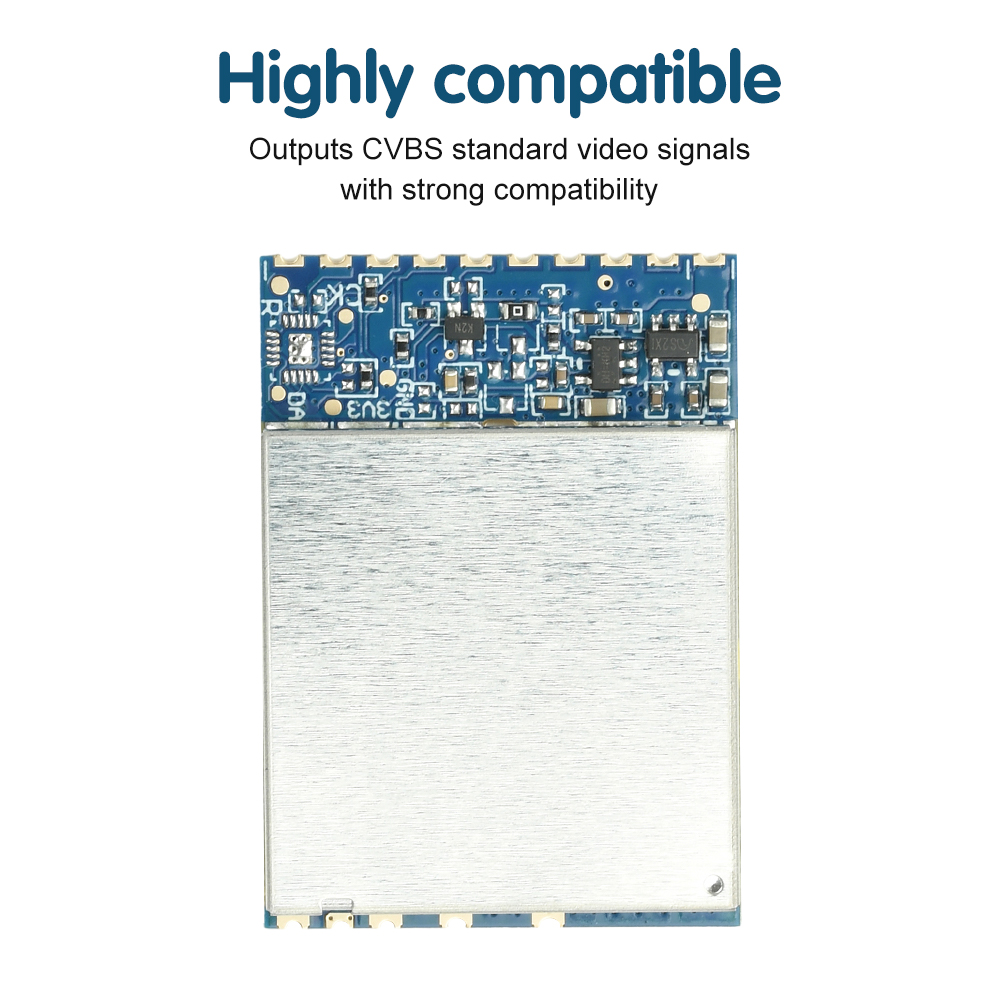

4. Outputs standard CVBS video signal with high compatibility.

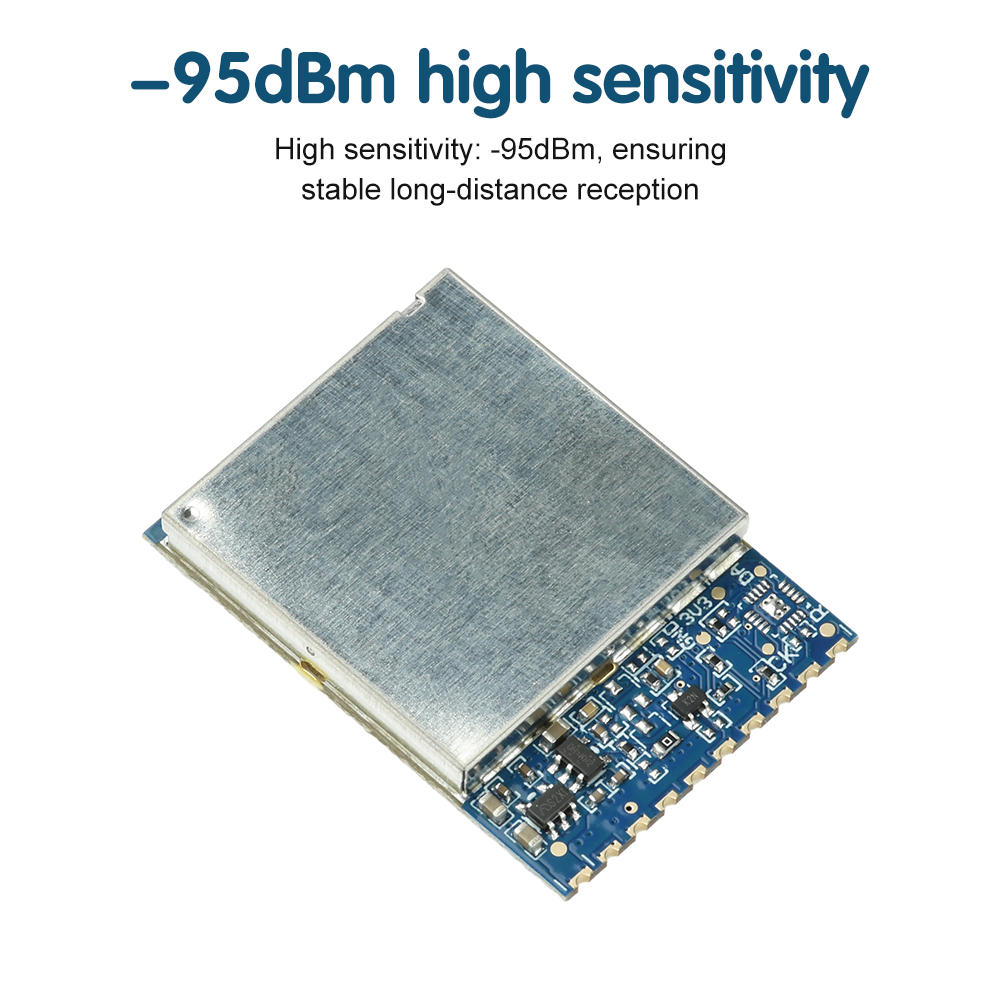

5. High sensitivity (-95dBm) ensures stable long-range reception.

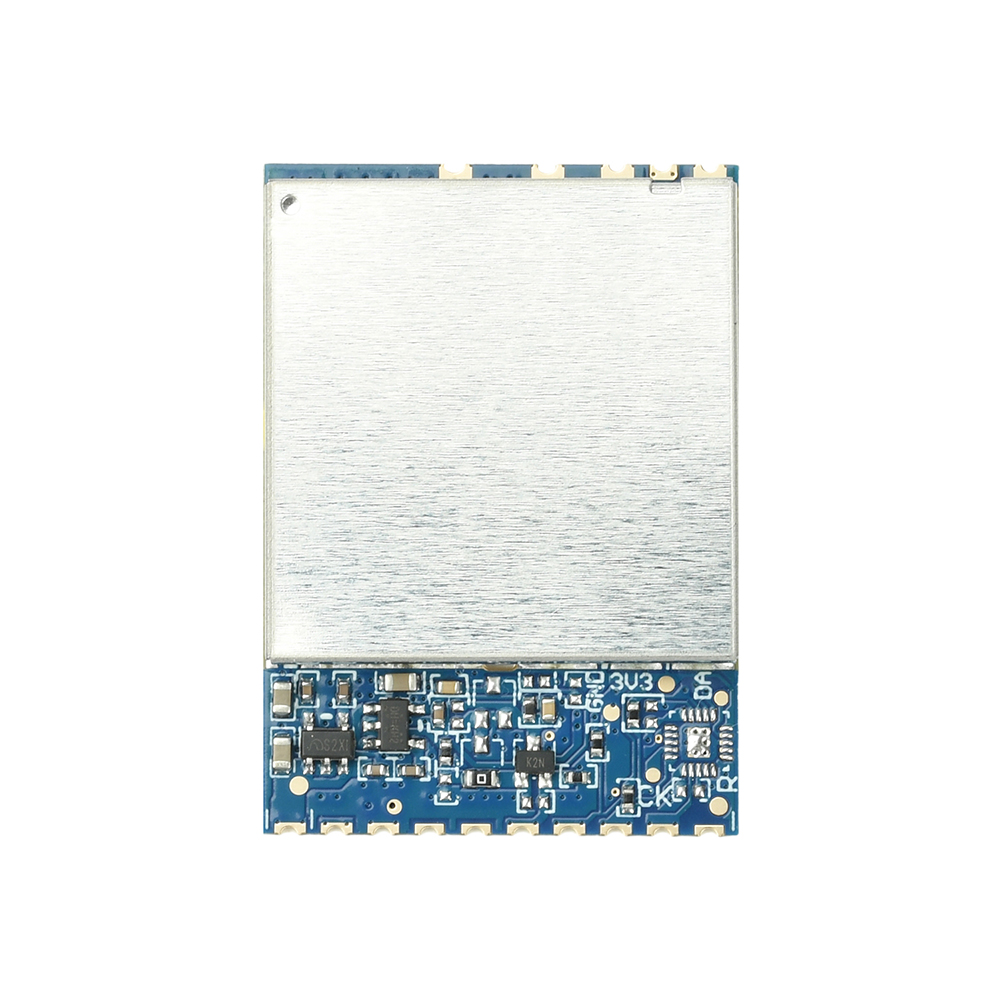

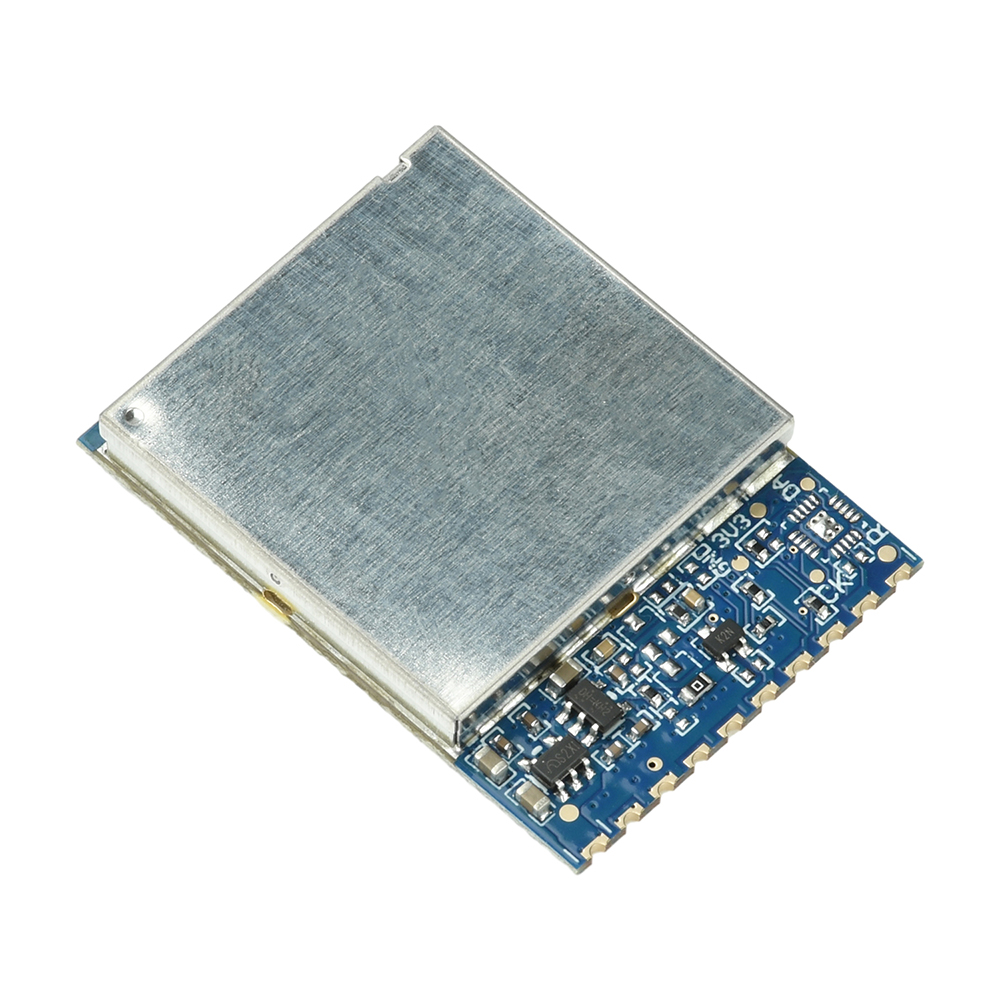

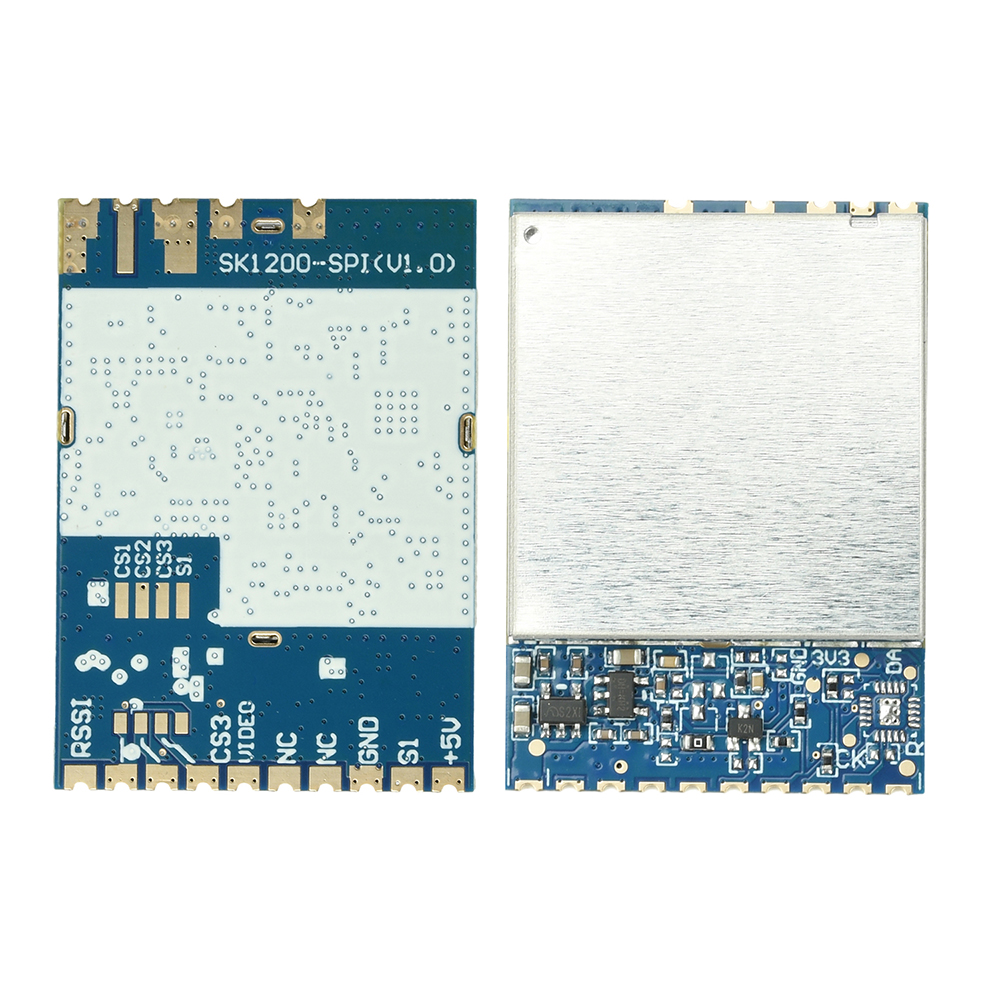

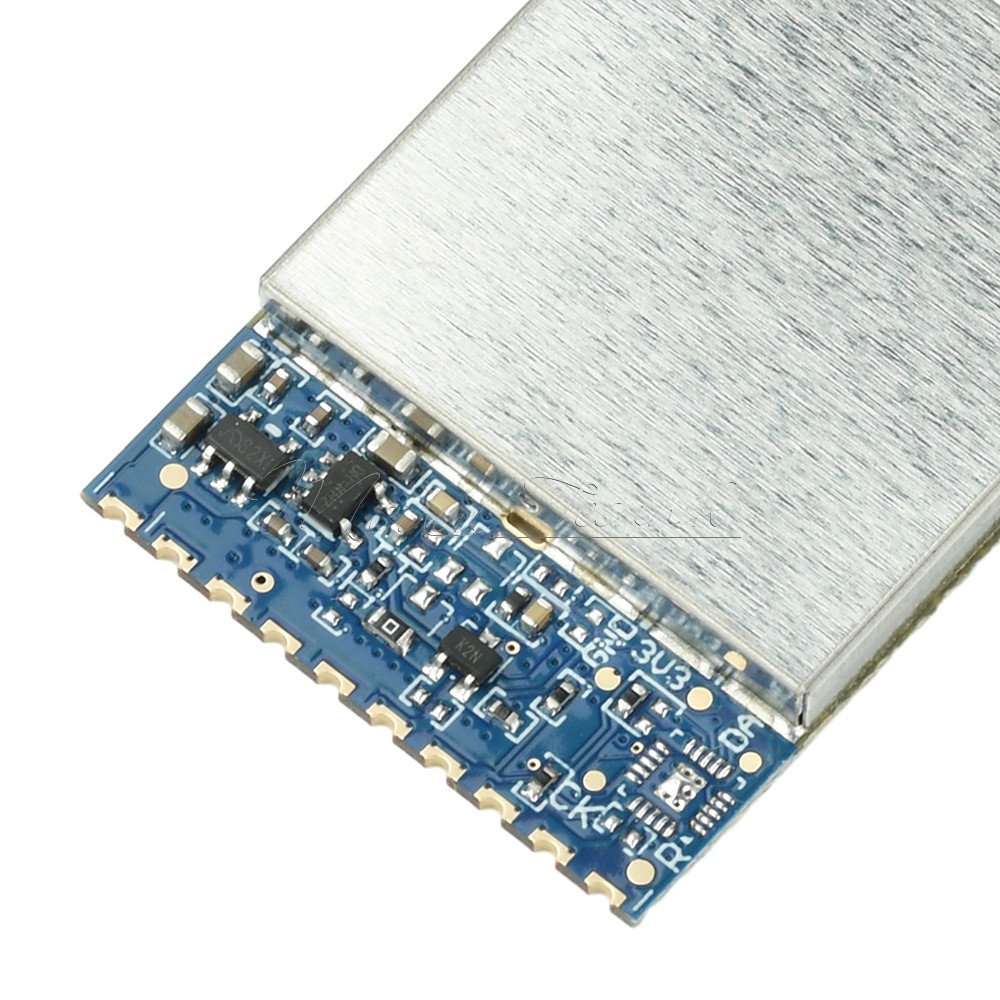

Product Introduction:
The SK1200-SPI is a CVBS signal output module featuring low latency and strong anti-interference capabilities. Widely used in FPV drone flight, outdoor recreation, racing competitions, and professional aerial photography, it allows developers to expand functionality and customize solutions based on existing SPI protocols.

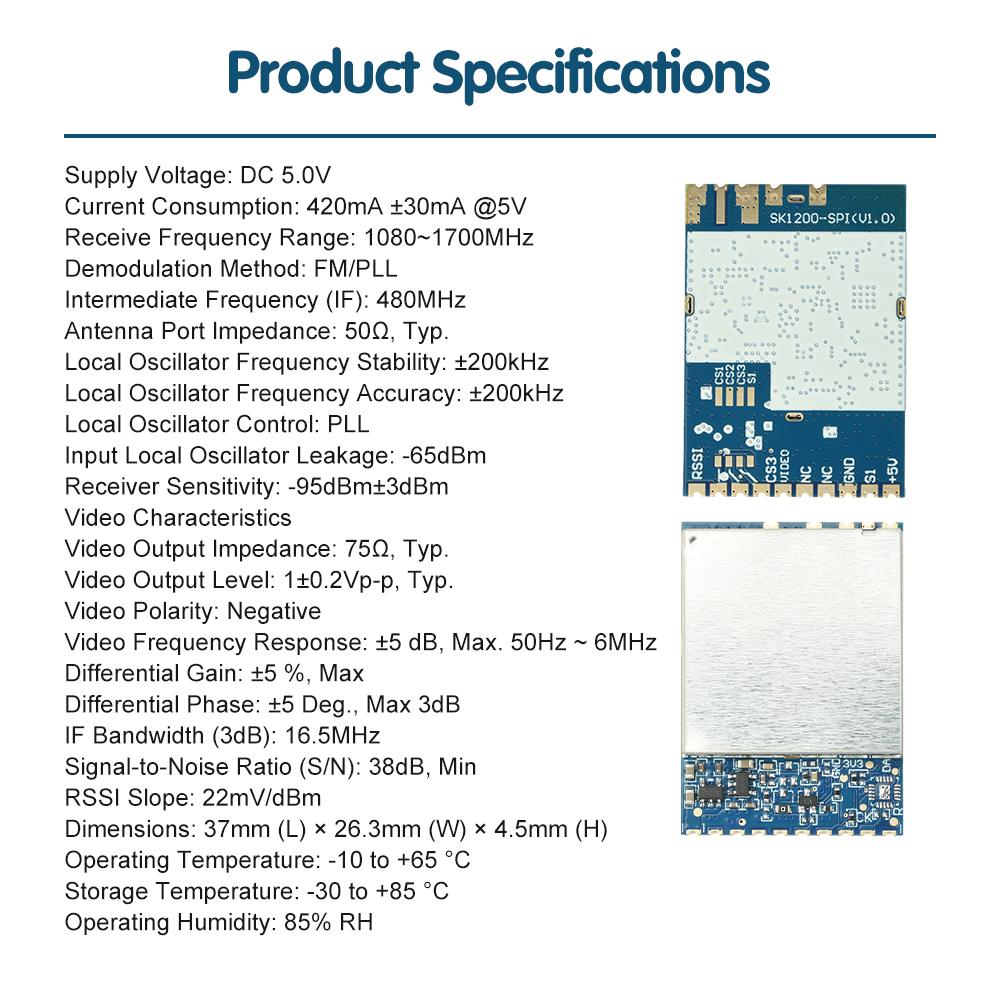

General Specifications:
Supply Voltage: DC 5.0V
Current Consumption: 420mA ±30mA @5V
Receive Frequency Range: 1080~1700MHz
Demodulation Method: FM/PLL
Intermediate Frequency (IF): 480MHz
Antenna Port Impedance: 50Ω, Typ.
Local Oscillator Frequency Stability: ±200kHz
Local Oscillator Frequency Accuracy: ±200kHz
Local Oscillator Control: PLL
Input Local Oscillator Leakage: -65dBm
Receiver Sensitivity: -95dBm±3dBm
Video Characteristics
Video Output Impedance: 75Ω, Typ.
Video Output Level: 1±0.2Vp-p, Typ.
Video Polarity: Negative
Video Frequency Response: ±5 dB, Max. 50Hz ~ 6MHz
Differential Gain: ±5 %, Max
Differential Phase: ±5 Deg., Max 3dB
IF Bandwidth (3dB): 16.5MHz
Signal-to-Noise Ratio (S/N): 38dB, Min

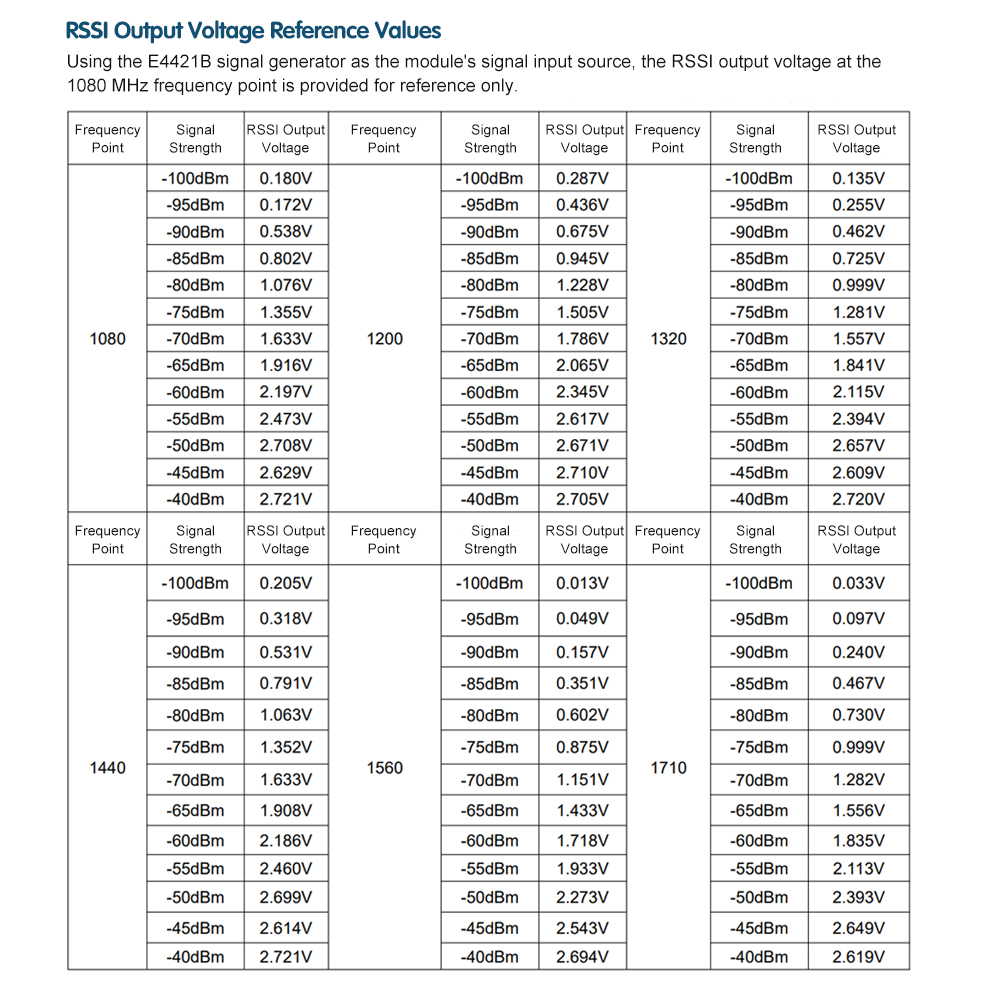

RSSI Slope: 22mV/dBm

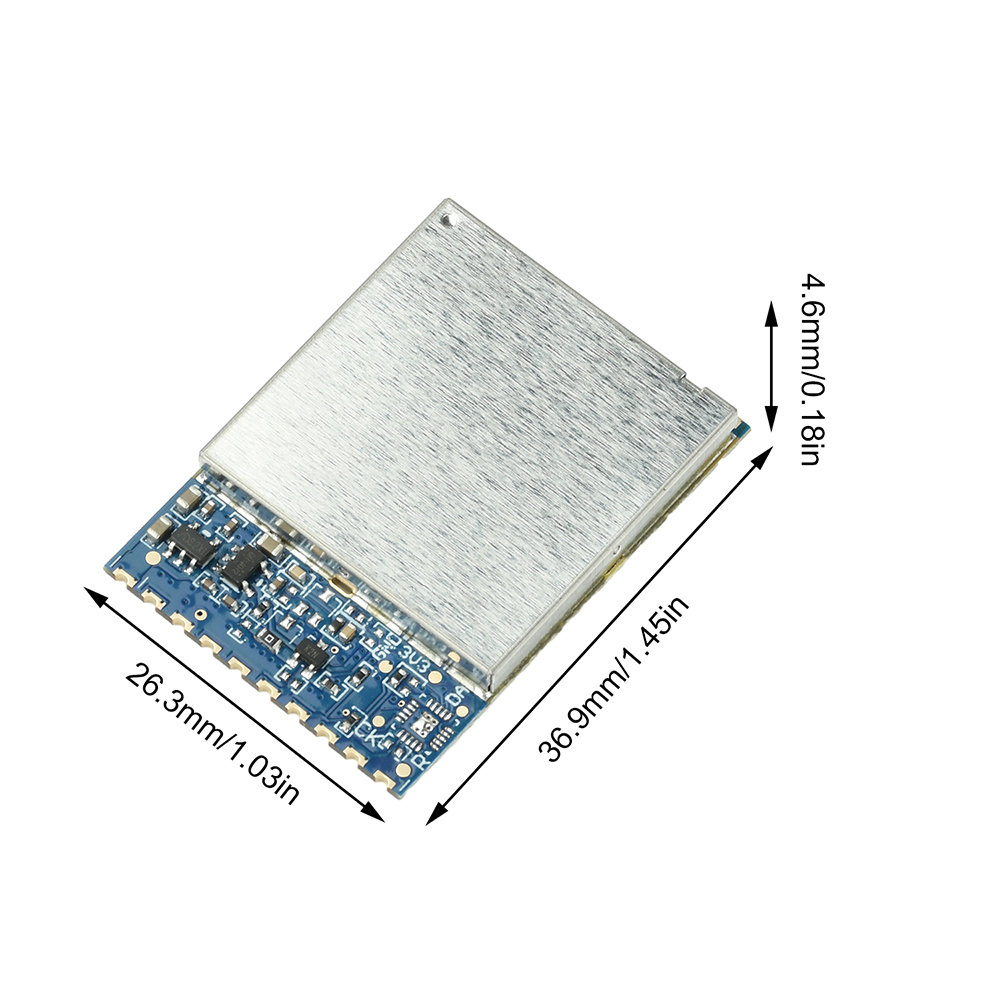

Dimensions: 37mm(L) × 26.3mm(W) × 4.5mm(H)
Operating Temperature: -10 to +65 °C
Storage Temperature: -30 to +85 °C
Operating Humidity: 85%RH
Product Listing:
1X Module
