SSR 25A 3-32V DC To 24-480V AC Single Phase Solid State Relay DC Control AC1373
Description:25A SSR
Input Voltage:3-32VDC
Input Current:DC3-25mA
Output Voltage:24-480VAC
Current Rating:25A
Output:Triac
On Voltage:≤1.5V

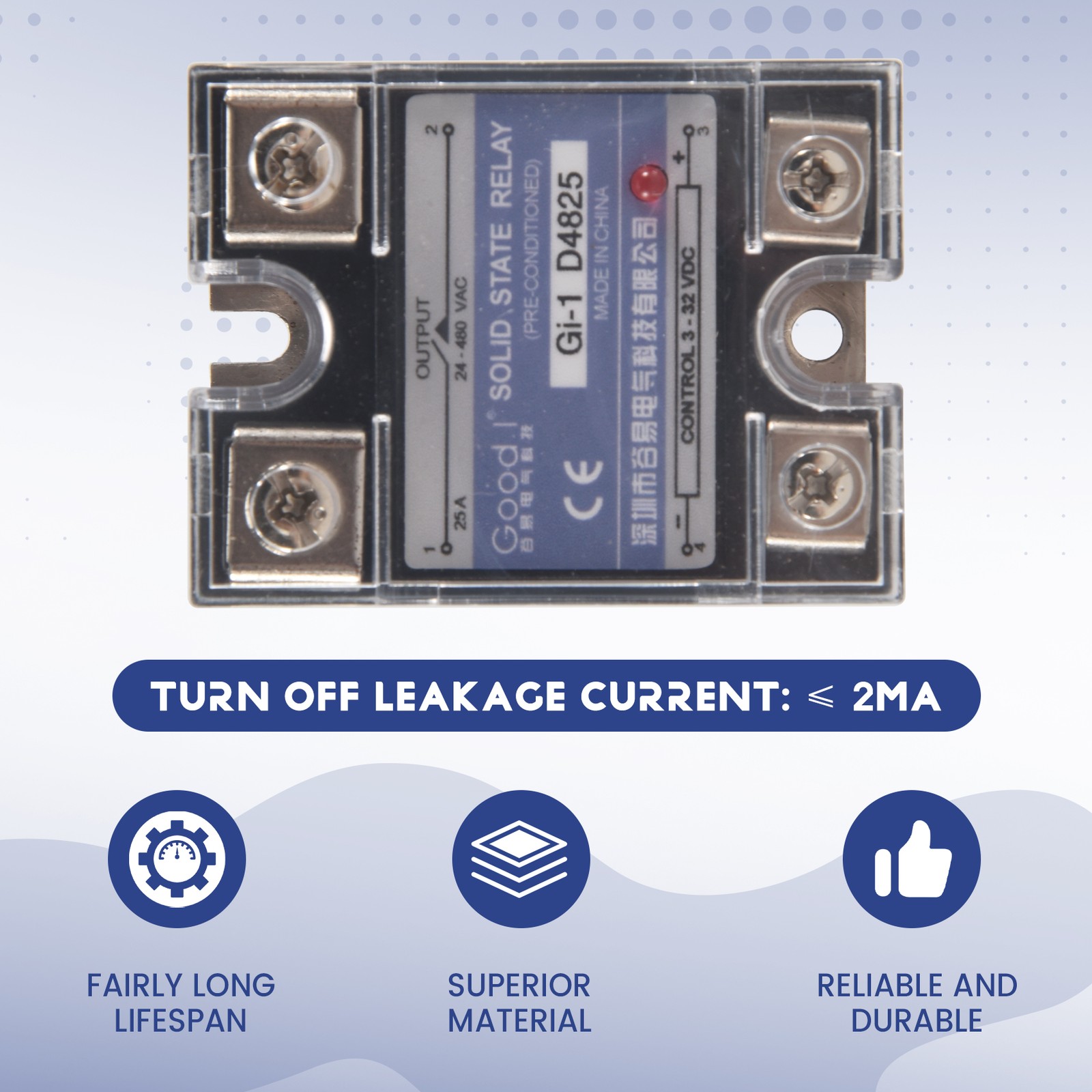

Off Leakage Current:≤2mA
Time:≤10mS
Dielectric Strength:2500VAC
Insulation Resistance:1000MΩ/500VDC
Ambient Temperature:-30~+75 ℃

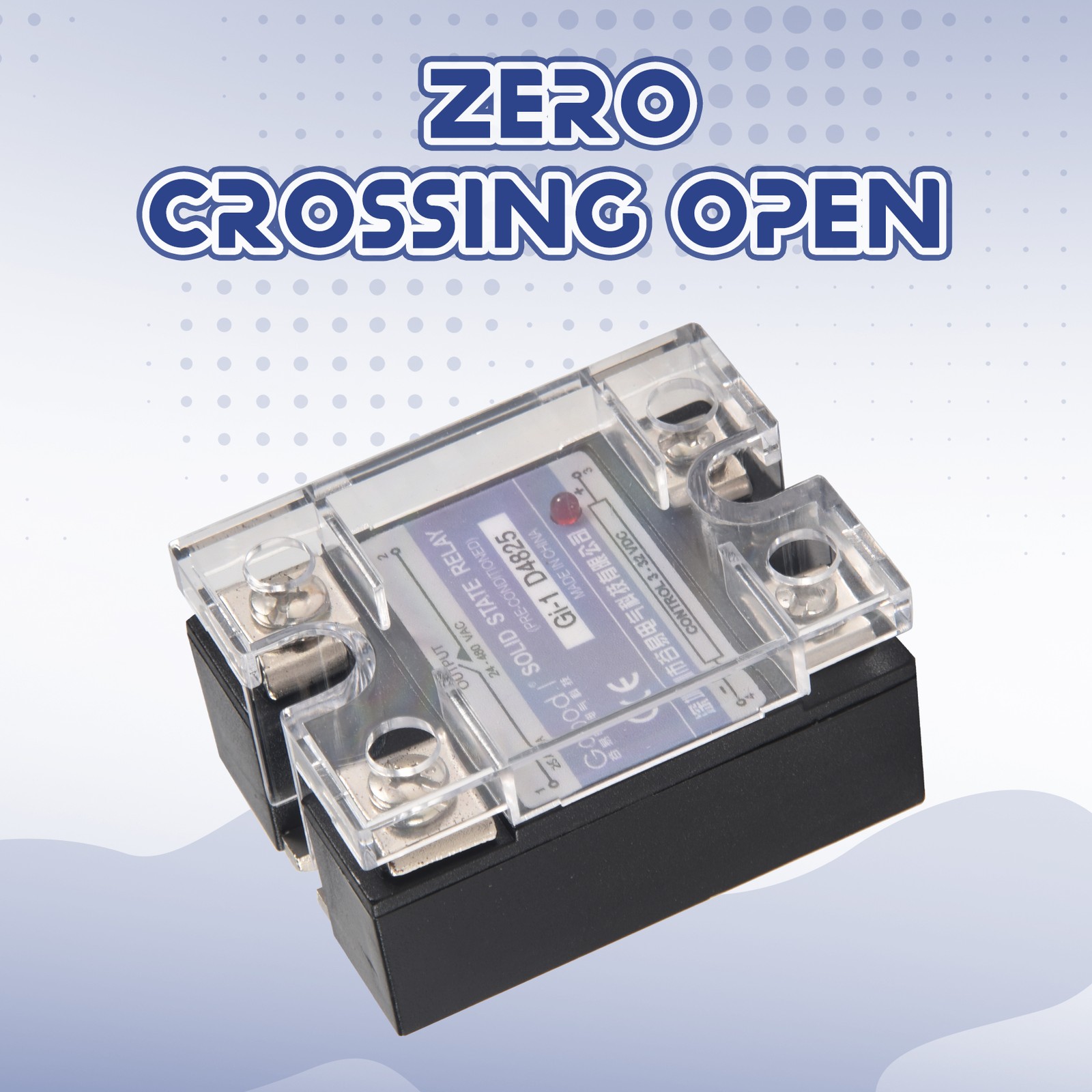

Switch method:zero- turn on

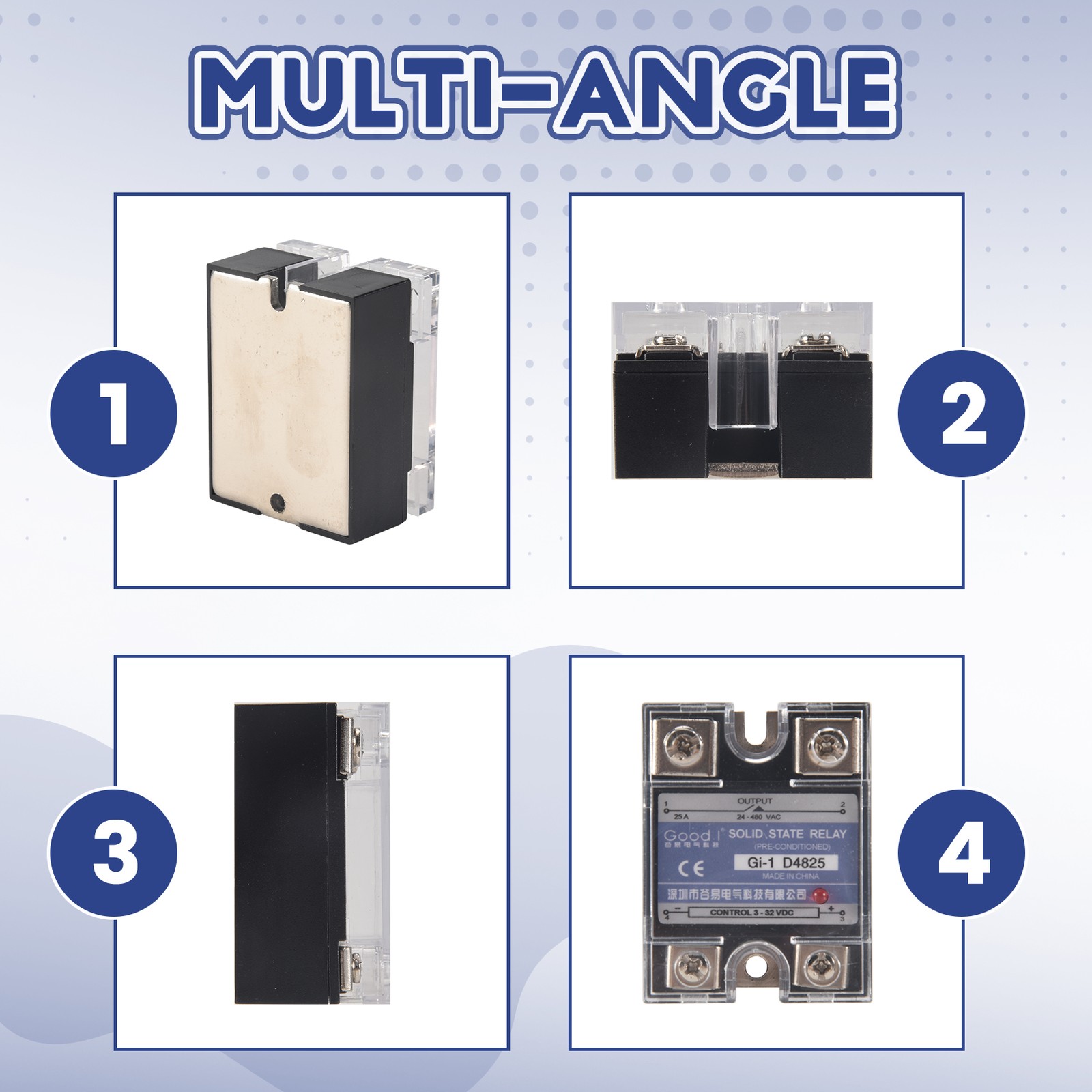

Dimension:2.25 x 1.75 x 1.25 (inch) , 57 x 32 x 45 (mm)
Weight:90g

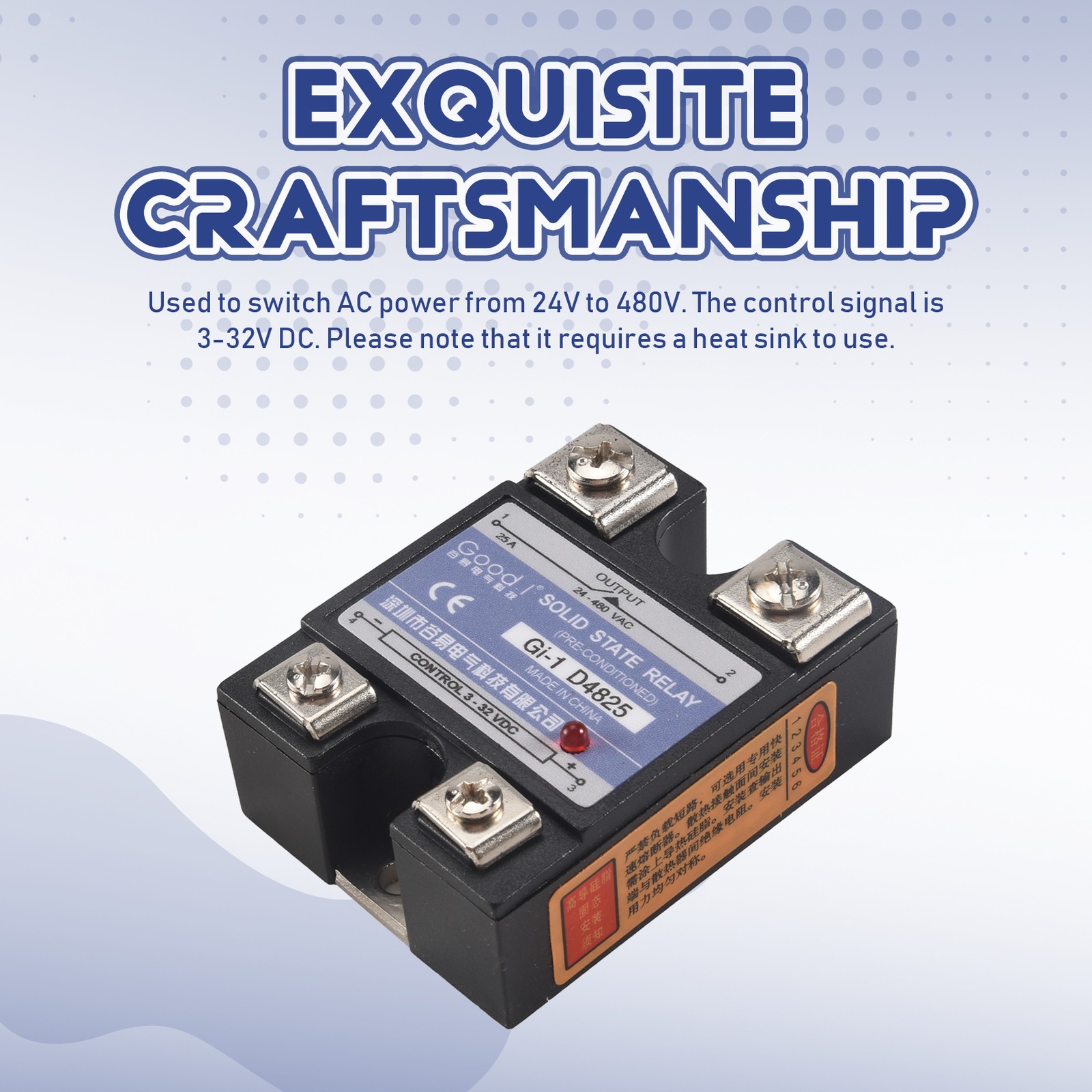

It's for switching AC power source from 24V to 480V. The control signal is 3-32V DC. Please note it needs a heatsink to work with it.
Color: picture color
Material: PC + metal
Package Contents: 1*Single Phase Solid State Relay
Note: To test an SSR, the easiest way is to use a bulb. Please check the following video. A multimeter 't help since there's a small current leakage even if the output of the SSR is open.
