DESCRIPTION

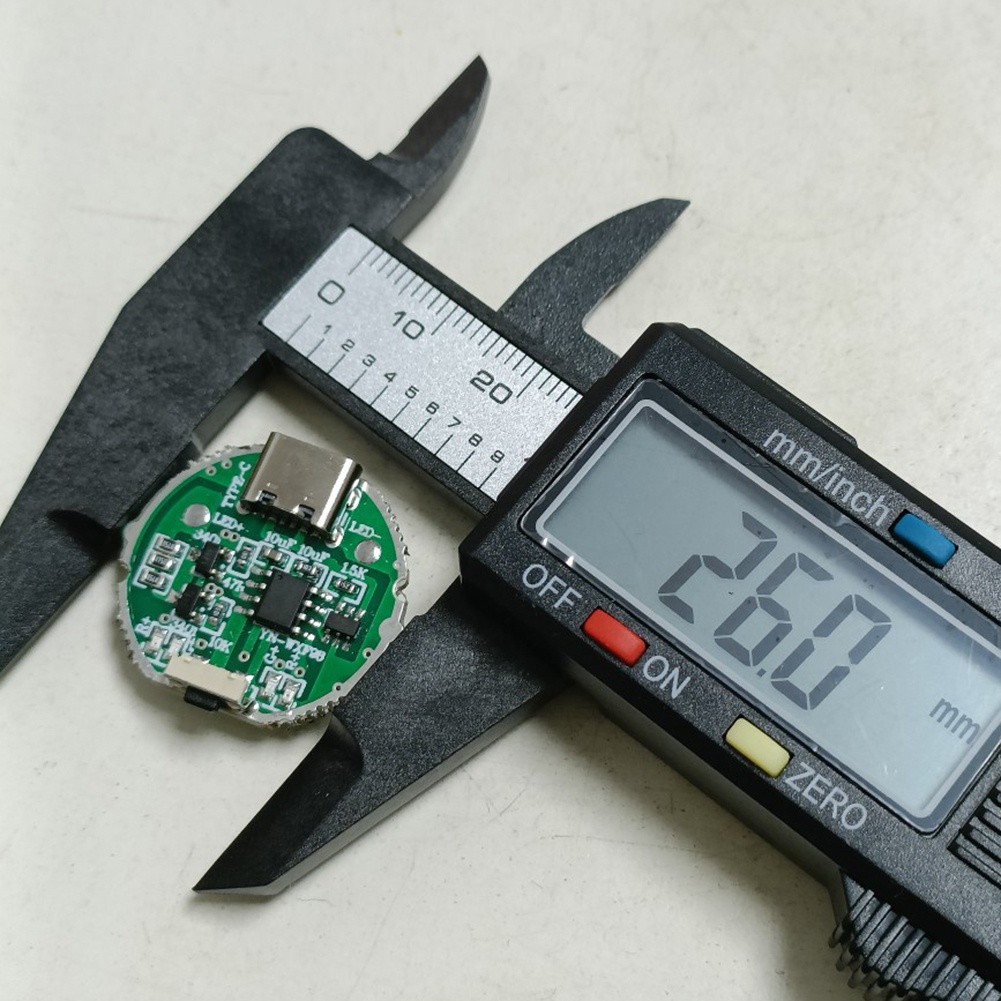

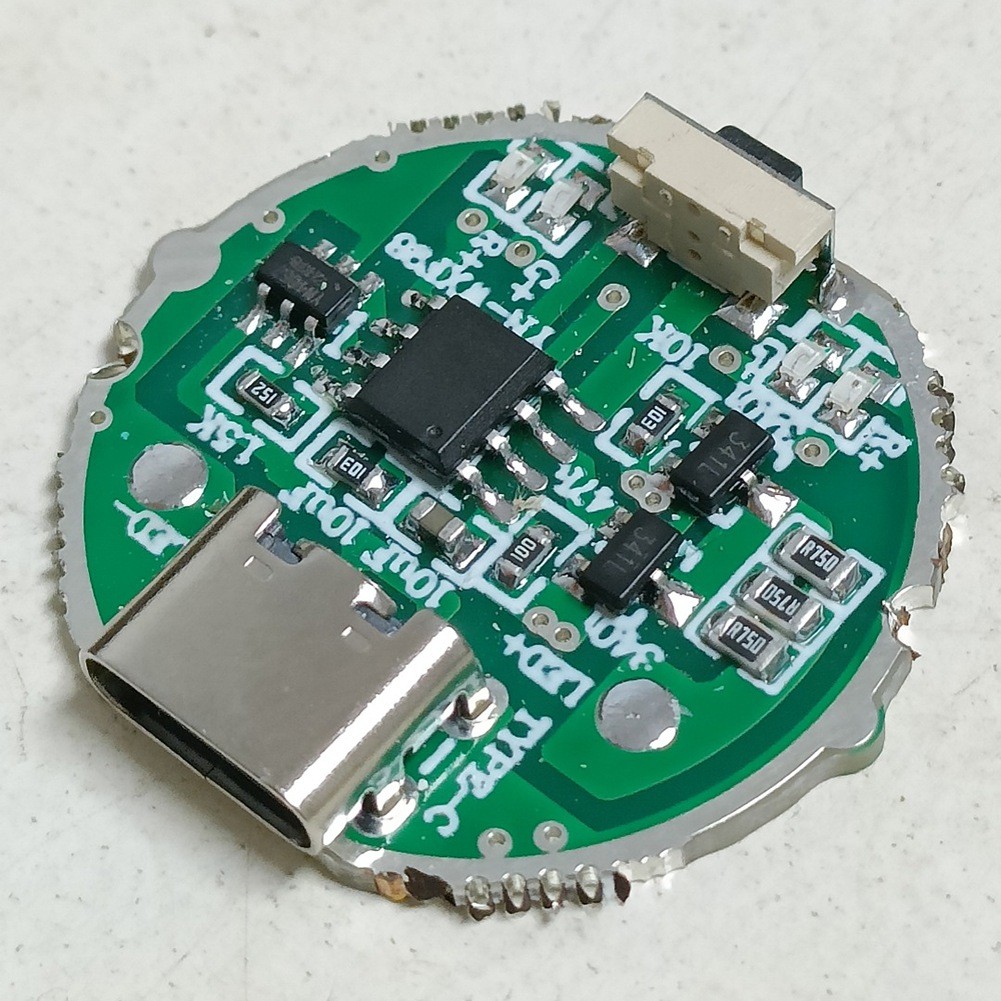

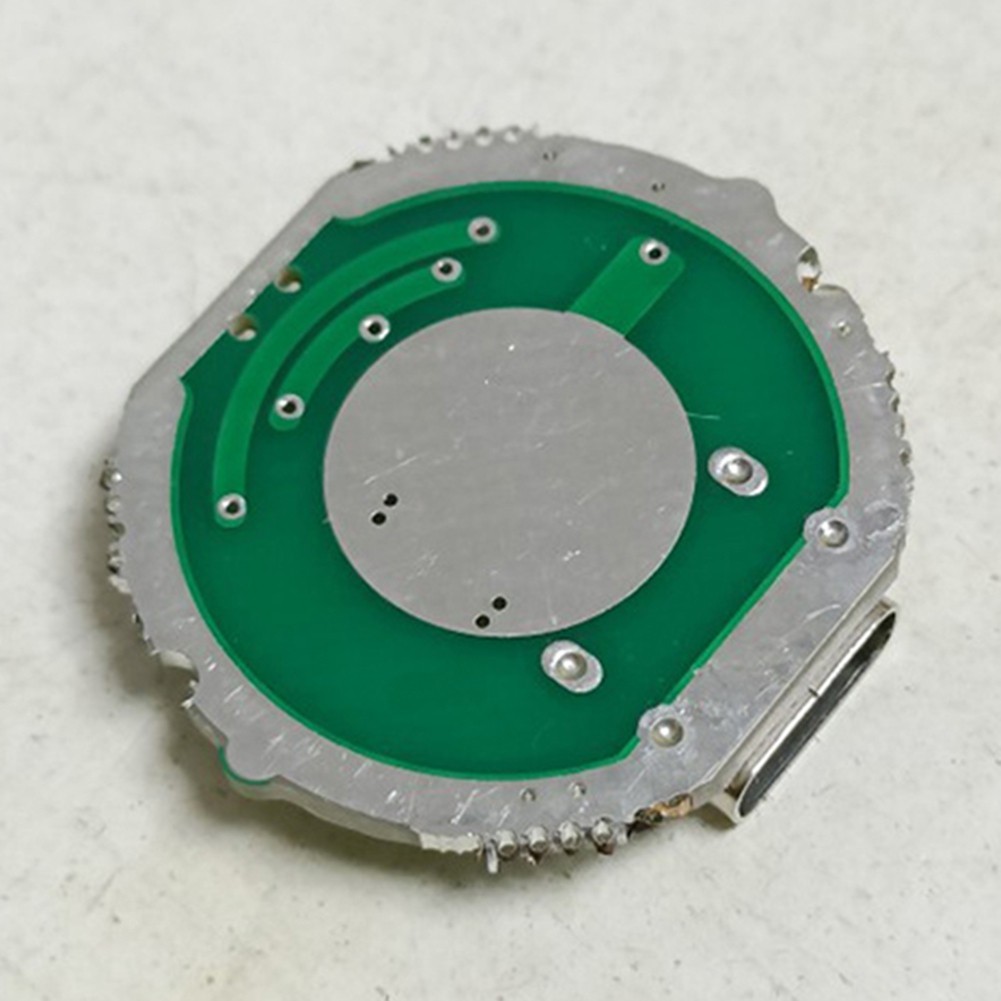

Side Press Strong Light Flashlight Driver Board Circuit Board USB9174
1. Type-C charging interface, adapt to a wide range of chargers, enhance the charging efficiency, for the flashlight to quickly replenish the .
2. Provide two modes of switching between medium brightness and high brightness to meet different lighting needs, which can be used for long-distance irradiation as well as short-distance lighting, saving .
3. Apply 10W high power LED beads, optimize the circuit layout to maximum brightness output and reduce consumption, enhance the overall performance of the flashlight.
4. Adopt high efficiency driver chip, optimize the circuit design, reduce power consumption and heat generation, enhance the overall performance of the flashlight.
5. Adopting high quality switching components to long switching life, good operation feel, even in harsh environments can work stably.
Parameter:
Input voltage: 3.2-4.2V (suitable for one lithium battery)
Output voltage: 3-3.3V
Output current: 1.8-2A (suitable for 6-10W lamp beads)
Gear: two gears (medium brightness 50% - high brightness 100%)
Charging port: Type-c
Colour:As Shown
Material:PCB
Package Contents:
1 * Flashlight driver board
