Descriptions:

This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel.

Applications:

Solar panel manufacturer

Solar panel distributor

Solar panel user

Solar panel fans

Features:

AUTO MPPT test

Manual MPPT test

Over-voltage, over-temperature, over-current protection

Over rated power protection

No additional power supply required

Specifications:

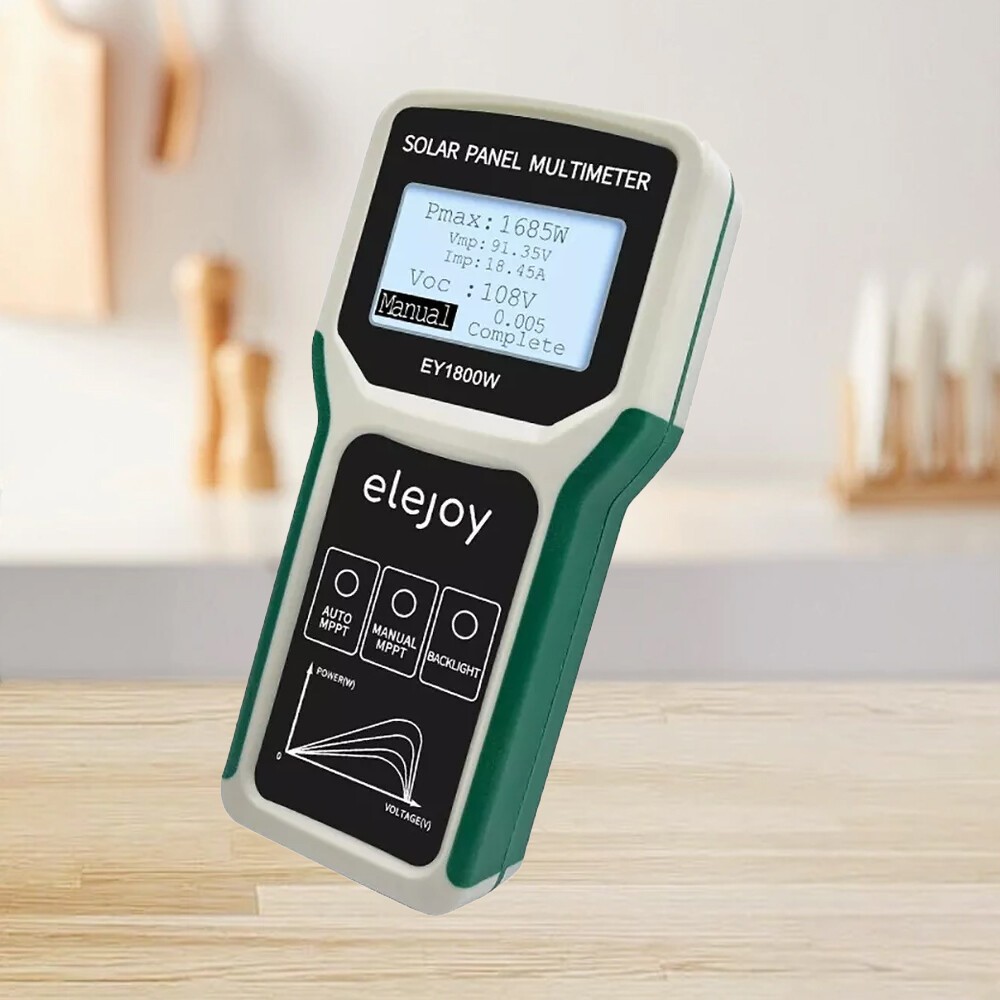

Name: Solar Panel Multimeter

Model: EY1800W

Power: 5-1800W

Voltage: 20-120V

Current: 0-60A

Power supply mode: solar panel power supply


Packing: EVA Package

Item size: 165x80x30MM

Weight: 450G

Operation Manual:

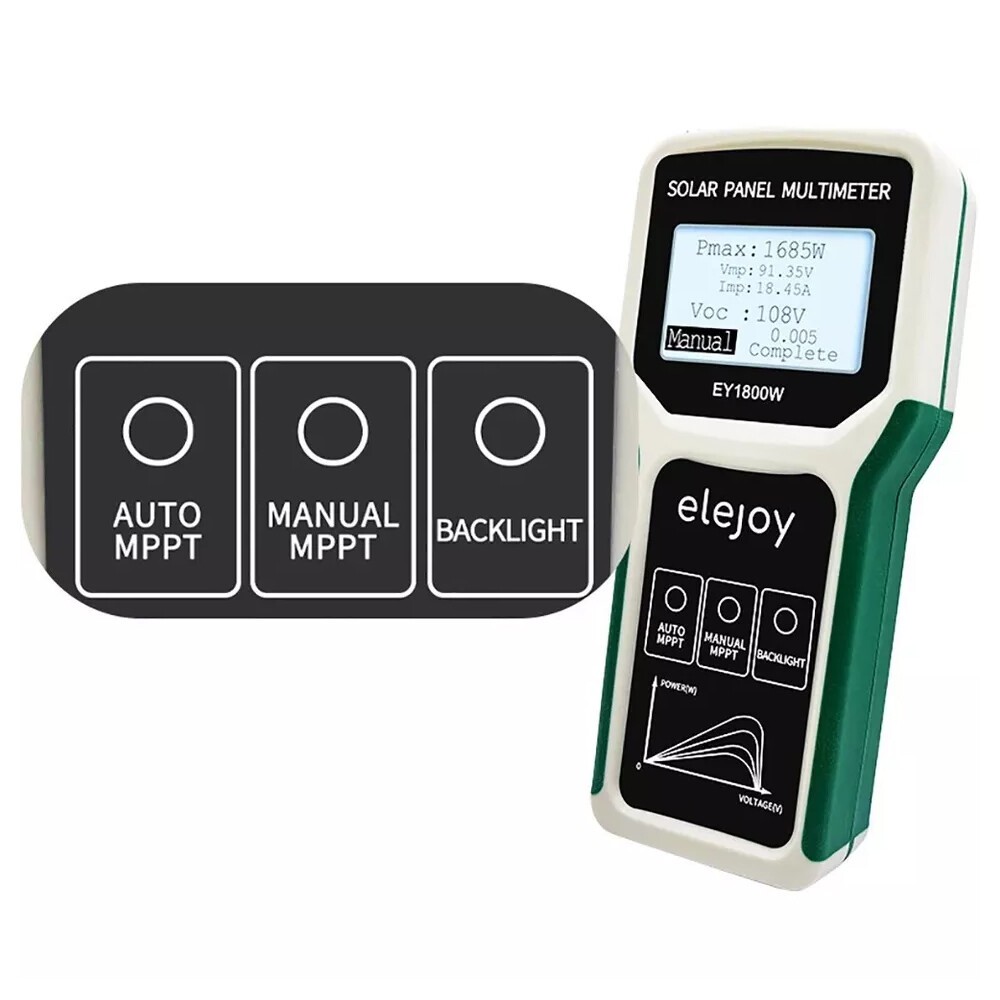

AUTO MPPT DETECTION:

When pressing the AUTO test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display.

For example: when the power of photovoltaic panel is 100W, refresh once every 5s; when the power is 300W, refresh once every 15s.

MANUAL MPPT DETECTION:

When pressing the manual test button, the instrument starts a scan of the maximum power point and refreshes the digital display.

OPEN CIRCUIT VOLTAGE DETECTION:

When pressing the open circuit voltage button, the voltage of the photovoltaic panel will displayed in real time.
