Explore More Features on the Phoenix Max

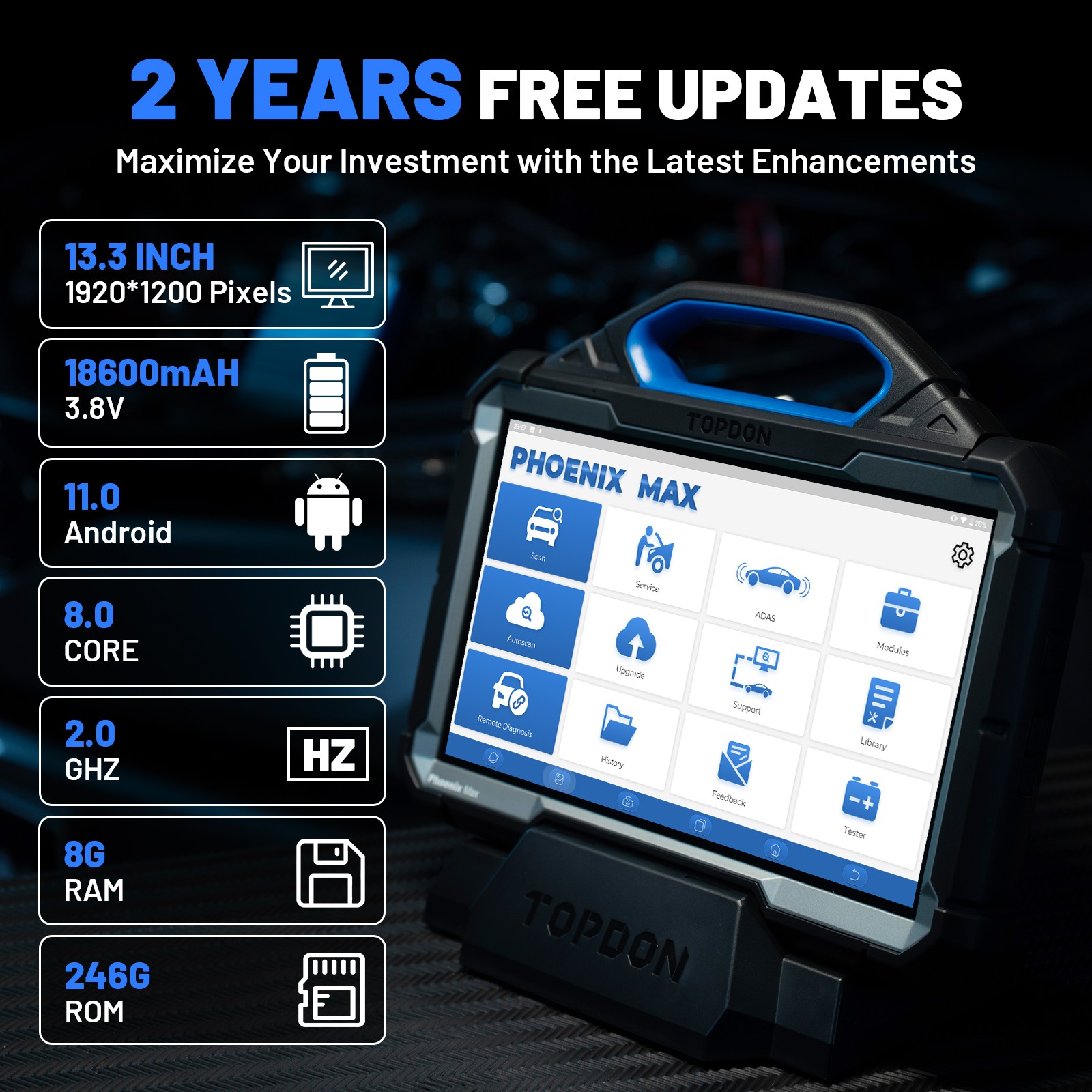

The Phoenix Max is TOPDON’s newest cutting-edge automotive diagnostic scanner. With a 13.3 inches screen, this all-in-one tool offers a wide array of functionalities that will expand any technician’s capacity to complete even more jobs.

The Phoenix Max includes a docking statation, ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles with optional add-on software.

• Full-System Diagnostics for 200+ Brands: Covers Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, A/C, and more.
• Cloud-Based Programming for 13+ Brands: Designed for real-time updates and precise configurations, Phoenix Max enables Cloud-Based Programming for brands like Mercedes-Benz, BMW, V.olkswa.gen (Audi/Skoda/Seat), Porsche, Land Rover, Jaguar, and more. This function keeps vehicles up-to-date and calibrated to OEM standards.
• Wide Protocol Compatibility with Phoenix MDCI Pro: Equipped with the Phoenix MDCI Pro VCI, the Phoenix Smart supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols, covering all major communication methods for advanced diagnostics and ECU programming.
• Guided Functions for V.A.G: Step-by-step diagnostics and coding for VW, Audi, Skoda, SEAT.
• FCA Secure Gateway Access: Unlocks protected functions on Chrysler, Jeep, Dodge, and Fiat.
• 41+ Maintenance Functions: Includes oil reset, EPB, SAS, DPF regen, TPMS reset, injector coding, and more.
• Advanced Topology Mapping: Visualizes all vehicle systems and communication status in one clear diagram.
• ADAS Calibration Compatibility: Phoenix Smart supports Advanced Driver Assistance Systems (ADAS) calibration (Need Buy Adas Activation Card), enabling technicians to align intricate driver-assistance functions for safety and accuracy. It can be paired with the TOPDON Phoenix ADAS Mobile package for seamless calibration.
• Data Stream Playback: Records and replays diagnostic data for detailed analysis.
• Essential Diagnostic Functions: Read/Clear DTCs, ECU Info, Live Data, and Active Tests.
• AutoVIN Technology: Instantly identifies vehicle information for quick diagnostics.

Explore More Features On the Phoenix Max

The TOPDON Phoenix Max as the top upgraded model of Topdon Phoenix Smart/Elite/Xlink/Plus2, and stands as Topdon’s most powerful professional car scanner in 2025. With enhanced hardware and broad compatibility. It includes advanced OE-level functions like ECU programming, online coding, bi-directional control, live data stream, and fault code reading and clearing, etc. Ideal for high-volume workshops and experienced technicians needing a reliable diagnostic scan tool for all vehicles.

• One-Click Health Report: Generates a detailed diagnostic report with system statuses, fault codes, and recommendations for easy sharing with clients.
• AutoVIN & Auto Scan: Automatically identifies the vehicle’s make, model, and year for fast and accurate diagnostics across all supported systems.
• Bi-Directional Control: Enables direct control of specific components like wipers, windows, and A/C, essential for troubleshooting and verifying repairs.
• Live Data Stream: Real-time monitoring of various system data points, such as engine RPM, battery voltage, and sensor outputs, allowing professionals to analyze performance.
• Do More With Special Settings: Phoenix Smart allows access to hidden settings, such as enabling Video-In-Motion, disabling seatbelt chimes, and more. Supported across makes like Audi, Volkswagen, BMW, Porsche, and Toyota, these customizations enhance service offerings.
• Topology Mapping: Displays a visual, tree-like diagram of the vehicle’s electronic architecture, allowing instant visualization of system connections and status.
• Fault Code Reading and Clearing: Detects and clears diagnostic trouble codes (DTCs) across all systems, helping quickly identify and resolve issues.

This all-encompassing diagnostic approach ensures a complete vehicle checkup, saving time while enhancing the accuracy and efficiency of every diagnostic session.

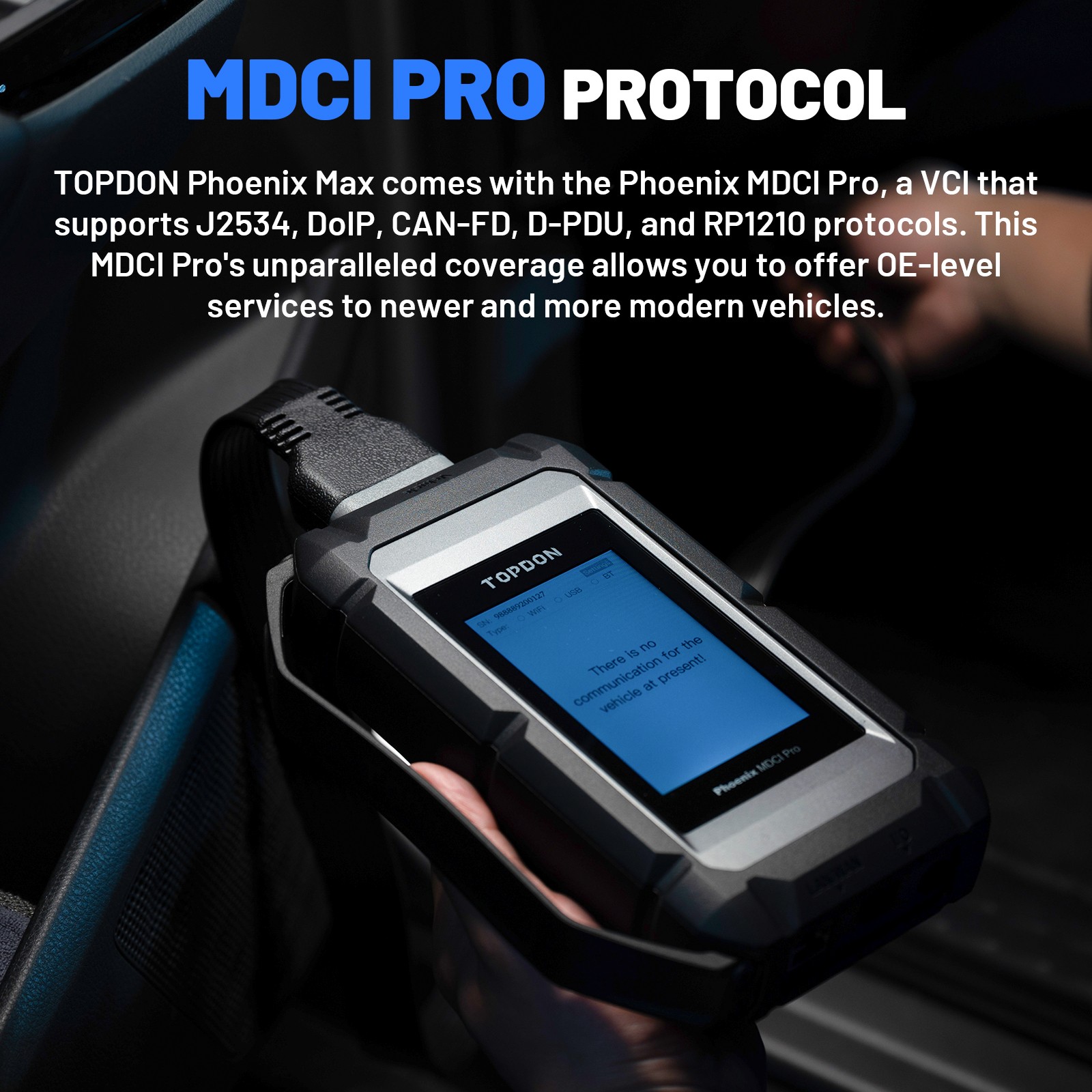

The Phoenix MDCI Pro – Your Gateway to Full Protocol Coverage

• All-in-One Protocol Support:

The included Phoenix MDCI Pro VCI (Vehicle Communication Interface) supports all major diagnostic and programming protocols:

J2534 – For reprogramming ECUs with OEM software.

DoIP (Diagnostics over Internet Protocol) – Essential for newer vehicle models with high-speed communication networks.

CAN FD (Flexible Data-rate) – Supports faster and more secure diagnostics on modern vehicles.

D-PDU & RP1210 – Ensures compatibility with a wide range of OEM tools and heavy-duty vehicles.

• OE-Level Coverage for Newer Vehicles:

With support for advanced protocols, the MDCI Pro enables seamless diagnostics and ECU programming on the latest models, giving you dealership-level capability without restrictions.

41+ Maintenance Services, Accessible for Complete Car Maintenance

>>>>>Complete Care for Every Vehicle, Every System!

The Phoenix Smart offers 41+ Maintenance Services, providing a wide range of diagnostic and service functions that cover various vehicle needs. Here are some key services included:

1. Oil Reset: Reset an Engine Oil Life tracking system once the oil has been changed. 2. SAS Reset: Reset the steering angle to zero to keep the car running straight. 3. EPB Reset: Help replace and reset brake pads. 4. BMS Reset: Clear the fault code of a low battery and make it match again. 5. DPF Regeneration (**for both diesel and gasoline vehicles): keep the trap stable. 6. ABS Bleeding: Help release air stuck in a vehicle’s braking system. 7. Sunroof Reset: Initialize the sunroof control module data. 8. Seats Calibration: Calibrate the memory in replaced or repaired seats. 9. Suspension Reset: Adjust the vehicle body height sensor for level calibrations. 10. Airbag Reset: Resets a irbag system after replacement or fault repair. 11. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality. 12. Transport Mode: Activates or deactivates transport mode to save battery during shipping. 13. AFS Headlamp Reset: calibrates adaptive headlights after repair, optimizing beam direction for safe, clear driving visibility. 14. Injector Coding: write the new code into the car system for the correct cylinder injection quantity. 15. Windows Calibration: Perform door window matching to recover the ECU's initial memory. 16. Gear Learning: resets the transmission for smoother shifting and optimal performance. 17. Engine Power Balance Monitoring: Monitors and balances power output from each engine cylinder. 18. TPMS Reset: Reset the tire pressure monitoring system. 19. Throttle Adaptation: initialize the throttle actuators to the default state. 20. Motor Angle Calibration: Calibrates motor angle sensors for precise vehicle control. 21. A/F Reset: adjusts the a ir-fuel ratio for optimal engine performance and fuel efficiency. 22. Stop/Start: Controls or resets the automatic engine stop/start system. 23. ADBLUE Rese: Reset urea after the diesel exhaust treatment fluid is replaced or filled up. 24. Intelligent Cruise Control System: Calibrates the cruise control system for accurate speed and distance control. 25. Coolant Bleed: Removes a ir pockets from the cooling system for optimal engine temperature. 26. High Voltage Battery Diagnostics: Checks and diagnoses the health of a hy brid or electric vehicle battery. 27. NOx Sensor Reset: Reset catalytic converter learned value stored in ECU. 28. EGR Reset: Learn the Exhaust Gas Recirculation valve after being cleaned. 29. Language Change: Changes the display language of the vehicle’s system. 30. Coolant Bleed: Removes a ir pockets from the cooling system for optimal engine temperature. 31. Intelligent Cruise Control System: Calibrates the cruise control system for accurate speed and distance control. 32. IMMOBILIZER 33. TYPE Reset 34. AC System Relearn 35. IMMO PROG 36. 0dometer Calibration and More....

These functions help in diagnosing, maintaining, and customizing various aspects of a vehicle's performance and safety systems, covering the majority of makes and models worldwide up to the still expanding.

Cloud-Based ECU Programming for 13+ Brands–Powered by Phoenix Max

Q: How to Unlock the ONLINE PROGRAMMING FUNCTION?

A: The Phoenix Max Diagnostic Tool comes equipped with native ECU programming capabilities for Mercedes-Benz and BMW vehicles, enabling technicians to perform high-level programming and adaptation functions directly from the tablet.

For other supported brands, users can request expanded access to Cloud-Based Programming by simply providing the device Serial Number (SN). Upon approval, your Phoenix Max will unlock programming functions for additional brands such as:

Volkswagen, Audi, Skoda, SEAT, Porsche, Land Rover & Jaguar, Hyundai & Kia, Nissan & Infiniti, Renault & Dacia, Subaru…and more.

Real-Time ECU Programming & Updates:

Perform direct cloud-based ECU reprogramming and software updates from our servers. This ensures vehicles always run the latest OEM-approved software, enhancing reliability and performance.

Efficient Software Management:

Streamline the update process without the need for physical media or manual downloads. Reduce service time and minimize errors by leveraging cloud access to the most current calibrations and patches.

Online Coding for Audi, BMW, and Porsche:

Customize vehicle features, enable or disable factory options, and activate hidden functions with precise online coding capabilities, allowing tailored repairs.

OEM-Level Compliance:

Maintain adherence to manufacturer standards by using genuine, cloud-based updates and coding, ensuring your work meets or exceeds factory specifications.

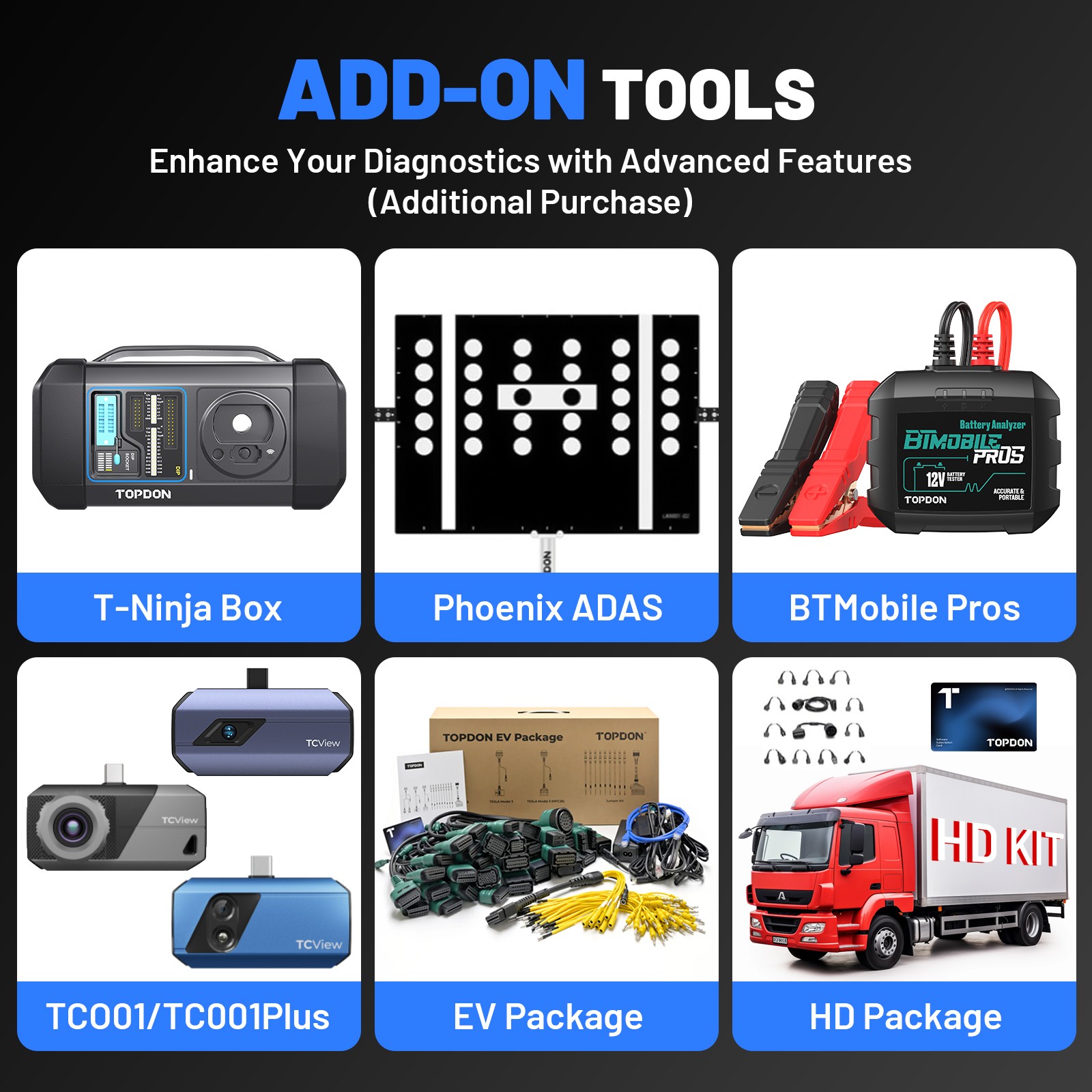

ADD-ON TOOLS

Expandable & Versatile Compatibility

The Phoenix Max Premium Extensions are advanced add-ons that support a range of specialized diagnostic and maintenance tasks. Designed for flexible use, they are fully compatible with Phoenix Max and allow for future expansion as needed. It is fully compatible with:

ADAS Calibration (Advanced Driver Assistance System) : Accurately calibrate sensors, cameras, and radars on modern vehicles to ensure optimal performance of safety features like lane assist, adaptive cruise control, and automatic emergency braking.

BTMobile ProS (Battery Tester) : Efficiently test the health of vehicle batteries, including traditional and electric vehicle batteries. The BTmobile ProS offers precise diagnostics to help prevent battery failures and extend their lifespan.

T-Ninja Box (Ḱḕẏ Programming) : Easily program and reprogram Ḱḕẏs for a wide range of BMW, Benz and BMW. The T-Ninja Box enables fast Ḱḕẏ cloning, system adjustments, and system resets for complete Ḱḕẏ management.

TC001/TS001/TC001Plus (hermal Imaging Camera) : Utilize advanced thermal imaging to diagnose overheating components, identify electrical issues, and spot potential mechanical failures. With multiple models available (TC001, TS001, TC001Plus), you can select the ideal thermal tool for your needs.

EV Package: Specially designed for electric vehicles, the EV package supports diagnostics, battery health checks, and power management to ensure electric vehicles are running efficiently and safely. This package is essential for EV technicians and shops.

HD Package: The HD Package offers deep diagnostics for heavy-duty vehicles like trucks, buses, and agricultural machinery. With enhanced compatibility, this package makes the Phoenix Smart a go-to tool for all types of vehicles, from passenger cars to large commercial fleets.

The above add-on are optional and sold separately.

With this extended compatibility, the Phoenix Max becomes a comprehensive solution for modern workshops servicing traditional, luxury, and new-energy vehicles.
