Product Description
Small Frame, Smart Gains
The Phoenix Lite 3 is an ultra-compact, advanced diagnostic scanner crafted for automotive professionals, DIY enthusiasts, and small repair shops. Tailored to address a wide spectrum of industry needs, it offers a combination of high-level functionality and affordability, making it a standout choice for reliable vehicle diagnostics. Equipped with modern protocols like CAN-FD, online coding, and an intuitive topology mapping feature, Phoenix Lite 3 redefines the scanning experience.
· Advanced ECU Coding & Online ECU Coding: Access vehicle ECU module to re-flash vehicles control modules, renew ECUs Coordination, reprogram adaptation for certain components after repaired or replacement.
· Bi-Directional Control: Phoenix Lite3 automotive scanner will imitate a mini sensor to transmit command to ECUs to perform specific tests and functions, identify actuator through its response.
· OE-Level All System Diagnostics: Scan all vehicles electronic systems and making repairs according fault codes.
· 35+ Reset Functions: Meeting your vehicles daily requirement for safe driving.
· VAG Guided Functions: Step-by-step instructions for car repair For Volkswagen, Audi.
· Battery Test: With BTMobile Pros to perform complete battery test, in/out-vehicle test, charging and start test etc.
· FCA Auto Auth: Connect FCA vehicles in/after 2018 like Chrysler, JEEP, Dodge, Fiat, etc, across FCA gateway permissions.
· CAN FD Protocol: Phoenix MDCI provide brand-new CAN FD Protocol to cover 99% vehicles to 2021-2022 GM & Chrysler.
· Auto Scan: With Auto scanning, the scanning speed of the whole module has been increased by three times, leap into the second scanning stage, and the average speed has been greatly improved.
Note: All above functions are car-specific, please send vehicle make, year, model, VIN and specific functions to check compatibility.
ECU Coding & Online Coding & ECU Offline Adaptation----Upgrade of Phoenix Lite2
The Topdon Phoenix Lite 3 features robust ECU coding capabilities that maximize safety, uptime, and profitability, making it an essential diagnostic tool for professionals. Its comprehensive ECU coding functions include:
· ECU (Online) Coding: Access and reprogram control modules directly online for precision and convenience.
· ECU Offline Adaptation: Adapt components offline for seamless integration after replacement or repair.
· Modify OE Parameter Settings: Customize original equipment parameters to tailor the vehicle’s performance to specific needs.
· Match/Learn/Code New ECUs: Easily match, learn, and code newly replaced ECUs to the vehicle’s system.
· Improve Vehicle Performance: Fine-tune systems to enhance overall vehicle performance.
· Reflash Hidden Functions: Unlock hidden features within the vehicle’s systems, adding extra functionality.
· Simulate High-End Functions: Enable premium features that elevate the user experience and expand diagnostic capabilities.
With these advanced coding options, the Phoenix Lite 3 scan tool provides unmatched versatility and control, helping professionals optimize vehicle functionality and meet diverse diagnostic needs.
OE-LEVEL FULL SYSTEM DIAGNOSTICS
Topdon Phoenix Lite3 automotive diagnostic scan tool perform deeper dealer-tool level diagnostics previously only available to dealership. 2025 Phoenix Lite 3 OBD2 scan tool scan all available vehicle modules like ABS, SRS, Engine, Transmission, Body, IMMO, Chassis, Suspension, HVAC, Lighting System, Radio Systems to accurately locate faults and assess vehicle condition: Read/Clear codes, show DTC, turn off Check Engine Light(MIL), ABS/ Airbag/ Transmission war-ning lights, reset monitors, etc.
· View Live Data Stream in Text or Graph: Retrieves and displays live data and parameters from vehicle’s ECU, like Misfire data, engine rpm, CAM/CMP delay, mass flow sensor data, transmission oil temperature, long/short fuel trim, fuel pressure, cylinder balance rates.
· Freeze Frame Data– Freeze error codes at the moment occurs, and you can analyze the error code cause.
· ECU Information– provides the retrieved ECU information in detail.
· Active Test – Test vehicle component and perform specific analysis such as EVAP test, fuel injector balance, injector test, ABS motor pump cycling, cooling fan test, car window, doors, sunroof, wipers tests.
· Complete Capabilities: Faults Codes, Live Data, Freeze Frame, Retrieve Active Tests, Resets, Relearns, Matching, Adaptations, Calibrations, Initialization,etc.
Bi-Directional Control: Phoenix Lite 3 allows you to send control commands directly to verify system components status effortlessly in seconds.
- Door Locking Test;
- Injector buzz Test;
- Mirrors Auto Fold/Unfold;
- Windscreen Wipers Turn on/off;
- Modulate thro-ttle;
- Open/close windows & doors;
- Work on relays, injectors, coils, solenoids valves, actu-ators, headlamps, etc.
35+ MAINTENANCE SERVICES
The Phoenix Lite 3 offers over 35 maintenance reset functions that provide comprehensive solutions for a wide range of vehicle maintenance tasks. Here’s a breakdown of some key reset functions available:
1. Oil Reset - Resets the engine oil life system after an oil change.
2. EPB Reset - Electronic Parking Brake reset to safely replace and calibrate brake pads.
3. Battery Reset - Registers new battery details to optimize performance.
4. DPF Regeneration - Diesel Particulate Filter regeneration for cleaner emissions.
5. ABS Bleeding - Removes air from the ABS system to ensure safe braking.
6. Throttle Adaptation - Recalibrates the throttle body for smooth idling.
7. Steering Angle Calibration - Re-aligns the steering angle sensor.
8. Injector Coding - Codes new fuel injectors for balanced fuel injection.
9. Gearbox Reset - Resets the transmission for smooth shifting.
10. TPMS Reset - Tire Pressure Monitoring System reset after tire service.
11. Airbag Reset - Resets the airbag system after repairs; 12. BMS Reset - Battery Management System reset to recognize a new battery; 13. A/F Reset - Air-Fuel ratio adaptation for better fuel efficiency; 14. Suspension Calibration - Calibrates the air suspension system; 15. Sunroof Initialization - Resets the sunroof’s operational memory; 16. Seat Calibration - Recalibrates power seats; 17. Windows Calibration - Re-aligns power windows; 18. EGR Adaptation - Resets Exhaust Gas Recirculation to control emissions; 19. Transmission Adaptation - Re-adapts shifting points for transmission; 20. Headlight Adjustment - Adjusts and aligns headlights; 21. AC System Reset - Resets the climate control system; 22. Language Change - Adjusts the on-board display language; 23. Odometer Reset - Allows odometer calibration for accurate mileage; 24. ABS Reset - Resets the Anti-lock Braking System; 25. Engine Adaptation Reset - Re-adapts engine parameters; 26. Immobilizer Reset - Resets security system after key replacement; 27. Tire Reset - Resets tire-related settings after replacements; 28. AdBlue Reset - Resets diesel exhaust fluid system; 29. SAS Calibration - Recalibrates Steering Angle Sensor after alignment; 30. EVAP Reset - Resets evaporative emissions system for emissions control; 31. Gear Learning - Relearns gear shifting points; 32. Stop/Start Reset - Resets engine stop/start system; 33. Transport Mode - Enables or disables transport mode; 34. Coolant Bleeding - Removes air from the cooling system; 35. Clutch Adaptation - Re-calibrates the clutch in manual transmission vehicles.
These reset functions empower the Phoenix Lite 3 to handle a wide range of maintenance tasks, making it a versatile and indispensable tool for automotive professionals.
FCA AutoAuth
Enables access to FCA vehicles from 2018 onward, including Chrysler, Jeep, Dodge, and Fiat models. This feature allows you to perform advanced diagnostics and protected functions across FCA’s secured gateway systems, ensuring seamless compatibility with newer vehicle security protocols.
CAN-FD Protocols
The Phoenix Lite 3’s Vehicle Communication Interface (VCI) has been enhanced to support CAN-FD protocols, offering broader compatibility with newer vehicles and faster data transfer rates. This advanced protocol covers 99% of models from 2021-2022, enabling efficient diagnostics on the latest car models with seamless connectivity and reliable performance.
Topology Module Mapping
Upgraded from the Lite 2, this feature provides an enhanced, color-coded display of vehicle module connections. The intuitive layout makes it easier to locate faults and understand system interactions, streamlining the troubleshooting process for faster, more precise repairs.
Expanded Add-On Tools
The Phoenix Lite 3 integrates with a range of add-on modules to enhance its diagnostic capabilities, ensuring broad compatibility with TOPDON’s professional-grade tools. Supported add-ons include the BT Mobile Pros for comprehensive battery testing, Phoenix Scope -Oscilloscope for signal analysis, TC001 thermal camera for heat diagnostics, Phoenix ADAS for advanced driver assistance calibration, T-Ninja Box for immobilizer functions, and more. This flexibility empowers users with a modular approach to diagnostics, enabling tailored functionality for various professional needs.
AutoVIN & VAG Guided Function
AutoVIN automatically reads vehicle information, allowing for instant recognition of make, model, and year, reducing setup time and ensuring accurate diagnostics.
The VAG Guided Function offers detailed, step-by-step guidance tailored to Volkswagen, Audi, and other VAG vehicles. It eliminates unnecessary steps, enabling precise repairs and configurations.

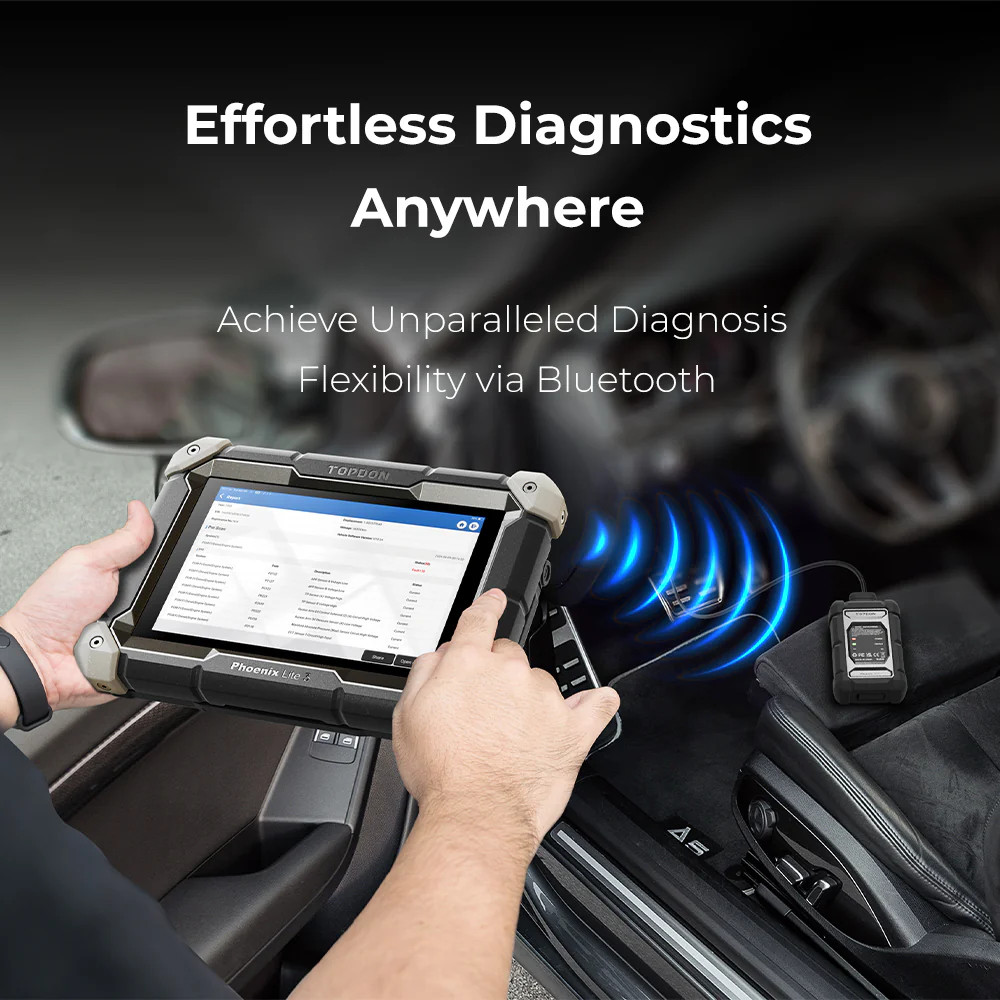

Wireless Diagnostic
Wireless diagnostics via VCI empowers flexible operation within the range of Bluetooth connectivity, with the compact body, this diagnostic tool is portable and easy to hold in hand for diagnosing anywhere, saving time and effort.
SPECIFICATION
| Display | LCD 8-Inch, 1280 * 800 |
| CPU | 4-Core Processor, 2.0 GHz |
| System | Android 10.0 |
| Storage | RAM: 2G, ROM 64G |
| Battery | 12600 mAh / 3.8V (24 hours lasting) |
| Operating voltage | 9~18V |
| Multilingual | English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech |
| Updating Period | 2 years |
