DESCRIPTION

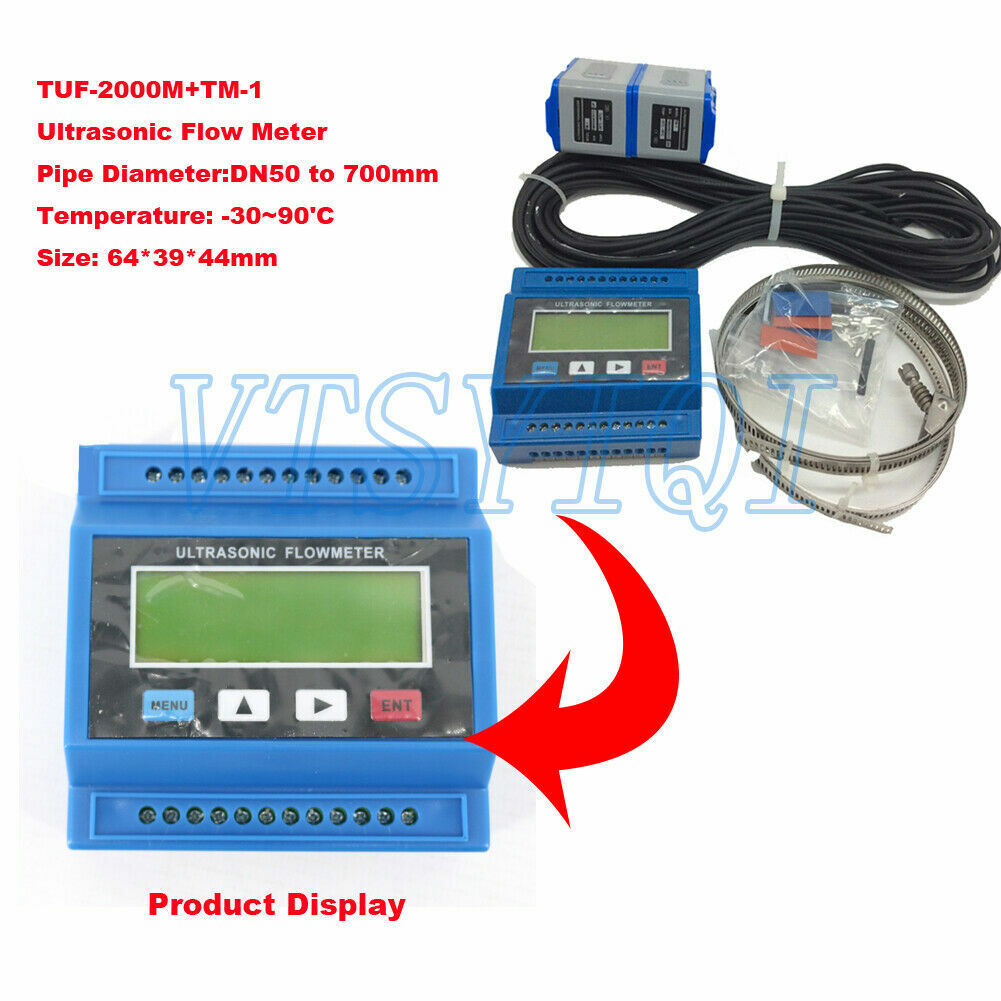

TUF-2000M+TM-1 Ultrasonic Flow Meter Flowmeter Module Flowmeters DN50-700mm
TUF-2000M+TM-1 Ultrasonic Flow Meter Flowmeter Module Flowmeters DN50-700mm

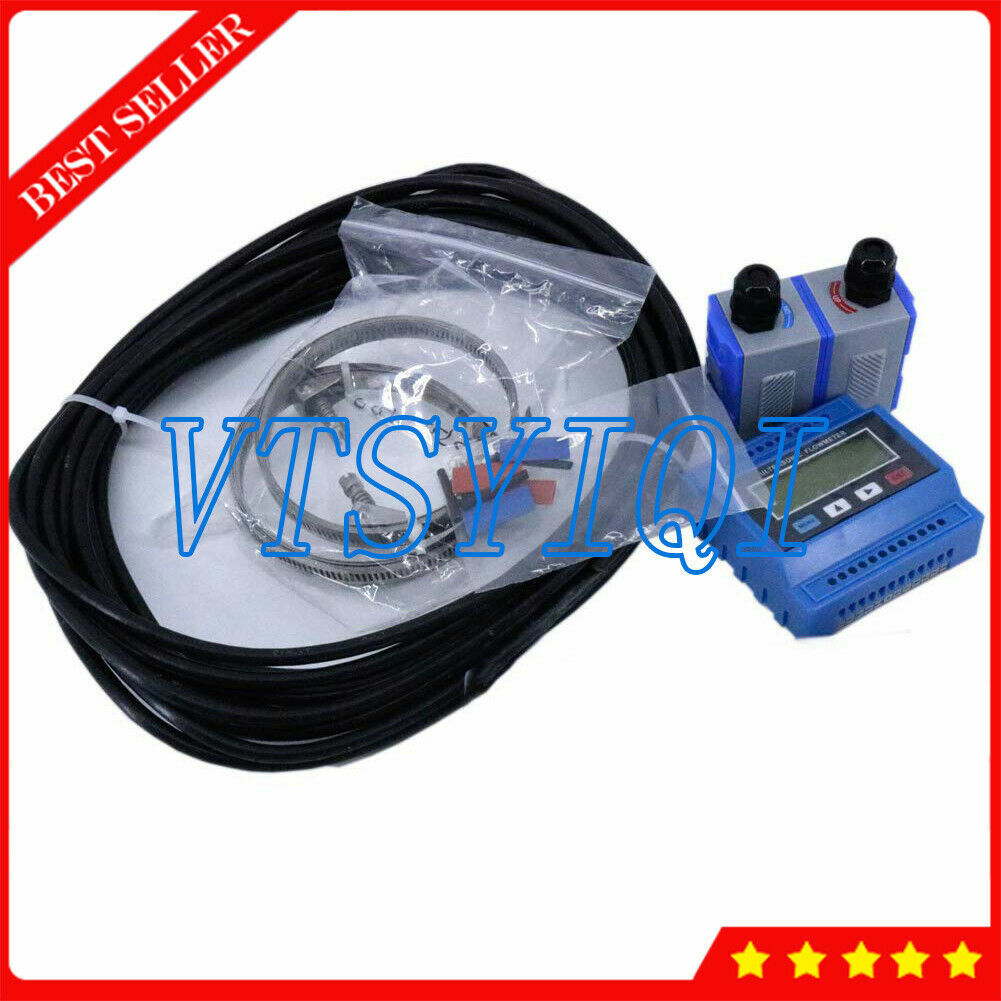

Standard Packing:
* TUF-2000M Ultrasonic Flowmeter
* TM-1 Transducer : Pipe Diameter : DN50 to 700mm temperature: -30~90'C size: 64*39*44mm
Feature:
*Accuracy:"+/-1%
*Velocity range:0~+/-10m/s, Bi-directional *measurement
*Pipe size:DN50~DN700mm
*Temperature:-30~90C
*Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc.
*Pipe material:Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Signal output:
*1 way 4-20mA output
*1 way OCT pulse output
*1 way Relay output
Signal input:
*3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
*Interface:RS485, support MODBUS
*Power supply:DC8~36V or AC85~264V
