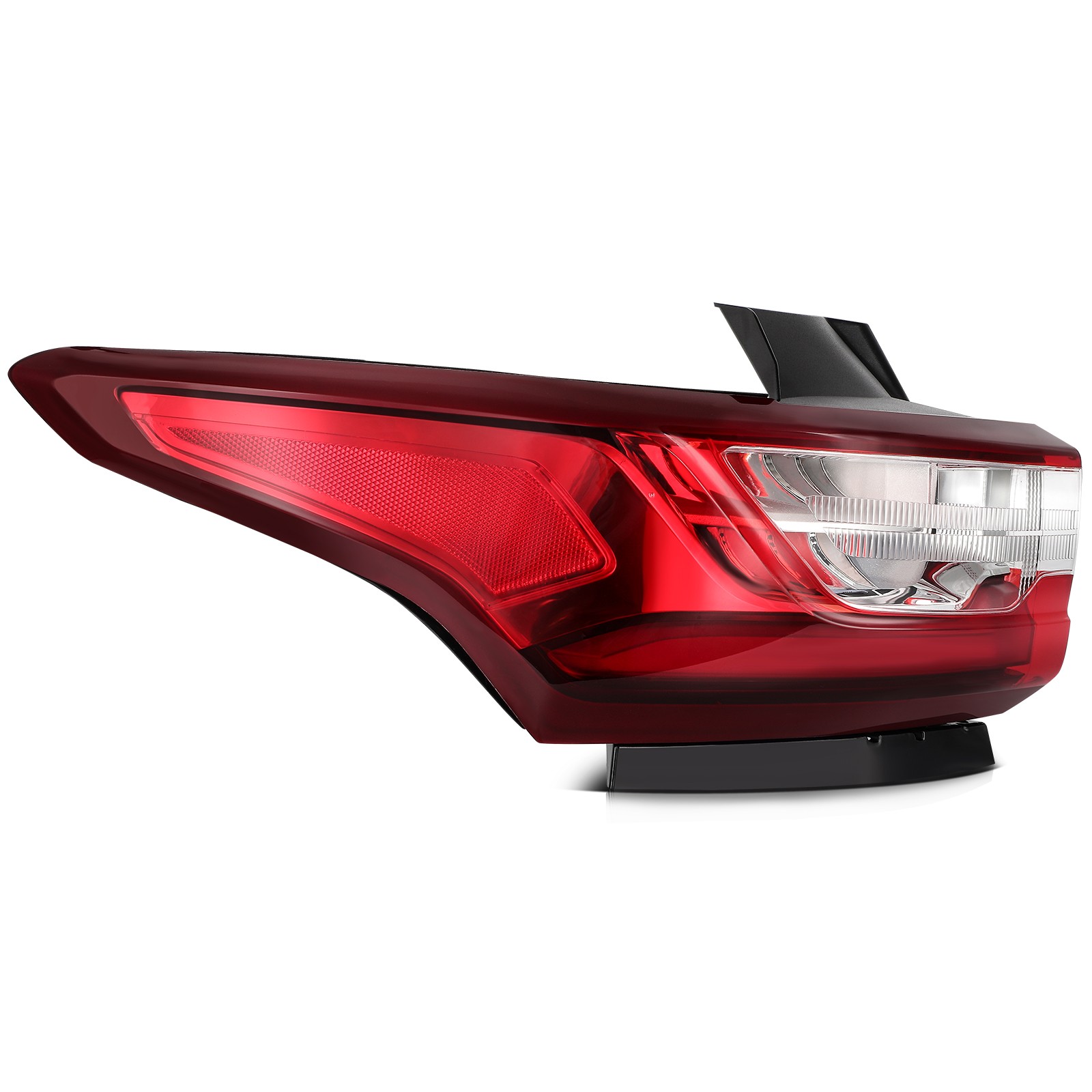

Specification:
Condition: New

Housing Color:Red

Lens Color:Clear
Warranty:5 Years
Product material: ABS
Mirror cap material: PMMA, glass, etc

What is a Tail Light Assembly?

A tail light assembly is an integral part of a vehicle’s lighting system. It houses the rear lights of a vehicle, which typically include the tail lights, brake lights, turn signals, and reverse lights. The assembly not only holds the bulbs but also includes the lens that covers them, enhancing visibility and protecting the bulbs from damage.

What are the Symptoms of a Faulty Tail Light Assembly?

• The most obvious symptom of a faulty tail light assembly is when the tail light or other lights within the assembly fail to illuminate. This could mean a faulty bulb, but if changing the bulb doesn’t resolve the issue, it could indicate a problem with the assembly itself.

• Visible cracks or damage on the assembly could be a sign that it’s time to replace the entire unit. Physical damage can allow moisture to infiltrate the assembly, leading to further issues.

• If you notice condensation or moisture inside the assembly, this is a clear indication of a seal failure. The seal is designed to prevent moisture from entering the assembly; if it’s compromised, it could lead to corrosion or electrical shorts.

• A warning light on your dashboard is a clear indication of a problem with your lights. While this could be caused by a variety of issues, a faulty tail light assembly could be the culprit. This is especially true if you’ve noticed other symptoms like non-functioning tail lights or visible damage.

A Step-By-Step Guide to Replacing Your Tail Light Assembly

How to Remove Tail Light Assembly

1. Put on your safety glasses.
2. Disconnect the negative battery cable.
3. If necessary, remove the rear bumper cover or interior trim panel per the factory repair information. On some vehicles, this must be done to access the tail light assembly retaining fasteners. The process generally involves removing a collection of screws and/or clips to free the bumper or trim panel.
4. Once you have direct access to the tail light assembly, remove the bolts or screws holding it in place.
5. Pull the tail light assembly out and away from the vehicle. Keep in mind: there may still be retainer clips holding the assembly in place. You’ll need to carefully dislodge the assembly from the clips as you pull it toward you.
6. Disconnect the electrical connectors from the back of the assembly.
7. Some replacement tail light assemblies will come with new bulbs. If yours does not, you will need to remove the old bulbs and sockets so they can be reused. Typically, this involves turning the bulb socket counterclockwise to remove it from the tail light assembly.

How to Install Tail Light Assembly

1. Compare the new tail light assembly to the old one to be sure that both are the same design.
2. Reinstall the bulbs and sockets in the tail light assembly as needed.
3. Reconnect the electrical connectors.
4. Mount the tail light assembly in place. Be sure that it slides into any retainer clips affixed to the rear of the vehicle.
5. Reinstall the tail light assembly mounting bolts or nuts and carefully tighten them down until they’re snug. Do not overtighten. If needed, you can consult the factory repair information and use a torque wrench to tighten the fasteners to the manufacturer’s specification.
6. Reinstall the rear bumper or interior trim panel as needed.
7. Reconnect the negative battery cable.

This product is Fit for:
