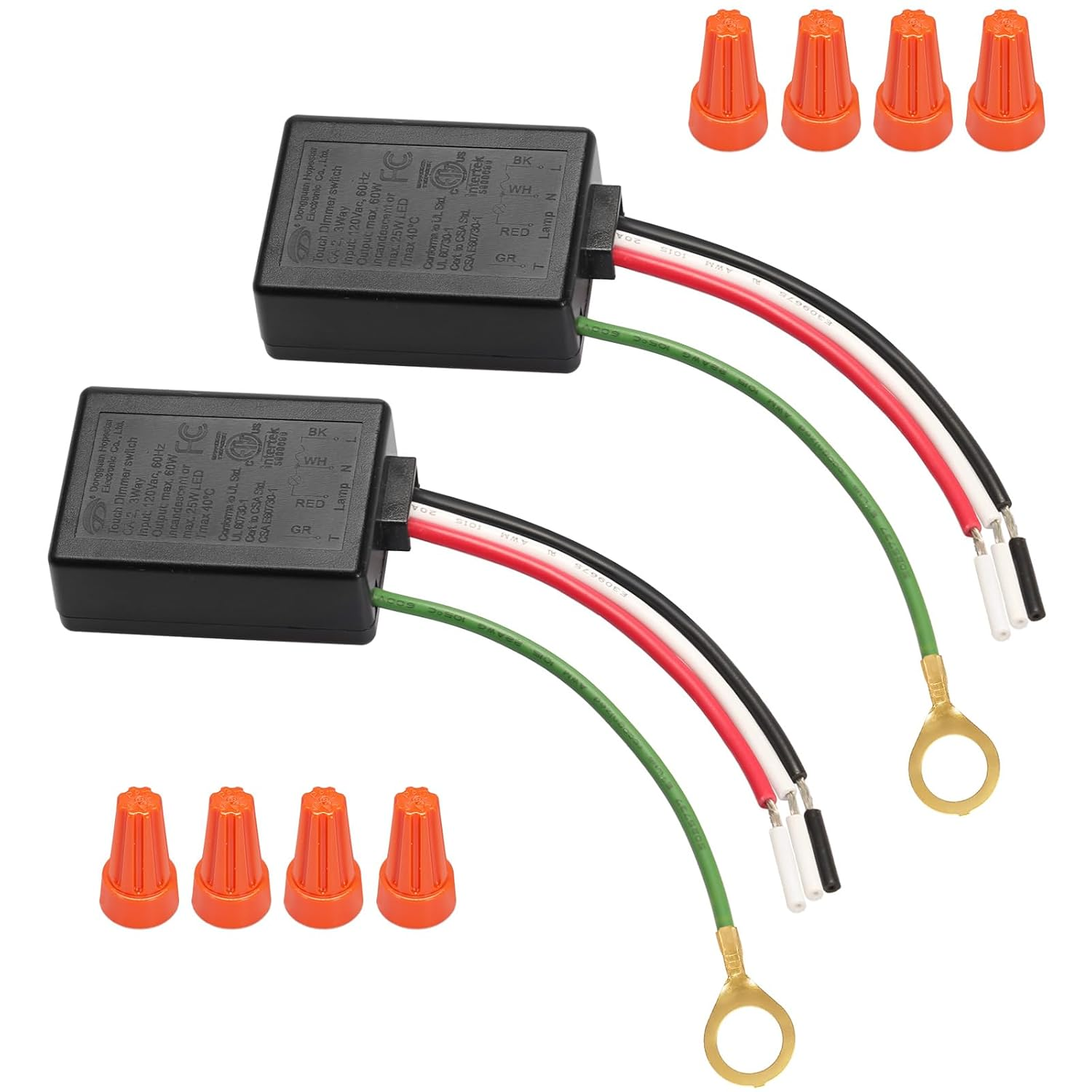

Touch Dimmer Switch 2 Pack, 3 Way Touch Control Modules, Replacement Sensor with 3 Levels Dimming Function, Desk Lamp Switch Repair Kits with Wire Caps, Fit Dimmable LED, Incandescent, Halogen Bulbs
Description
| Current Rating | 10 Amps |
| Number of Items | 2 |
| Item Dimensions | 1.69 x 1.18 x 0.63 inches |
| Control Method | Touch |
| Terminal | Physical |
| Operating Voltage | 120 Volts |
| Specification Met | Ip54 |
| Number of Positions | 3 |
| Controller Type | Touch Button |
| Unit Count | 2.0 Count |
| Connectivity Protocol | X-10 |
| Brand Name | Seaside village |
| Brand | Seaside village |
| Material | Plastic |
| Circuit Type | 3-way |
| Manufacturer | Seaside village |
| Item dimensions L x W x H | 1.69 x 1.18 x 0.63 inches |
| Material Type | Plastic |
| Connector Type | Pin |
| Model | CA-2 |
| Mounting Type | Embedded |
| Color | Black |
| Wattage | 100 watts |
| Operation Mode | manual |
| Actuator Type | Touch |
| Contact Type | Normally Open |
| Contact Material | Brass |
| Switch Type | Touch Control |
- 3 Way Dimmable Touch Module: Adopted advanced dimming chips, touch control sensor will bring a smooth dimming experience. Compact profile makes it easy to assemble to lamp base, ideal to replace defective switch of bedside nightstand lamp, side table lamp, decorative lamp or accent lamp
- Wide Application: Features 3 brightness options and touch function, the replacement touch switch is handy for anyone to adjust desired lighting for sleeping, amusing, reading or working. Just tap anywhere of metal base or pole to customize the brightness from low, medium to high, providing more flexibility on daily life
- Simple & Quick Installation: To save your anxiety and energy to assemble it, the package contains wiring caps and detailed instruction, allowing user to complete all installation steps in a breeze. You could also watch the video on the listing to wire the switch if needed. Note: The touch lamp switches can be used on metal base lamp only
- Universal Compatibility: These 2-pack dimming touch switches work with multiple types of bulbs on the market, such as dimmable LED (Max: 25W) incandescent, CFL or halogen (Max: 60W). You can choose different bulbs to meet various needs, perfect for bedroom, living room or entryway
- Energy Efficiency: With 3 way dimmable function, you could easily dim your light fixtures to save the energy and extend bulb life. The light can be adjusted from dim, medium to bright, reduce your eyestrain and protect your eyes from overly bright lights
Product description
Specifications
- Input Voltage: 120V
- Dimmable LED ≤ 25W
- Incandescent Bulb ≤ 60W
- Special Features: 3 Way Dimmable Touch Control
- Dimension: 0.63in (H)*1.18in (W)*1.69in (L)
- Wire Length: 4.09in
Package Included:
2x Touch Dimmer Switches
8x Wire Caps
1x User Manual
3 Way Touch Dimmer Switch
Dimension: 0.61in (H)*1.38in (W)*1.95in (L); Wire Length: 3.94in
These 3-way dimmable switches feature the latest dimming pattern for adjusting the brightness from dim to high smoothly.With a compact design, they can easily tuck under lamp bases.
Warm Tips
1. Please don't connect electricity until the all the installation steps are completed
2. Please make sure the copper ring attach tightly to the lamp base, otherwise the lamp will not light
3. Please watch the video to install the switch if necessary
4.Please make sure the LED bulb used is dimmable
Assemble with Ease
1.Cut off the electricity supply.
2.Connect 3 white wires with included wire cap.
3.Connect black wire of the touch sensor to the remaining wire from power plug.
4.Connect red wire to the remaining wire of the lamp.
5.Install the copper ring to the lamp base.
More installation information you could refer to the video on the page.
