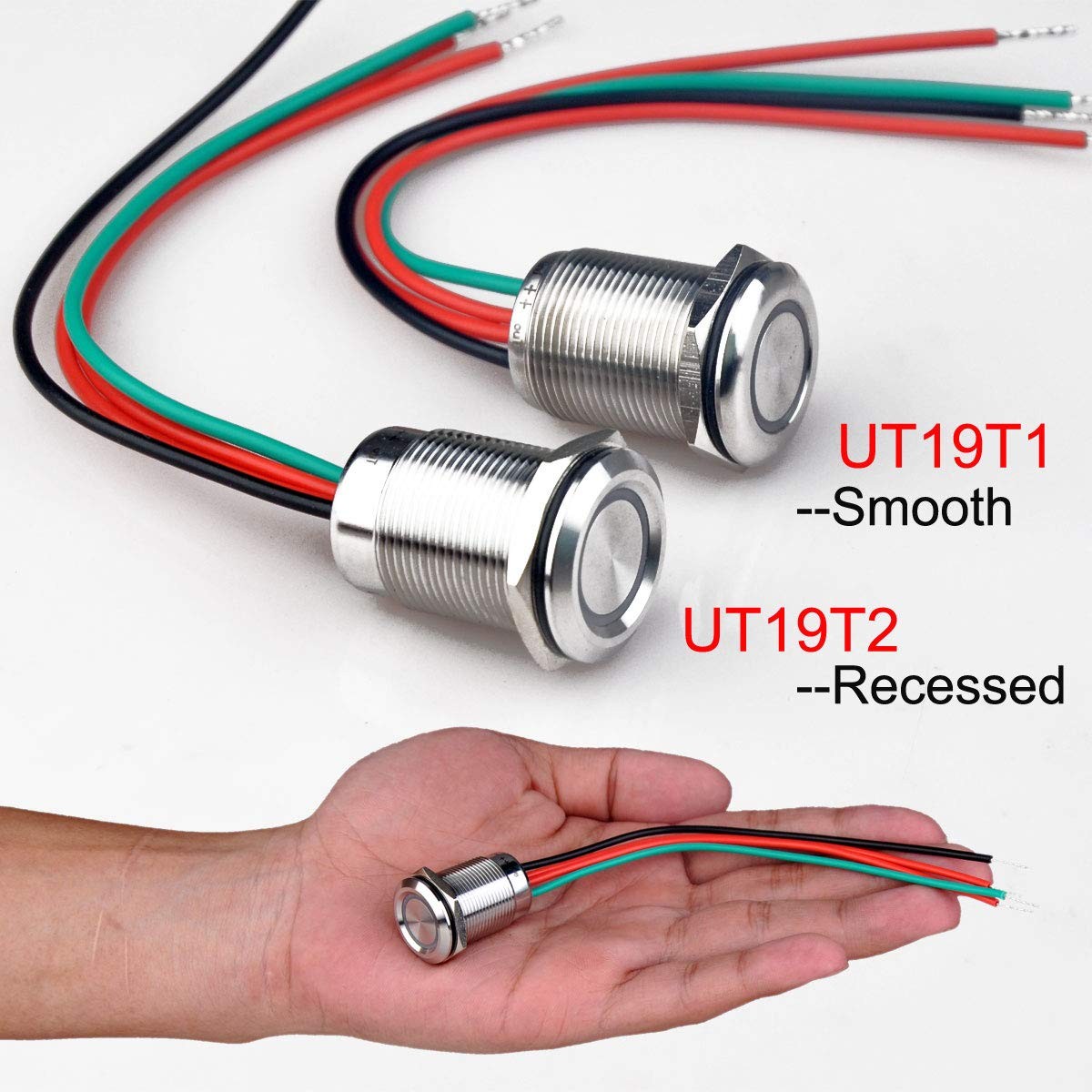

Touch Switch UT19T2 Stepless Dimming Switch DC 6V to 24V Blue LED Suitable fo
US
$18
What You Get:
1 * Touch Switch
1 * Instruction
What's the Touch Switch:
Touch switch, just touch it!
The touch switch is rated for 7A MAX /DC 6-24V.
What's the Touch Switch Used for:
Most often the Stepless Dimming switch is used for lights (Such as critical lights, chassis lamp, dome light)
About Stepless Dimming type:
1.The light is off when connecting to electricity. Click it (time < 550ms) once to initiate it with the light on. Click it again to let it be off. Continue to cycle.
2.The initial brightness is 100% of the maximum brightness.
3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle.
4.Click and Holding Touch can be used anytime. There is no interference between these two functions.
What's Note:
*The touch switch can't be used on a pump.It will be burnt out easily.
*If any question, please feel free to contact us. We will always be here to help you solve the problem in best way.
*The touch switch doesn't work with wet or damp fingers.
*The touch switch cannot be used in AC circuit. Don't exceed the rating volts!
Specifications:
Head diameter: 7/8" ( 22mm )
Mounting hole size: 3/4" ( 19mm )
Depth inc contacts: 1.1" ( 28mm )
Head shape: Recessed

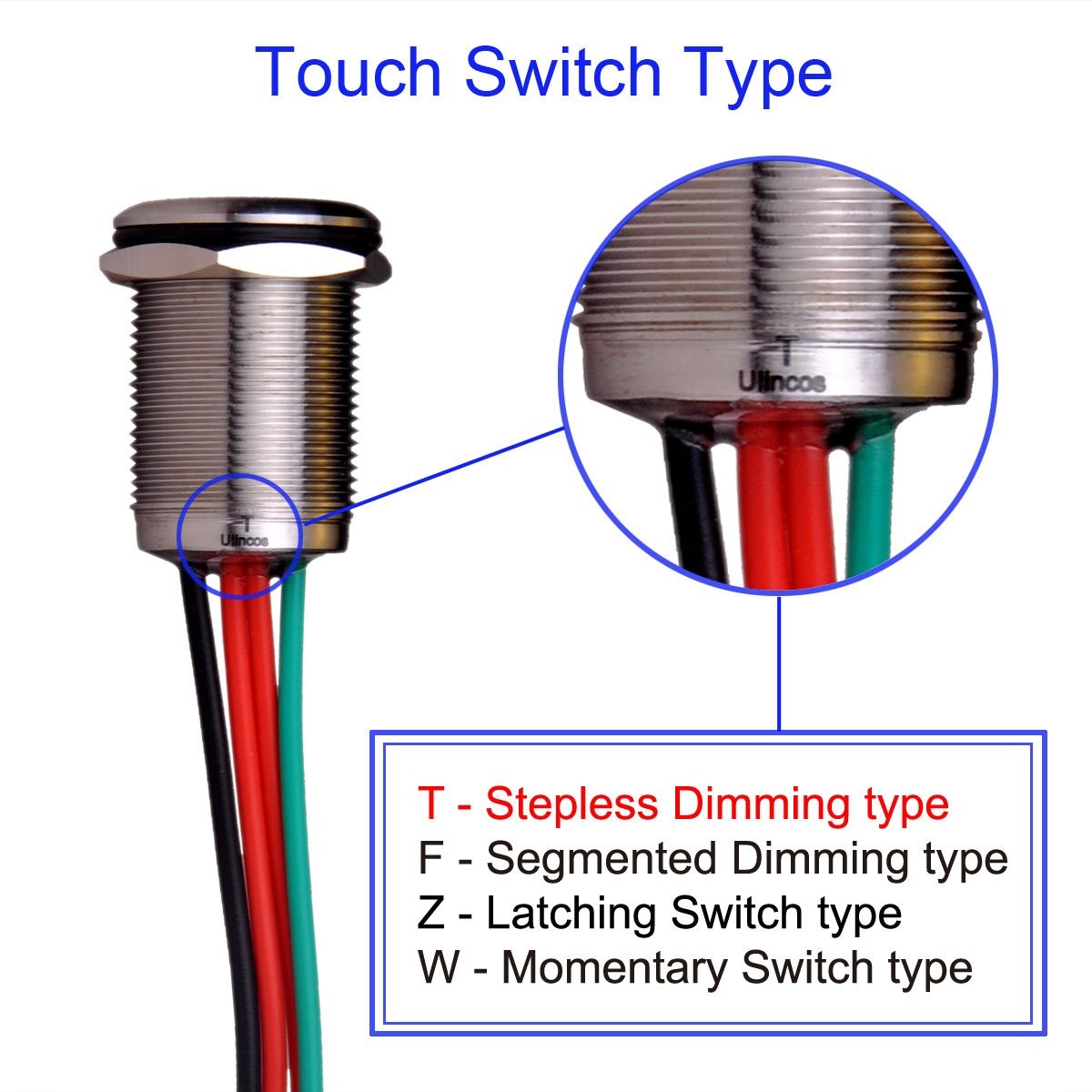

Switch Type: Stepless Dimming
Input Voltage: DC 6V-24V
Output Current: 7A MAX
LED voltage: DC 6V-24V
LED color: Blue (always ON)
Enclosure material: Stainless Steel
Protection level: IK10
Operating Temperature: -20℃ ～ +55℃
Touch switch, just touch it!
Blue LED ring always light ON, make you quickly find the switch at night or in the dark
The wires replace the terminal pins, make installing very easy
Dimming Switch, normally be used to control the lights. Don't exceed the rating amps and volts, you can run it on your other projects.

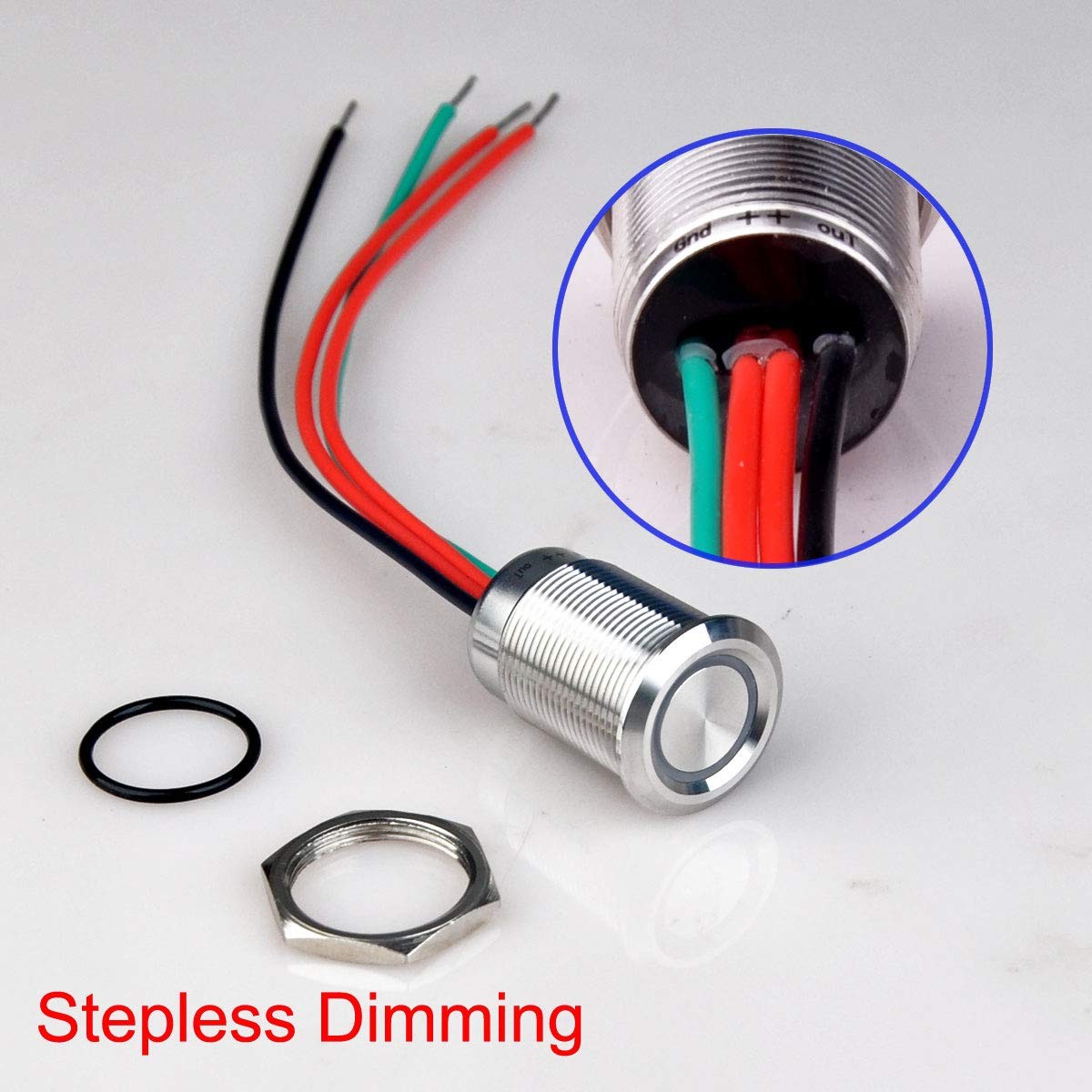

Stepless Dimming Type: You can Click or Holding Touch the switch to control your lights
