Trailer Brake Control Module for 2015-2019 Chevrolet Silverado 2500 3500 HD TBCM
$99
DESCRIPTION
2310445 Trailer Brake Control Module for 2014-2020 Silverado 1500-3500 HD / Sierra Tahoe Yukon & Escalade / ESV
Replaces OE#: 23337305, 23114650, 23104453
Buy With Confidence!
- ✓ FAST & FREE SHIPPING (Same or Next Business Day)
- ✓ FREE 30-DAY RETURNS
- ✓ 1-YEAR WARRANTY
- ✓ SHIPS FROM THE U.S.A.
⚠️ WARNING! CRITICAL COMPATIBILITY DISCLAIMER
This module is ONLY compatible with vehicles equipped with the Integrated Trailer Brake Controller (Option Code JL1). It will NOT work for vehicles that do not have the factory-installed dashboard brake controller switch. This part cannot be used to retrofit or add trailer brakes to a vehicle not originally equipped with the JL1 package.
This module is ONLY compatible with vehicles equipped with the Integrated Trailer Brake Controller (Option Code JL1). It will NOT work for vehicles that do not have the factory-installed dashboard brake controller switch. This part cannot be used to retrofit or add trailer brakes to a vehicle not originally equipped with the JL1 package.
Product Details
The OE Grade 2310445, 23337305, 23114650 Direct Replacement Trailer Brake Control Module is a high-performance solution for General Motors trucks and SUVs. It serves as the primary processing unit for your vehicle's factory towing system, coordinating electrical signals to ensure your trailer stops in perfect sync with your vehicle.
Manufactured to strict OE standards, this module is designed to resolve "Service Trailer Brake System" warnings and intermittent connectivity issues. Its anti-corrosion housing protects delicate internal circuitry from the moisture and road debris common to the under-vehicle mounting location.
Condition: Brand New. Includes: (1) 16-Pin Trailer Brake Control Module.
Fitment Note: Verify your RPO codes in the glovebox; must have JL1 code for compatibility.

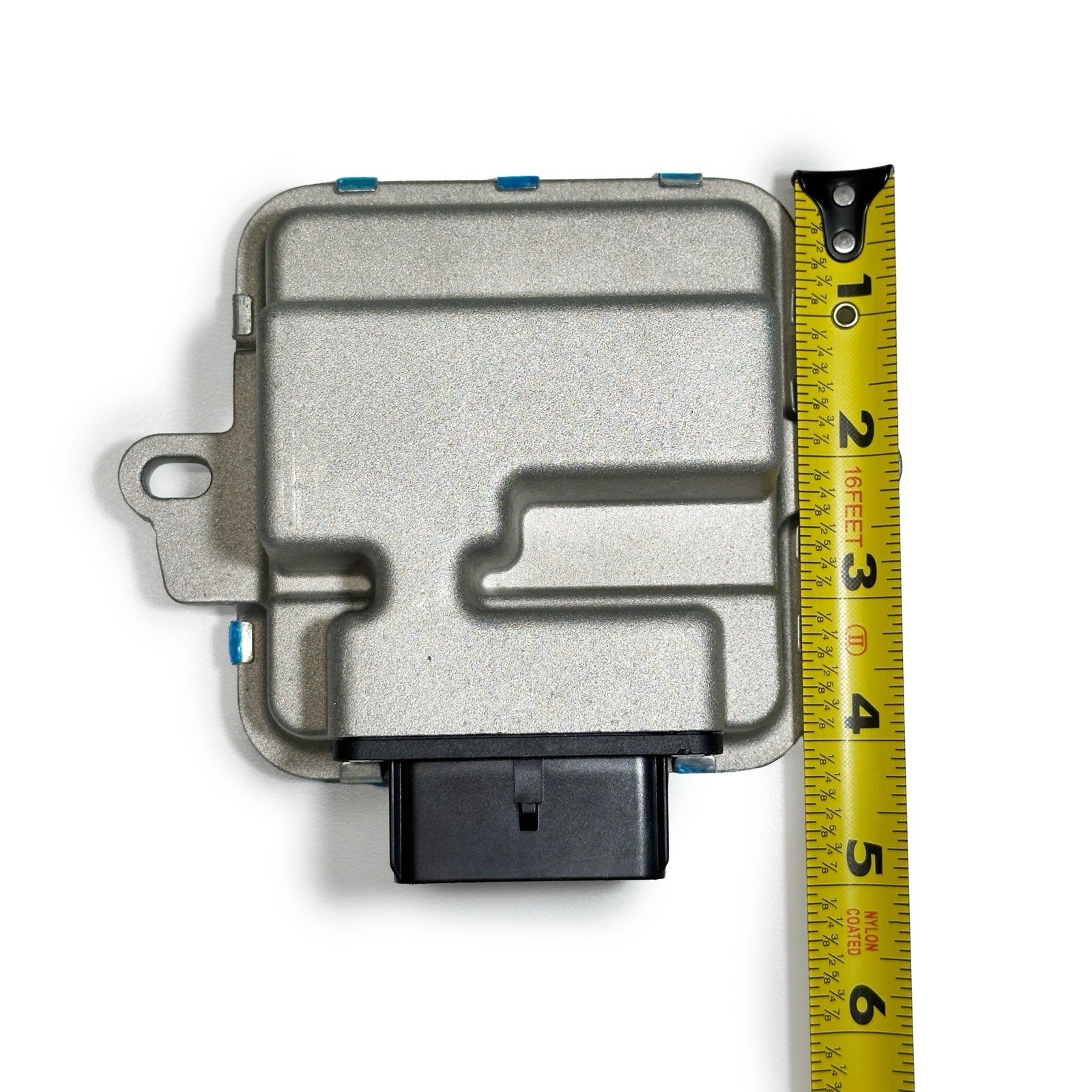

Buyer Note: The provided photos in the listing are of the actual unit you will receive upon purchasing this listing.
💡 PRO INSTALLATION TIP:
This module is located behind the spare tire on the driver-side frame rail. Before installation, clean the vehicle's 16-pin harness connector with electrical contact cleaner. Corroded terminals are the leading cause of "ghost" trailer-disconnected warnings even after a new module is installed.
This module is located behind the spare tire on the driver-side frame rail. Before installation, clean the vehicle's 16-pin harness connector with electrical contact cleaner. Corroded terminals are the leading cause of "ghost" trailer-disconnected warnings even after a new module is installed.
Key Features
- OE Precision: Matches original GM factory performance for seamless communication.
- Direct Replacement: Replaces superseded part numbers 23337305, 23114650, and 23104453.
- Durable Construction: Enhanced weather-resistant housing for long-term underbody survival.
- Plug & Play: Designed for an exact 16-pin fit with no complex programming required for most models.
- Direct OEM Fit: Matches factory dimensions for a 100% bolt-on installation.
- RPO Code JL1 Compatible: Designed specifically for vehicles with Integrated Trailer Braking.
- Corrects DTC Errors: Clears "Service Trailer Brake" codes C1114, C1110, and C111B.
- Proportional Braking: Syncs trailer brakes to truck pedal pressure for smooth stops.
- Corrosion-Proof Housing: Die-cast metal base prevents moisture intrusion in underbody environments.
- Dynamic Voltage Control: Automatically adjusts gain output based on trailer load.
- OEM Communication Protocol: Fully integrates with the vehicle’s Chassis Control Module (CCM).
- Anti-Oxidized Terminals: Silver-plated pins prevent high-resistance connection issues.
- Thermal Stability: Operates reliably in extreme temperatures (-40°C to 85°C).
- Vibration Dampened: Internal components are potted to withstand rough terrain.
- Chassis Location Specific: Precision mounting ears for the spare tire frame location.
Compatibility Chart
Fits the following vehicles (With JL1 Option Only):
| Make | Model | Year Range |
|---|---|---|
| Cadillac | Escalade / ESV | 2015-2020 |
| Chevrolet | Silverado 1500 (Classic/LD) | 2014-2019 |
| Chevrolet | Silverado 2500 / 3500 HD | 2015-2019 |
| Chevrolet | Suburban / Tahoe | 2015-2020 |
| GMC | Sierra 1500 (Classic/Ltd) | 2014-2019 |
| GMC | Yukon / Yukon XL | 2015-2020 |
| GMC / Chevy | Canyon / Colorado | 2016-2022 |
Specifications
| Brand: | OE Grade Direct Replacement / AFTERMARKET |
| Terminal Type: | Blade Pin (16-Pin) |
| Mounting: | Rear Chassis / Spare Tire Area |
| Weight: | 16 oz (1.0 lb) |
