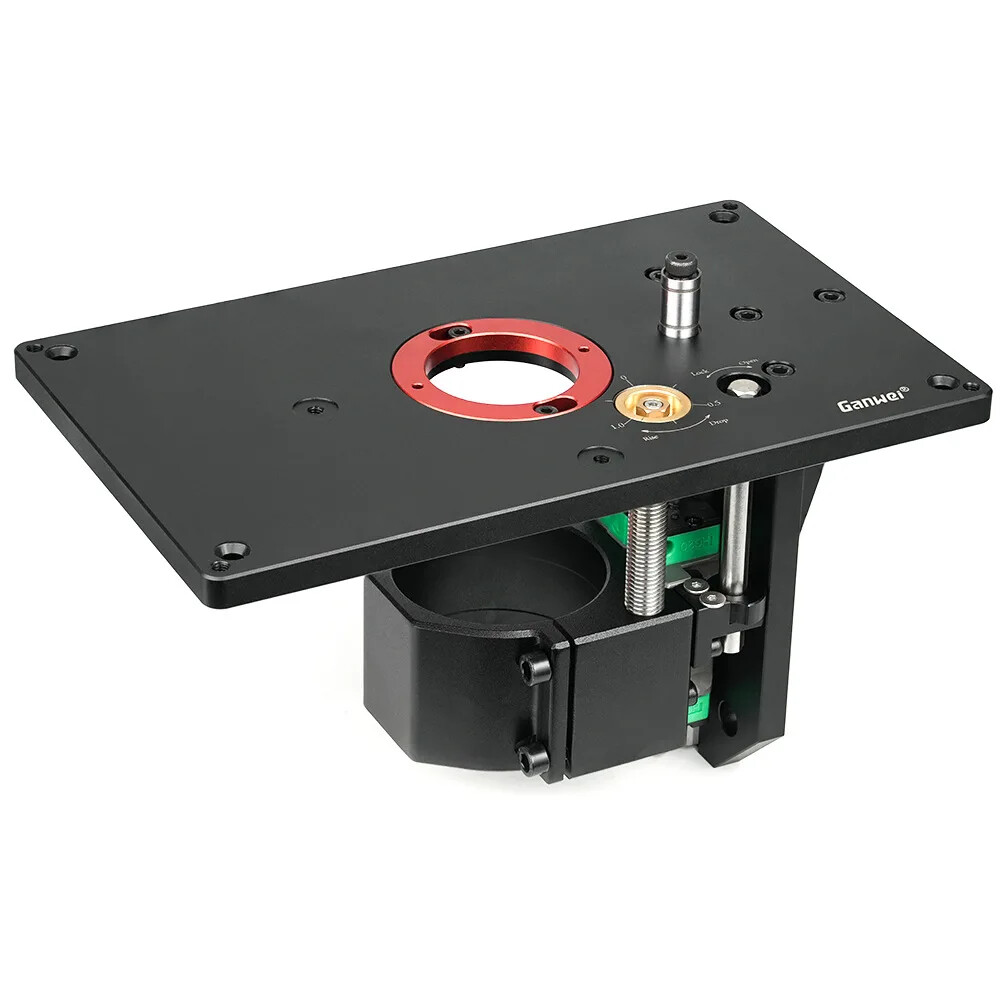

This trimmer table is specifically designed for trimmers to help users perform trimming operations more easily and accurately. Applicable for 65mm diameter trimming machine. It can be mounted upside down on the table, and the user can adjust the height of the lift table to change the working position of the trimmer, so as to achieve the beautiful trimming effect. Adopts HG20 mute heavy-duty line rail, with a lifting stroke of 0-57mm, lifting accuracy of 1.5mm 1 circle rotation, and minimum unit of 0.25mm. Suitable for board thickness of 25-50mm woodworking countertop and thin countertop.
Features:
The trimmer table is a tool designed specifically for trimmers to help users perform trimming operations more easily and accurately. Applicable for 65mm diameter trimming machine.
Made of high-strength CNC aluminum alloy material, it has high stability and durability, which can effectively protects the trimming machine and prolong its service lifespan.
The surface of this lift table is anodized, anti-slip, and anti-scratch, which can ensure the safety of users.
The main feature of this product is that the trimmer can be mounted upside down on the table, and the user can adjust the height of the lift table to change the working position of the trimmer, so as to achieve the beautiful trimming effect.
At the same time, the inverted design also makes it easier for the user to operate the trimmer and improves the working efficiency. Suitable for board thickness of 25-50mm woodworking countertop and thin countertop.

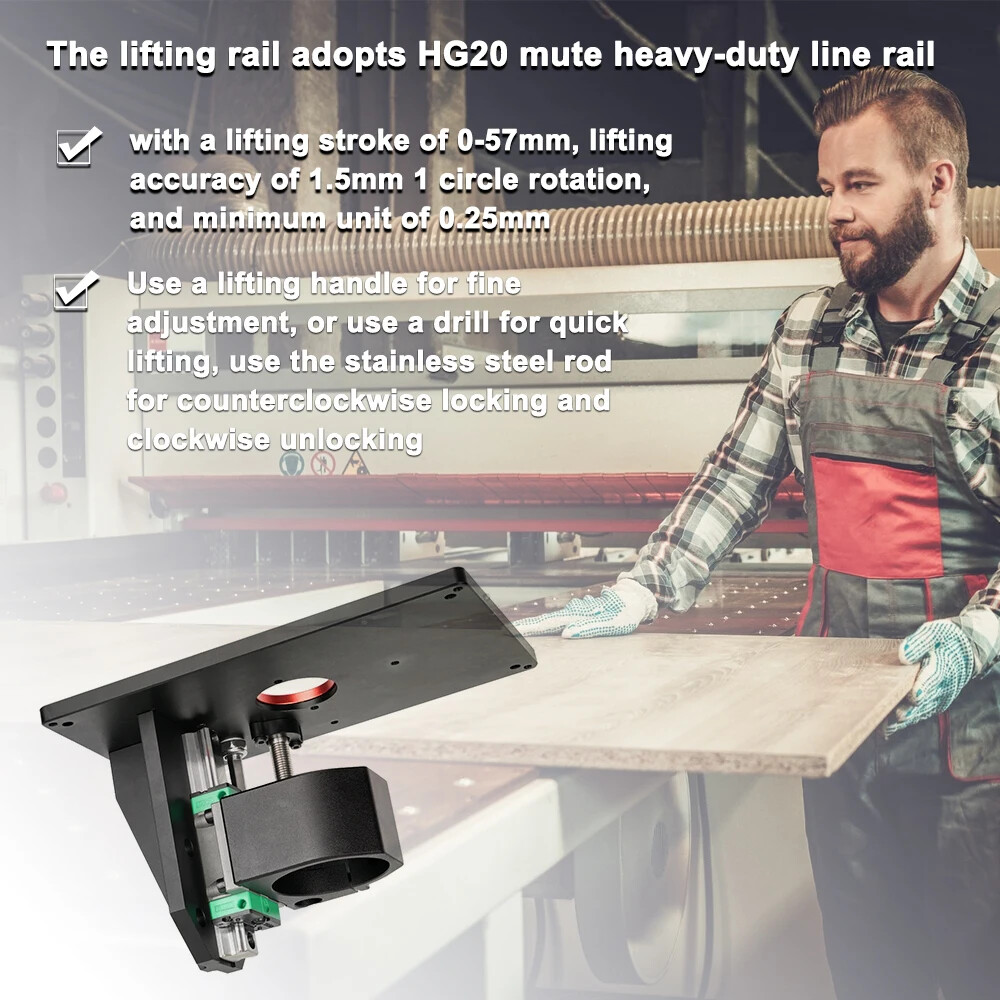

The lifting rail adopts HG20 mute heavy-duty line rail, with a lifting stroke of 0-57mm, lifting accuracy of 1.5mm 1 circle rotation, and minimum unit of 0.25mm.
Use a lifting handle for fine adjustment, or use a drill for quick lifting, use the stainless steel rod for counterclockwise locking and clockwise unlocking.
Overall, this trimming machine inverted lift table is a practical trimming machine accessory, for improving the efficiency and quality of trimming operations have an important role.
Specifications:
Name: Trimming Machine Lift Table
Material: aluminum alloy
Lifting stroke: 0-57mm
Item size: 250 * 150 * 150mm / 9.84 * 5.91 * 5.91in
Item weight: 2560g / 5.64lb
Package size: 300 * 180 * 180mm / 11.81 * 7.09 * 7.09in
Package weight: 2620g / 5.78lb

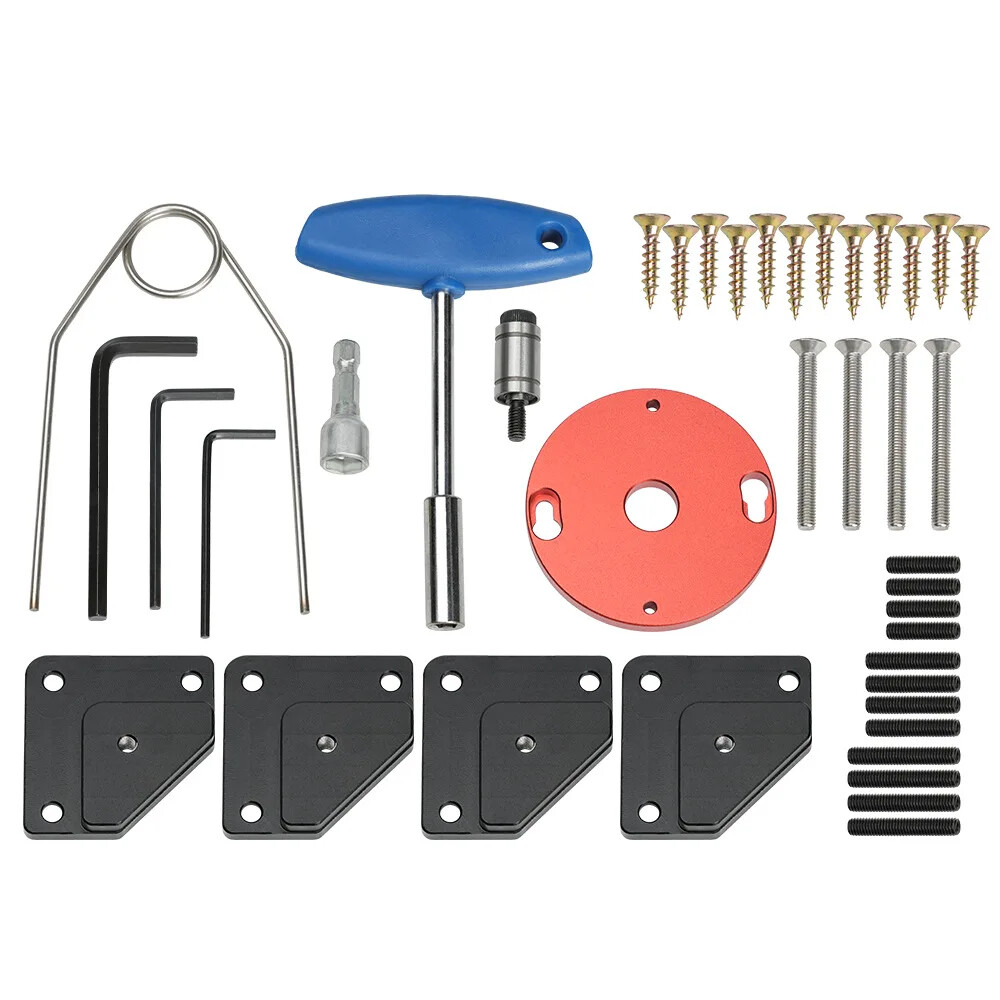

Packing List:
1 * Trimming Machine Lift Table
1 * Coverplate Clip
3 * L-Wrenches
1 * Lifting Bit
1 * T-Wrench
1 * Chamfered Bearing
12 * Screws
1 * Coverplate
4 * Chamfering Board Fixing Screws
4 * Fixed Support Pads
12 * Black screws
