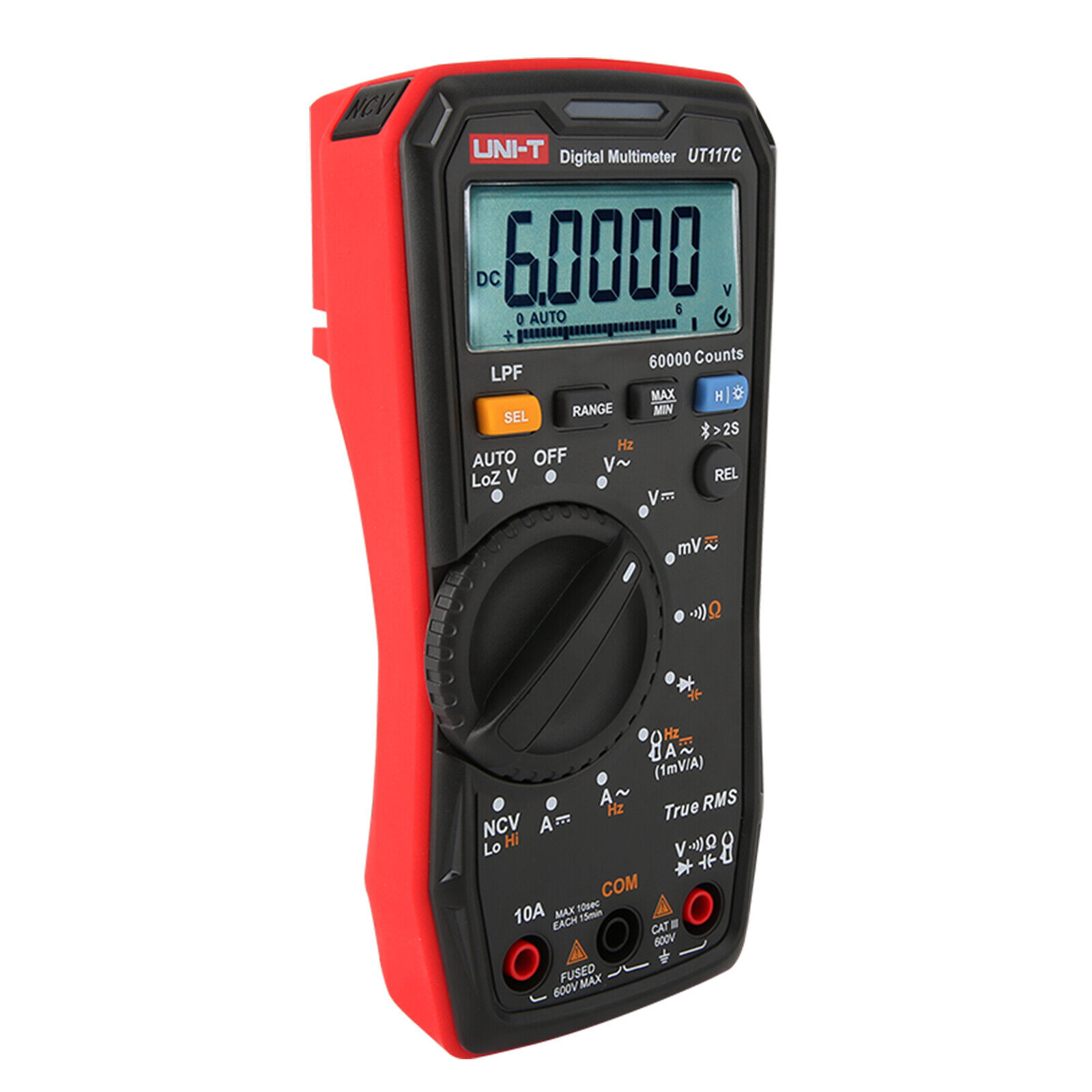

UT117C High-precision True RMS Digital Multimeter
UT117C is a high-precision true RMS multimeter, which has AC/DC 600V voltage measurement, 10A AC/DC current measurement, LPF measurement, Bluetooth function, etc.
The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good tool for electronic electricians.
Features of UT117C High-precision True RMS Digital Multimeter
● High-precision: 60000 counts
● True RMS measurement
● AC/DC current: 10A
● AC/DC voltage: 600V
● LoZ, LPF & Auto Volt function
● Audible & Visual Warning
● Bluetooth app supported
● External current clamp supported
● Compact design, easy & convenient operation
● Drop test: 2m

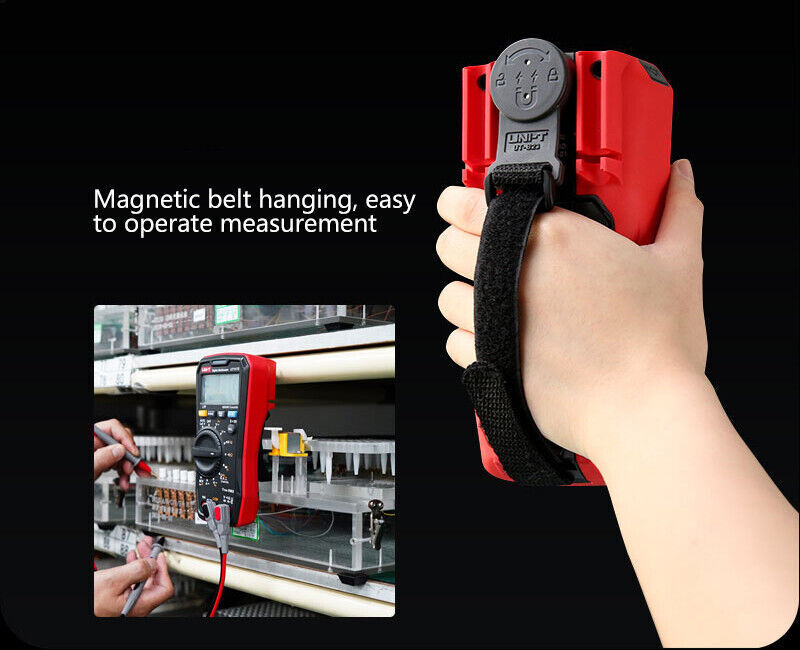

● Magnetic hanger supported (optional)
● Overvoltage category: CAT III 600 V
Specifications of UT117C High-precision True RMS Digital Multimeter
|
Model |
UT117C |
|
|
AC voltage |
600.00mV/6.0000V/60.000V/600.00V |
±(1%＋30) |
|
AC current |
6.0000A/10.000A |
±(1.5%+30) |
|
DC voltage |
600.00mV/6.0000V/60.000V/600.00V |
±(0.3%+10) |
|
DC current |
6.0000A/10.000A |
±(0.5%+10) |
|
Auto-V loz |
600.0V |
±(1%+3) |
|
LPF voltage (ACV) |
600.0V |
±(2%+3) |
|
Frequency |
99.99Hz/999.9Hz/9.999KHz/50.00KHz |
±(0.01%+3) |
|
Resistance |
600.00Ω~6.0000MΩ |
±(0.5%+5) |
|
40.000MΩ |
±(3%+5) |
|
|

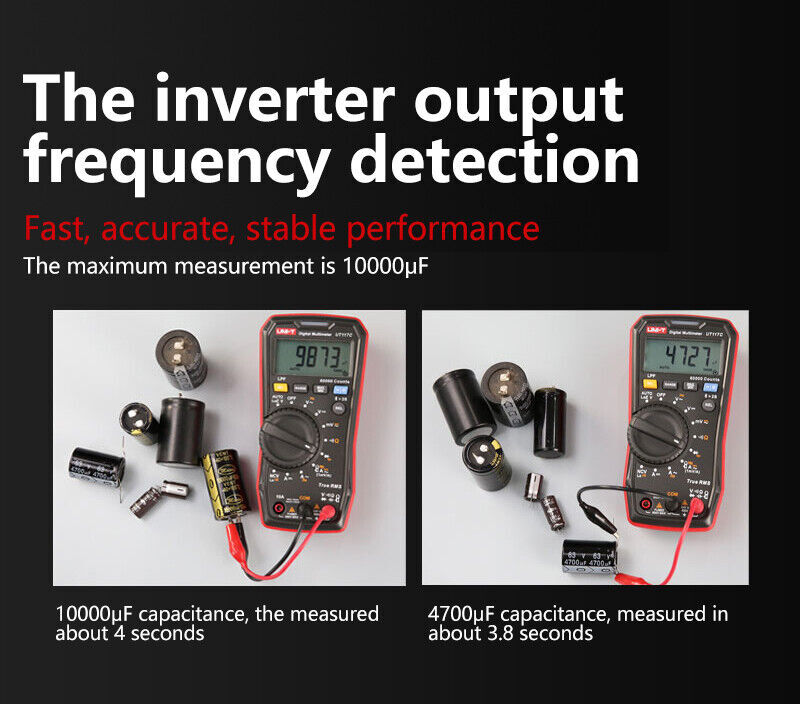

Capacitance |
1000nF/10.00uF/100.0uF |
±(1.9%+5) |
|
1000uF/10000uF |
±(2.5%+5) |
|
|
Main Features |
||
|
Display count |
60000 |
|
|
External current clamp |
Ratio: 1mV/A |
√ |
|
Continuity & Diode |
√ |
|
|
NCV |
√ |
|
|
Data Hold |
√ |
|
|
Manual/Auto range |
√ |
|
|
Max/Min |
√ |
|
|
Relative mode |
√ |
|
|
High voltage warning |
√ |
|
|
Audiable & Visuable indication |
√ |
|
|
Low battery indication |
√ |
|
|
Auto Power Off |
Around 15 minutes |
√ |
|
LCD backlight |
Auto power off after 5 minutes |
√ |
|
Bluetooth |
√ |
|
|
Drop Test |
2m |
√ |
|
Overvoltage category |
CATIII 600V |
|
|
General Characteristics |
||
|
Power supply |
1.5V AAA * 3 not include |
|
|
Product Color |
Red + Grey |
|
|
Product Weight |
Around 346g |
|
|
Product Dimension |
169x 84x 48.8mm |
|
|
Accessories |
Test probe*1 pair, User manual |
|
