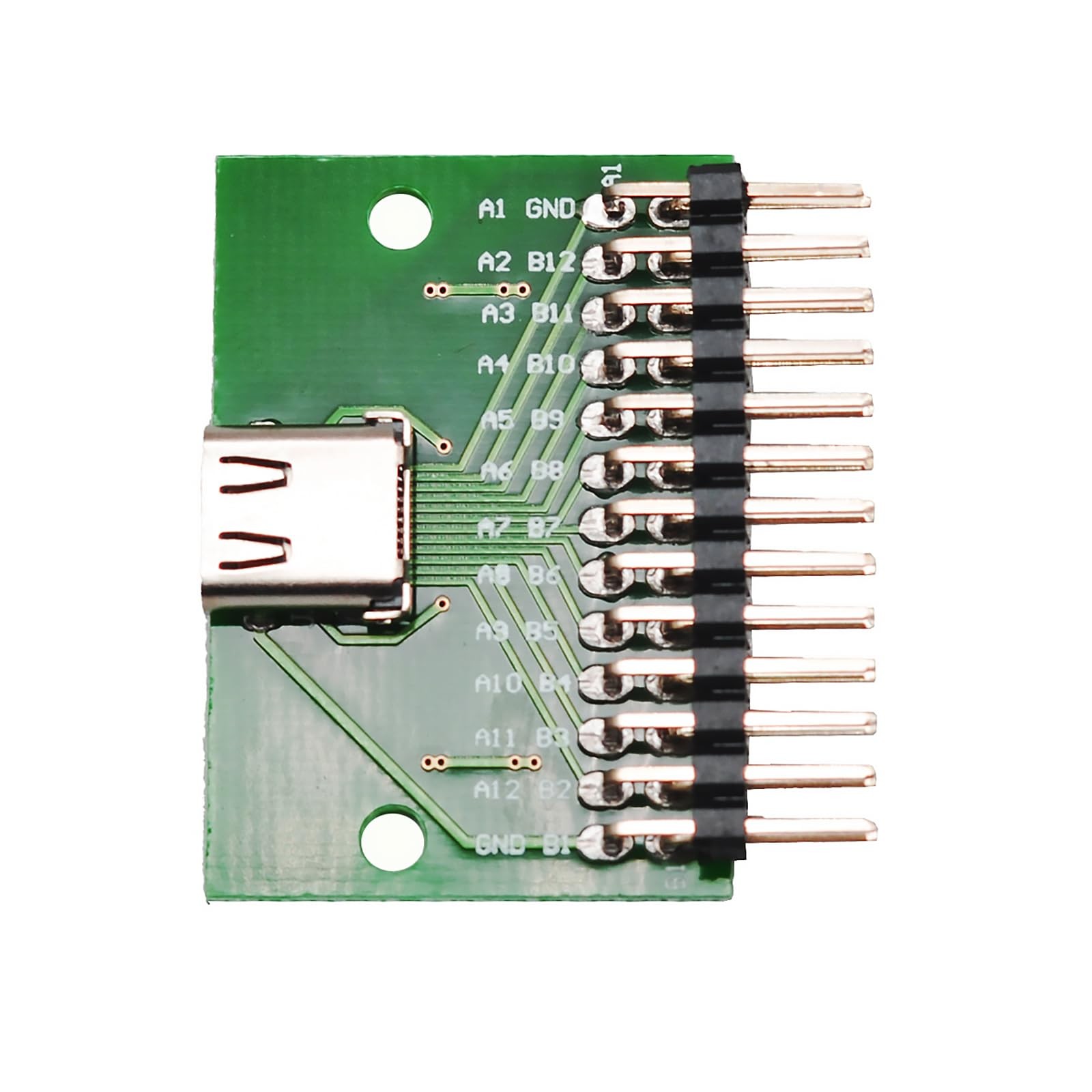

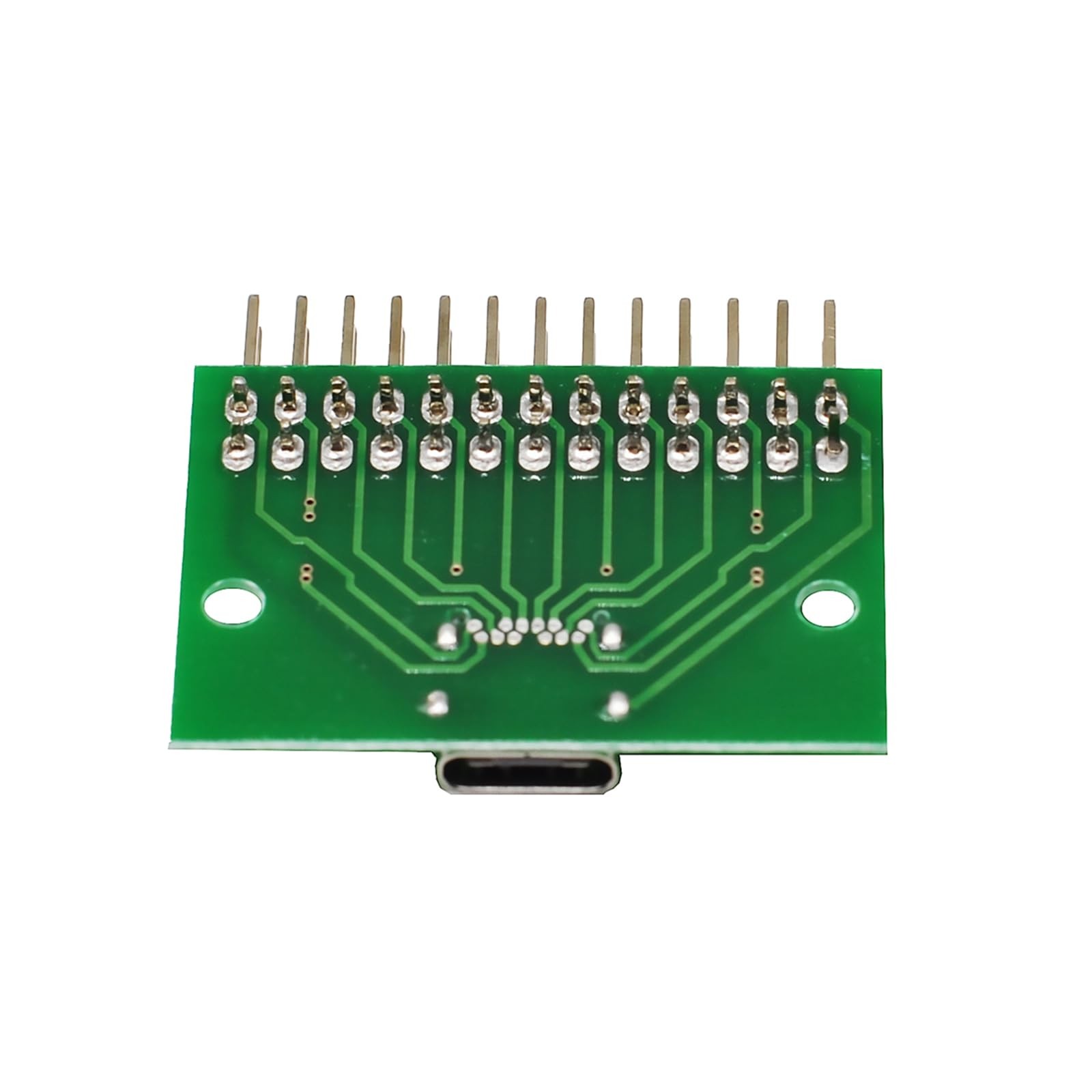

This USB 3.1 Type-C female PCB test socket board is an essential tool for electronics testing and development. The high-quality green PCB features clearly labeled pins and a robust Type-C connector, making it perfect for prototyping and debugging USB-C devices. The board includes comprehensive pin breakouts with clear markings from A1 to A12 and B1 to B12, allowing easy access to all USB-C signals. The sturdy construction includes gold-plated connectors for reliable connections and superior conductivity. The compact design integrates seamlessly into testing setups while maintaining signal integrity. This adapter board is ideal for engineers, makers, and electronics enthusiasts working with USB Type-C implementations. Each unit comes with standard 0.1-inch pitch headers for straightforward integration with breadboards and other testing equipment.
COMPATIBILITY: USB 3.1 Female Socket Type C Connector 24 Pins Breakout PCB Board designed for PCB testing and prototyping applications
DESIGN FEATURES: High-quality PCB board with clearly labeled pins and through-hole mounting points for secure connections
PIN CONFIGURATION: 24-Pin header arrangement with comprehensive pin labeling for easy circuit integration
TECHNICAL SPECS: Supports USB 3.1 protocol with data transfer capabilities and power delivery functionality
DIMENSIONS: Compact PCB board measuring approximately 1.5 inches x 1 inch with standard 0.1 inch pin spacing
