USB2.0 Isolator High-Speed Isolation Module 480Mbps Audio Noise Reduction Filter
$22
DESCRIPTION
Store Categories
Product View
Details
Product Features:
1. High-Speed Transfer: Fully compatible with USB 2.0 at 480Mbps, auto-adaptive for smooth and stable data flow
2. Superior Isolation: 1500VDC electrical isolation resists electromagnetic interference, safeguarding precision equipment and personal safety
3. Versatile Connectivity: Dual input/output ports with reversible plug design, compatible with mainstream device interfaces
4. Flexible Power Delivery: Built-in 5V power supply with external Type-C expansion for high-load power requirements
5. Plug-and-Play: Driver-free hot-swap design compatible with major operating systems for instant usability
1. High-Speed Transfer: Fully compatible with USB 2.0 at 480Mbps, auto-adaptive for smooth and stable data flow
2. Superior Isolation: 1500VDC electrical isolation resists electromagnetic interference, safeguarding precision equipment and personal safety
3. Versatile Connectivity: Dual input/output ports with reversible plug design, compatible with mainstream device interfaces
4. Flexible Power Delivery: Built-in 5V power supply with external Type-C expansion for high-load power requirements
5. Plug-and-Play: Driver-free hot-swap design compatible with major operating systems for instant usability

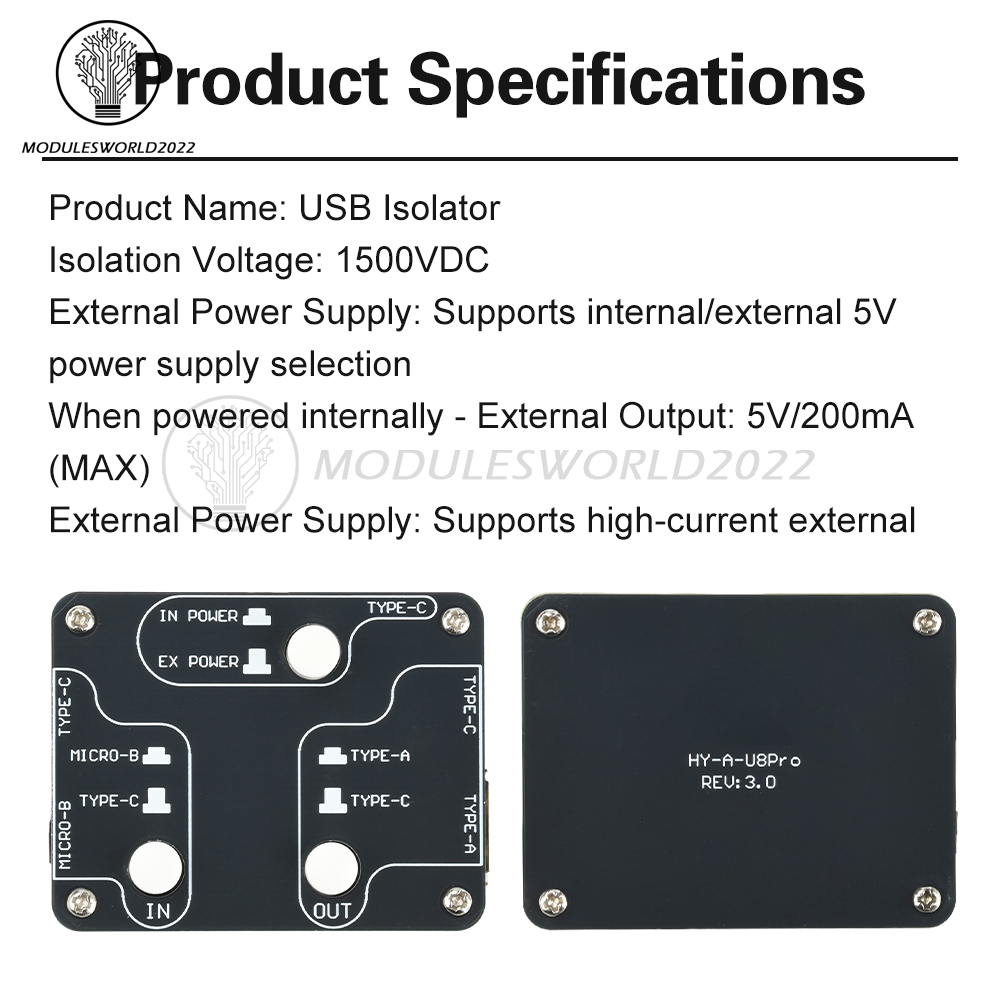

Product Specifications:
Product Name: USB Isolator
Isolation Voltage: 1500VDC
External Power Supply: Supports internal/external 5V power selection
Internal Power Mode - External Output: 5V/200mA (MAX)
External Power Supply: Supports high-current external power supply via standard Type-C port (reversible plug)
Product Name: USB Isolator
Isolation Voltage: 1500VDC
External Power Supply: Supports internal/external 5V power selection
Internal Power Mode - External Output: 5V/200mA (MAX)
External Power Supply: Supports high-current external power supply via standard Type-C port (reversible plug)

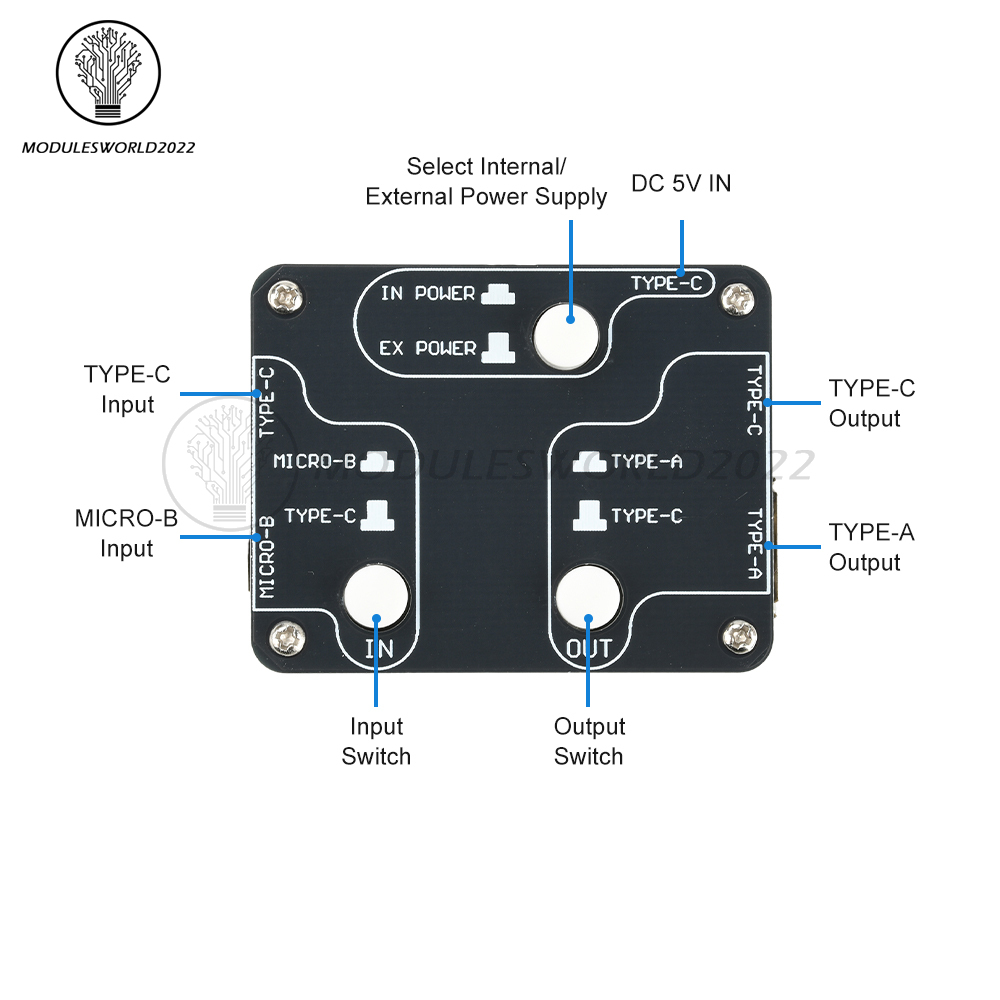

Interface Types:
Input: Standard Micro-B port, Standard Type-C port (reversible plug)
Output: Standard USB-A port, Standard Type-C port (supports reversible plugging)
Note: Input/Output/Internal/External power supply ports - Users can freely select via switch
Communication Interface: USB 2.0 (480Mbps), auto-detects low, full, and high-speed connections
Supported Transfers: Driver-free, supports USB control transfers, bulk transfers, interrupt transfers, synchronous/isochronous transfers, etc.
Operating Temperature: -20°C to 85°C
Compatible with most devices: DAC decoders (USB sound cards), USB flash drives, card readers, portable hard drives, emulation debuggers, logic analyzers, etc.
Description:
DAC Noise Reduction Expert: Plays a vital role in electrical isolation, safety protection, and noise suppression, widely applied across multiple fields. Features a built-in 5V/200mA-1500VDC isolated power supply module, meeting the power requirements of most common devices. For high-current load devices, external power supply is supported via a standard Type-C port with reversible plug orientation.
DAC Noise Reduction Expert: Plays a vital role in electrical isolation, safety protection, and noise suppression, widely applied across multiple fields. Features a built-in 5V/200mA-1500VDC isolated power supply module, meeting the power requirements of most common devices. For high-current load devices, external power supply is supported via a standard Type-C port with reversible plug orientation.
Applications:
1. Noise-sensitive environments:
Computers are significant noise sources. In noise-sensitive applications, this device enables communication isolation for USB interfaces. Examples include high-precision USB data acquisition systems, Hi-Fi audio systems, and DAC decoders.
2. Work environments with high voltage or strong interference:
(1) USB debugging devices: Such as various USB-based JTAG/SWD emulators, ISP/ASP/IAP/ICP programmers, etc. When frequent connection failures or emulation anomalies occur during debugging, using a USB isolator can help resolve these issues.
(2) Various industrial USB devices: In industrial settings, USB devices like mice, keyboards, and USB-to-serial converters often experience crashes. USB isolators effectively reduce the likelihood of device crashes and damage in industrial settings. When USB cable extension is required, these isolators serve as excellent USB repeaters while also isolating low voltage differences between upstream and downstream devices.
(3) Other common USB peripherals: USB sound cards (DAC decoders), USB flash drives, printers, USB hubs, USB cameras, card readers, etc.
(4) Medical Devices: For human safety considerations, certain medical devices connect to computers via USB interfaces. During data collection or treatment processes requiring direct electrical contact with the human body, electrical isolation of the interface circuitry becomes a critical protective measure. This prevents potential electric shocks from high voltages that could propagate from the computer through the device and interface cables to the human body.
1. Noise-sensitive environments:
Computers are significant noise sources. In noise-sensitive applications, this device enables communication isolation for USB interfaces. Examples include high-precision USB data acquisition systems, Hi-Fi audio systems, and DAC decoders.
2. Work environments with high voltage or strong interference:
(1) USB debugging devices: Such as various USB-based JTAG/SWD emulators, ISP/ASP/IAP/ICP programmers, etc. When frequent connection failures or emulation anomalies occur during debugging, using a USB isolator can help resolve these issues.
(2) Various industrial USB devices: In industrial settings, USB devices like mice, keyboards, and USB-to-serial converters often experience crashes. USB isolators effectively reduce the likelihood of device crashes and damage in industrial settings. When USB cable extension is required, these isolators serve as excellent USB repeaters while also isolating low voltage differences between upstream and downstream devices.
(3) Other common USB peripherals: USB sound cards (DAC decoders), USB flash drives, printers, USB hubs, USB cameras, card readers, etc.
(4) Medical Devices: For human safety considerations, certain medical devices connect to computers via USB interfaces. During data collection or treatment processes requiring direct electrical contact with the human body, electrical isolation of the interface circuitry becomes a critical protective measure. This prevents potential electric shocks from high voltages that could propagate from the computer through the device and interface cables to the human body.

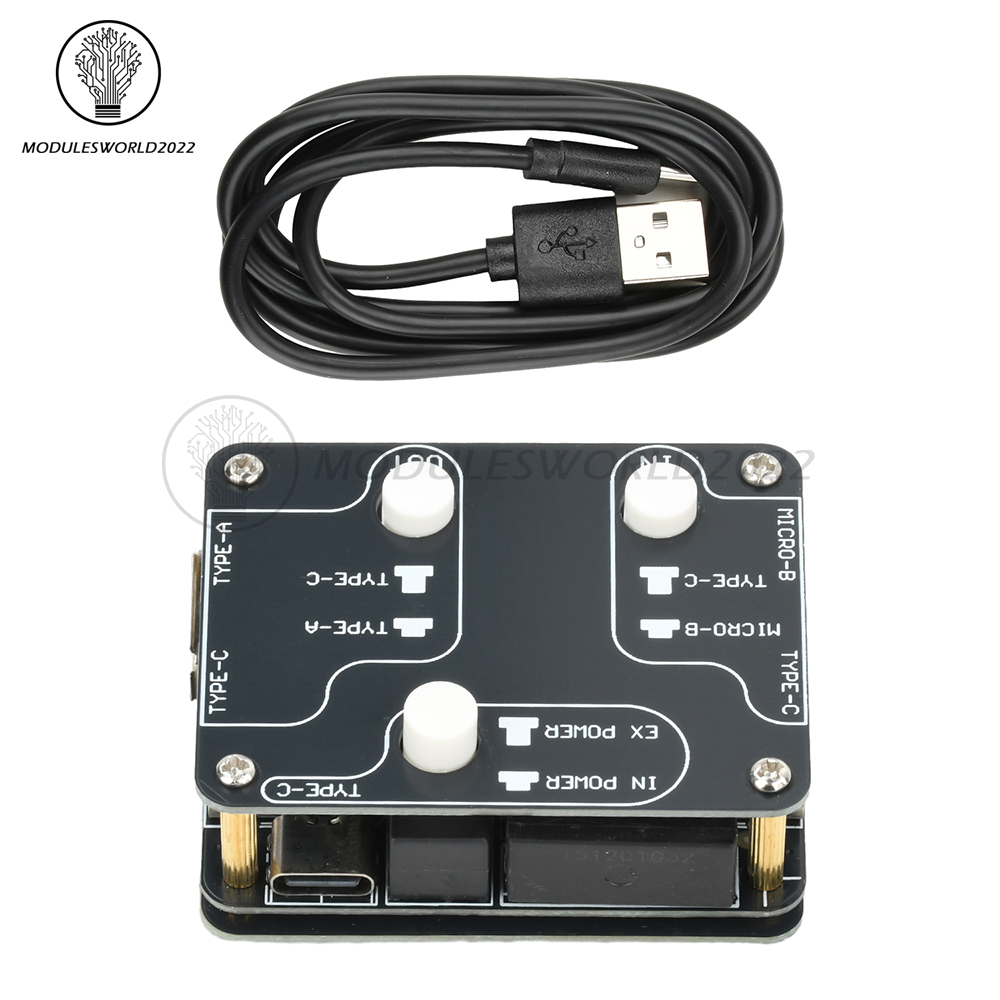

Shipping List:
Module x1
USB Cable x1
Module x1
USB Cable x1
