Ultrasonic Sensor, HC-SR04 Ultrasonic Distance Sensor Kits for Arduino UNO MEGA R3 Raspberry Pi,Datasheet Available to Download
Features
- Ultrasonic HC-SR04 Distance Measuring Transducer Sensor Compatible with Arduino
- HC-SR04 consists of ultrasonic transmitter, receiver, and control circuit. When trigged it sends out a series of 40KHz ultrasonic pulses and receives echo from an object. The distance between the unit and the object is calculated by measuring the traveling time of sound and output it as the width of a TTL pulse.
- Power supply: 5V DC; quiescent current: less than 2mA; effectual angle: less than 15 ; distance: 3cm~450cm; resolution: 0.3 cm
- Package Content: 5pcs HC-SR04 with 10 pcs female to male dupont cable
Item Description
---------------------------------------------------------------
Elegoo HC-SR04 Ultrasonic Sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back. By recording the elapsed time between the sound wave being generated and the sound wave bouncing back, it is possible to calculate the distance between the sonar sensor and the object.
Ultrasonic Sensor HC-SR04 is great for all kind of projects that need distance measurements, avoiding obstacles as examples. HC-SR04 provides 2cm-300cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules include ultrasonic transmitters, receiver and control circuit.
Operatiing Principle of Ultrasonic Sensor
As the name indicates, ultrasonic sensors measure distance by using ultrasonic waves. The sensor head emits an ultrasonic wave and receives the wave reflected back from the target. Ultrasonic Sensors measure the distance to the target by measuring the time between the emission and reception. The distance can be calculated with the following formula: Distance L = 1/2 Ã T Ã C where L is the distance, T is the time between the emission and reception, and C is the sonic speed. (The value is multiplied by 1/2 because T is the time for go-and-return distance.)
Ultrasonic Sensor for Project
Elegoo Ultrasonic Sensor HC-SR04 is inexpensive and easy to use since we will be using a Library specifically designed for this sensor, which can be downloaded from elegoo.com.
Technical Specification
- Power Supply :+5V DC
- Quiescent Current :
- Working Current: 5mA
- Effectual Angle:
- Ranging Distance : 2cm - 300 cm/1 - 13ft
- Resolution : 0.3 cm
- Measuring Angle: 30 degree
- Trigger Input Pulse width: 10uS
- Dimension: 45mm x 20mm x 15mm

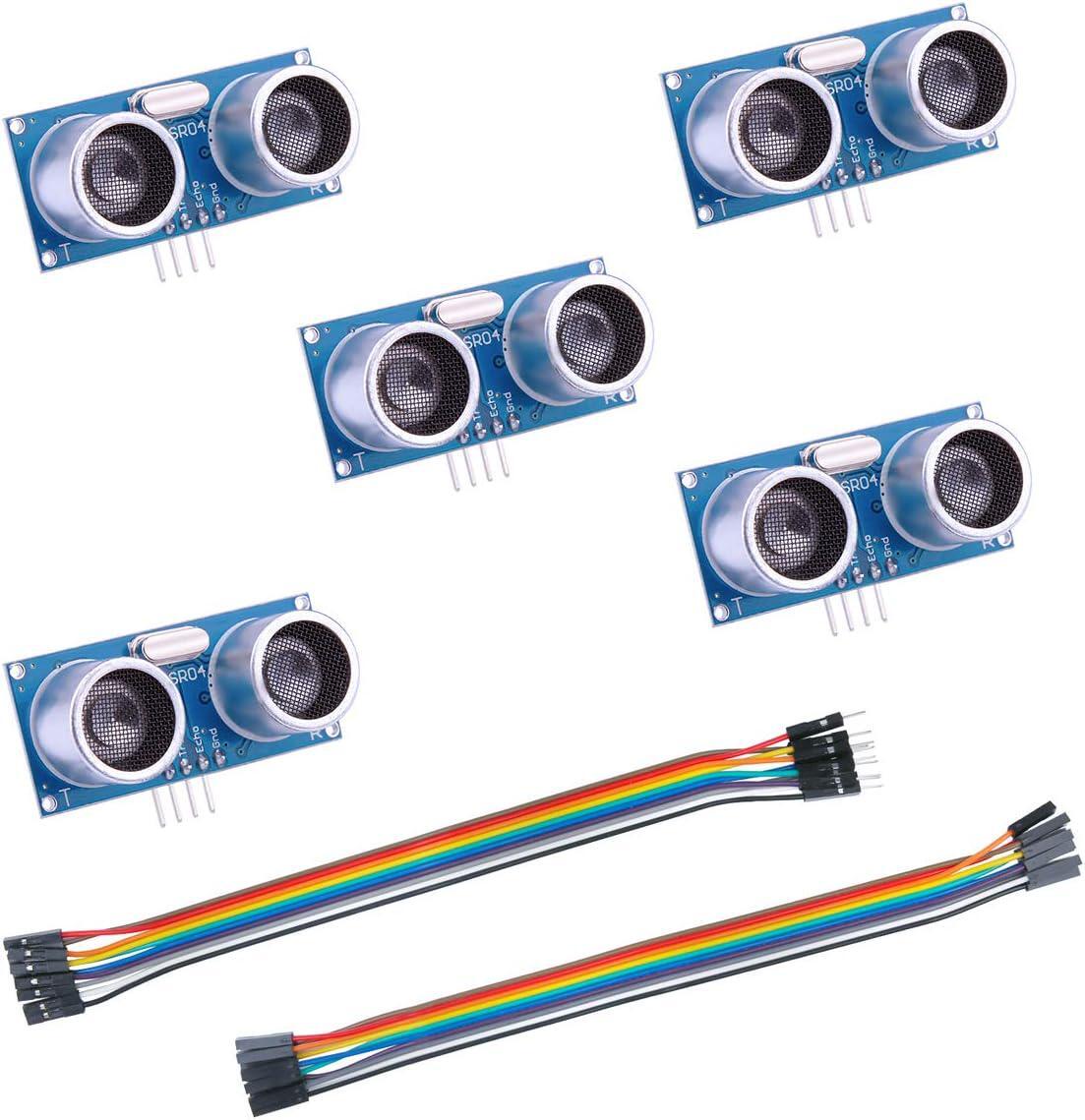

Product Package
- 5 HC-SR04 Ultrasonic Sensors
- 10 Female-Male Dupont Cables
- 10 Female-Female Dupont Cables
- 1 Exquisite package box
- Protected with the thermoplastic film
- Brand: ELEGOO
- Product Dimensions: 2.97 x 1.5 x 3 cm; 9.07 g
- Item model number: UK-EL-SM-001
- Voltage: 5 Volts
- Hardware Platform: Arduino
- Are Batteries Included: No
- Item Weight: 9.07 g
- Guaranteed software updates until: unknown
- Best Sellers Rank: 4,870 in Business, Industry & Science (See Top 100 in Business, Industry & Science) 1 in Ultrasonic Proximity Sensors
- Date First Available: 21 Nov. 2018
