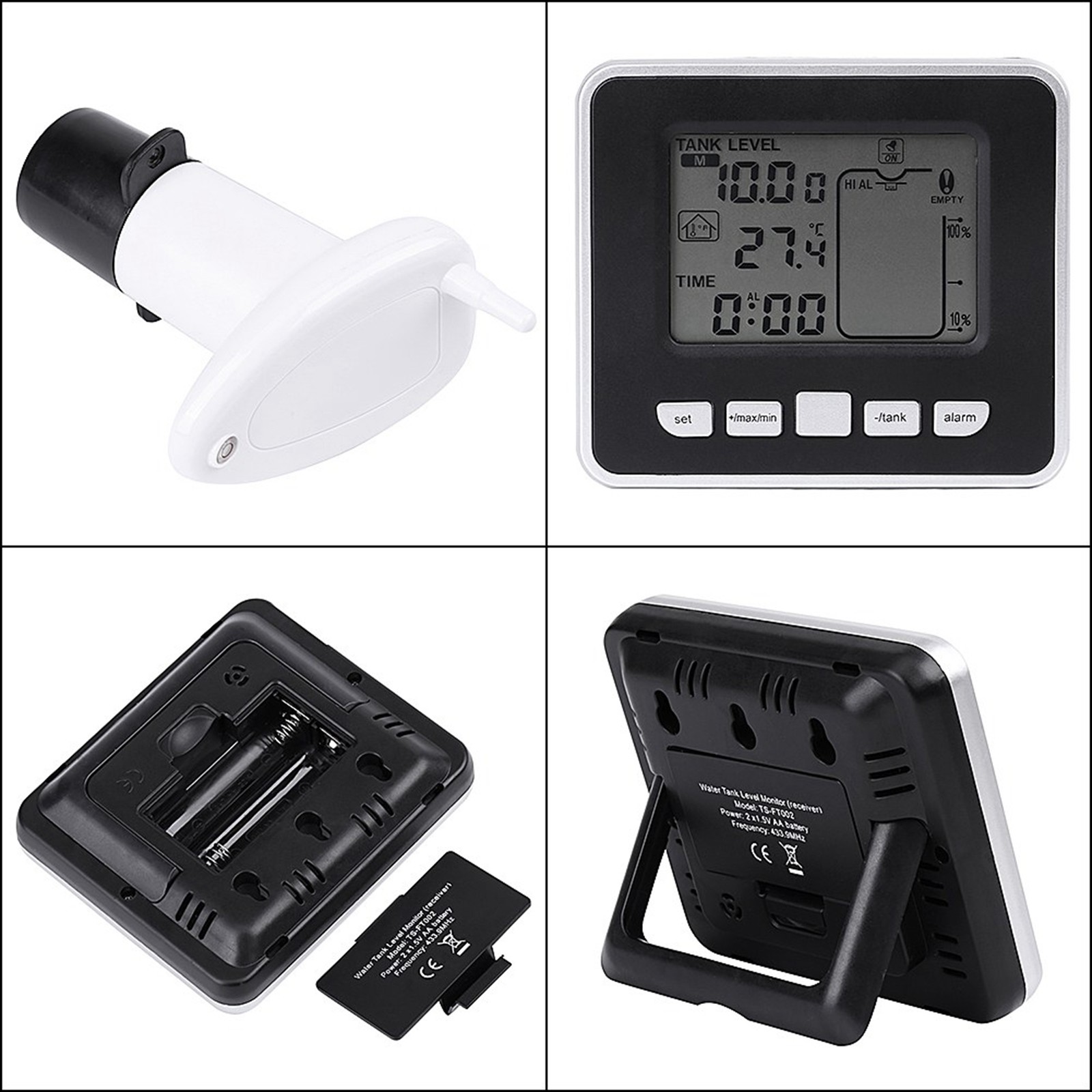

Feature: 1. This meter monitors tank liquid depth level, and displays on a 10 elements LCD bar graph Specification: Description: Keep an eye on your outdoor water tank from the comfort of your own living room, up to 100m away. Installed at the top of your water tank, the transmitter unit measures the water level using an ultrasonic sensor and temperature using a thermo sensor. You can the receiver unit on a wall or pull out the stand and place it on your kitchen bench top, table or desk. View your room's temperature, tank temperature and water level (represented by a 10 elements bar graph). You can store minimum/maximum records and set alarms for specific water levels (high/low) or when empty.
Specification: Indoor Temperature Range: 0~50℃ Outdoor Temperature Range: -40~60℃ Temperature Accuracy: ±1oC Water Level Measure Rang: 0~15m Resolution: 0.01m Accurate: +/-0.03M Transmission Frequency: 433MHZ Transmission Range: 100 meters(300 feet)in open area Transmission Interval: 30s when level changes or 3 minutes when level does not change Receiver Battery: 2X AA 1.5V LR3 Alkaline batteries (Not included) Transmitter Battery: 6X AAA 1.5V LR6 Alkaline or li batteries (Not included) Battery Life: Minimum 12 months for receiver Minimum 12 months for transmitter Receiver Size: 108*94*27mm Transmitter Size: 97*68*152mm LCD Size: 66*45mm(3.3 inch)
Suitable Liquid Type: All non-corrosive liquid Open Distance: Approx.100M/328.1ft Effective Distance : Approx.30M/98.4ft
Package Includes: 1 x Water Level Sensor Transmitter 1 x Indoor Receiver
2 x Screws
(Batteries are NOT included) Note: Note that the product is not water proof. 1. Install the battery in the battery compartment of the transmitter, do not insert the battery compartment, and insert the battery synchronously after the receiver is set up 2. The liquid level indicator has no data, press the tank key, and the data will be displayed. 3. When reset, remove the battery Wait for a while and then turn on the power to eliminate the remaining power in the machine. 4. Whether the red light of the transmitter flashes, the flashing is normal, and . 5. How to determine if the water tank is suitable? (1) The product is only applicable to circular vertical water tanks, and is not suitable for horizontal water tanks or square water tanks. (2) It is only suitable for circular vertical water tanks with a diameter of 0.4 - 1.6m and a height of 1.5 - 15m. (3) Please ensure that the top of the water tank (where the transmitter is installed) is at least 0.5m away from the overflow outlet. A safety distance of 0.5m is required to ensure measurement accuracy. If the distance between the top of the water tank and the overflow outlet is less than 0.5m, when the water level reaches the 0.5m range, the value will display 0, meaning the maximum measurable water level is equal to the height of the water tank minus 0.5m. 6. Reasons for inaccurate measurement? (1) There are obstacles below the transmitter or the transmitter is not installed in the center of the water tank top or not placed horizontally. (2) The safety distance (0.5m) and the height of the water tank are set incorrectly. Please refer to the manual for reconfiguration. (3) Your water tank diameter, height, and type are not suitable. 7. How to determine the connection status and disconnected status? The red light on the top of the transmitter flashes and the water tank temperature and liquid level display values indicate a connected state. The absence of display for water tank temperature and liquid level indicates a disconnected state. If there is a long-term disconnected state, please try: (1) Press the tank button for 5 seconds to reconnect (2) Remove the transmitter, display battery, and reinstall and set (3) Replace with a new battery |
