Product features:

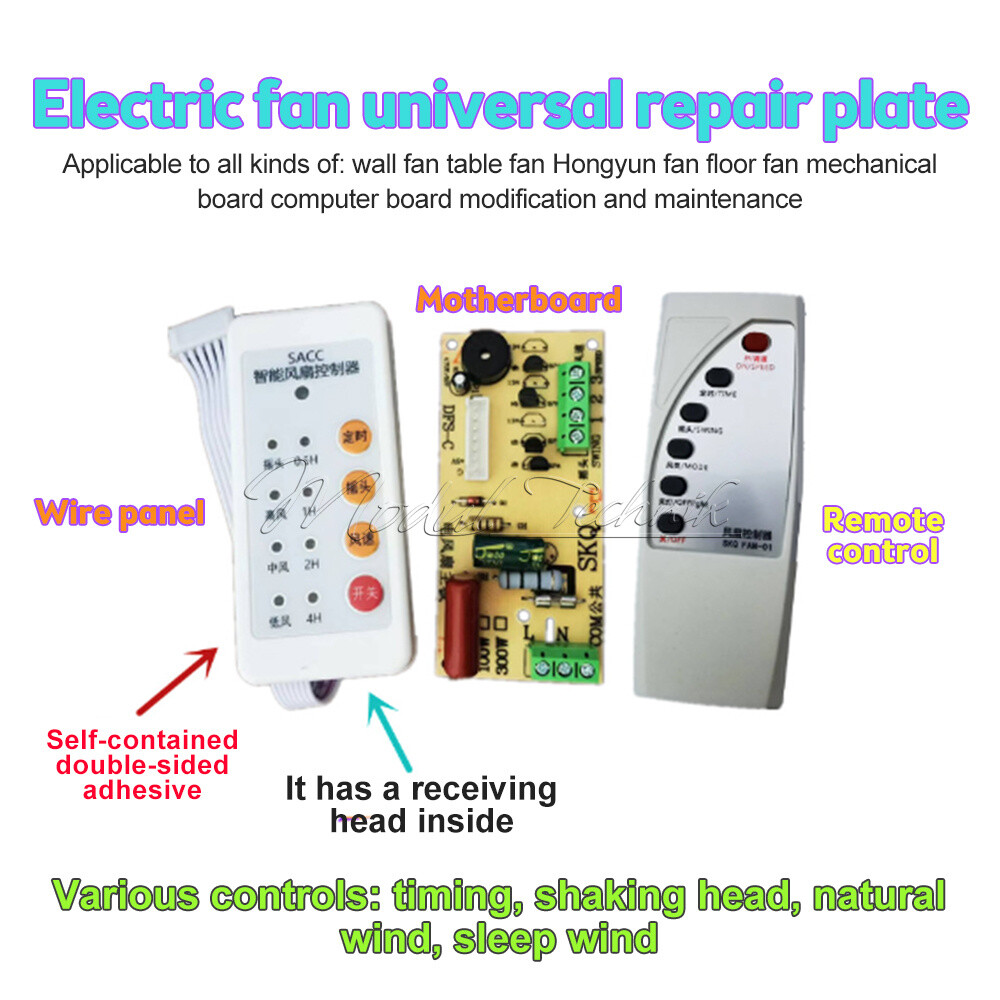

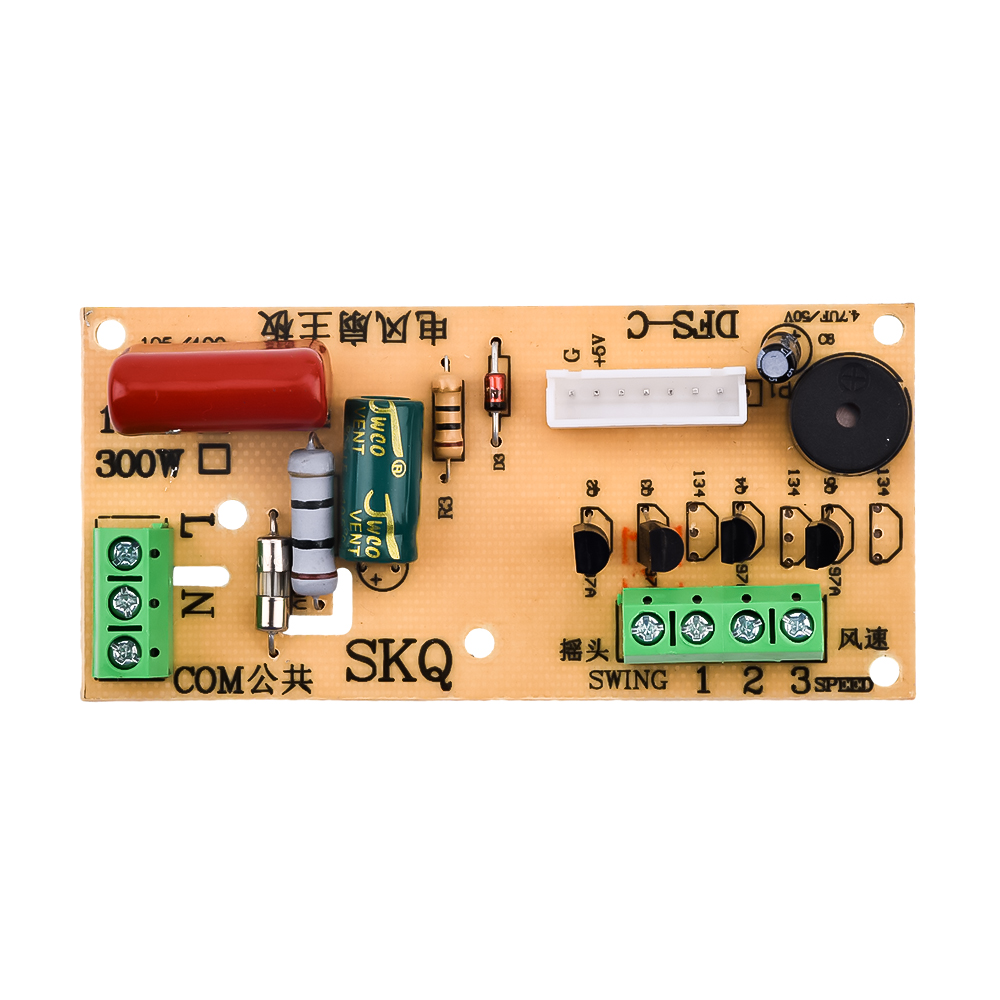

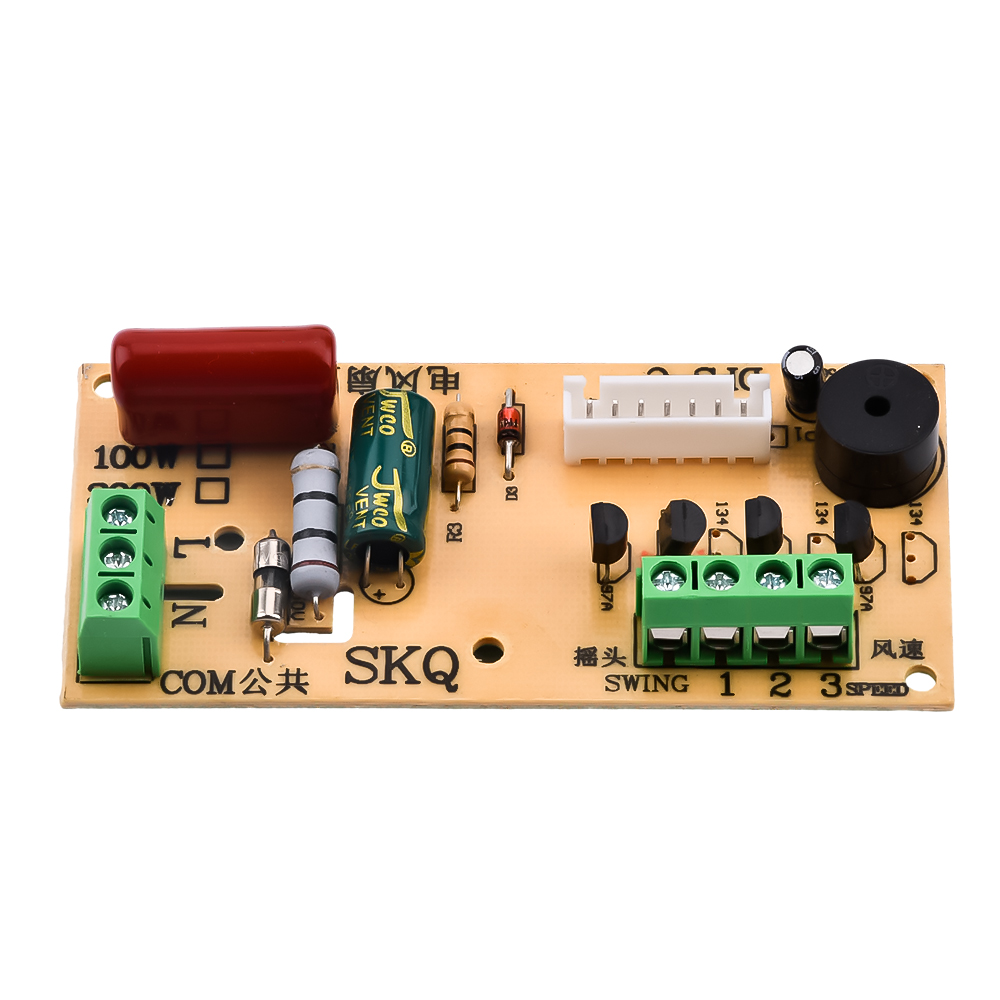

The universal maintenance board for electric fans is suitable for various types: wall fans, tabletop fans, Hongyun fans, floor fans, mechanical boards, computer boards, modification and maintenance
Multiple controls: timed shaking of head, natural wind, sleep wind
Control panel by wire, with built-in double-sided adhesive and receiving head inside
Powerful and diverse control methods, various natural wind regulation timing settings, shaking head control; Suitable for various ceiling fans, table fans, floor fans, wall fans, mechanical control, computer control board maintenance and modification!
Easy and convenient installation, reliable quality, fast wiring and successful modification
Product parameters:
Input voltage: 110V-240V 50Hz 60Hz
Output voltage: 110V-240V 50Hz 60Hz
Output power: four outputs, single 100W, total power 400W
Receiving method: infrared
Reception distance: 6-10 meters
Remote control: No. 7 battery (not included in the product)

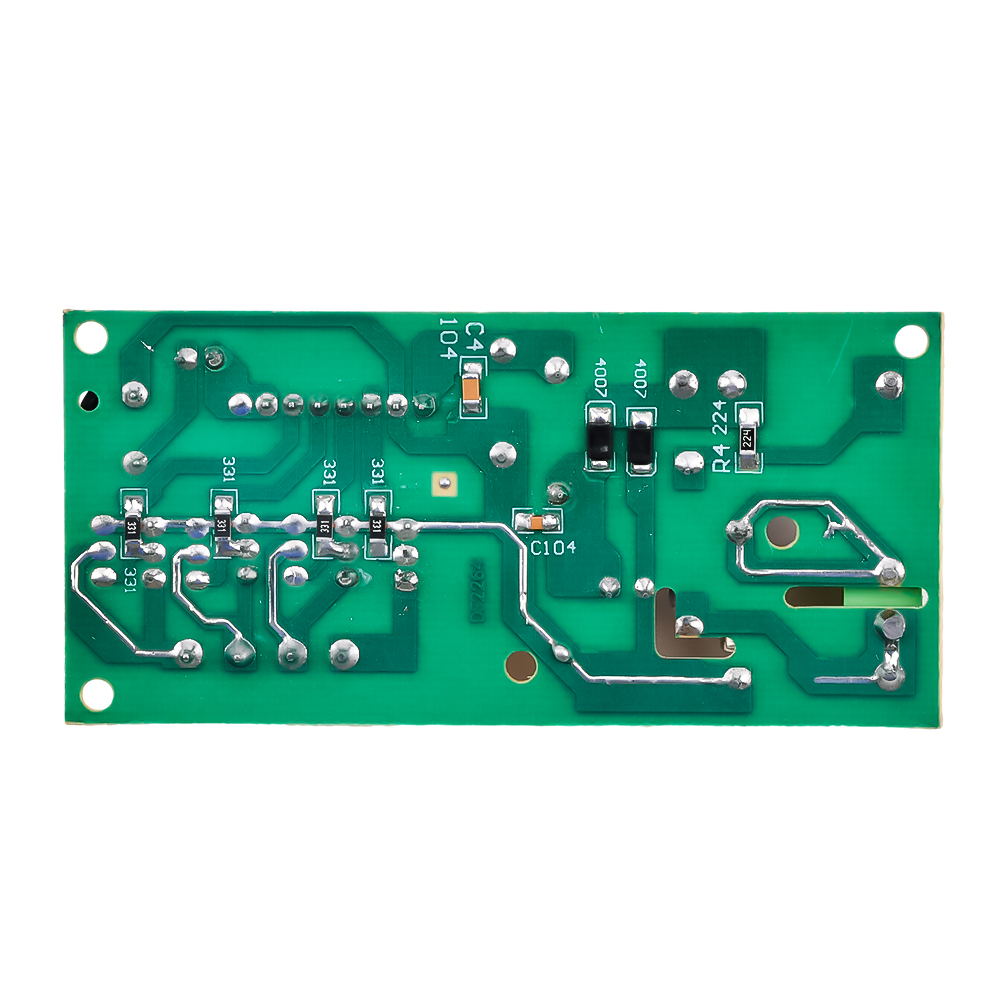

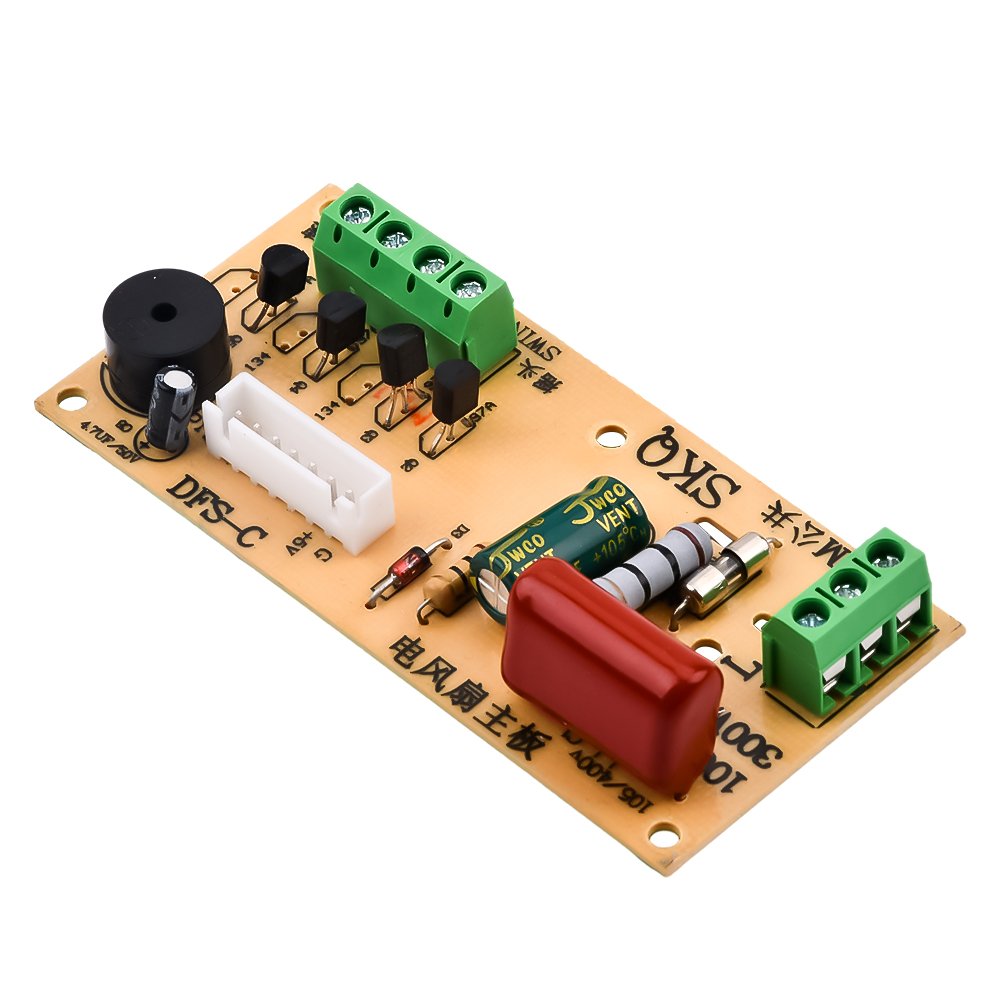

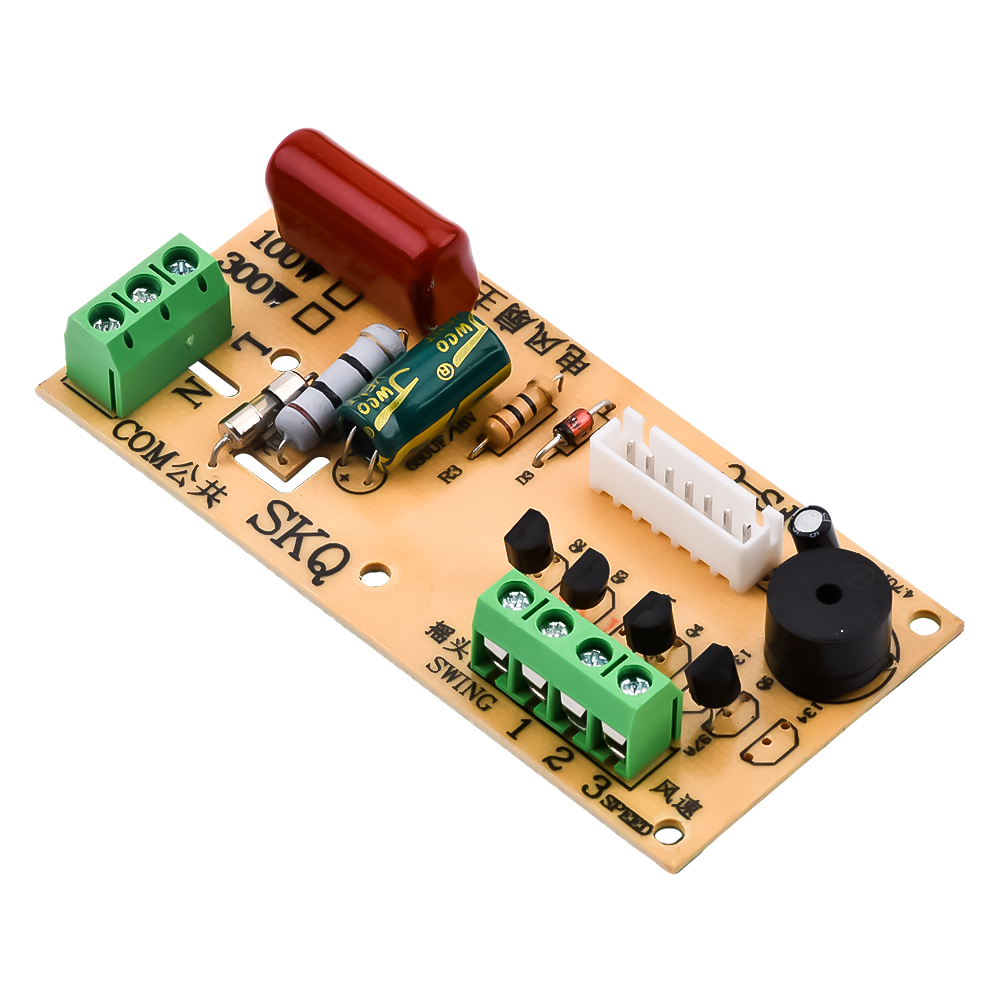

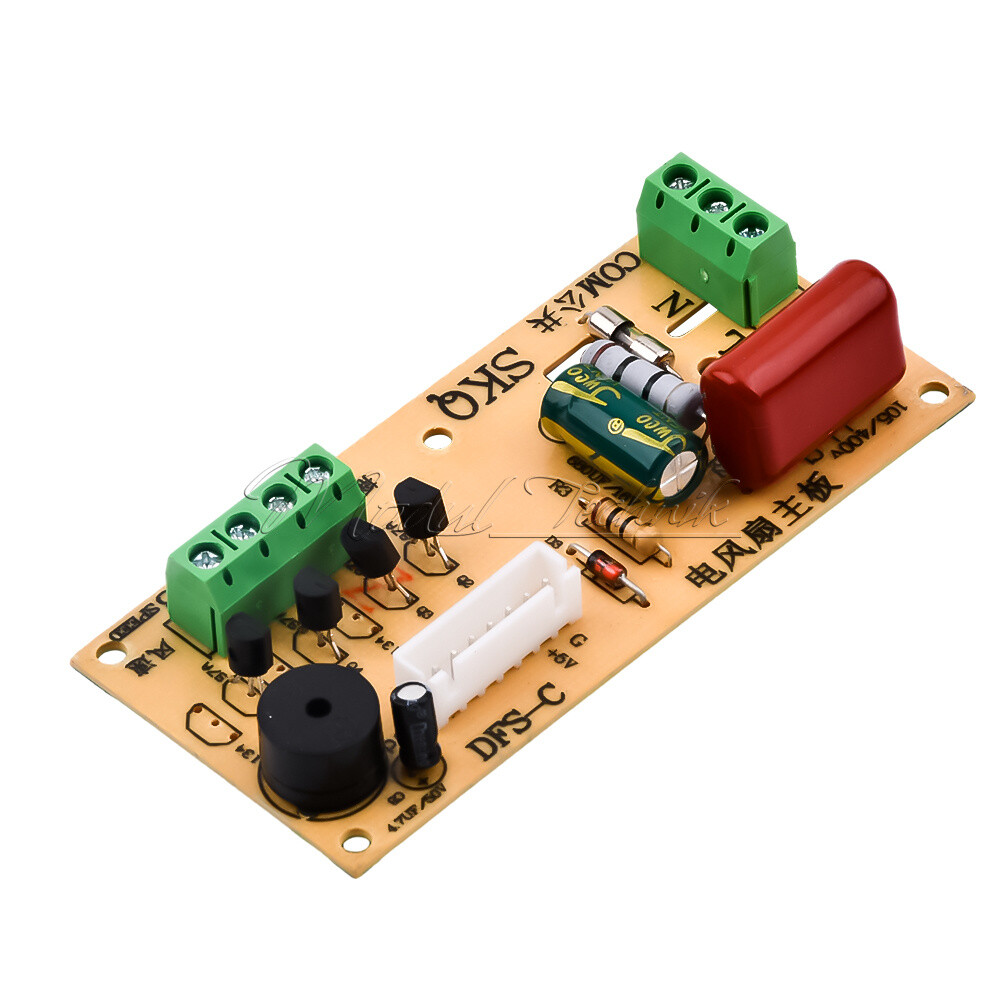

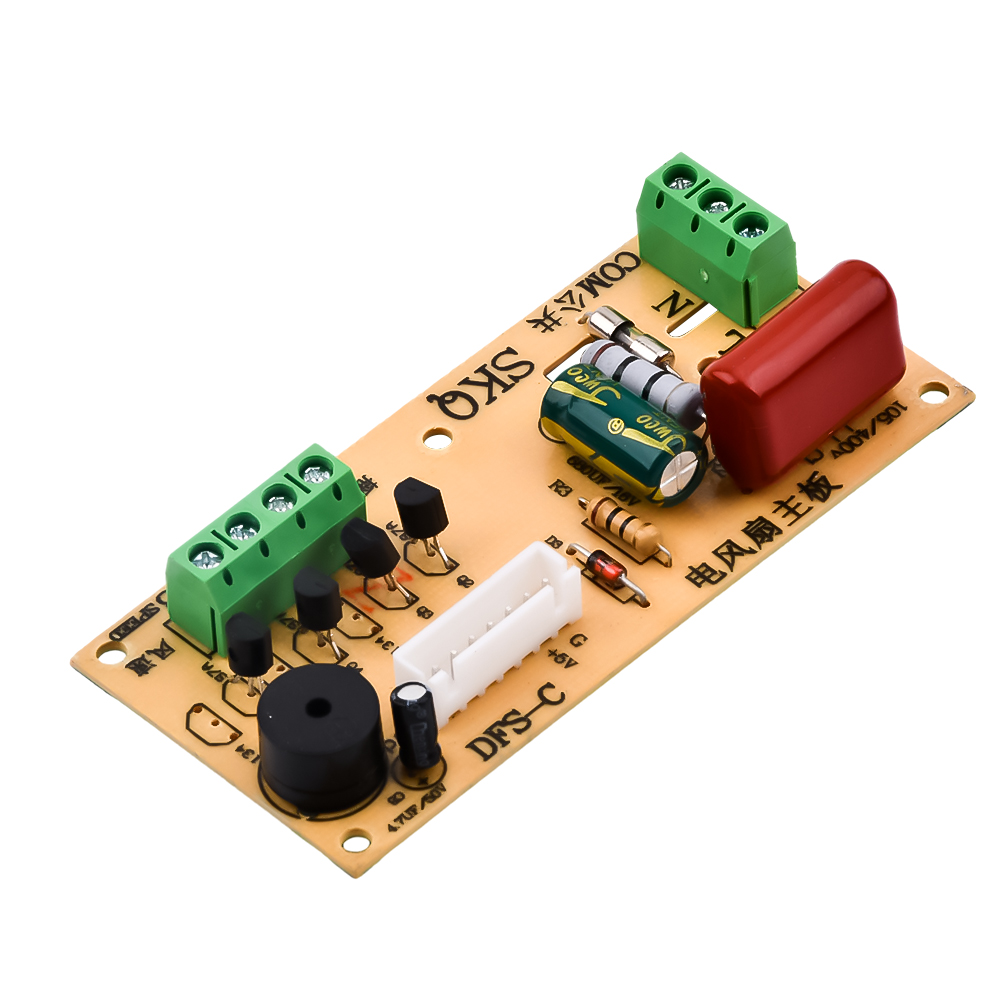

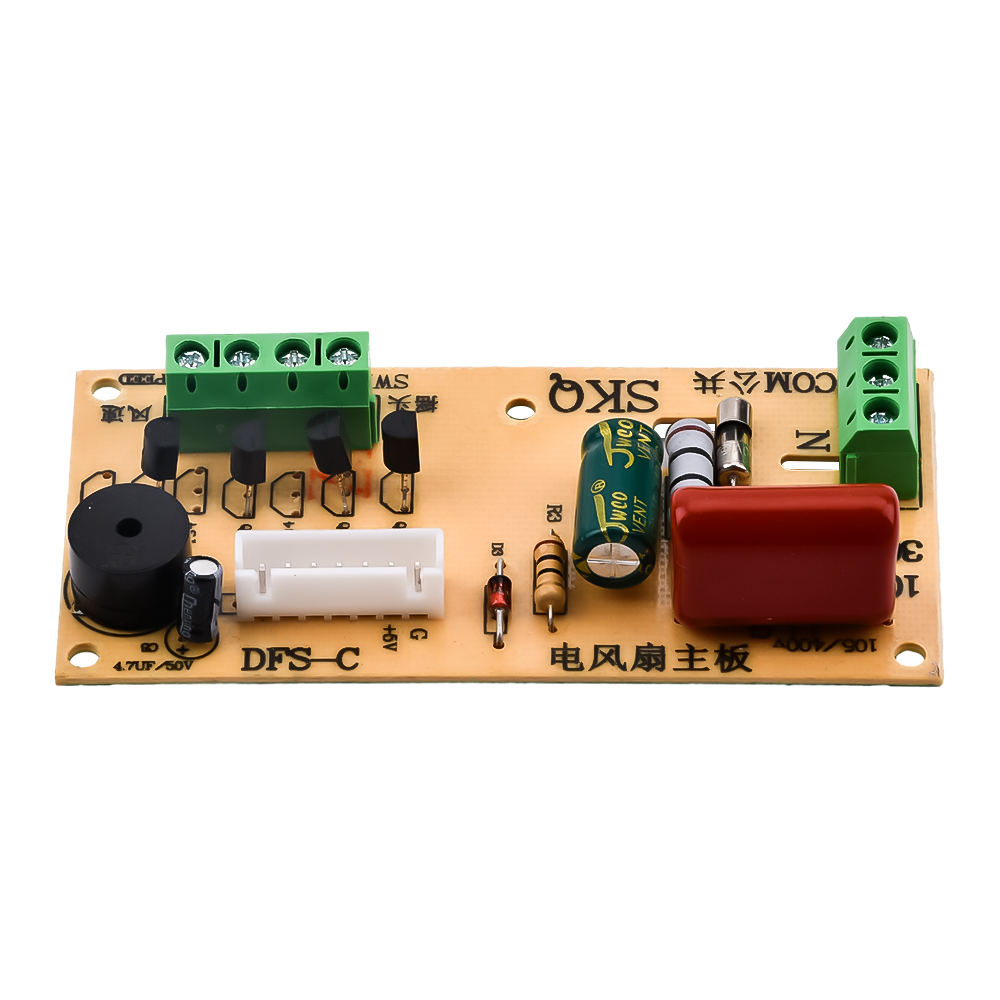

Main board: 86mm * 40mm * 17mm
Panel size: 88mm * 40mm * 16mm
Remote control size: 105mm * 4mm * 15mm

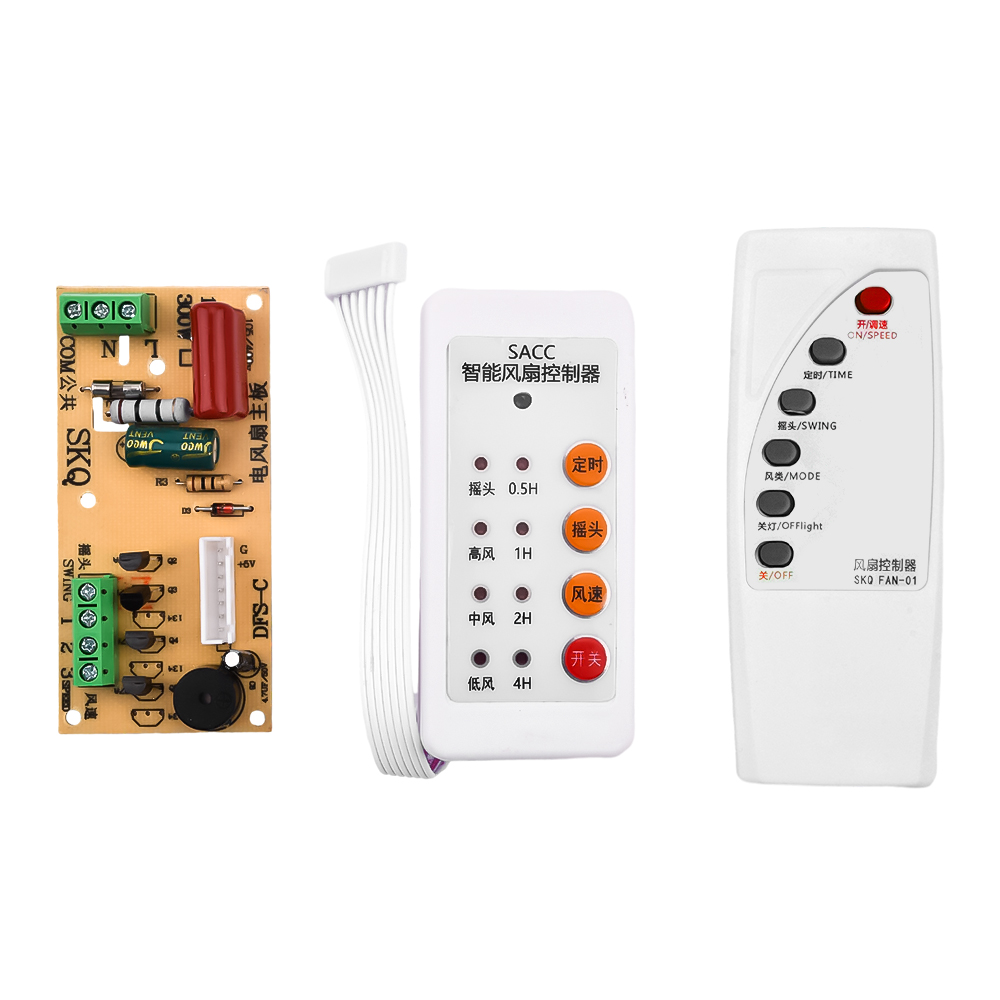

Product list;
1X motherboard
1X remote control (without battery)
1X controller (with adhesive backing)
instructions:

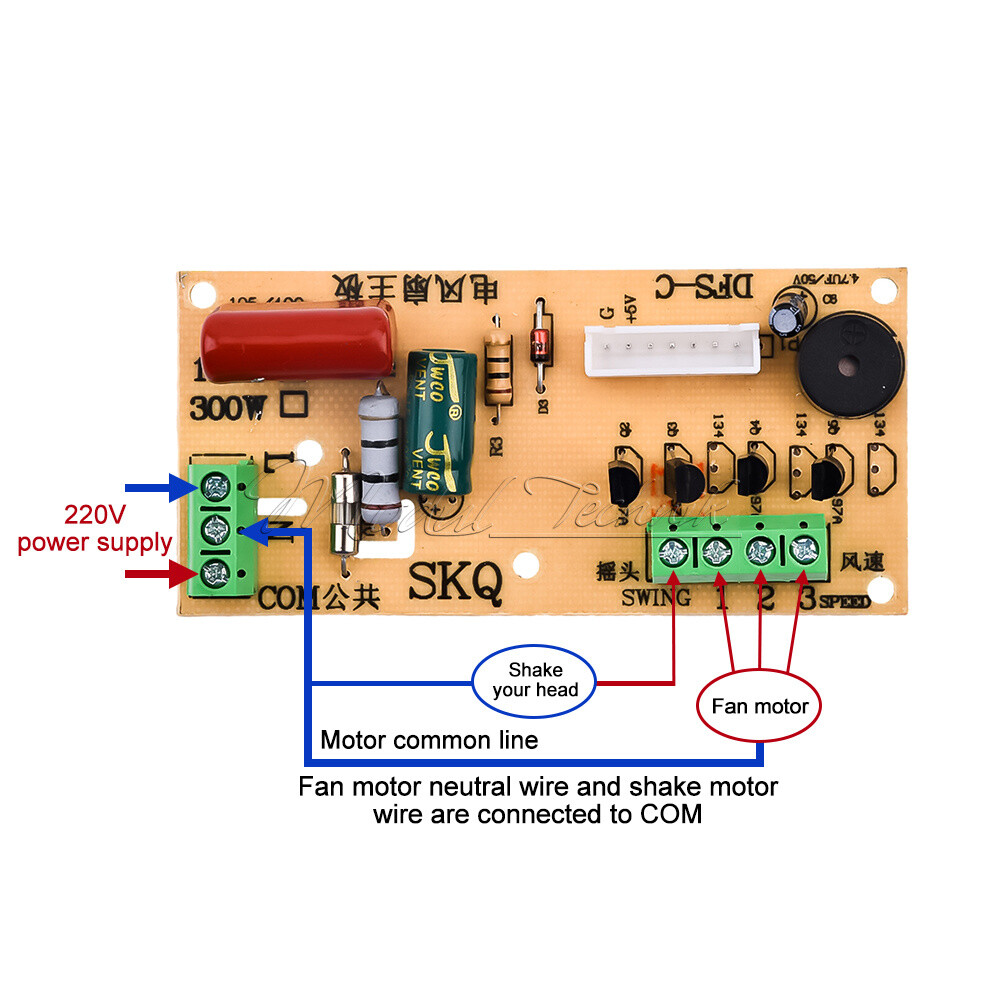

This fan control board is suitable for the modification and maintenance of household floor fans, shaking head fans, table fans, wall fans, Hongyun fans, and other electric fans. It can convert manual fans into remote controlled fans, achieving remote control on/off, timing, speed regulation, and shaking head; The modification is very simple, just wire according to the drawings, which are marked with wiring labels and colors, making it powerful and worth having.
matters needing attention:
*Please check for accuracy before powering on for testing! The universal board has nothing to do with the speed of the original motor, it only controls the power supply of the coil! If the speed is slow, please directly supply power to the motor to test the motor speed. Slow speed is usually due to capacitance or motor aging!!!
*The universal board and the original mechanical buttons or other control methods cannot be used simultaneously!!! Only the control panel and remote control that come with the universal board can be used. A single remote control is only compatible with the board and not compatible with other fan motherboards!
Control operation instructions:
1. Shutdown status: After power on, the buzzer sounds once and enters standby mode
2. Wind speed adjustment: Press the "On/Wind speed" button to operate the motor at low speed by default. Press this button again to cycle through the settings of high, medium, and low speeds. 3. Timing setting: Press the "Timing" button in working mode, the default is 0.5H. Continuously pressing 0.5H · 1H · 2H · 4H will light up the timing indicator light, and the sum of the light up times will be the timing time. Up to 7.5 hours, 1 hour is 1 hour.
4. Head shaking setting: When turned on, press the "Head shaking" button once to enter the head shaking state. Press again to turn off the shaking head function, which can only be used for fans with shaking head synchronous motors.
5. Wind (natural wind): Only the remote control has this function. Pressing the "Wind" button will automatically adjust the fan speed. Press again to exit. In natural wind mode, pressing the "Wind Speed" button can change the natural wind intensity. The wind speed indicator light flashes
