MECHEER voltage meter, kilowatt meter, amp meter, kwh meter, current meter, electricity meter. The best choice for home appliance energy monitoring!
Various Monitoring Parameters: The power meter plug can monitor the power (W), energy (kWh), volts, amps, hertz, power factor, cost,minimum and maximum power (W), cumulative days and time of your appliances. By switching 8 display modes, you can easily know the various parameters while the appliance is working. The wattage meter can also calculate and display how much power your appliance uses and how much electricity bill it cost in cumulative time.
Premium Material: The whole body of our power monitor is made of high-quality PC material. It makes our home power consumption monitor more long lasting, heat resistant and fall resistant. The standard US socket and plug is suitable for all US standard appliances.

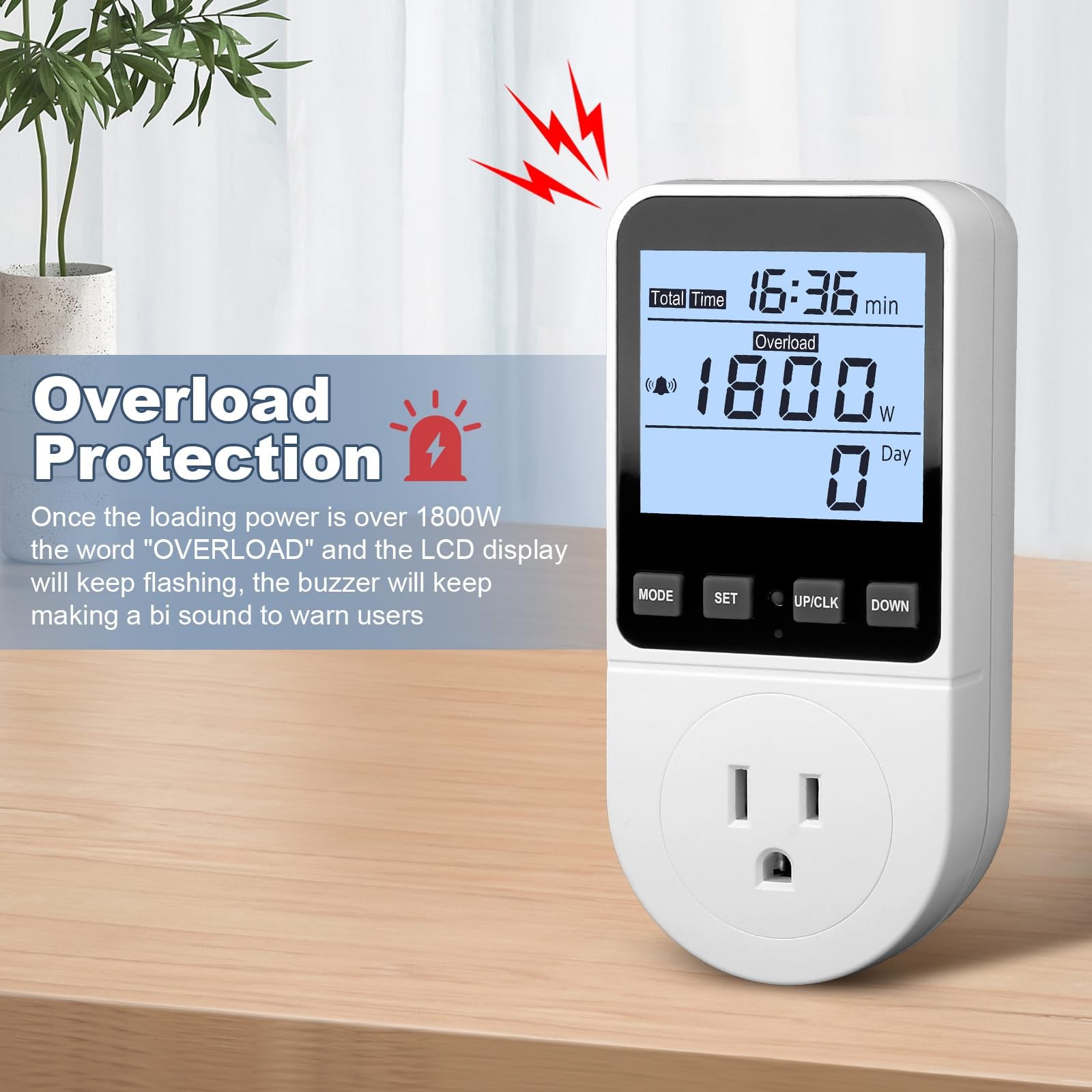

Overload Protection: When the power of the appliance exceeds the overload power, the word "OVERLOAD" and the LCD display will keep flashing, the buzzer will keep making a bi sound to warn the users. All the buttons will quit working and can only work again when the overload alarm has been cleared by raising the setting value or removing the appliance. The default overload power is 3680W and is adjustable from 0 to 3680W. In general, you need to set the overload power to 1800W before using. Just press the "MODE" button for more than 3 seconds to enter the setting.
KWH Alarm: Our power monitor plug has a upgraded power consumption alarm function. You can set the alarm power consumption for the appliances you monitored. Once the accumulated power consumption reaches the set alarm power consumption, the word "kwh alarm" will be displayed and keep flashing, the LCD will also keep flashing, and the buzzer will keep making a bi sound all the time to warn the users.
Data Memory Function: The watt meter plug in will record your power consumption data when you remove energy meter from socket, or remove appliances from the electricity monitor. All setting data and cumulative data(electricity quantity, cost, unit price, time) will be saved. You can directly see the last data when you use the electric usage meter plug next time(NOT including current, voltage, power, power factors). This function can also automatically save the data when there is a sudden power failure.
Backlight Display: With white backlight and black words, the LCD display of our wattage meter plug in can display the data clearer and help you to read the data easier no matter day or night. The backlight will only lights up when the device is connected to AC power. If no button is pressed, the backlight turns off automatically after 10 minutes. You can also press the "DOWN" button to turn on and off the backlight manually.
Adjustable Backlight Time: Our power usage meter also has 5 options of backlight time. The default backlight time duration is 10 minutes(bL-0). If you want to change the backlight time, you can press and hold "UP" and "DOWN" button at the same time to enter backlight time setting, then press "UP" and "DOWN" to select the backlight time (bL-0 =10 minutes, bL-1=1 hour, bL-2=4 hours, bL-3=8 hours, bL-4=normally on), finally press the "SET" to save the backlight time settings.
Monitor Your Energy Usage: Our watt meter power analyzer lets you track electricity consumption and manage power usage to help save on bills. It works as a voltage, kilowatt, current, and electricity meter. If you have any questions about your meter socket, please feel free to contact us.
