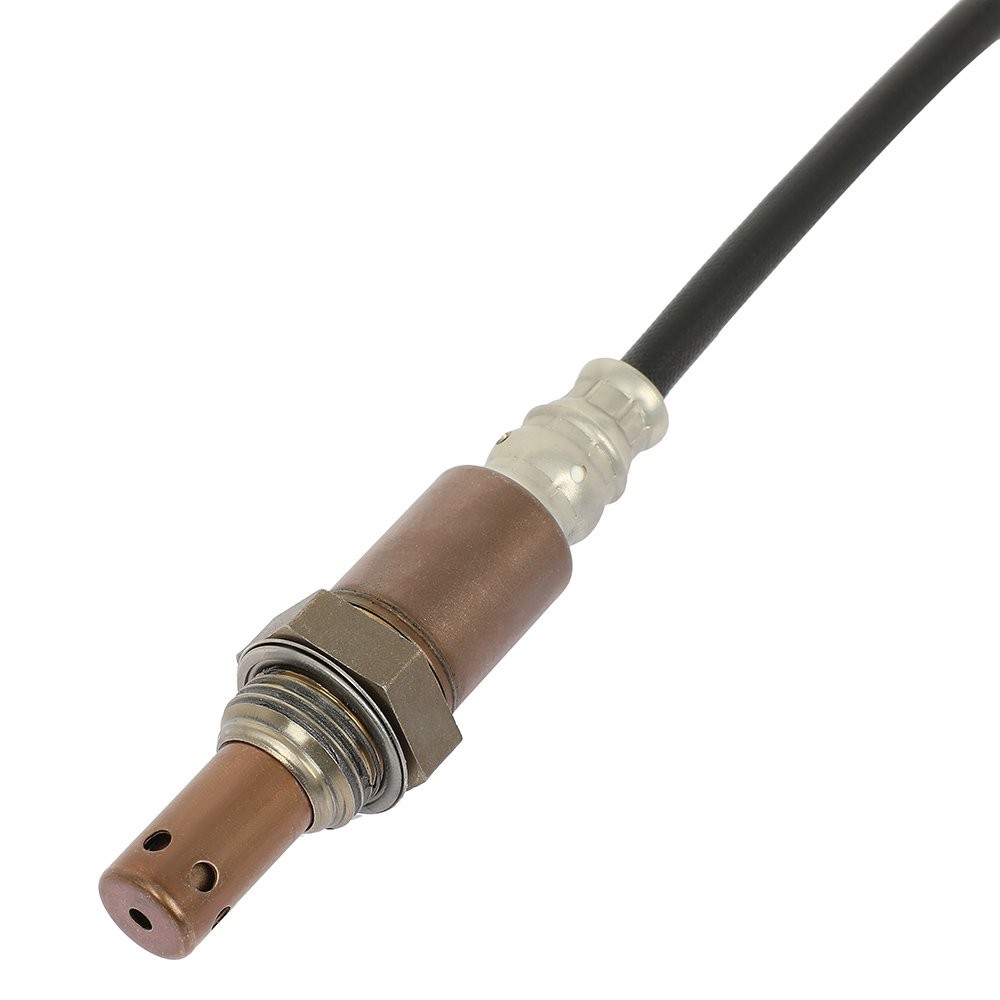

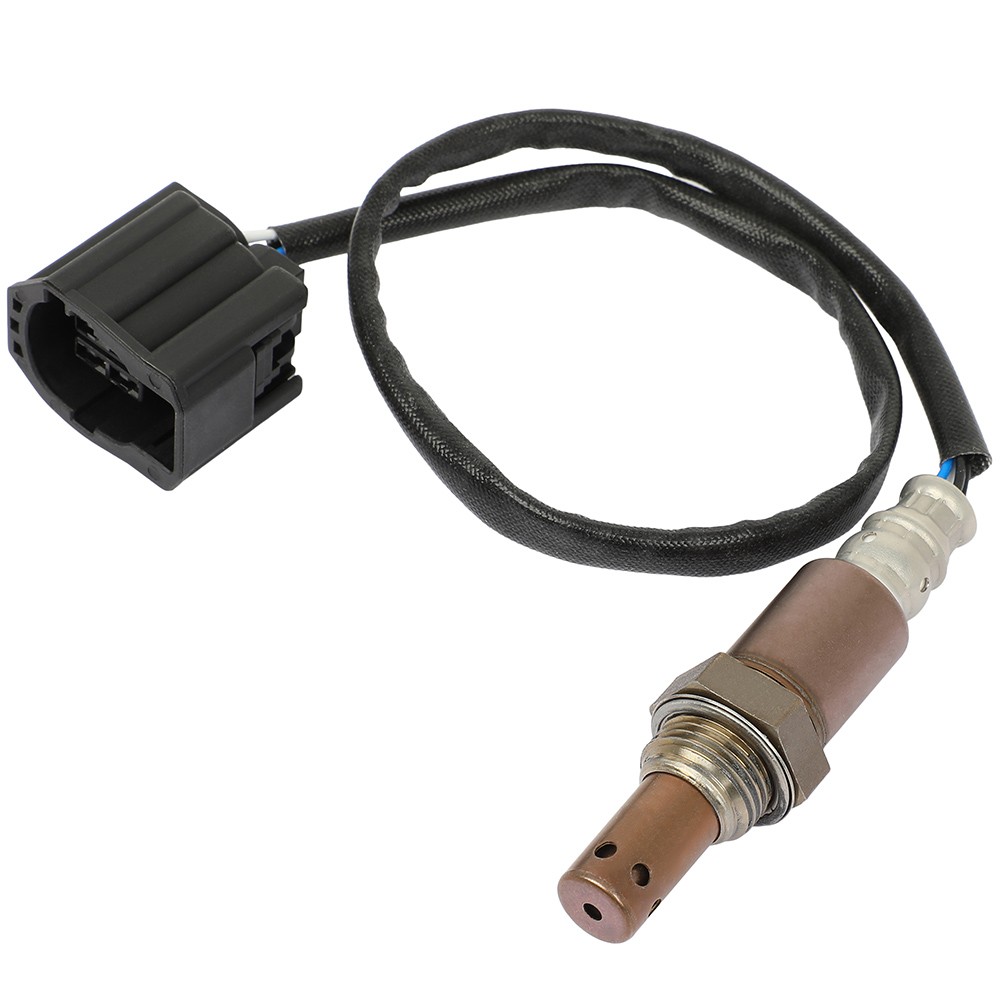

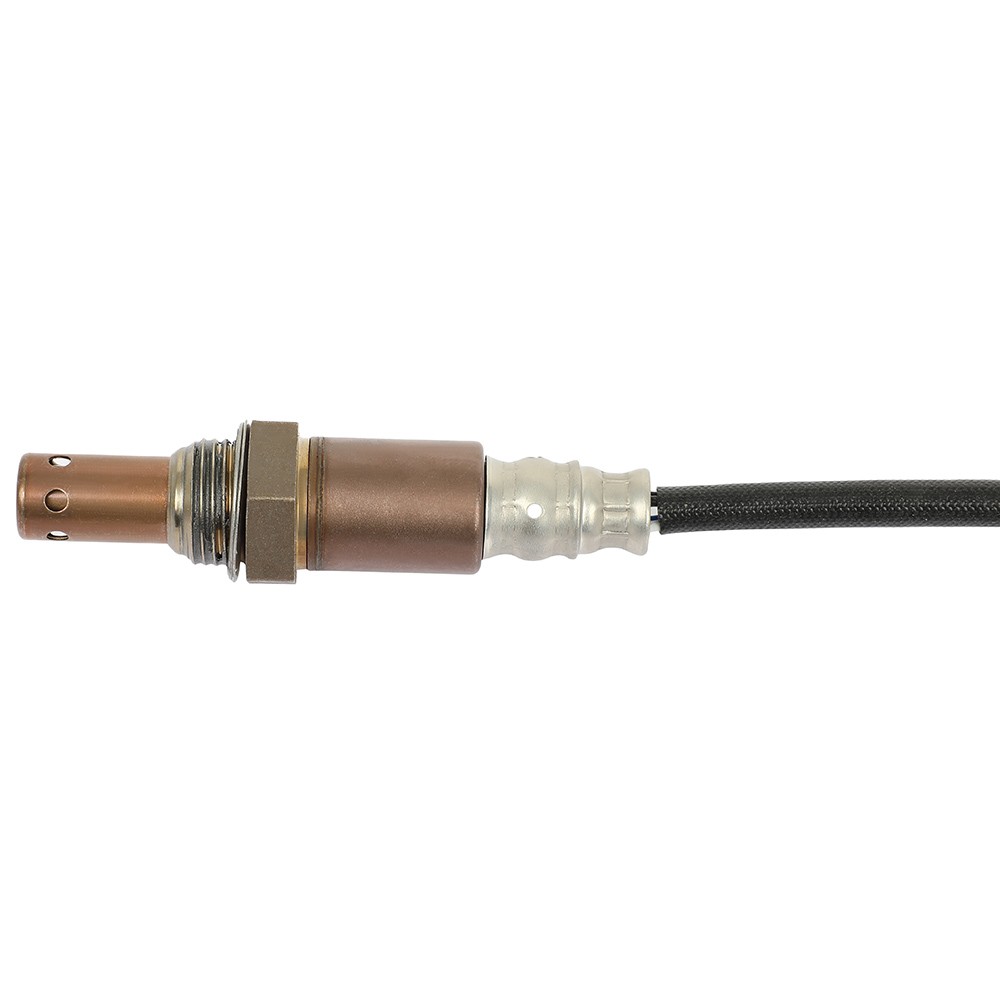

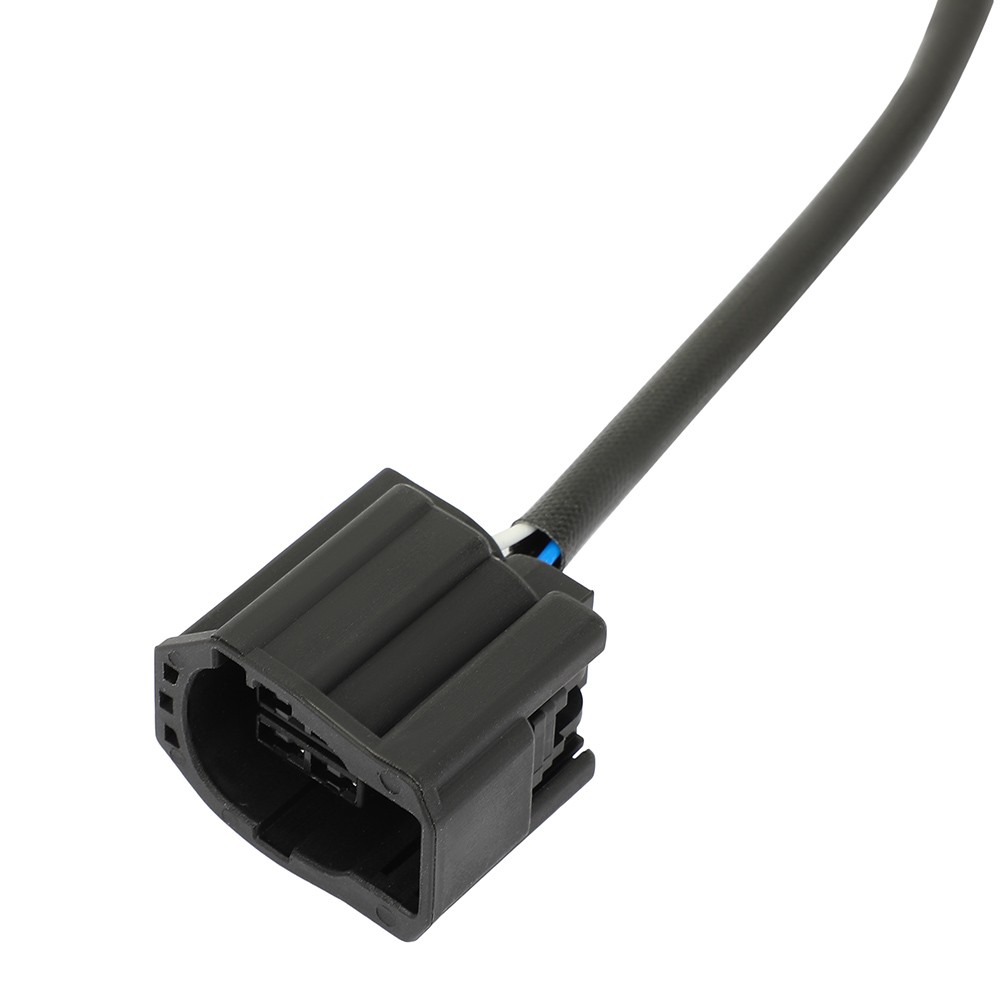

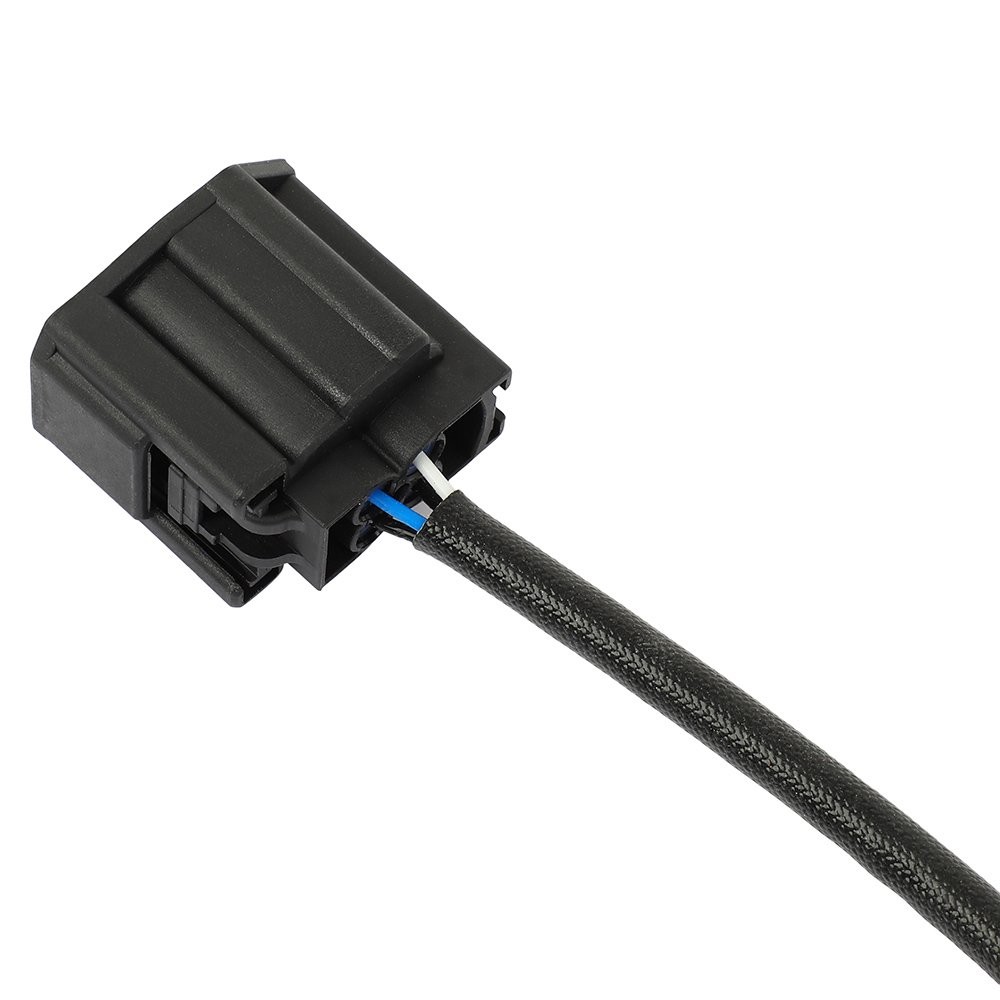

Upstream Air Fuel Ratio Oxygen O2 02 Sensor For Mazda 3 2.0L 2.3L 2004-2009
$26
DESCRIPTION
|
|
|
|
|
|
|
|
|
|
Upstream Air Fuel Ratio Oxygen O2 02 Sensor For Mazda 3 2.0L 2.3L 2004-2009
Compatibility :
2004-2009 Mazda 3 2.0L
2006 2008-2009 Mazda 3 2.3L
Features:
- Porous PTFE Filter - Allows atmospheric oxygen to enter the sensor without permitting water or engine contaminants to seep into the casing.
- Double Protection Cover - Maintains proper unit temperature for quicker response times and protects the ceramic element against silicone and lead poisoning.
- Stainless Steel Housing - Resists corrosion and contamination with a rugged, watertight body.
- Aluminum-Oxide Trap Layer - Keeps silicone and lead outside the ceramic elient through, preventing damage to the platinum electrode.
Where is the oxygen sensor in your vehiche?
Whow to install an oxygen sensor?
1.Locate the oxygen sensor on your vehicle by looking for a part that looks like a spark plug that sticks out from the exhaust pipe. It will have an electrical connection attached to it.
2.Disconnect the electrical connection on the oxygen sensor. Use a flat tip screwdriver to push in the tabs and pull the connection apart.
3.Unscrew the oxygen sensor off the exhaust pipe using either an open-end wrench or a special socket made to remove it. The majority of oxygen sensors will take an SAE 7⁄8 inch (2.2 cm) wrench.
4.Compare your new oxygen sensor to the old one. If the new one did not come with an electrical connection, but just with the wires stubbed out, you need to do a little work.
· Cut off the old connector from the bad oxygen sensor, strip the wires and solder the wires to the new oxygen sensor. You can also use butt connectors.
· Use heat sensitive shrink tape to seal the connections.
· Follow manufacturer's instructions to know which wires to tie together.
5.Reverse the steps used in removing the oxygen sensor and install the new part.Add a small amount of anti-seize to the threads of the new sensor. Screw it in place clockwise and snug it down with the socket or open-end wrench. Do not over tighten the sensor as you might strip the threads.
6.Plug the electrical connections back in.
7.Turn on the ignition key, but do not start your vehicle. Use the diagnostic scanner/reader to clear the code from the vehicle's computer.
8.Start the car. You should notice an immediate improvement.
NOTE:
If you can't determine whether the oxygen sensor fit your vehicle or not, please contact us.
| Item Specifics | |
|---|---|
| Brand | classic-autoparts |
| Manufacturer Part Number | CL066135TS |
| Manufacturer Warranty | 1 Year |
| Fitment Type | Direct Replacement |
| Custom Bundle | No |
| Modified Item | No |
| Type | Air Fuel Ratio Sensor |
| Number of Pieces | 1 |
| Wire | 4 |
| Placement on Vehicle | Upstream |
| Custom Bundle | No |
| Interchange Part Number | 234-9085K, AP4-608K, 250-54029K, 32116 |
| Other Part Number | K, SG1661K, 19060348K, 75-3493 |
| Housing Material | Metal |
| Thread Size | 18 X 1.5 MM |
| Universal Or Specific Fit | Specific |
| Automotive Color / Finish | Steel |
| Terminal Type | Blade |
| Attachment Method | Screw-On |
| Output Signal Range (V) | 0.2 To 0.8 Volt |
| Sensor Type | Heated |
| Length (mm) | 510 |
| Connector Gender | Female |
| Feature | ESCP |
| Type | Sensor |
| Features | Direct Fit |
