Vintage Japanese Precision Drafting Instrument Set – UCHIDA KD-SE
Professional Technical Drawing Tools Inspired by Mechanical Engineering Heritage
This is a rare vintage Japanese drafting instrument set manufactured by UCHIDA, a renowned Japanese manufacturer of technical and educational equipment.
In Europe, precision instruments have long been essential tools for architects and engineers.
This Japanese drafting set reflects the same philosophy of mechanical accuracy and craftsmanship that is highly valued in Swiss and European engineering traditions.
Before CAD software and digital design, architects and engineers relied on mechanical drafting tools like this to create precise technical drawings.
The UCHIDA KD-SE series represents a semi-professional to professional-grade system, positioned above student tools and suitable for serious technical use.
Today, complete vintage drafting sets in this condition are increasingly rare, making this item attractive not only for practical use but also for collectors and design enthusiasts.
■ Condition
This is an original vintage item.
- Complete set as shown in the photographs
- Fully functional mechanical parts
- Very well-preserved condition with minor signs of age
- Original case included (with light wear consistent with age)
Please review the photos carefully, as they form part of the description.
■ Set Contents
This set includes:

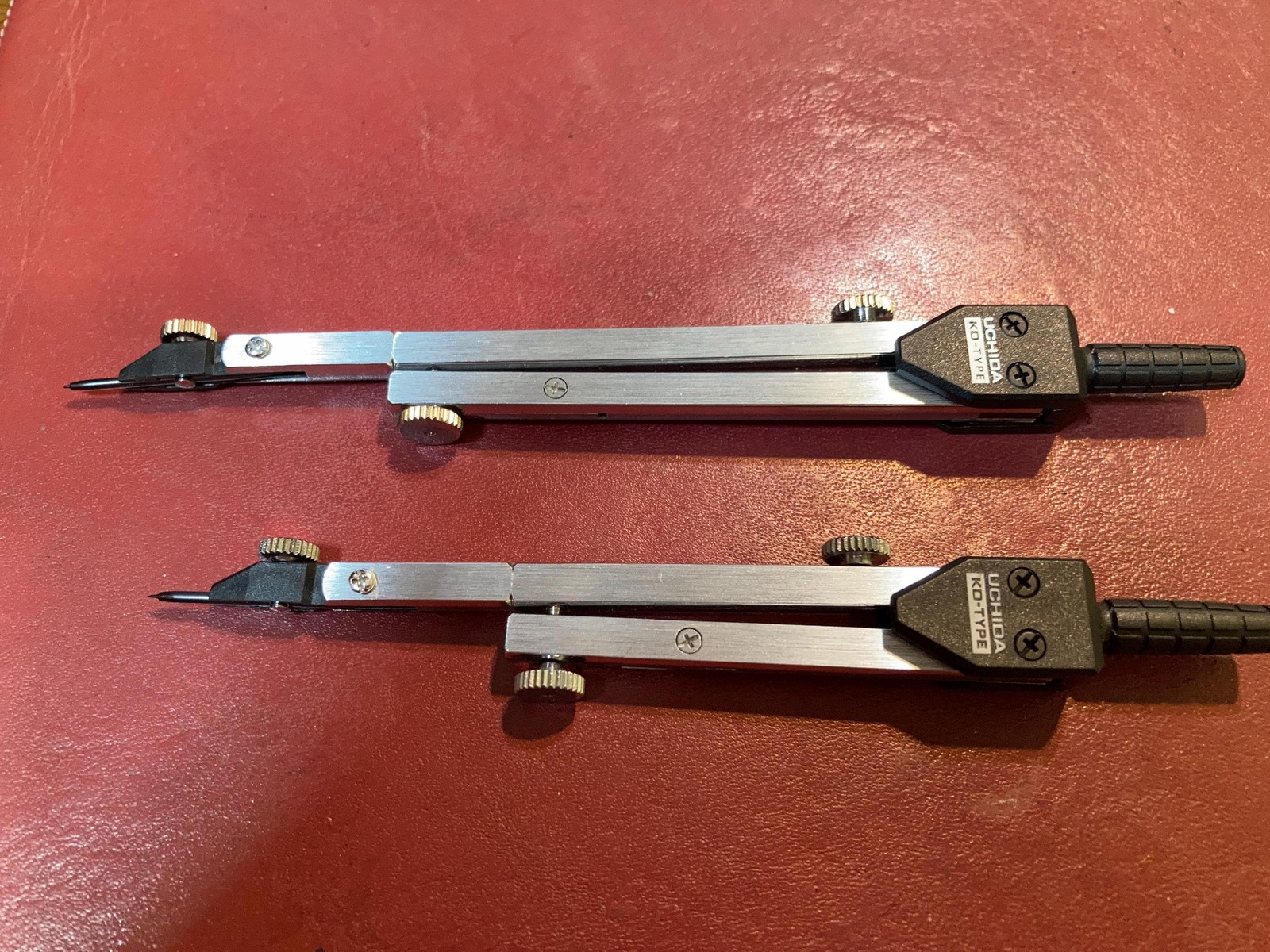

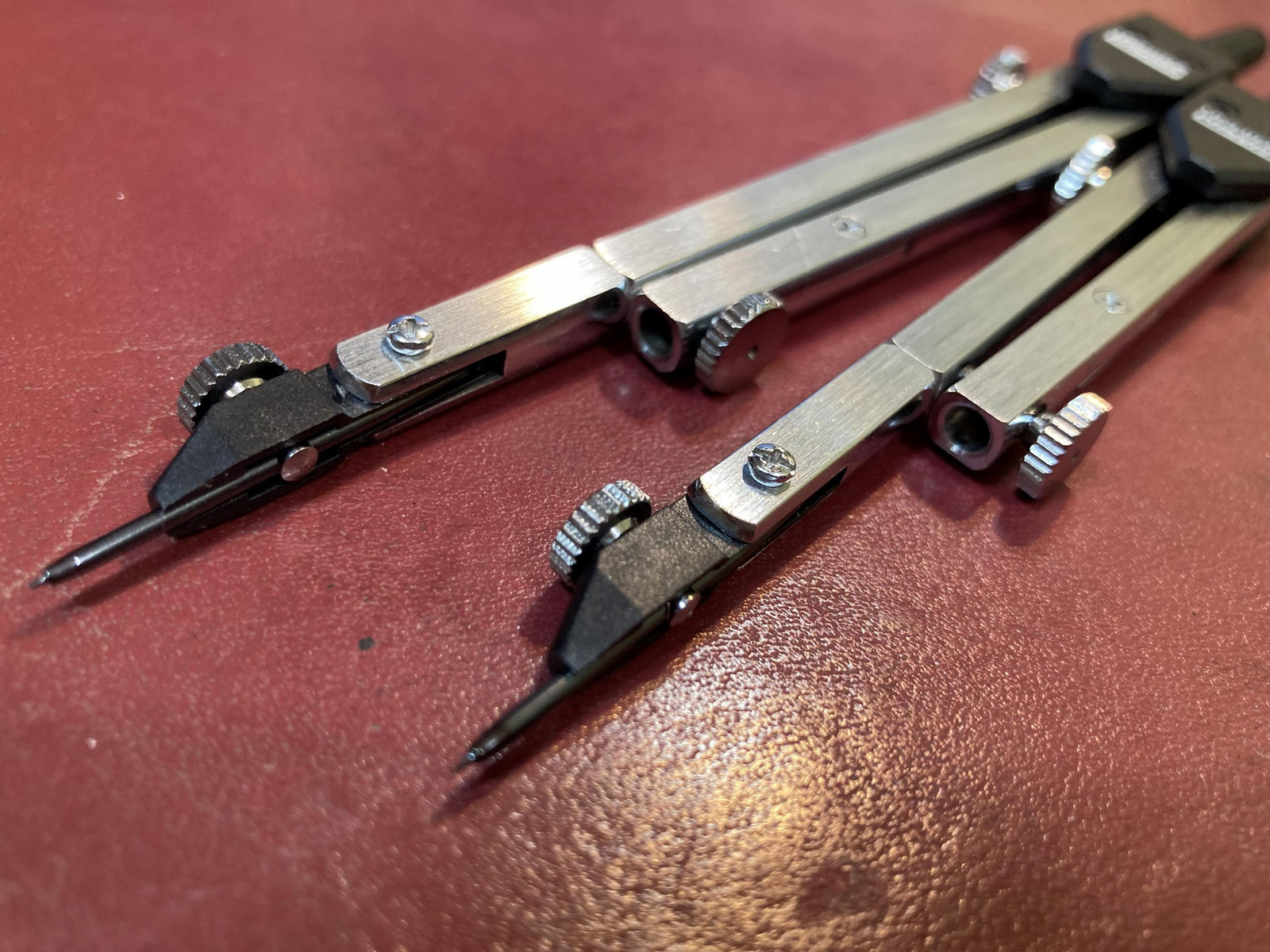

- Precision compass and divider instruments

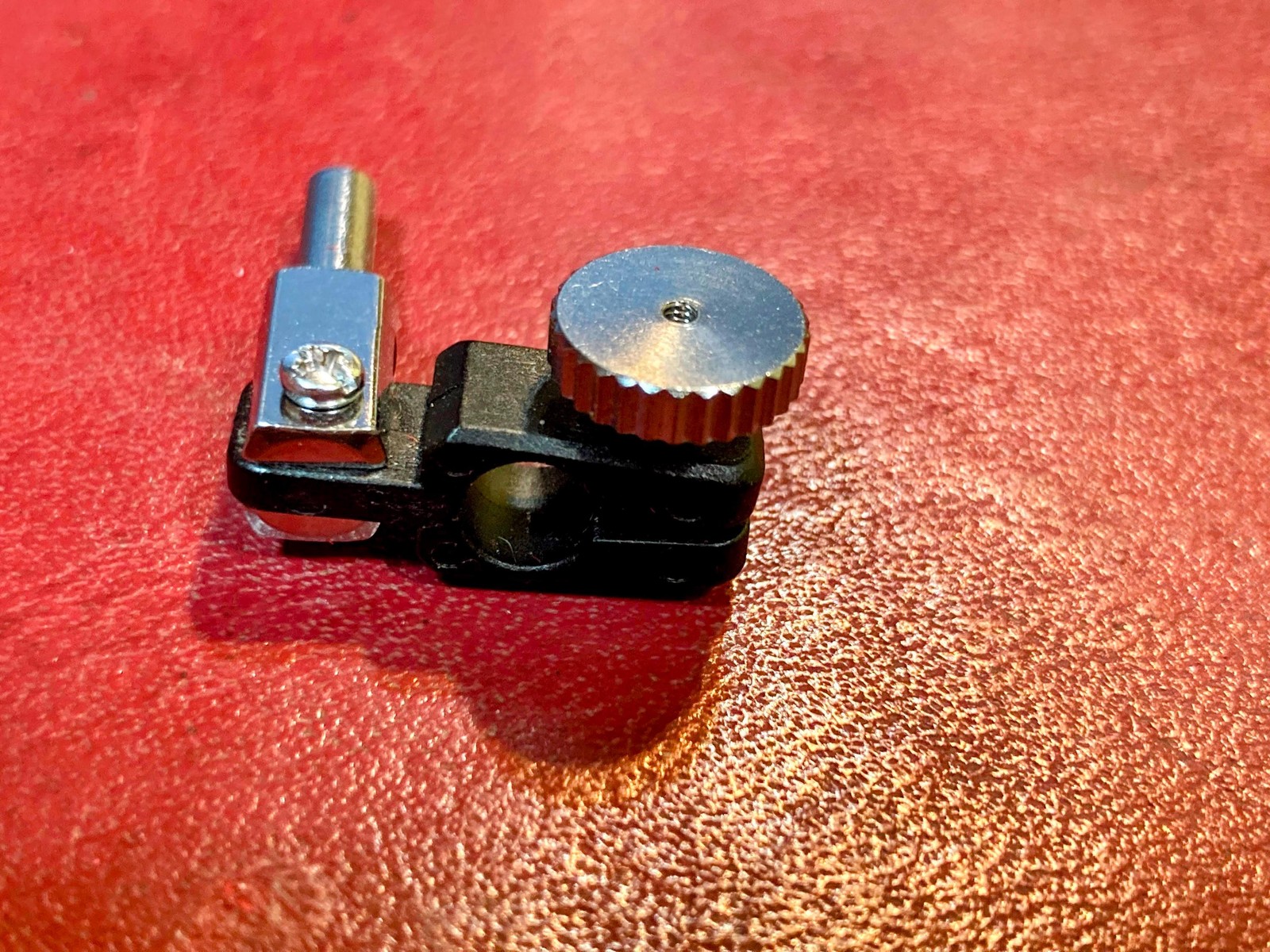

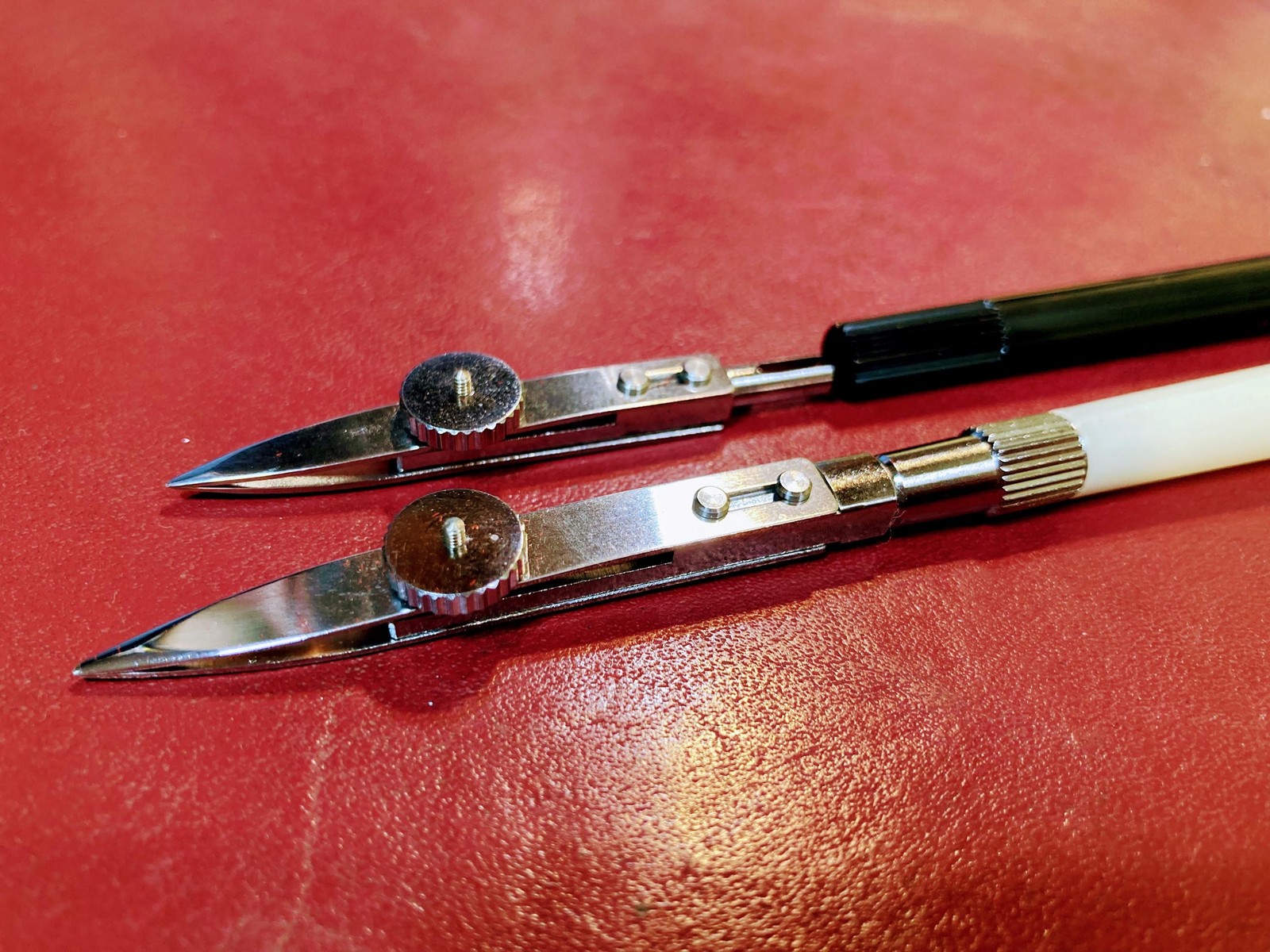

- Technical drafting tools and accessories
- Drafting mechanical pencils
- Lead refills and small components
- Original UCHIDA case
(Please refer to the photos for the exact contents.)
■ Key Features
- Manufacturer: UCHIDA (Japan)
- Model: KD-SE series
- Era: Late 20th century (approx. 1980s–1990s)
- Materials: Steel, brass, and high-quality plastics
- Designed for precision technical drawing
■ Ideal For
- Architects and engineers
- Industrial designers and illustrators
- Collectors of precision instruments
- Enthusiasts of mechanical design and analog tools
- Display or functional use
■ Cultural Context
Swiss engineering is globally recognized for precision and reliability.
This Japanese drafting instrument set embodies a comparable level of mechanical craftsmanship, representing the era when analog tools were at the core of architectural and engineering design.
Owning this set means owning a piece of Japanese technical and design heritage.
■ Shipping
Carefully packed and shipped from Japan with tracking.
Worldwide shipping available.
■ Notes
This is a vintage item, not a new product. Minor imperfections are part of its history.
If you have any questions, please feel free to contact us before purchasing.
Thank you for visiting our shop.
