Key Features：
HGM1790N Genset Controller Is Suit For Single Unit Automation And Monitoring Control (Also Can Be Used For Pumping Unit). It Can Be Started And Stopped Manually Or Via A Remote Start/Stop Signals. HGM1790N Controller Can Supervise And Protect Genset Operation By Gathering And Analyzing Genset Data Like Generate Voltage, Current, Water Temperature, Oil Pressure And So On, And Graphical LCD Monitor On The Front Panel Displays Fault Conditions And Provides Effective Alarm Signals So As To Do Maintenance As Soon As Possible. Moreover, Parameter Threshold And Delay Value Can Be Adjusted Via Front Panel Or Usb Port (Communicated With PC Software).
Features & Details：
- Pattern LCD Display (With Backlight), LED Indicator, Touch Button Operation;
- The Screen Protection Uses Hard-Screen Acrylic Materials;
- Using Silicone Panels And Buttons To Adapt To High Environmental And High Temperature Capabilities;
- The Power Supply Range Is Wide DC (8~35) V;
- Collect And Display Single-Phase Voltage, Current, Frequency, Power, And Load Percentage Parameters: Power Generation Voltage V Power Generation Frequency Hz; Power Generation Kw Power Generation Current A; Load Percentage %;
- Various Parameters Of The Precision Acquisition Engine: Oil Pressure Kpa Temperature °C; Fuel Level % Cumulative Running Time H (Up To 199999 Hours); Voltage V Speed RPM; Cumulative Boot Times (Up To 199999 Times, Displayed By The Host Computer);
- Unit Fault Protection And Display Function;
- The Controller Has 3 Working Modes: Manual, Automatic, And Stop;
- Multiple Temperature, Pressure And Oil Level Sensors Can Be Used Directly And Can Customize Parameters; Temperature And Pressure Sensors Can Be Separately And Temperature, The Pressure Alarm Is Used In Parallel To Increase The Primary Protection While Providing The Analog Quantity;
- Multiple Starting Success Conditions (Speed, Oil Pressure, Power Generation Frequency) Can Be Selected;
- 1 Programmable Input Port, Which Can Be Set As Digital Input Or Liquid Level Sensor;
- 2 Relay Fixed Output Ports (Fuel Output, Start Output);
- 3 Programmable Relay Output Ports, Which Can Set Public Alarm Output, Preheat Output Or Idle Speed Control Output;
- Parameter Setting Function: Allow Users To Change Settings Of Their Parameters, Not Lost When The System Is Powered Off, Most Parameters Of The Controller Can Be Adjusted From The Front Panel Of The Controller, And All Parameters Are Adjusted By The Pc Through The USB Interface (Type-B Type);
- All Parameters Are Digitally Adjusted To Improve The Reliability And Stability Of The Whole Machine;
- Modular Structure Design, Flame-Retardant ABS Shell, Pluggable Terminal Block, Embedded Installation, Compact Structure And Convenient Installation.
Package Content：
1 × Voltage Controller HGM1790N
Notes：
The Product Has Passed Strict Quality Testing
Durable And Easy To Install And Replace
Cost-Effective, The Best After-Sales Service
Quality Assurance For Your Peace Of Mind
| Item Specifics | |
|---|---|
| Country of Origin | United States |
| MPN | HGM1790N |
| Equipment Type | Voltage Regulator |
| Model | HGM1790N |
| Warranty | 3 Months |
| Type | Voltage Controller |
| Brand | globalmart-top |
| Speed Sensor Voltage | 1.0v To 24V (RMS) |
| Working Voltage | DC8.0V To 35.0v, Continuous Power Supply |
| Alternator Voltage Input | AC 15V -AC 360 V (ph-N) |
| Alternator Frequency | 50/60 Hz |
1.We accept PayPal only.
2.We ship to your eBay address. Please make sure your eBay address is correct before you pay.
We handle orders within 24 hours at Monday to Friday and Saturday forenoon. weekend orders will be shipped at next monday
pls send return tracking number and time to me after return, keep tracking on the way, thank you.
Buyer are responsible for check correct part,thanks.
We will do the same feedback to you when we receive your feedback, thank you.
If you are not satisfied with my item, pls contact me to get a return address.
If the parts are damaged on the way or have fault, pls send problem description or take picture about problem, send description or picture to me by ebay message, we will check the questions and solve it for you ASAP, thank you.
Wir bieten qualitativ hochwertige Teile und bewährte Qualitätsprodukte. Schnelle Lieferung, professionelle Beratung - Nutzen Sie unsere Teile, um Ihr Auto zu passen!
GlobalMart-TOP
Shop Category Hot Item
New List Item
Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us |

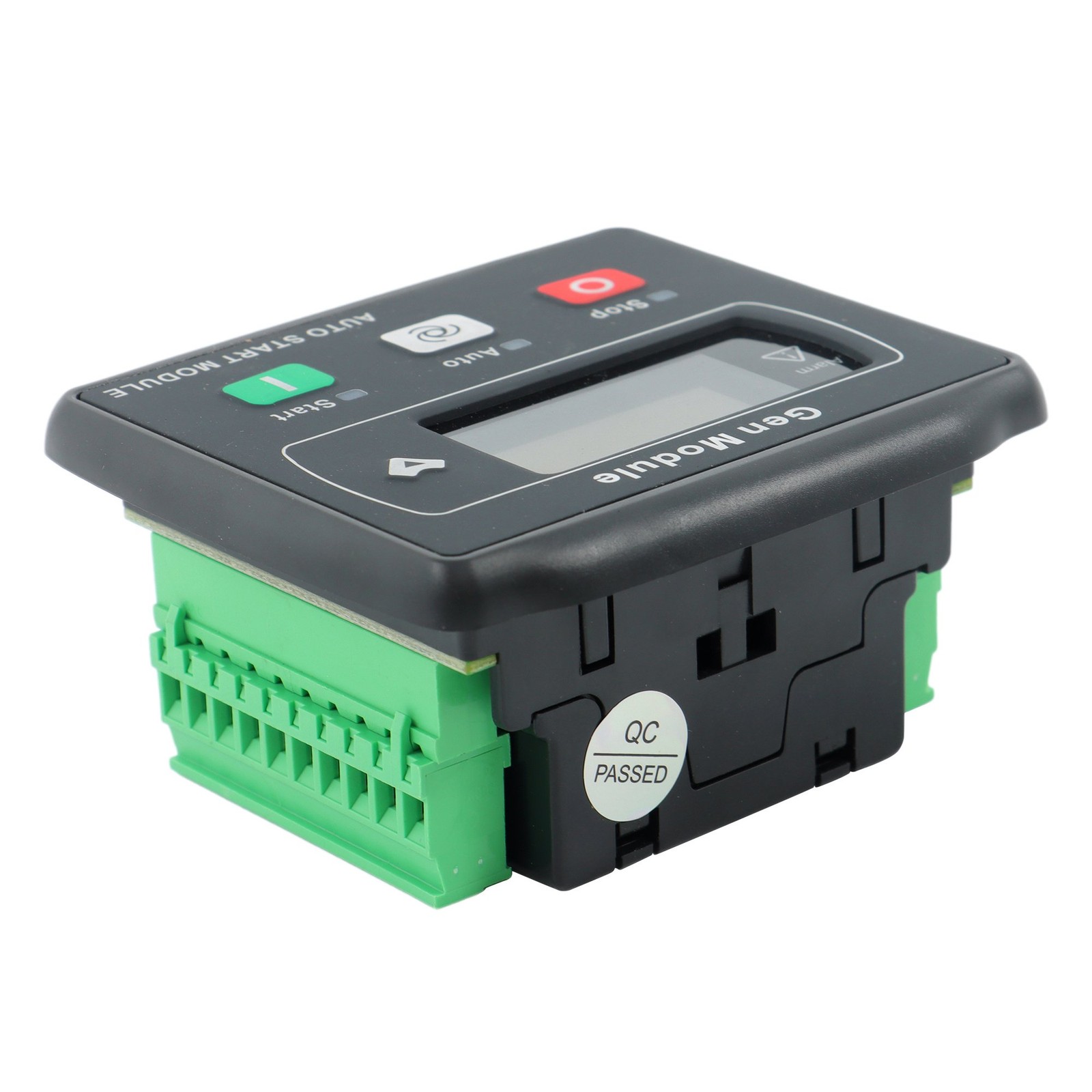

Voltage Controller HGM1790N Genset Controller Generator Automatic Start Module
