The ultralow-noise JFET input is balanced, along with the output, and operates on 48V phantom power. Durable build quality ensures this critical piece of audio gear remains intact for long tours and years of abuse in studios and busy live venues. Like all Warm Audio gear, each Warm Lifter is hand-tested and inspected by trained technicians in Austin, TX.
Common Applications
- Studio vocal and instrument recording with low-output ribbon and dynamic mics
- Voiceover and podcast recording/streaming
- Low-output mics plugged directly into audio interfaces with weak preamps
- Compensating for signal loss during long cable runs
True 26 dB of Clean Gain
Warm Lifter will always deliver 26 dB of clean output gain, regardless of the mic that you choose. Unlike some inline preamps, signal boosters, and lifters, the circuit design of the Warm Lifter protects your recording from signal loss or phase issues by ensuring there is no mismatching of impedance between your mic of choice and the Warm Lifter.
Added Frequency Flexibility
The Warm Lifter has a selectable 100 Hz high-pass filter to remove unruly low-end frequencies for added clarity and detail. Additionally, the Warm Lifter has a selectable 3 kHz high-shelf boost to emphasize the upper mids and highs for clarity and detail on darker sounding mics.
Box Contains
-
Warm Audio Warm Lifter Inline Active Microphone Preamp
- 1 x Warm Audio Warm Active Microphone Preamp
-
Warm Audio Warm Lifter Inline Active Microphone Preamp
- 1 x Warm Audio Warm Active Microphone Preamp
| Brand | Warm Audio |
| Model | Warm Audio WA-WL |
| MPN | WAWL |
| Type | Microphone Preamp |
| In-Line Accessory Type | Preamplifier |
| Input / Output Level | Input: Mic Level Output: Mic Level |
| Number of Channels | 1 |
| Gain | +26 dB |
| Controls | Low Cut/HPF |

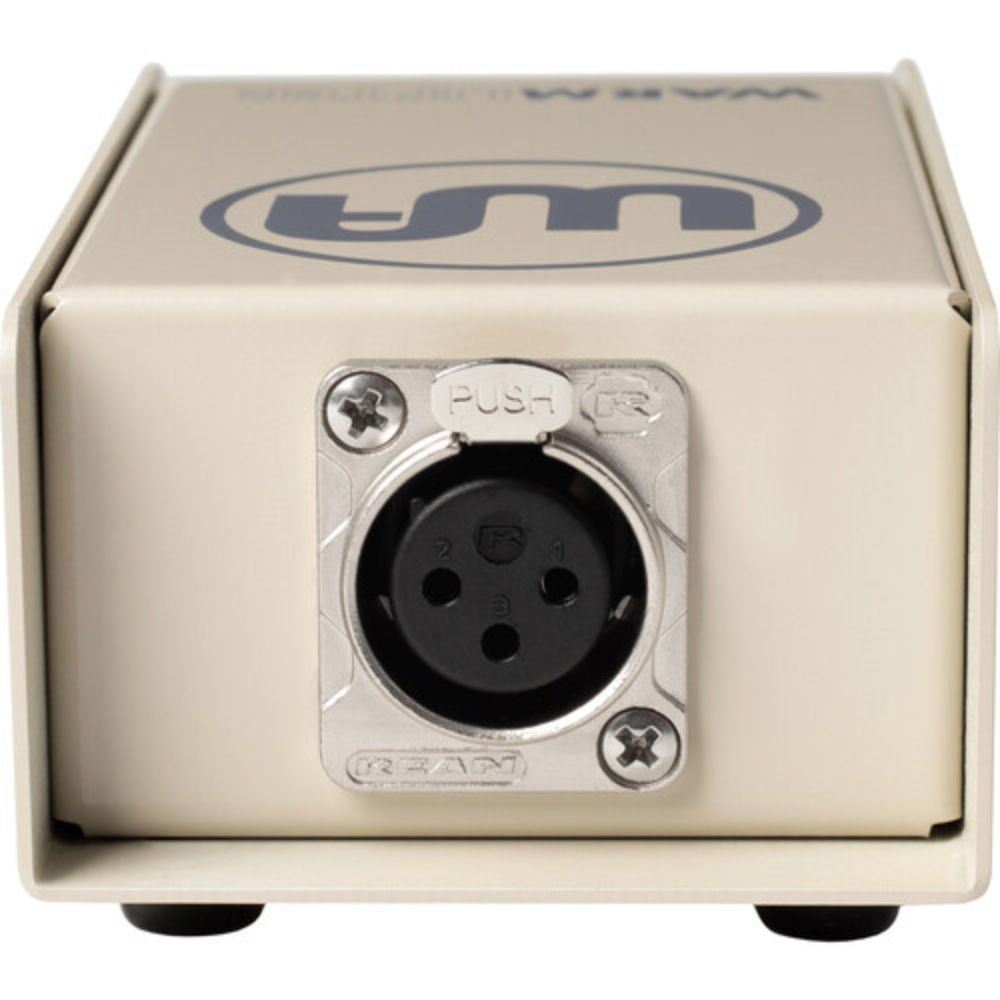

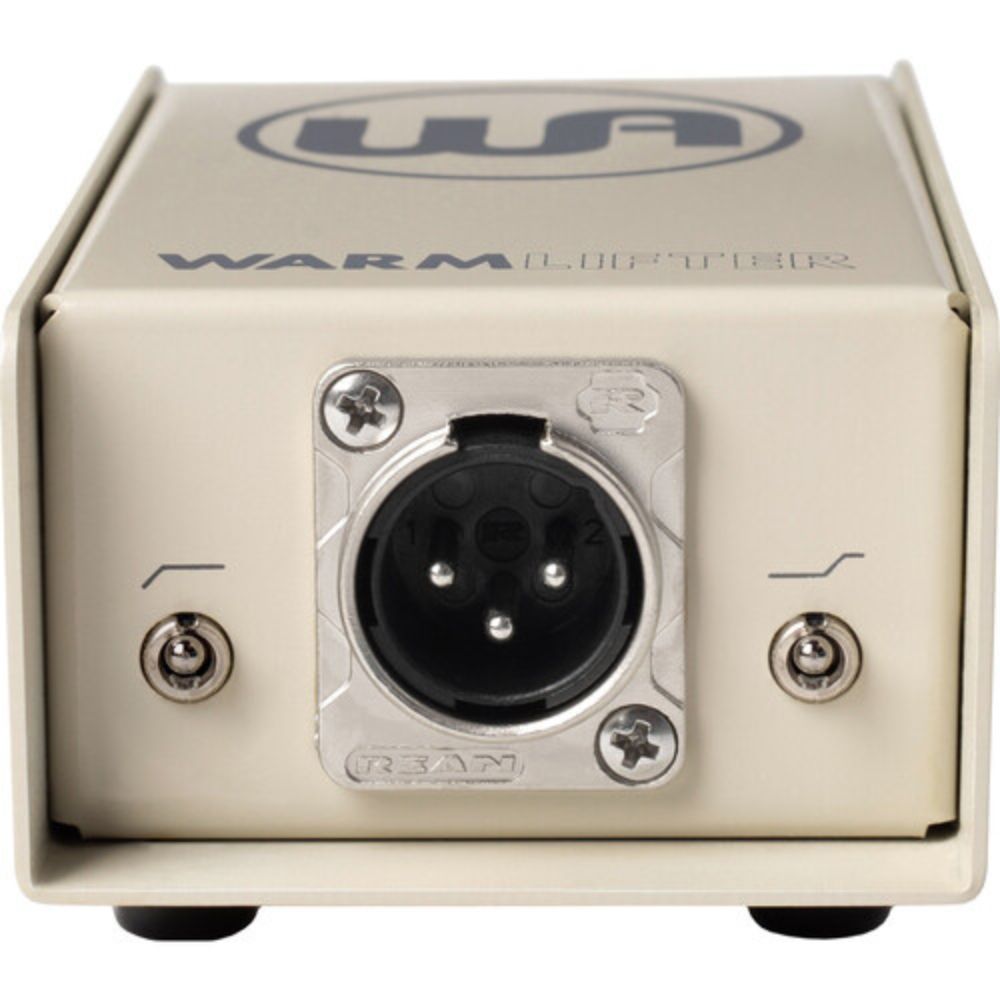

| Inputs/Outputs | 1x XLR 3-Pin Female Balanced Mic Input 1x XLR 3-Pin Male Balanced Mic Output |
| Operating Voltage | 48 V |
| Transformer Type | Impedance Matching |
| High-Pass Filter | 100 Hz |
| Circuit Type | JFET |
| Indicators | No |
| Frequency Response | 10 Hz to 100 kHz ±0.2 dB |
| Impedance | Input: 2.4 Kilohms (Balanced) Output: 150 Ohms (Balanced) |
| Max Input Level | -11 dBu |
| Max Output Level | 15 dBu |
| Noise | Output Noise: -93.97 dBm |
| THD+N | 0.001% (at 15 dBu) |
| Operating Current Consumption | 4.7 mA |
| Shielded | Yes |
| Dimensions | 4.7 x 2.7 x 1.6 / 11.9 x 6.9 x 4.1 cm |
| Weight | 12 oz / 340 g |
