The X1500 is a purpose-built IO board tailored for the Raspberry Pi Compute Module 5 (CM5). It features full-size M.2 NVMe slots and integrates a variety of peripherals into an ultra-compact design. This carrier board is meticulously engineered to streamline system development, allowing you to rapidly assemble solutions using readily available off-the-shelf components, such as existing Raspberry Pi HATs and M.2 NVMe devices.

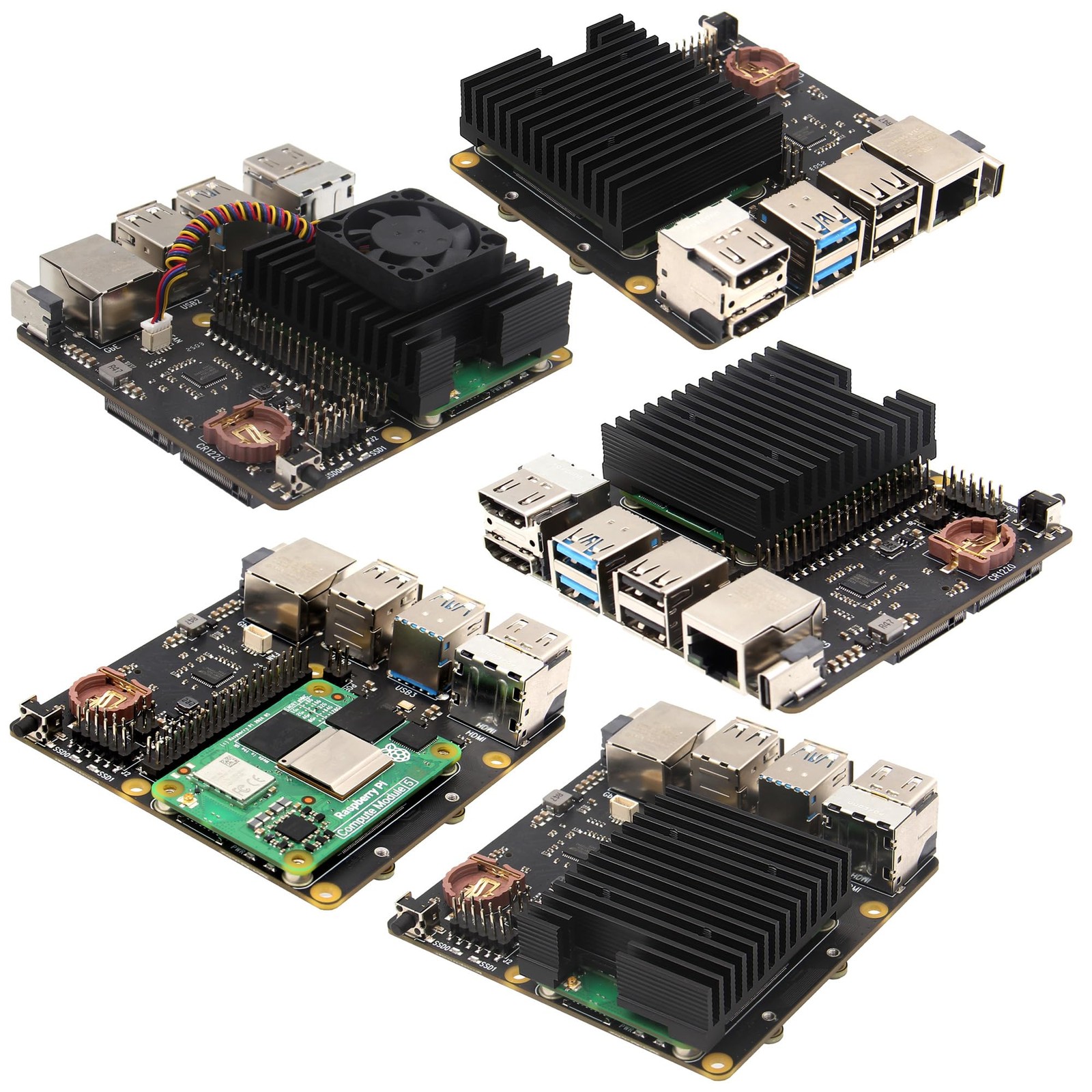

Compatibility: X1500 is with Raspberry Pi Compute Module 5 CM5 and all CM5 variants; Model: X1501; Matching case is X1500-C1, cooler is C519
User Manual: Google WiKi and search X1500 to visit the user guide

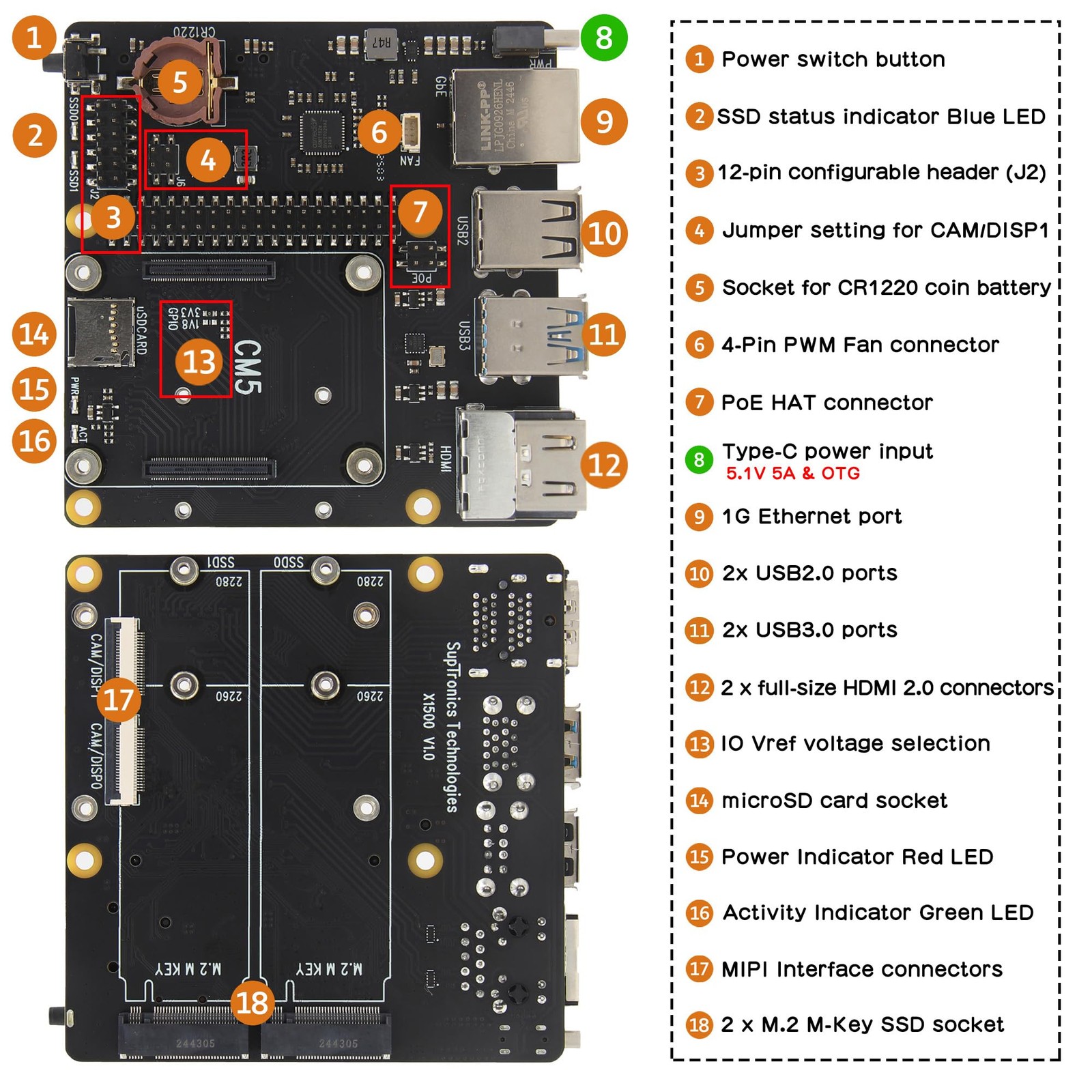

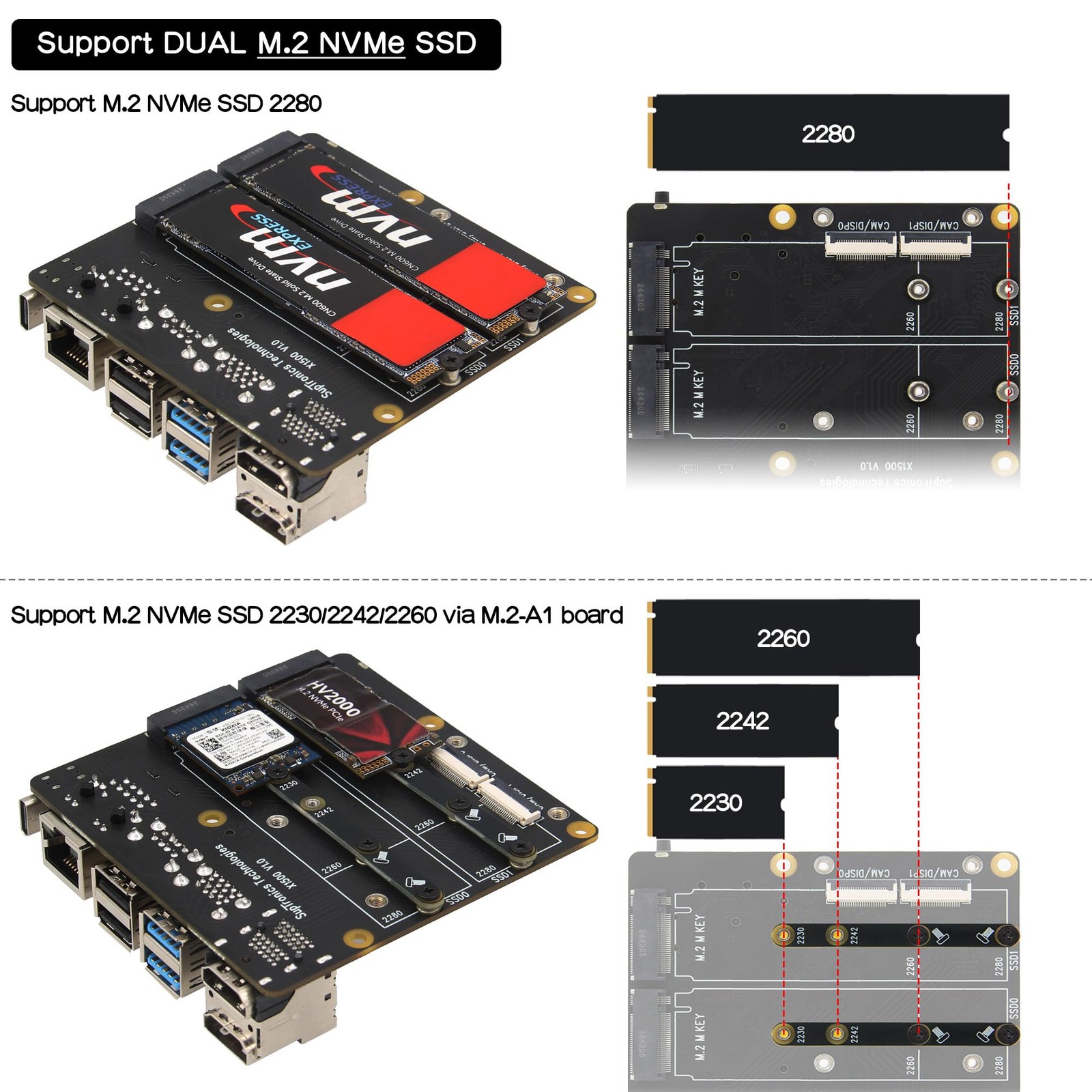

Function: Support Dual M.2 NVMe SSD, with 1GbE Ethernet Ports, Dual USB 3.0 Ports, Dual Hdmi 2.0 Ports, Dual MIPI DSI/CSI-2 Connectors, RTC, PWM Fan connector and convenient power button
How to Power: 5.1Vdc +/-5% 5A power via USB-C port of X1500; Please use high quality power supply capable of delivering 5.1V at 5A output, an incompatible power supply with a lower output voltage may fail to power on the system
Extra Needed to Prepare: Raspberrry Pi CM5, high quality Power Adapter, M.2 NVMe SSD, micro-SD card(≥16GB), Case, CM5 heatsink etc
