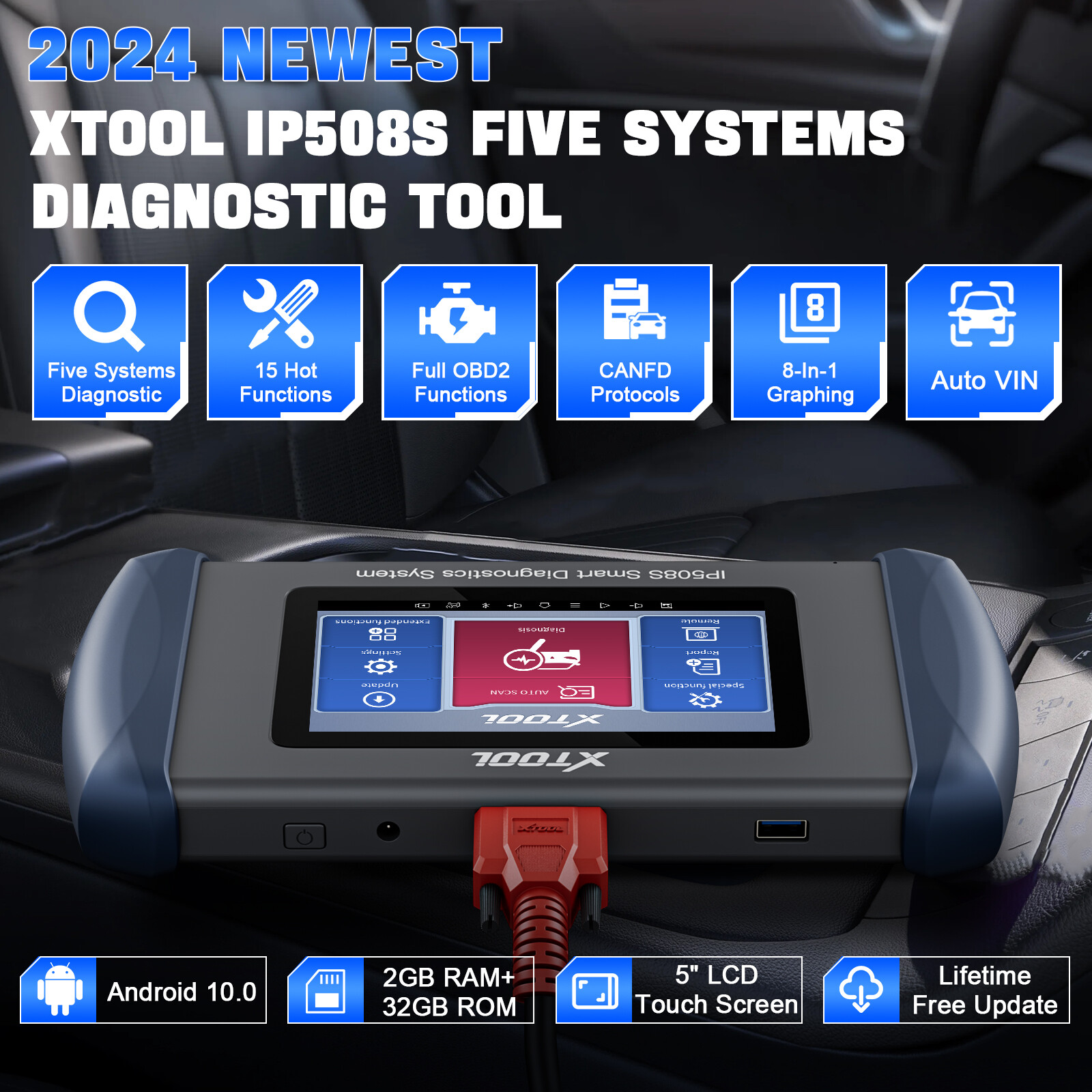

XTOOL IP508S-----OBD2 Diagnostic Tool Support Five System(Engine/ABS/SRS/Transmission/EPB) Diagnose, Enhanced 15 Reset Service,CANFD Protocol, Wide Vehicle Coverage, 15 Language Available, Lifetime Free Update, etc.

Support 5 System Diagnose: XTOOL Inplus IP508S supports entering the 5 systems of Engine, Transmission, SRS, EPB and ABS for diagnosis. Help you solve your vehicle's problems more
accurately and quickly.
15 Maintenance Functions: Oil Light Reset, SAS Calibration, Injector Coding, Gear Learning, Power Balance, Seat Calibration, Headlight Reset, Gearbox Matching, Suspension Reset, ABS
Bleeding, Throttle, EPB Reset, BMS Reset, TPMS Reset, D*PF
Auto VIN Scan:Automatically retrieve vehicle identification numbers for quick access to vehicle system diagnostics.
8 In 1 Live Data Graph: Support selecting 8 pieces of data at the same time to form a data flow chart, which is convenient for you to understand the status of each module more intuitively.
15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Traditional Chinese (pls send us the serial number of the
Wide Coverage of Vehicles: XTOOL Inplus IP508S support 80+ car brands and 10000+ car models for diagnosis and reset.
Superior Firmware Configuration:5” Touchscreen + 2G+32G Memory + Android 10
2 Years Warranty + Lifetime Free Update
Support Newest CAN-FD:Transmission speed 14 times faster than CAN. This protocol is available to diagnose post-19 CAN-FD protocol models without adapters (covers post-20 Corvette, Encore,
Professional Pre-sales & After-sales Service: Send us your car VIN before place an order that we can help you check the compatibility. Pls feel fee to contact us whenever you encounter the

15 Reset Function Make Repair Easy
1. Oil Rest: Reset the Engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle's driving conditions and climate.
2. TPMS Reset: Tire Pressure Monitor System (TPMS) Reset allows you to quickly look up the tire sensor IDs from the vehicle E*CU, as well as to perform TPMS replacement and reset procedures
after tire sensors are replaced.
3. SAS: SAS reset supports recalibration of the steering angle sensor. After the calibration is successfully completed, the SAS fault memory will be automatically cleared.
4. EPB: Reset the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration.
5. BMS Reset: The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the
rest state of the vehicle.
6. Injector Coding: Write the identification code of the injector into the ECU so that the ECU can recognize and work normally.
7. D*PF: DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive
or catalyst reduce PM ignition combustion) to stabilize the filter performance.
8. ABS Bleeding: After the gear learning is successful, the MIL will be closed. This function can complete the self-learning of the gearbox and improve the quality of shifting.
9. Throttle Relearn: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
10. Gear Learning: Learning the crankshaft position sensor to ensure proper engine operation.
11. Power Balance: Conduct tightness and balance tests on the cylinder and adjust the power balance of the cylinder.
12. Seat Calibration: Automatically configure the internal data of the seat module to ensure the normal use of the seat adjustment function.
13. Headlight Reset: Adjust the headlights after repair/replacement.
14. Gearbox Matching: Write, match and self-study serial numbers for newly replaced parts of the gearbox.
15. Suspension Reset: After the air suspension module or other original parts are replaced and repaired, the suspension system is matched

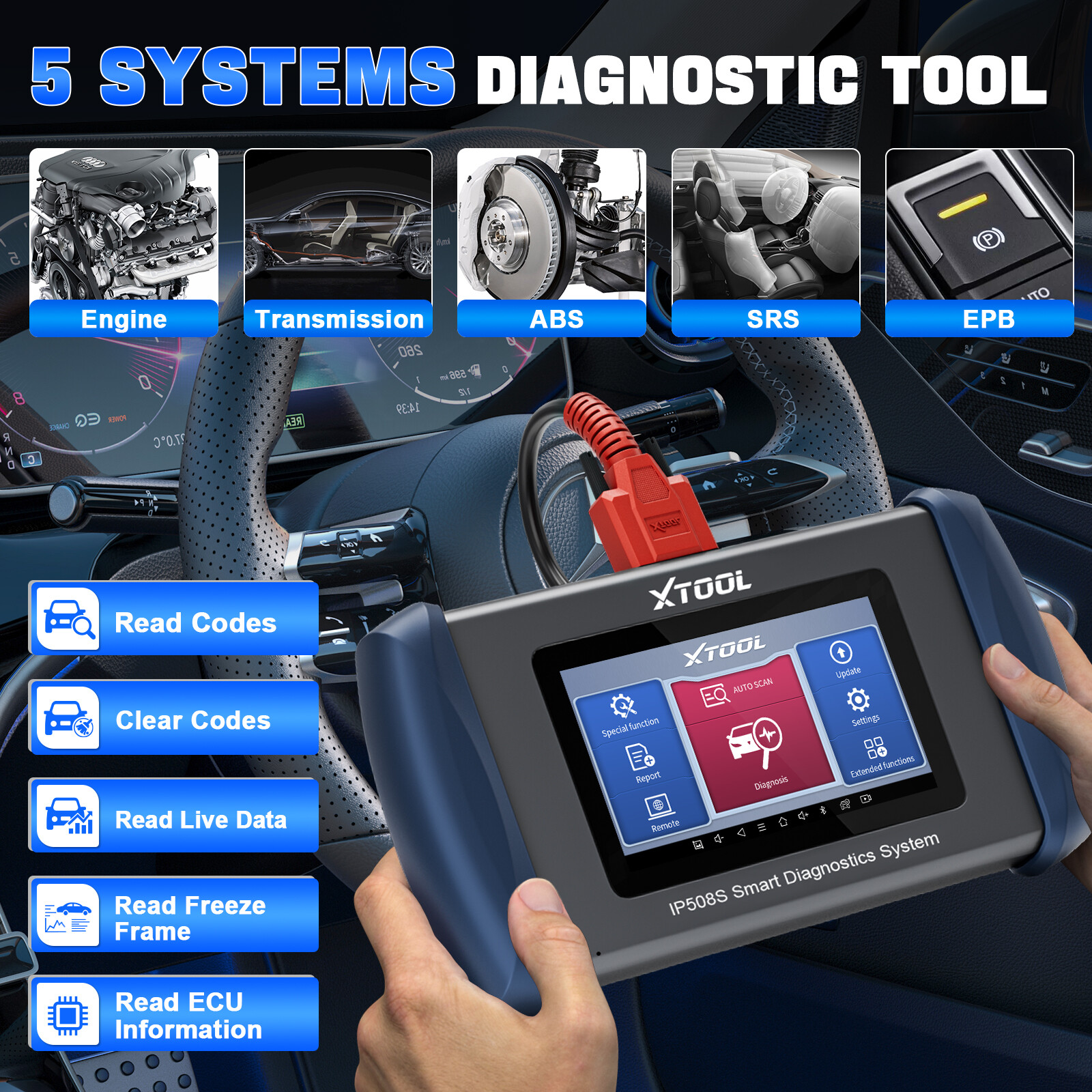

5 System Diagnostic
✔️ ABS System Diagnosis:Retrieve the ABS code to tell you where the problem is and you can fix it.
✔️ SRS System Diagnosis:The airbag system consists of a collision sensor, a control module and the airbag itself. The diagnostic equipment can detect each electronic parameter to check its health
status.
✔️ Engine System Diagnosis:Help detect engine ignition, fuel injection, air-fuel ratio and exhaust emissions in the engine system to improve vehicle performance, save energy and reduce exhaust
emissions.
✔️ EPB System Diagnosis:If you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation
✔️ Transmission System Diagnosis:Read and clear the codes in the transmission system and view real-time data so that the transmission system output is optimally adapted to speed and load.
Retrieve error information from automatic transmission (AT). Automatic transmission is a motor vehicle transmission that can automatically change the transmission ratio when the vehicle is
moving, so that the driver does not need to shift manually.

Full 10 Mode OBDII Functions Free for Lifetime
1.Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream:Reads and displays live E###CU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability

Esay to Setup & Use
CANFD Protocols: Support CAN FD Protocol for faster and more stable network connections, making the diagnostic process more efficient and faster.
Auto VIN & Auto Scan: The XTOOL IP508S automotive scanner diagnostic tool offers efficient diagnosis with an automated scan and VIN detection technology. In case of a failed auto VIN, it
provides a flexible switch to manual input.

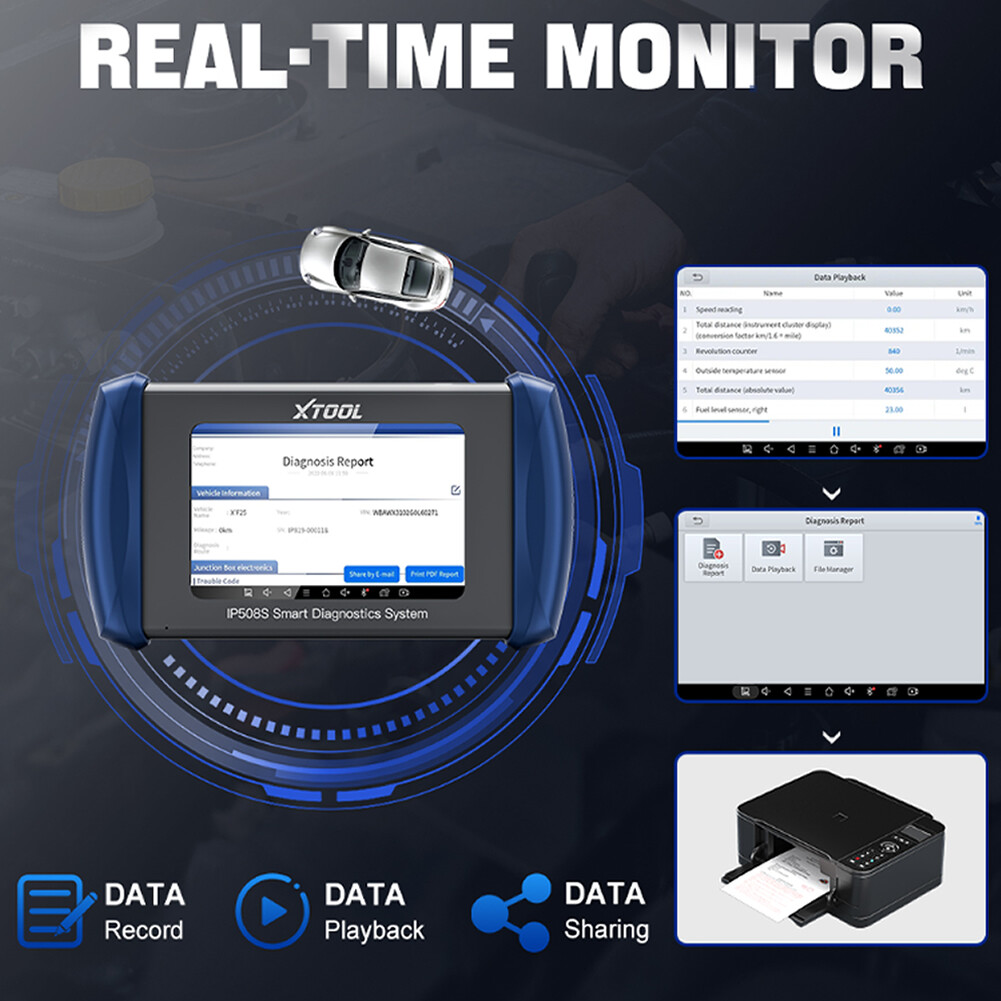

Powerful Live Data Graphing
8in1 Data Graphing: Allows users to view detailed PID on sensors. You can select and combine up to 8 PID graphs in one view for better comparison and analysis
Data Record: Live data can be stored, playback, or exported as CSV files

One-Click Update: Software updates are extremely easy. Just make sure the scanner is connected to the Internet and it can be updated by one touch

Support 80+ Car Brands
Inplus IP508S support more than 80 car brands to do diagnostic functions.
It can work for For ABARTH, For ACURA, For ROMEO, For ASTONMARTIN, For AUDI, For BMW, For MINI, For PROTON, For PORSCHE, For PERODUA, For BENZ, For SMART, For TRANSPORTER, For HONDA, For PEUGEOT, For DACIA, For DAIHATSU, For DAEWOO, For VW, For CVVW, For RENAULT, For RENAULTSAM, For HYUNDAI, For HYUNDAICV, For OPEL, For INFINITI, For LANDROVER, For FIAT, For BENTLEY, For LINCOLN, For BUICK, For SEAT, For DODGE, For BUGATTI, For NISSAN, For TOYOTA, For HUMMER, For HOLDEN, For JEEP, For JAGUAR, For CADILLAC, For CHRYSLER, For LAMBORGHINI, For LANCIA, For ROLLS, For LEXUS, For SUZUKI, For MAZDA For MASERATI, For MAYBACH, For AUSFORD, For EURFORD, For USAFORD, For KIA, For PONTIAC, For SAAB, For SCION, For MIT, For SSANGYONG, For SUBARU, For SKODA, For TLISUZU, For GM, For SATURN, For VOLVO, For VAUXHALL, For ISUZU, For CHEVROLET, For CITROEN, For FERRARI, For UAZ, For GAZ, For CHANGCHENG, For YQAUDI, For YQVW, For SHVW, For SQDTZY, For SQMG, For RONGWEI, For QIRUI, For JETOUR, For JIAO, For JILI, For HUACHEN, For JAC, For GMC, For BYD, For LIFAN.
Note: For the compatibility of each function is different, pls send us your car VIN to check the compatibility before place an order.
Free Update +15 Languages Supported Online free upgrade, IP508S maintains weekly model upgrades, XTOOL will continue to update for future updated vehicles, IP508S already supports vehicle diagnosis in most areas of the world, if there are unsupported vehicles, please provide VIN and vehicle model, Then keep it updated. We will add in every update
Language Support
English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Traditional Chinese
