Product Description

YR-HM035A1 is a multi-function hour meter,new temp probe is designed with screws

YOOREAL New HM035A1 is a multi-function hour meter,new temp probe is designed with screws that can be removed at will to change the angle.

It has temperature guage meter,hours and tachometer.In addition,temp function can record real-time temp and max temp(can be reset),alert overtemperature,temp unit can be switched;hour meter can record TOT,resettable partial timer,countdown maintenance value;tachometer can record real-time rpm,max rpm(can be reset),alert overspeed;backlight display;user shutdown;record the times of engine working;replacement battery reminder;waterproof rate:IP67.Suitable for small gasoline engine,such as scooter,mini bike,garden tractor,snowmobile,dump truck,motorcycle and etc.

(The initial hour meter can be set before the machine runs or within 1 hour of operation.For example, if your device is already running 200H, you can set the TOT time of the hourly counter to 200H.)

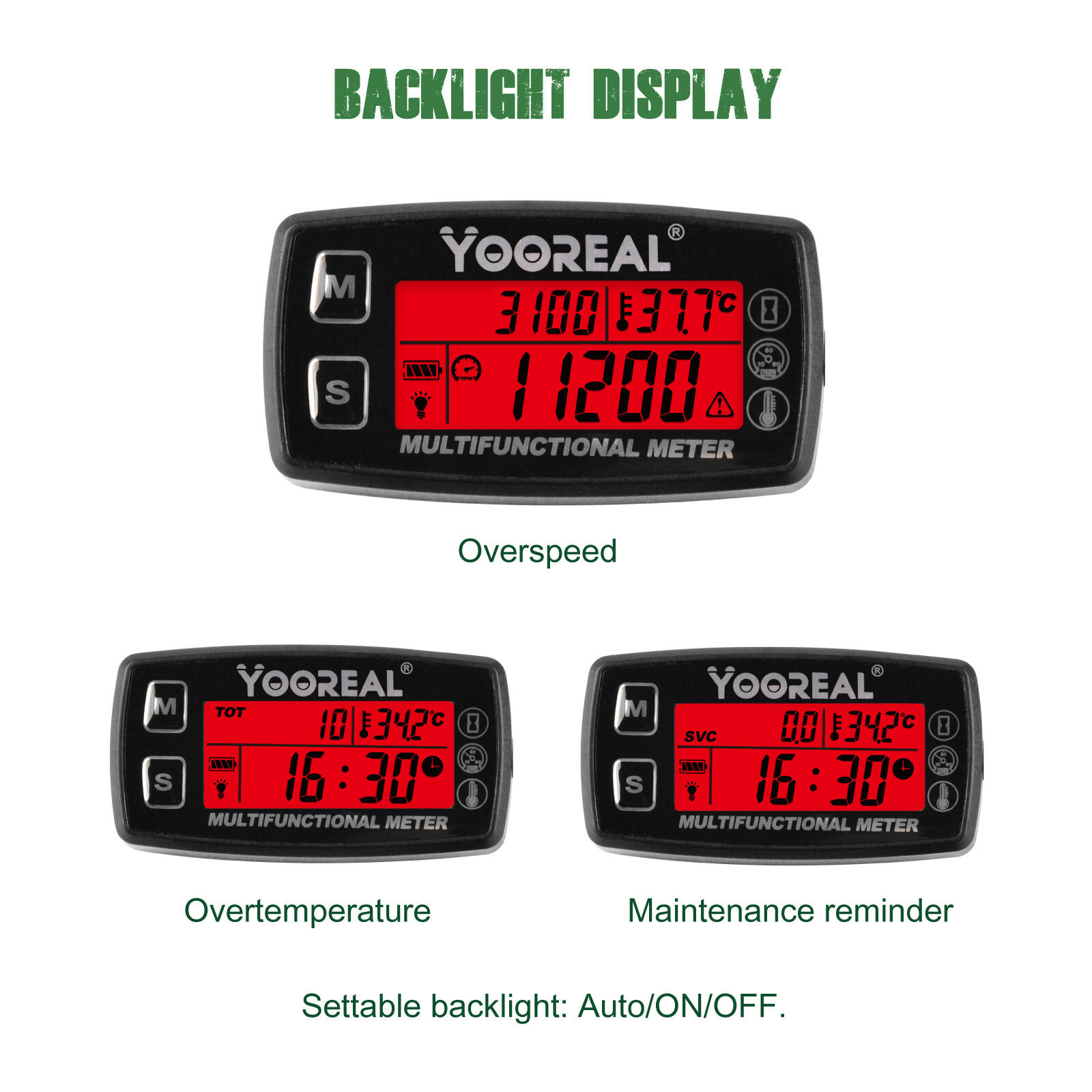

It has 2 colors of backlight: green and red, the green backlight will help you use it at night or in dim places, and the red backlight will remind you that the maintenance has arrived, the temperature and the RPM value is exceeded.

Product Functions

Thermometer Function,Tachometer Function,Hours Function

2.Hours Function:

TOT non-resettable and back to 0 when exceed 999,99H.
Record the partial working time(JOB), it is resettable.
SVC range：5-1000 H.It can be turn off.
TOT initial time can be set. For example, if your device has been running for 200 hours, you can set the initial time of the hour counter to 200H.

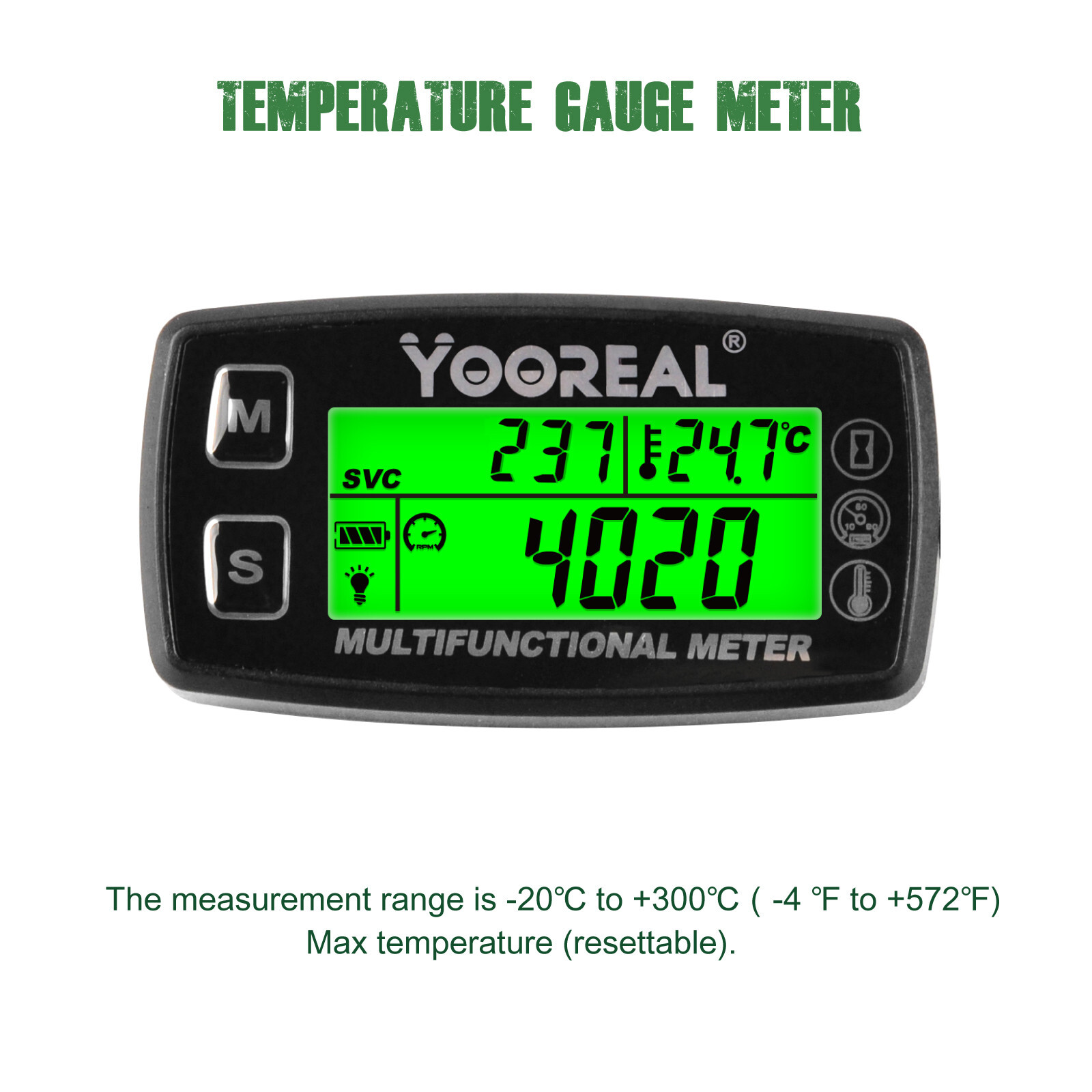

1.Thermometer Function：

Two temp probes are included in the accessory, which can be replaced by removing the screws according to your own needs.
Alert the temperature value exceed with red backlight display
Temperature measurement range: -20℃ to +300℃（-4 ℉ to +572℉）,the unit can be switched ℃ or ℉ freely.
The maximum temperature value can be reset.

3.Tachometer Function:

Display the highest RPM hit since the engine started.
Adjust the idle revolution by different engine firing patterns.
RPM range: 0-25,000RPM.

Yooreal has established a complete laboratory for testing and improving the product's quality


Buttons Testing The buttons can works well after 10,000 repeated taps with a 300g weight	High Pressure Water Washer Testing Display with PC transparent board can keep it away from the damp or moist It also prevent the strong shock when it is cleaning	Drop testing Favorable anti-vibration performance can suffer strong vibrations when the equipments is working	High & Low temperature It can works well in temperature environments temperature: -40 °C - +70 °C

Application

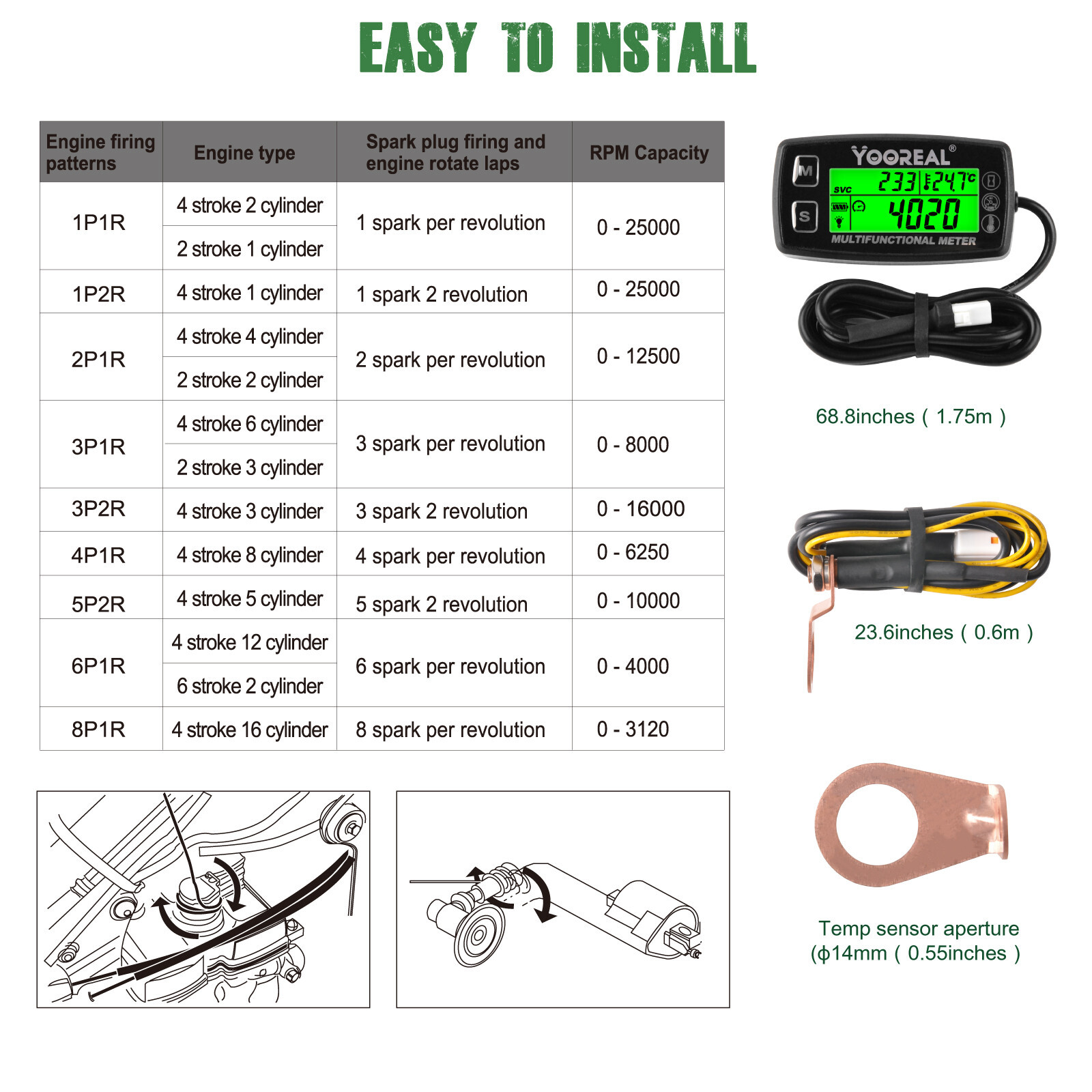

Suitable for gas engine:

2 stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder
4 stroke 1 cylinder/4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder
6 stroke 2 cylinder
Note: Some 4 stroke 1 cylinder with same engine firing pattern as 2 stroke 1 cylinder, the setup is 1P1R.
4 stroke installation,wrap pickup wire around head of coil;2 stroke installation,wrap pickup wire around spark plug head.

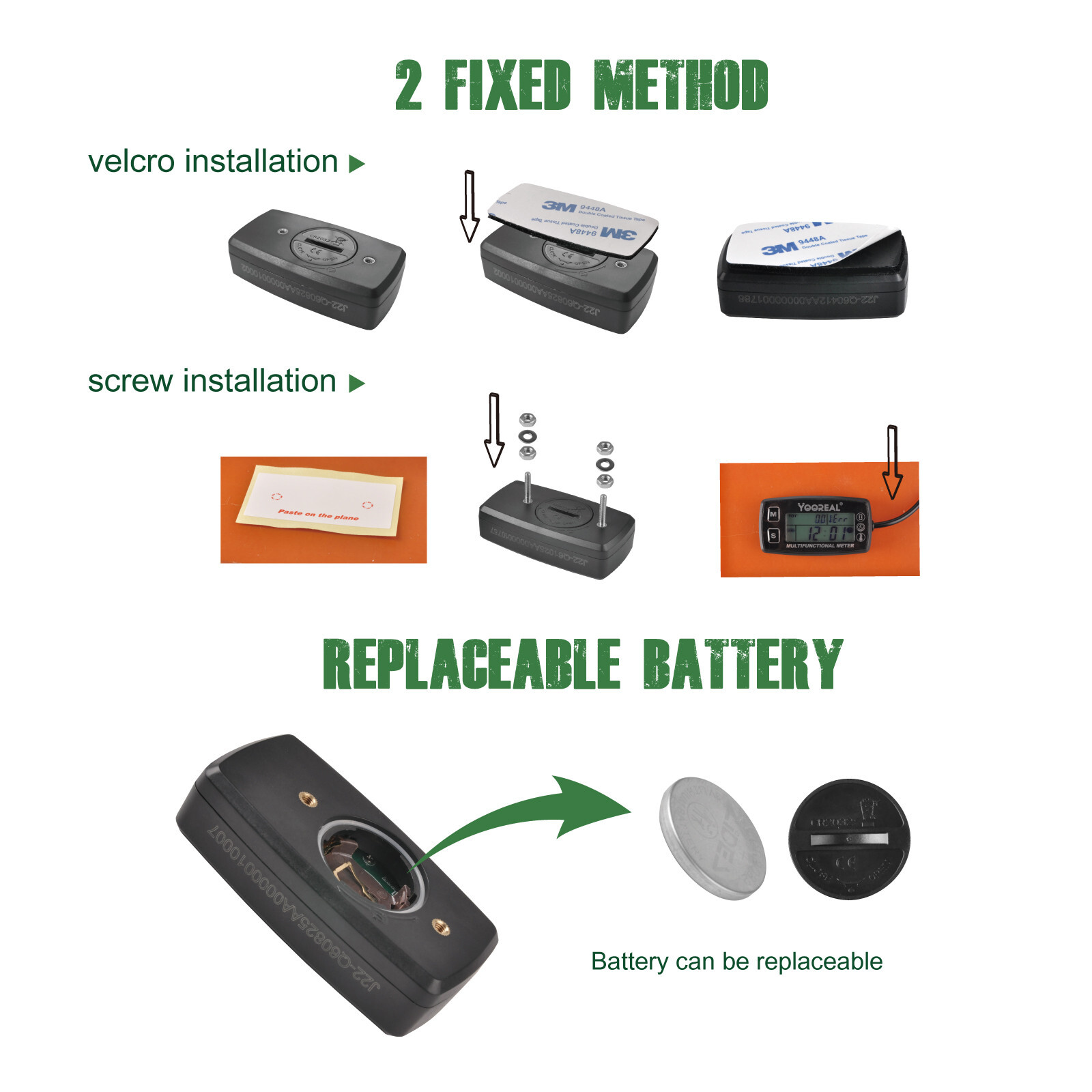

EASY TO INSTALL：Double-sided mounting & Screw mounting

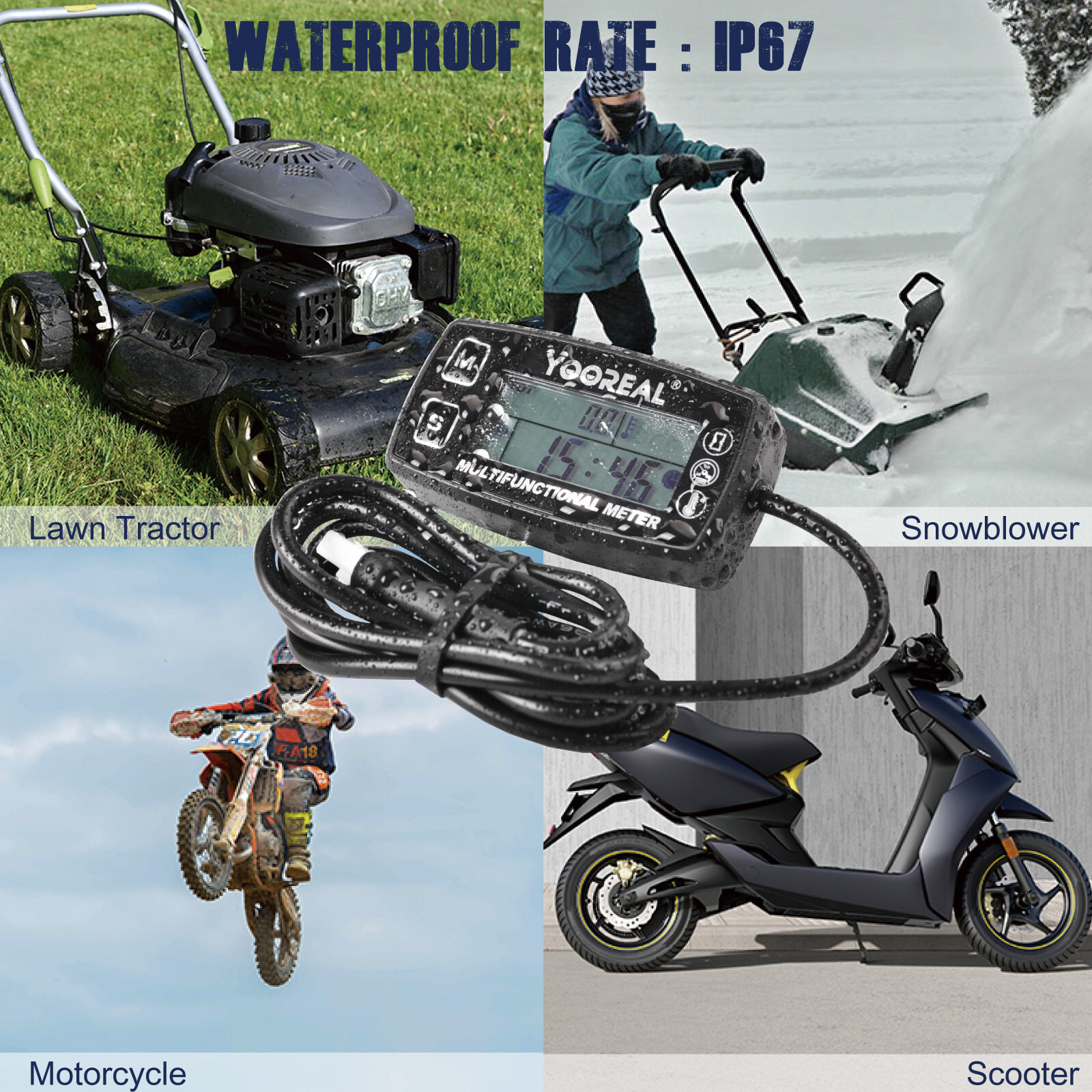

This tachometer hour meter suitable for Outdoor Power Equipment,Vehicles,Generators,Agriculture,Boats,Construction Machinery etc... such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc...

SPECIFICATIONS

Product model	YR -HM035A1
Battery type	CR2032 replaceable,The design department added an insulating separator under the battery. The insulating diaphragm needs to be removed during use.
Waterproof rate	IP67
Clock system	24H
Housing material	ABS+PC
TOT/JOB range	0-99999H
RPM range RPM accuracy	0-25000RPM; 10 RPM
Alert RPM range	100-25000RPM/OFF
SVC range	5-1000H/OFF
Total length of wire	1.75m(68.8 inches)
Temp sensor length	0.6m(23.6 inches)
Display Window Size	41.217.2mm(1.60.68inches)
Product Dimension	68.93x37x18mm(2.711.460.71inches)
Accessories	Product1, Cut-out sticker,3M velcro, Cable tie2,Bolt2,Nut4,Flat Washer*2 ,CR2032 Battery,TS002 probe sensor,User manual.
About metal probes	Metal temperature probes with a diameter of 14 mm and a measurement diameter of 14 mm or less can be used.
After-sales service	2 years after-sales service,product problems are returned or replaced free of charge
