Zebra DS3608-SR Rugged Green Vibration Motor USB Kit: DS3608-SR00003VZWW Scanner, CBA-U46-S07ZAR High Current Shielded USB Cable

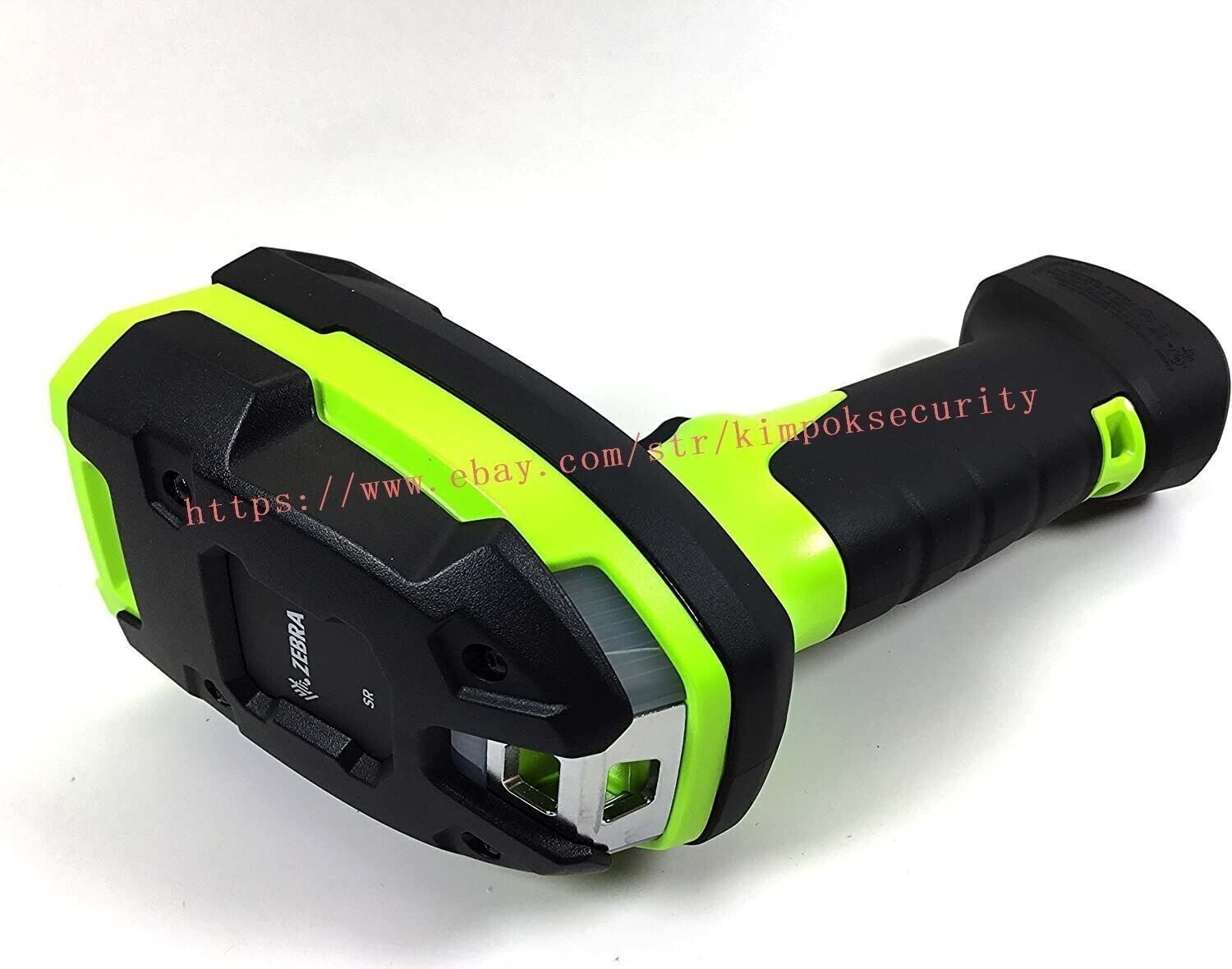

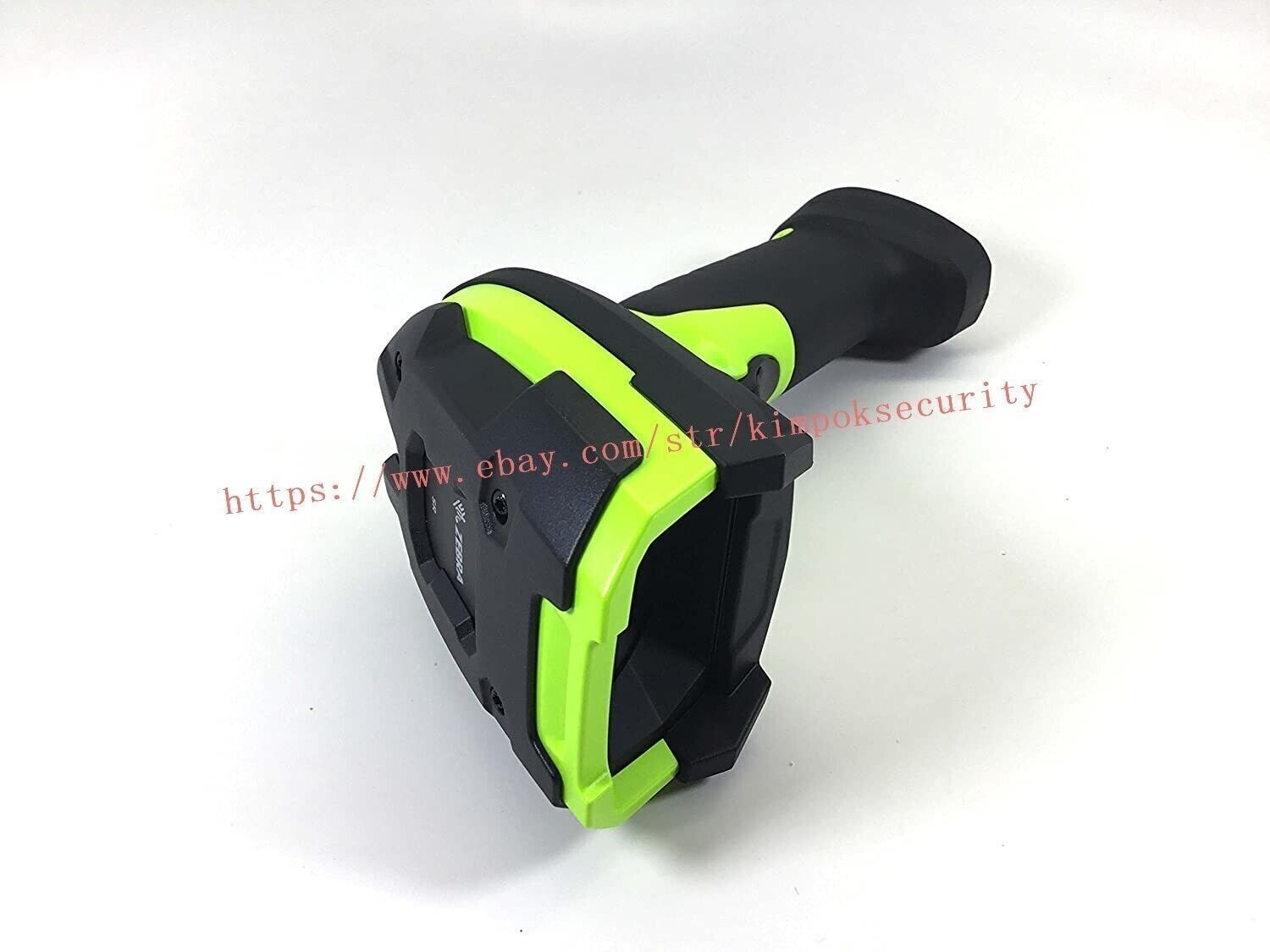

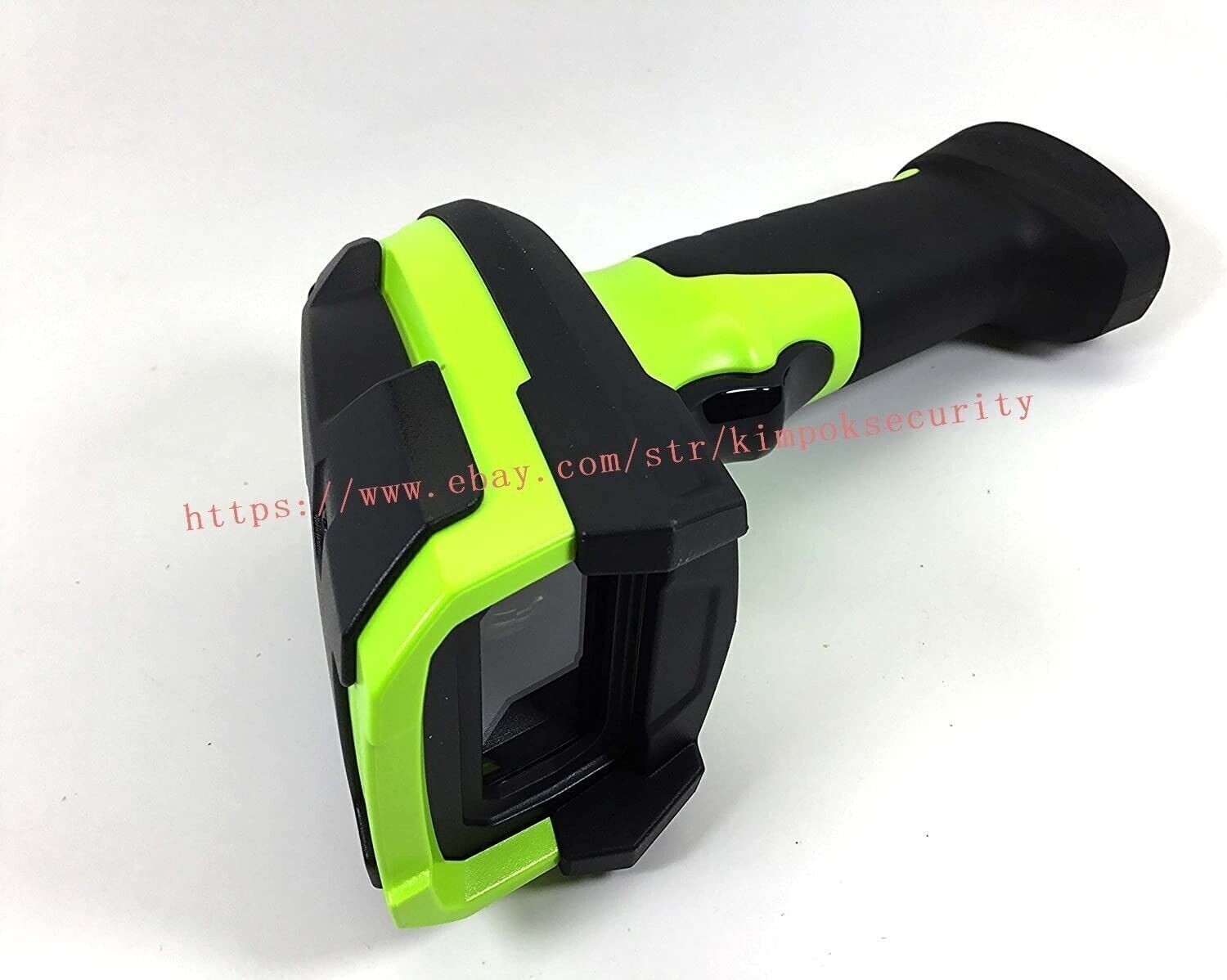

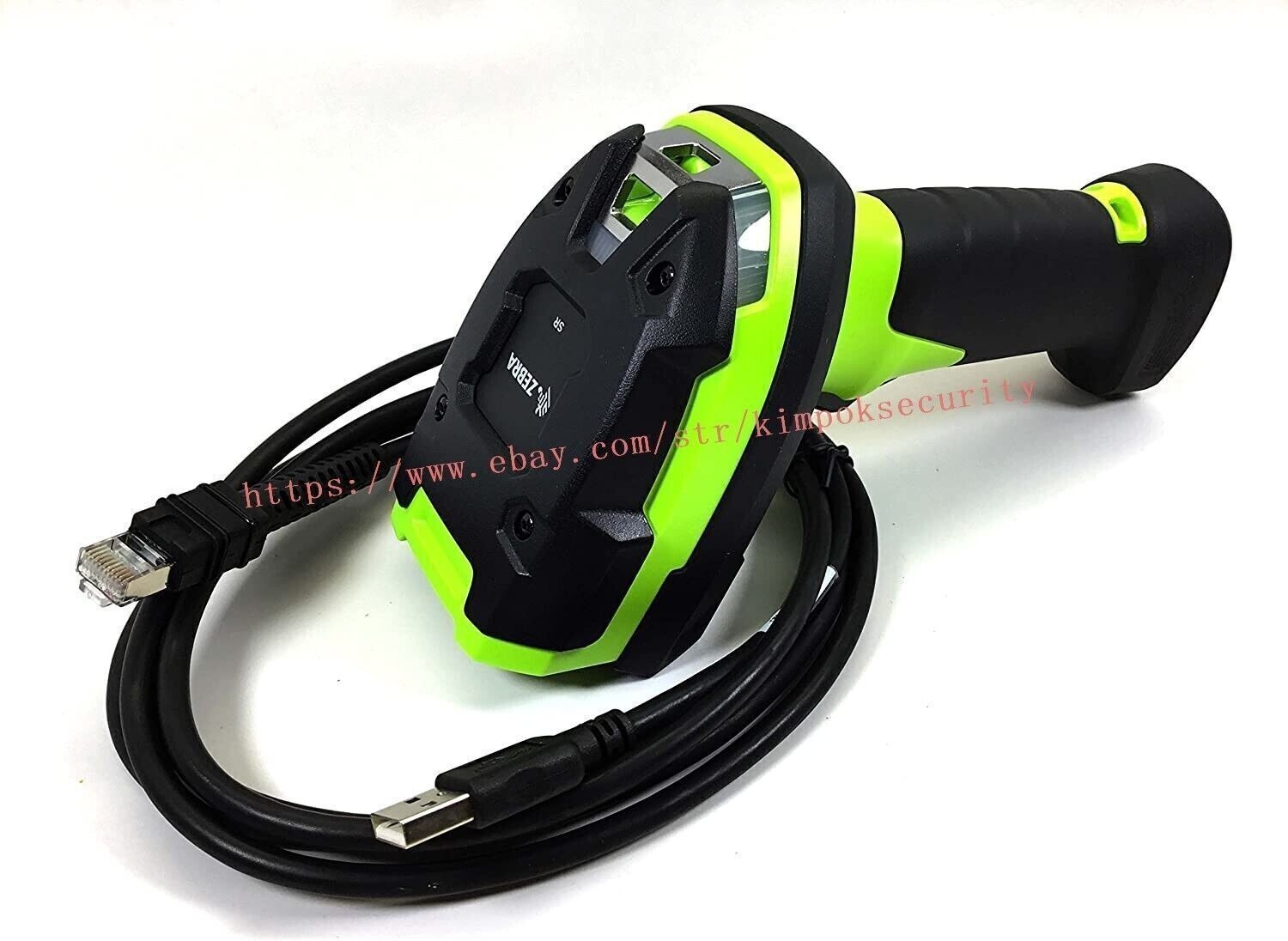

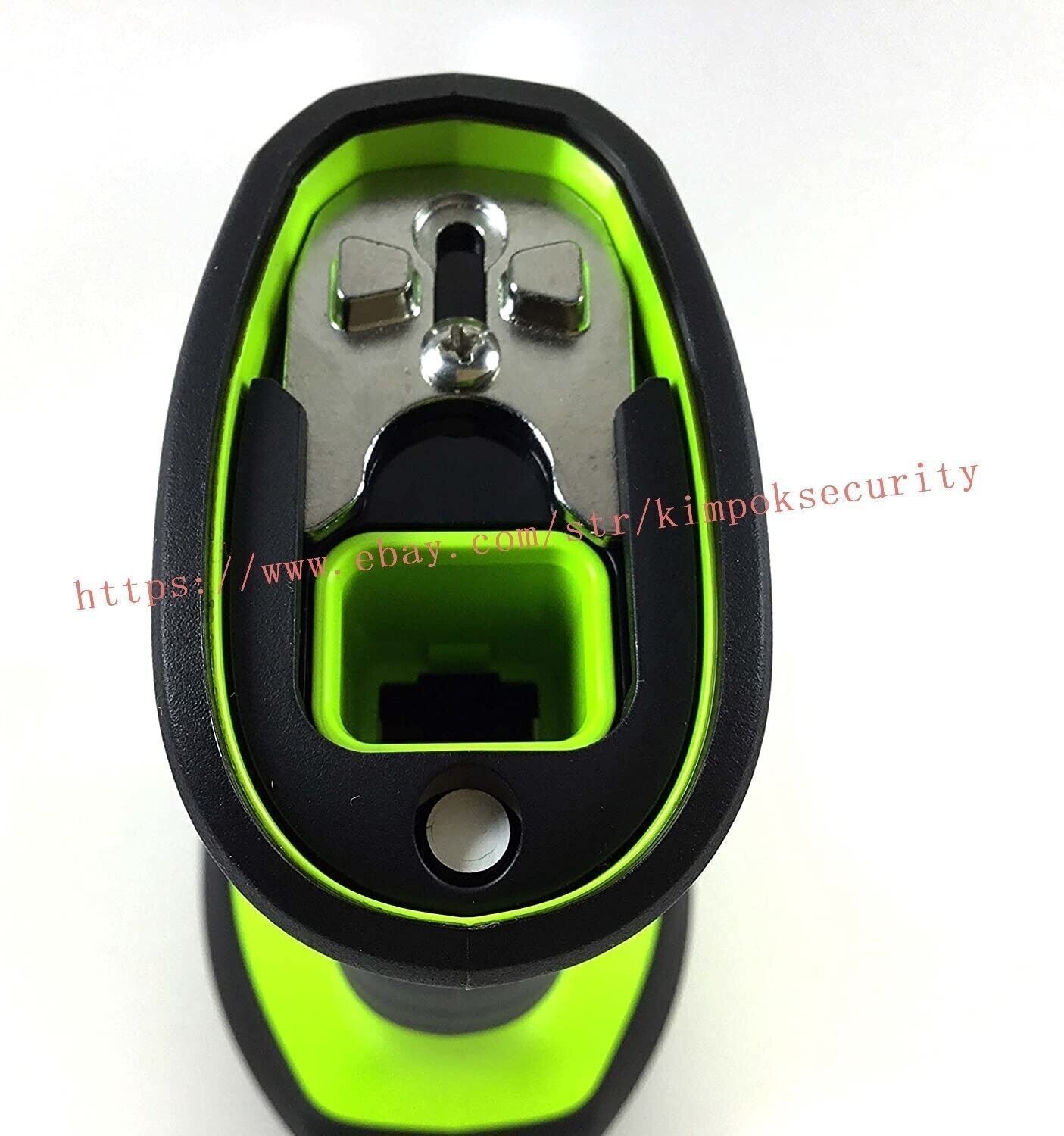

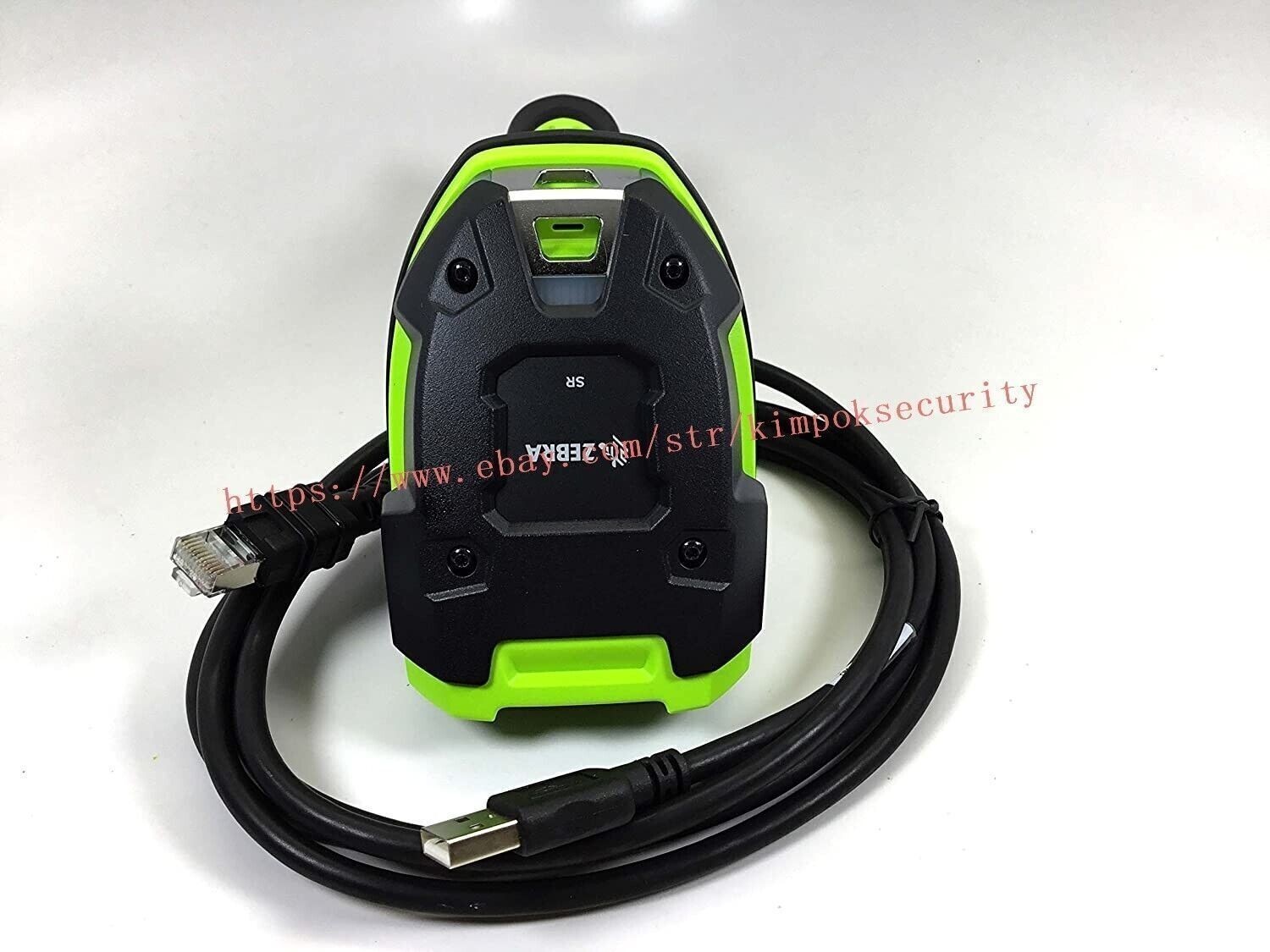

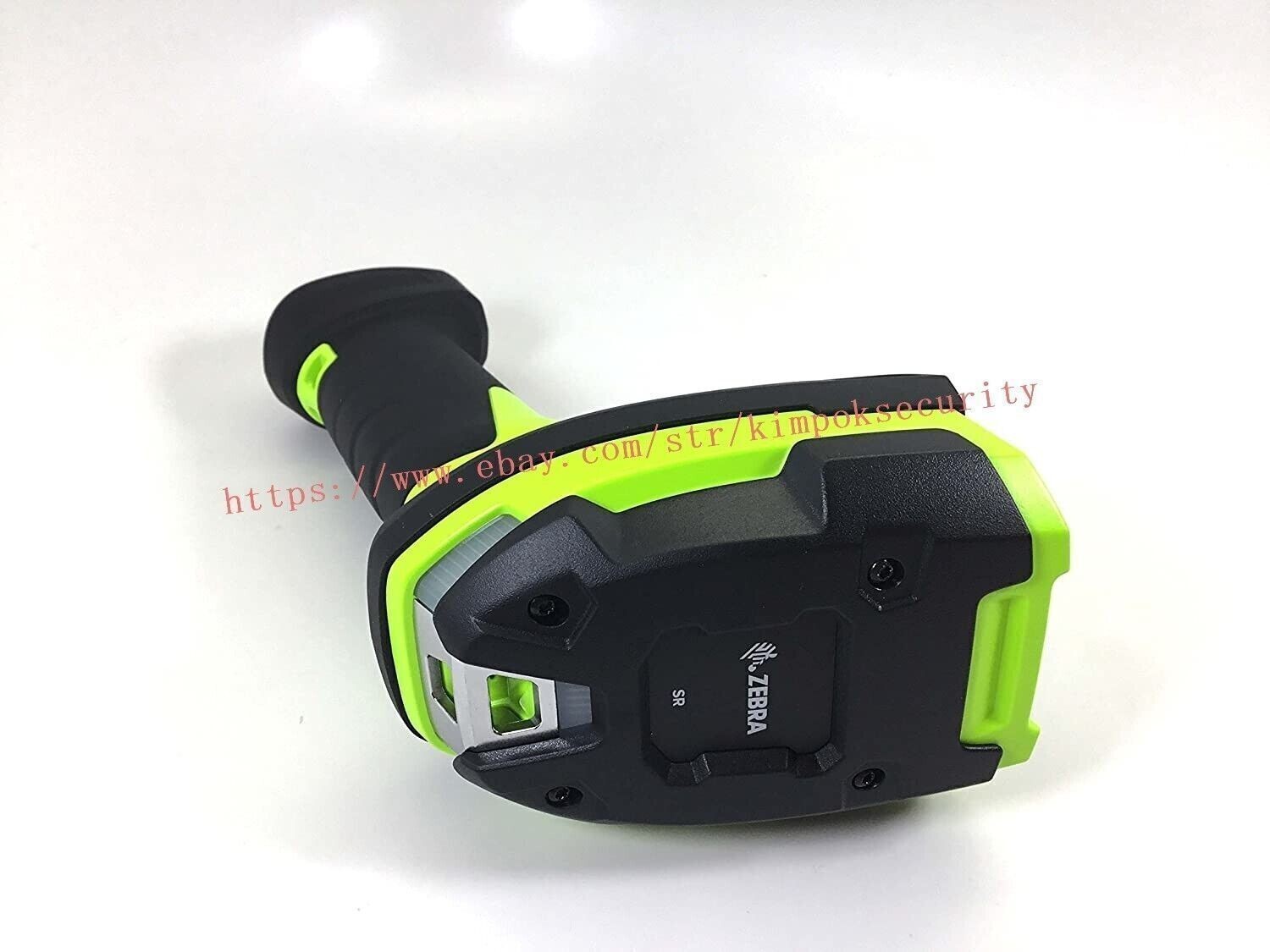

Zebra DS3608-SR
【Unstoppable performance for standard range 1D/2D barcode capture】
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world's toughest environments - the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.
【DS3608-SR - Capture multiple barcodes with one scan】
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including a special mode that simultaneously captures all or specific barcodes on a label with many barcodes; an aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more.
【Superior scanning performance on any 1D/2D barcode, in any condition】
The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard range scanners. Easily read barcodes from near contact to nearly 5 ft./1.5 m away - even if they are under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning - and extraordinary productivity.
【Ultra-rugged - the most indestructible design in its class】
The DS3608-SR is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-SR is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. DS3608-SR operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray-proof and waterproofed to IP67 - they can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
【Easy management with our complimentary industry-best tools】
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan2 and Scanner Management Service (SMS).
【Multi-code captures and processes up to 20 barcodes simultaneously】
Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems - all with complete control over the order barcodes are processed.
【Support for the Barcode ofthe Future - Digimarc】
DS3608-SR scanners support Digimarc digital watermark technology, where barcodes are printed repeatedly over all surfaces yet are invisible to workers and consumers.Digimarc saves time at check out and also creates efficiencies throughout the supply chain since workers no longer need to locate and position a visible barcode in the field of view.
【Faster pick-list processing】
Users can easily select and capture an individual barcode from any pick list.
【Three flexible feedback modes】
Mix and match the feedback modes that are ideal in your environment —vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.
【lnstantly connect to your lndustrial Ethernet network Zebra's Network 】
Connect for Automation delivers a seamless connection between DS3608-SR scanners and a manufacturer's lndustrial Ethernet network without the need for third party conversion equipment.The solution eliminates vulnerability points,improves security, reduces complexity and is compatible with every Zebra 3600 Series scanner.
【DataCapture DNA】
Zebra's DataCapture DNA is a technology platform of highly intelligent firmware, software, utilities and apps exclusively engineered for Zebra scanners.Leveraging more than 35 years of Zebra's industry expertise,Data Capture DNA delivers innovations that give our best-in-breed imagers greater intelligence and simplicity.when combined with the unstoppable performance found in every 3600 Series ultra-rugged scanner,DataCapture DNA turns Zebra's 3600 Series scanners into powerful tools that help to resolve tomorrow's datacapture challenges today - and help your workers get more done each day.
Specifications:
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Package dimensions (verified)
Depth Verified
11,3 cm
Gross Weight Verified
0,506 kg
Height Verified
9,3 cm
Width Verified
21,5 cm
Performance
International Protection (IP) code
IP67
LED indicators
Yes
Product colour
Black/Green
Programming function
Yes
Protection features
Dust resistant/Shock resistant/Water resistant
RoHS compliance
Yes
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
Standard interfaces
Keyboard wedge/RS-232/USB
Power
Battery capacity
3100 mAh
Battery technology
Lithium-Ion (Li-Ion)
Number of reads per charge
100000
Power source type
Battery
Product dimensions
Net Weight (Product, kg)
0,305 kg
Product Depth
7,6 cm
Product Height
18,5 cm
Product Width
13,2 cm
Scanning
2D (matrix & stacked) barcodes supported
Aztec Code/Composite Codes/Data Matrix/Han Xin/MaxiCode/Micro QR Code/MicroPDF417/PDF417/QR Code/TLC-39
Linear (1D) barcodes supported
Codabar/Code 11/Code 128/Code 39/Code 93/GS1-128 (UCC/EAN-128)/MSI/Plessey/U.P.C.
Optical sensor resolution
1280 Pixels
Pitch reading angle
-65 - 65 °
Scanner type
1D/2D
Sensor type
LED
Tilt reading angle
-65 - 65 °
Type
Handheld bar code reader
Wavelength
610 nm
Yaw reading angle
-45 - 45 °
