Applicable Models:

    LEXUS    RX300    1999 - 2003    All Models

Features:
    Direct replacement for a trouble-free installation.
    Steel,iron or aluminum construction ensures durability.
    Powder-coated or painted for long-lasting rust and corrosion resistance.

Package Includes:

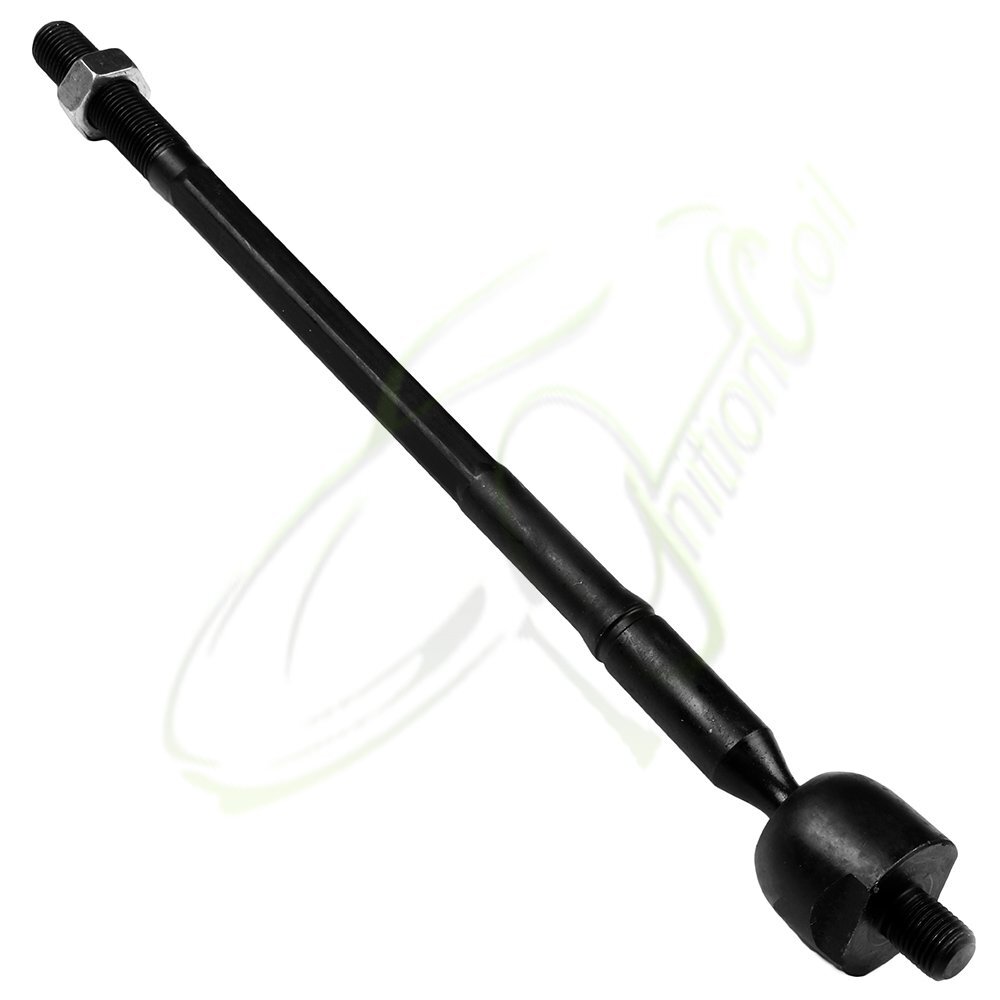

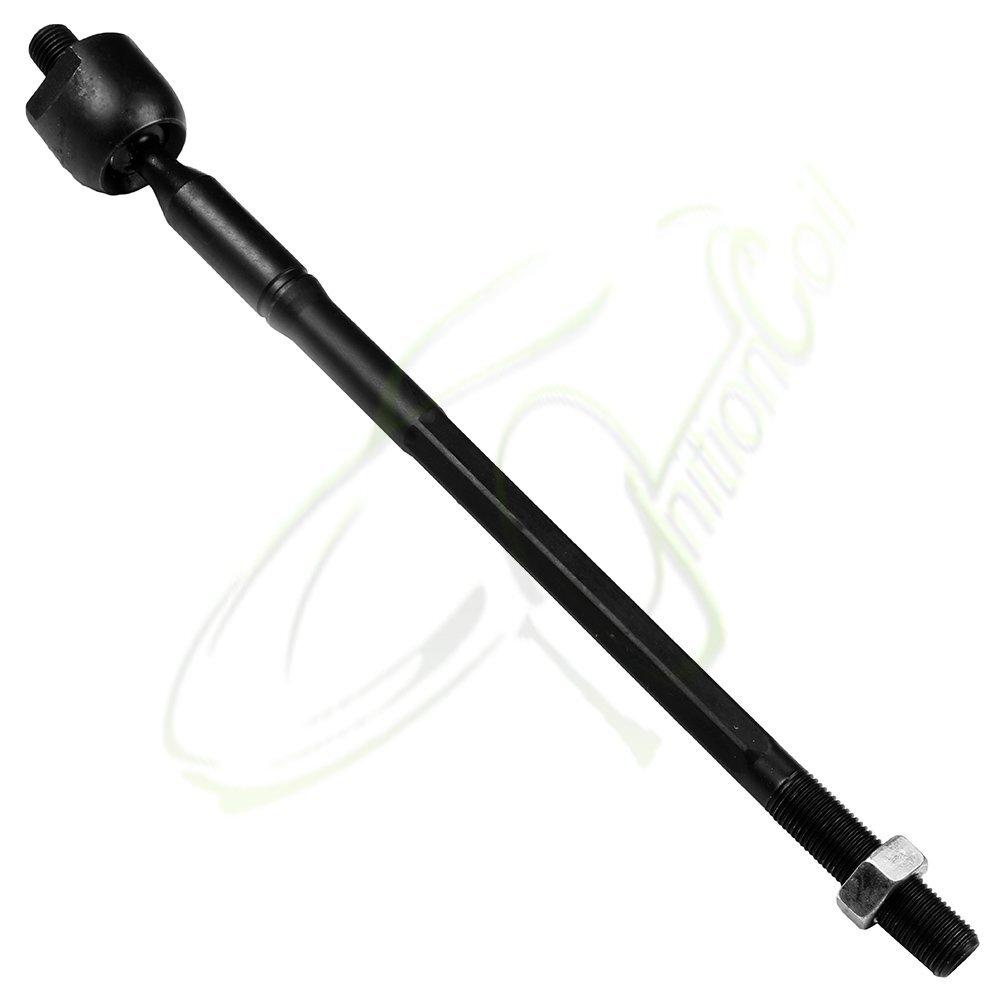

    2x Front Inner Tie Rod End Links - EV447
    2x Front Outer Tie Rod End Links - ES3306

    Please check above compatibility list to make sure it fits your vehicle.
    Some of the parts we have grease fittings but other parts come factory sealed, this does not affect the performance or quality of the parts.
    Pictures may not contain the exact items that will be shipped, colors may be a little different, extra accessories & Parts may be added.

Tie-Rod End

  The tie-rod assemblies connect the center link to the steering arms, which are bolted to the front steering knuckles. In some front suspensions, the steering arms are part of the steering knuckle; in other front suspension systems, the steering arms are bolted to the knuckle. A ball socket is mounted on the inner end to each tie-rod, and a tapered stud on this socket is mounted in a center link opening. A castellated nut and cotter pin retain the tie-rods to the center link. A threaded sleeve is mounted on the outer end of each tie-rod, and a tie-rod end is threaded into the outer end of this sleeve.

Tie Rod End Removing Guideline:
  Tie rods make the final connection between the steering linkage and the steering arms. The point of connection with the steering linkage is considered the inner tie-rod end, and the end that connects to the steering arm is considered the outer tie-rod end. Checking tie rods is important in identifying steering problems because the ends are frequently damaged or worn. There are two basic types of tie-rod ends: spring loaded and preloaded. Each type has its own procedure for inspection and replacement of the ends. Replacement of tie-rod ends requires an alignment to be performed, or rapid tire wear will occur.

Picture(A)

1.Safely raise the vehicle on a lift.
2.Inspect the rubber bellows for any signs of leaks, tears, or damage.

3.With the vehicle raised, have an assistant turn the steering wheel to one side or the other and rock the steering wheel from side to side.
4.On the side farthest out, squeeze the bellows until you make contact with the inner ball joint, and feel for any play in the inner tie-rod joint.
5.Repeat this procedure for the other side.
6.If play is found, replacement of the inner tie-rod ends will be necessary.

Picture(B)

7.Remove the front wheel for the side being replaced, and loosen the locknut on the tie-rod end.


Picture(C)

8.Remove the cotter pin and nut holding the outer tie-rod end to the steering arm, and separate the tie-rod end from the knuckle, using a tie-rod removal tool, the double hammer method, or a pickle fork.

Picture(D)

9.Count the number of turns to remove the outer tie-rod end from the threaded sleeve.

Picture(E)

10.Remove the spring clamp from the bellows boot end to the inner tie-rod shaft, and remove the crimp clamp from the bellows boot to the rack-and-pinion housing. A new crimp clamp will have to be used on replacement of the boot.

Picture(F)

11.Remove the bellows boot.

12.Using an inner tie-rod tool and the specified wrench to hold the rack, loosen the inner tie rod from the rack, and remove the inner tie-rod end.

Picture(G)

13.Install the new inner tie rod in reverse order of removal, and verify that the play is gone.
14.Perform alignment to reset toe after replacement is performed.

15.Test drive to verify repair.

Frequently Asked Questions
(1).Is it safe to drive with a tie rod end problem?
  No. Tie rods ends are a critical mechanical linkage in the steering system. If a known problem exists, such as wear, looseness, or binding, the possibility of sudden and unpredictable breakage of the tie rod remains, which would cause loss of steering control. Consequently, it is not safe to drive the car if the tie rod ends have a known deficiency. Tie rod ends should always be inspected per the maintenance schedule.

(2).Vibrations
  One of the first symptoms that your tie rods are damaged or breaking is that the steering wheel will vibrate slightly. This is especially prevalent when you are speeding up or turning. This happens because the steering wheel is losing its control over the tires, causing the steering wheel to shimmy as you drive.

(3).Shaking
  As the tie rods become further damaged, you will start to notice that the car itself will start to shake. This happens because the tires may start to wobble without you having full control over them. Although you should take your car into a mechanic at the first sign of tie rod problems, if you experience your car shaking you could be at risk for serious tie rod damage which can cause accidents. Take your car into a mechanic if you experience this tie rod symptom.

(4).Wandering
  If your tie rods continue to go unchecked or unfixed, the rods can completely break. This can cause you to lose all control of your car, possibly resulting in an accident. When this occurs, the car will may "wander" as you drive. At this point, the steering wheel will have no control over the tires and the tires will start moving independently, causing the car to drift while you are driving. If this happens while you are on a freeway or busy road, you and others could be at serious risk of an accident. If you experience wandering, stop your car, call a two truck and take your car to the nearest mechanic.

(5).Attentions
  It is recommended to replace tie rod ends in pairs. There are four tie rod ends on most vehicles. The outer tie rod ends — one per side — are most susceptible to wear and failure. If one outer tie rod end has failed, the other is probably not far behind.
  After the repair is performed the vehicle must be aligned, either on a mobile basis or at a good alignment shop.
  A good alignment job will provide you with pre and post-alignment printouts of your car's alignment settings. A good shop will set the alignment to the "preferred" factory setting, not just the "allowed" settings. A job well-done will also have performed a careful inspection of the suspension beforehand to ensure the new alignment remains durable and stable. The best alignment results will be achieved if the tires on your car are not unevenly worn.
