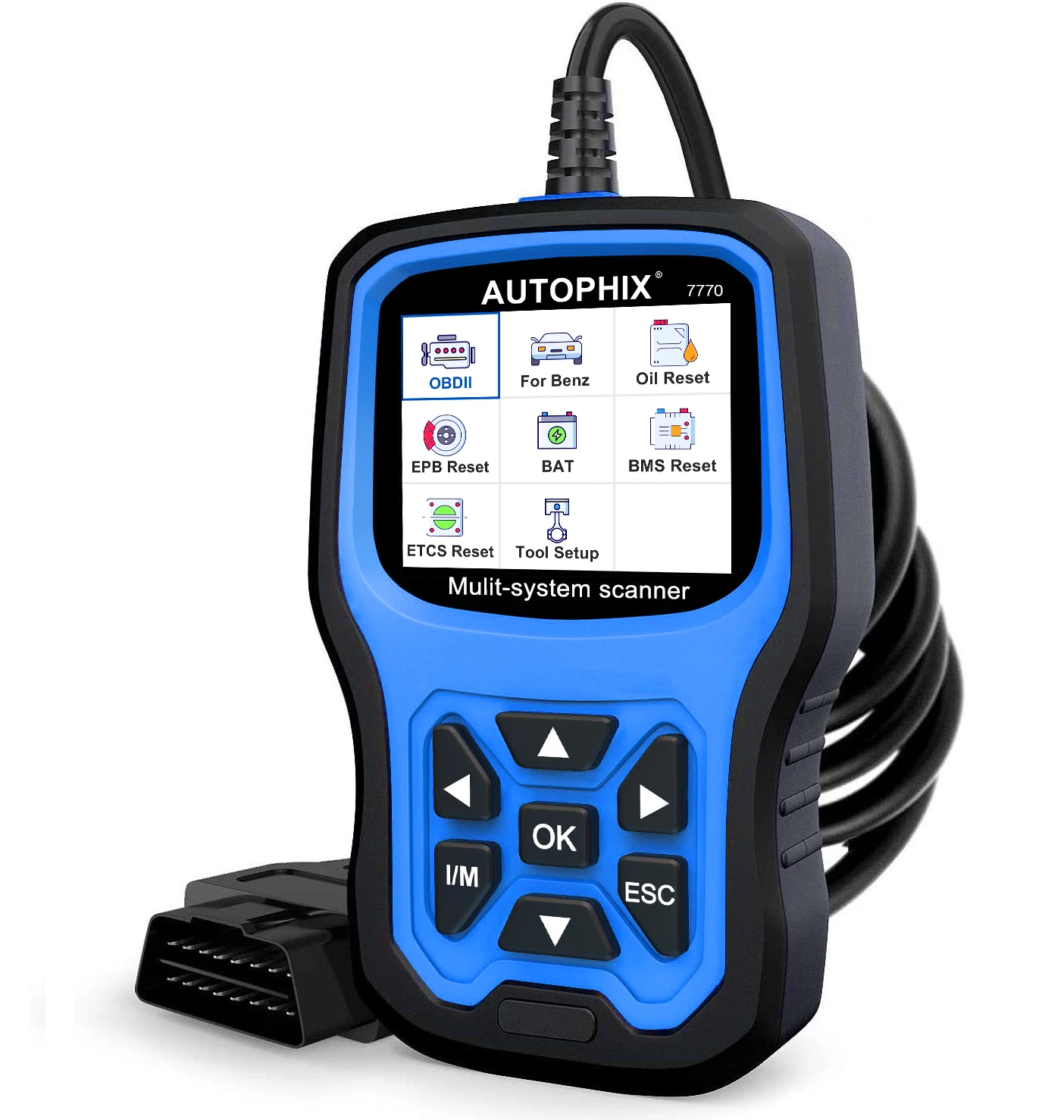

AUTOPHIX 7770 OBD2 Scanner Full Systems for Mercedes Benz DPF Oil Reset TPMS ABS EPB Car Diagnostic Tool Battery Resgistration

Autophix 7770 is a professional for Benz vehicles most systems, that quickly detects engine, ABS, airbags, transmission, instruments and other control systems.. and also a universal tool to detect engine system for other brand vehicles.

Professional Diagnostic Scan Tool for All Mercedes Benz Systems

Main Features of AUTOPHIX 7770 >>> Deliver a Faster, Smarter, More efficient Diagnostic Scan Tool for Car Owner, DIY and Technician!

This AUTOPHIX 7770 car scanner offers deeper and more complete diagnostic services, and can do better in terms of repair services compared to other car scanners in a similar range on the market. After comprehensive testing by AUTOPHIX engineers day and night, AUTOPHIX 7770 function has a working range of 94% to 100%(other diagnostic tools can achieve the function of OE scanner only 65% to 78%). Therefore, it is an essential professional tool for automobile mechanics DIY or car owner who are engaged in automobile maintenance.

1.Oil Service Light Reset: Allows you to reset the service lamps on the instrument cluster.

2.EPB Reset (Electronic Parking Brake Reset) : After replacing the brake pads, you need to reset the position of the brake pads before installing the new brake pads to close the warning light.

3.SAS Reset (Steering Angle Calibration Reset) : Learn to correct the angle and solve the problem of the steering angle of the steering wheel.
Tire Pressure Reset: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

4.ABS Bleeding: When the ABS contains air, the ABS bleeding must be performed to bleed the brake system to restore ABS brake sensitivity.

5.Battery Registration Reset, Transmission Adaptation, BMS Reset.

6.Steering Angel Reset: Make the steering wheel in the middle position, that is to say the direction of the steering wheel is consistent with the straight forward position of the vehicle If steering wheel runs away or reset the sensor, do this corrective action.

7.Throttle Adaptation: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

8.ETCS Reset: Reset learned value of Intake valve, when updating specific components, these parameters inside should be reset or configured.

9.ADblue Meter Reset: Some diesel vehicles may need to add urea, and the urea warning light needs to be reset after the addition is complete.

10.Actuation Of Fuel Pump: Diesel vehicles perform this function when the new fuel pump needs to be emptied or the fuel tank needs to be emptied after the fuel pump is replaced.

11.IQA Injector Code: Code new injector numbers to replace the previous one when installing the new injectors or after the replacement is completed.

Universal Car Diagnostic Tool with Full OBD2 Modes

1.Read Codes/ Erase Codes: Locate which section of the e-mission system has malfunctioned. erases the codes from the vehicle after certain repairs.

2.I/M Readiness: Checks if the various e-missions-related systems are ready for the Vehicle Inspection and Maintenance testing or if the repairs has been performed correctly.

3.Live Data Stream: Displays the dynamic data of the data stream items in text way, Simpler and easier to understand.

4.View Freeze Frame: Records the certain vehicle conditions when an e-mission-related fault occurs.

5.O-2 S-ensor Test: Monitors and tests operation of the O-2 s-ensors to identify problems that can affect fuel efficiency and vehicle e-missions.

6.On-Board Monitor Test: Retrieves test results for e-mission-related powertrain components and systems that are not continuously monitored.

7.EVAP System Test: Initiates a leak test for the vehicle’s EVAP system.

8.DTC LOOKUP: Enables you to view the detailed definition of the retrieved DTC easily.

9.Vehicle Information: Retrieve vehicle’s Vehicle recognition number, c-alibration ID, and c-alibration verification number.

10.Data Record & Review: This car code reader not only records the live data stream (PIDs), but also freeze data and trouble codes to helps you diagnose the root cause of engine failure.

11.Print Data: If you are unable to determine the problem, you can print out the diagnostic data and send the data to your mechanic for help.

WARM NOTES:

1.Not all cars has all the descibed special functions, please confirm with us before purchasing.

2.D-P-F Reset & Regen, IQA Injector Code, ADblue Metering Reset are only available for diesel engine cars.

3.The menu of special functions of diesel engine cannot be seen via the automatic search mode, you can download the latest software to upgrade after receiving the product first, then you will see the menu. If you use manual mode, you don't need to update to see the menu of special functions for diesel engines.

Comprehensive Diagnosis for All Control Modules

AUTOPHIX 7770 is a unique automotive tool that provides professional diagnosis for vehicles compatible with Mercedes/Benz/ Sprinter/ Smart and supports all car electronic control modules. Save you thousands of dollars on car repair services every year!!!

1. Drive Module: Engine Control Module, Electronic Selector Module, Transmission Control Module, Electric Driver Cotrol Unit, Fuel Pump System, DISTRONIC System, Motor Electronics, All-wheel Drive System and more...

2. Chassis Module: Automatic Clutch System, Electronic Stability Program, Eletronic Power Steering, Electronic Parking Brake, Electronic Power Steering, Tire Pressure Monitoring System, Adaptive Damping System, Suspension System and more...

3. Body Module: SRS System, Anti-theft ALarm System, Central Gateway, Electronic Ignition Switch, Overhead Control Panel, Steering Column Module, Battery Management, Battery Control Module, Lower Control Panel, On-board Electrical System, Weight Sensing System and more...

4. Information & Communication Module: Instrument Cluster, Parktronic System, Auto Pilot System, Sound System, Voice Control System, Navigation System, Audio System, Steering Column Module, Multifunction Camera, Compass Module and more...

5. Seats And Doors Module: Door Control Module, ESA Driver, ESA Front Passenger, Partially Electric Seat Adjustment

6. Air Conditioning System, Driver Assistance System

Support languages:

english,german,spanish,portuguese.french,danish,finnish,swedish,norwegish,russian

Graphical Battery Inspection

Better know your car's status with the live time battery voltage.

Before Ignition: <10.8V-- Battery Voltage Too Low, Need to Change Battery;

10.8V--11.8V-- Voltage Slightly Low, Maybe Difficult to Start Ignition;

11.8V--12.8V—Normal Battery Voltage, Good Battery Status!

After Ignition: 12.8V--13.2V-- Battery Voltage Too Low, Alternator Might Not Able to Charge;

13.2V--14.8V-- Normal Battery Voltage, Alternator Charging Normal.

Basic functions:

Read Fault Codes, Erase Fault Codes, Read Datastream, Version Information.

Support All Car Module:

Engine Control Module, Electronic Selector Module, Electronic Stability Program, Transmission Control Module, Steering Column Module, Instrument Cluster.

Electronic Parking Brake:

Reset the brake pad after repairs in electronic parking brake system are done. Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.

Electronic Power Steering:

When the vehicle is unstable, based on the calculation of the CPU, the electronic power assist system can independently brake each wheel and participate in the management of the engine system to ensure the safety of driving.

TPMS System:

Allows you to check the tire sensor IDs from the vehicle and to perform TPMS programming and reset after tires sensors are replaced or rotated.

SRS System:

SRS is a device that expands the airbag to protect the passenger before the second collision occurs called Supplemental Restraint System (SRS).

ABS System:

ABS automatically control the braking force of the brake when the car is braking, so that the wheels are not locked and in the state of edge rolling slip (slip rate is about 20%) to ensure the maximum adhesion between wheels and ground.

SAS System:

Allows you to perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. After calibrate sensor successfully, its fault memory will be automatically cleared.

Battery Matching System:

Allows the scan tool to evaluate the battery charge level, monitor the short circuit current, register the battery change, activate the vehicle hibernation mode and charge the battery via the diagnostic socket.

A/C (Air Conditioner) System:

Supports routine maintenance of air condition modules, such as air conditioning system adaption reset, rese air conditioning compressor, run in air conditioning compressor, stepper motor initialization.

Features:

Display: Backlit, Colorful, 320x240 pixel
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: 0 °C to 80°C (32 to 176 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery
Dimensions：170*97*29mm
Weight: 0.58kg
