- Up max to 1080P@60FPS SDI video input and encoding.
- H.265/H.264 video code and AAC/MP3 audio code
- RTMP/RTMPS/SRT/RTSP/UDP/RTP/HTTP/FLV/HLS/TS/Multicast/Unicast Protocols
- Support text and image OSD management
Overview

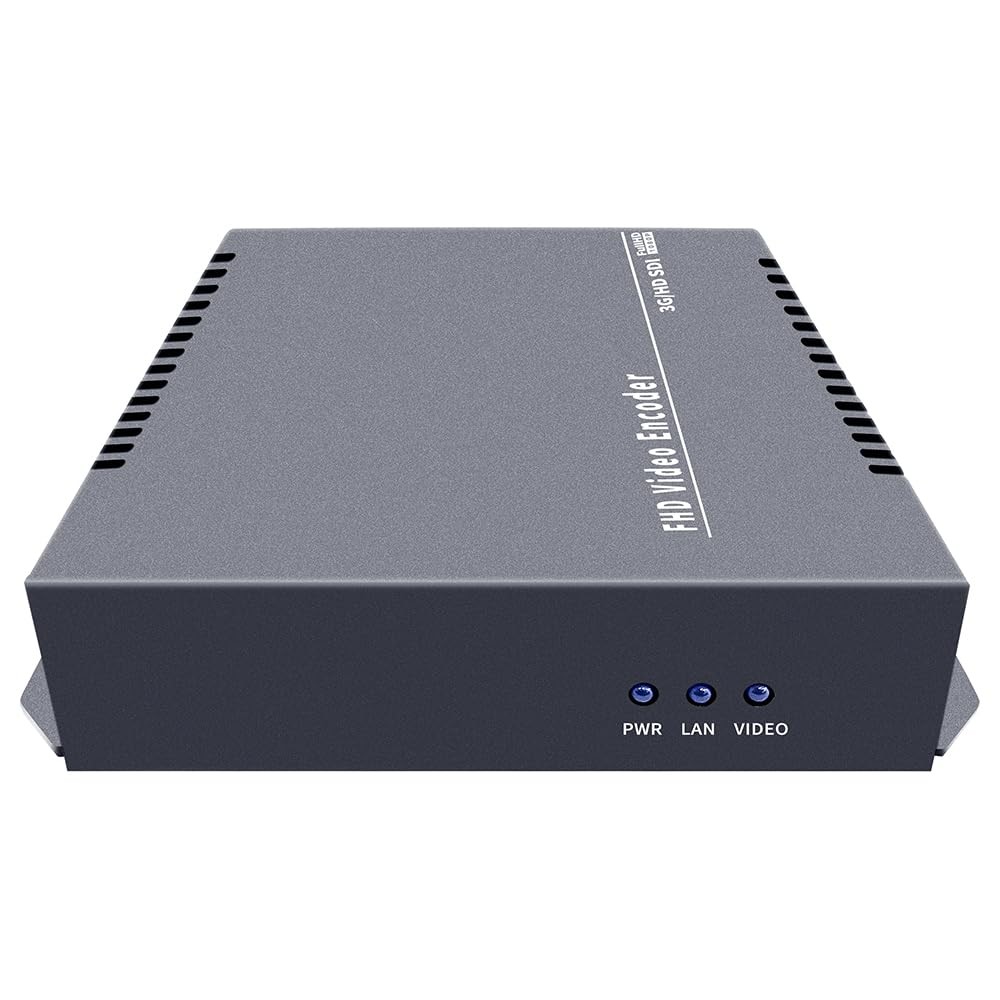

ISEEVY H.265 H.264 SDI Video Encoder is a professional audio & video encoding device. From any SDI input source, it generates H.265/H.264 video encoding and AAC/MP3 audio code compliant with RTMP/RTMPS/SRT/RTSP/UDP/HTTP/HLS/FLV/TS protocols.
Applications

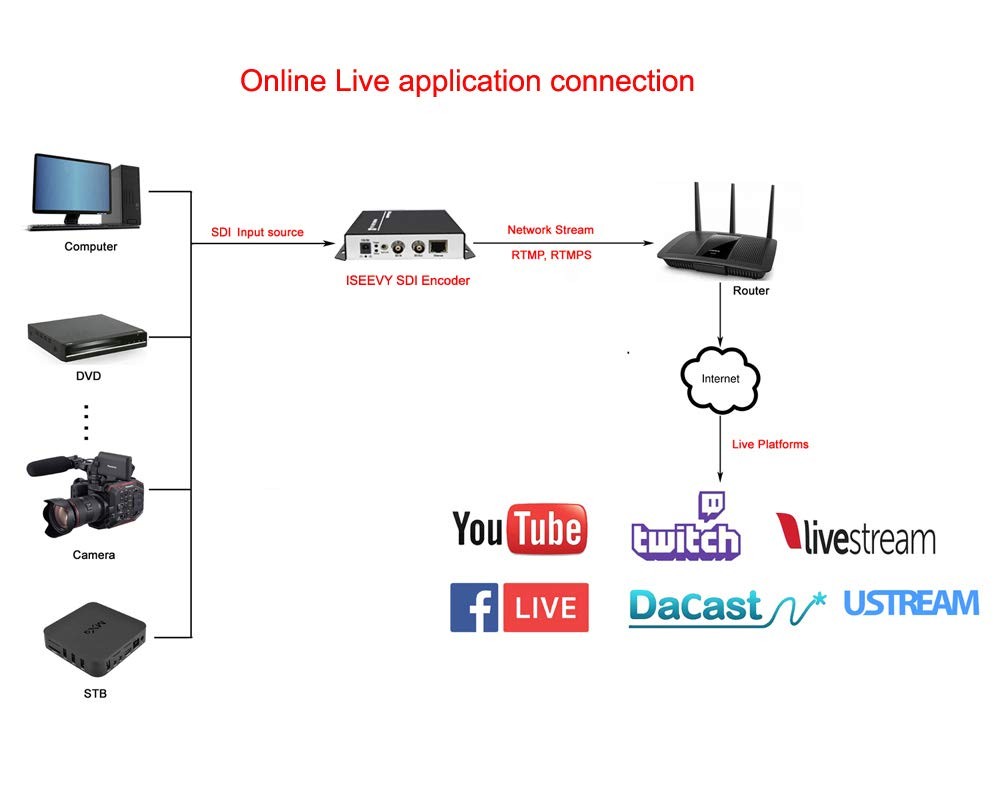

It can be widely applied in live, broadcast, video conference, remote education, network video record.
Have been compatible with most of streaming platforms you can go live at any time you like ,such as Facebook Live, and YouTube Live or even build your own using WOWZA..
Specifications
Video
Video Input
1 channel SDI input
Resolution
max 1920×1080
Frame Rate
60fps
Video Encoding
H.265 MainProfile,H.264 high/hain/baseline Profile
Code Bit Rate
0.32Mbps~32Mbps
Bit Rate Control
CBR/VBR
GOP Type
IBBP
Video Advanced Pretreatment
De-interlacing, Noise Reduction, Sharpening
Audio
Audio Encoding
AAC,MP3
Sampling Rate
32K/48K/64K/96K/128K/160K/192K/256K
Sampling Accuracy
24 bit
Audio Bit Rate
64Kb/s~384Kb/s
System
RJ45
1000 Base-T Ethernet interface
Protocol
HTTP, UDP, RTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, TS
Configuration Interface
WEB operation
Upgrading
Can be upgraded by Internet
Others
Dimension
110mm*130mm*33mm
Weight
0.24kg
Temperature
0~45℃(work),-20~80℃(storage)
Power
12V/DC
Consumption
5W
