DESCRIPTION
Module B for Board, Uninterruptible Supply Monitoring Battery Via Bus4281
Standard header, supports series boards
Incorporates Li-po battery switching charger with path management, more stable power supply
bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable.Onboard recharging indicator, power indicator, easy to check the battery status
Features At A Glance

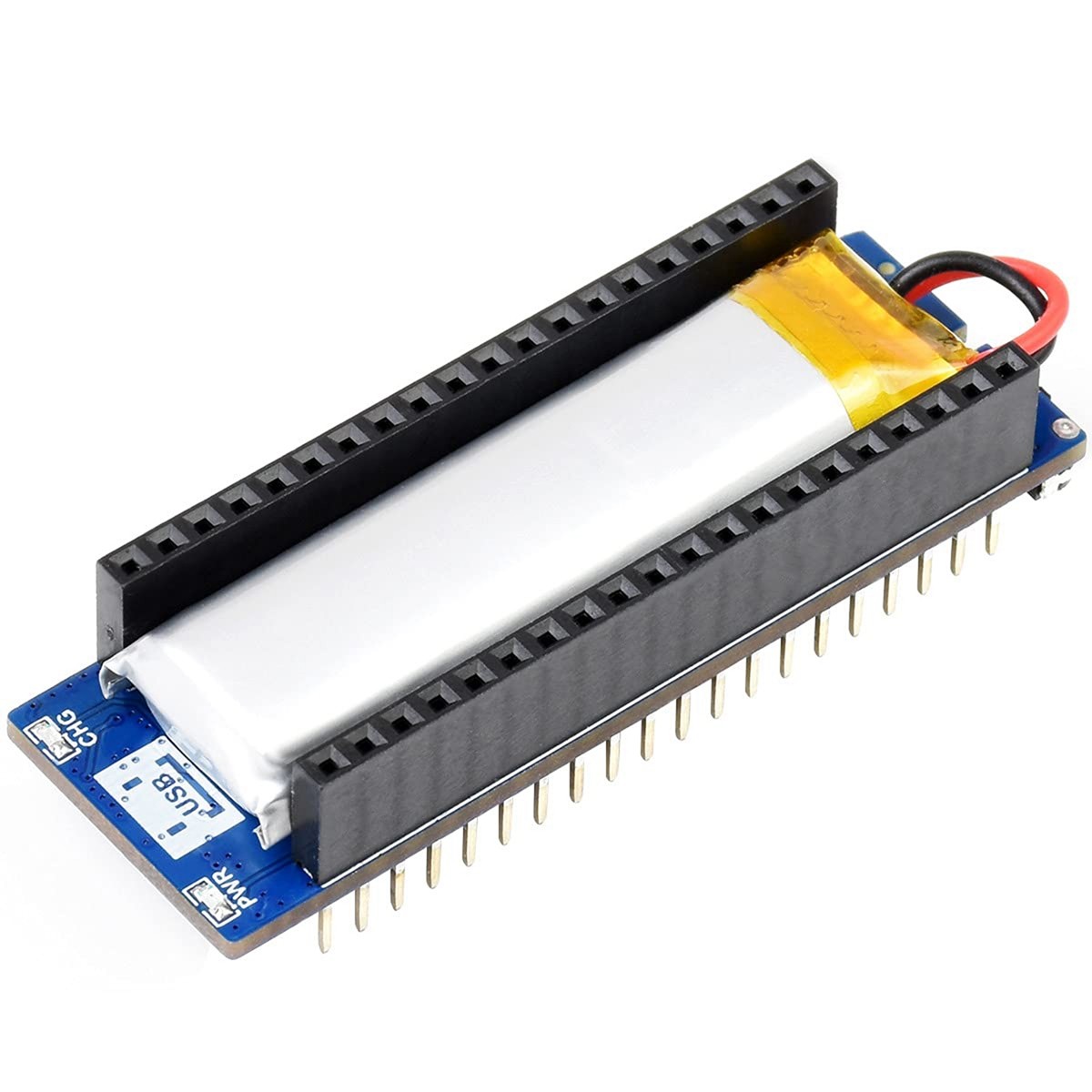

The -UPS-B is a dedicated UPS (Uninterruptible Power Supply) module designed for . It incorporates Li-po battery switching charger
with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via bus. What's more, the
male pin header possible to "stack" other modules on top.
Uninterruptible Power Supply For
Keeps Your Running While Recharging, Monitoring Battery Via , Stackable Design

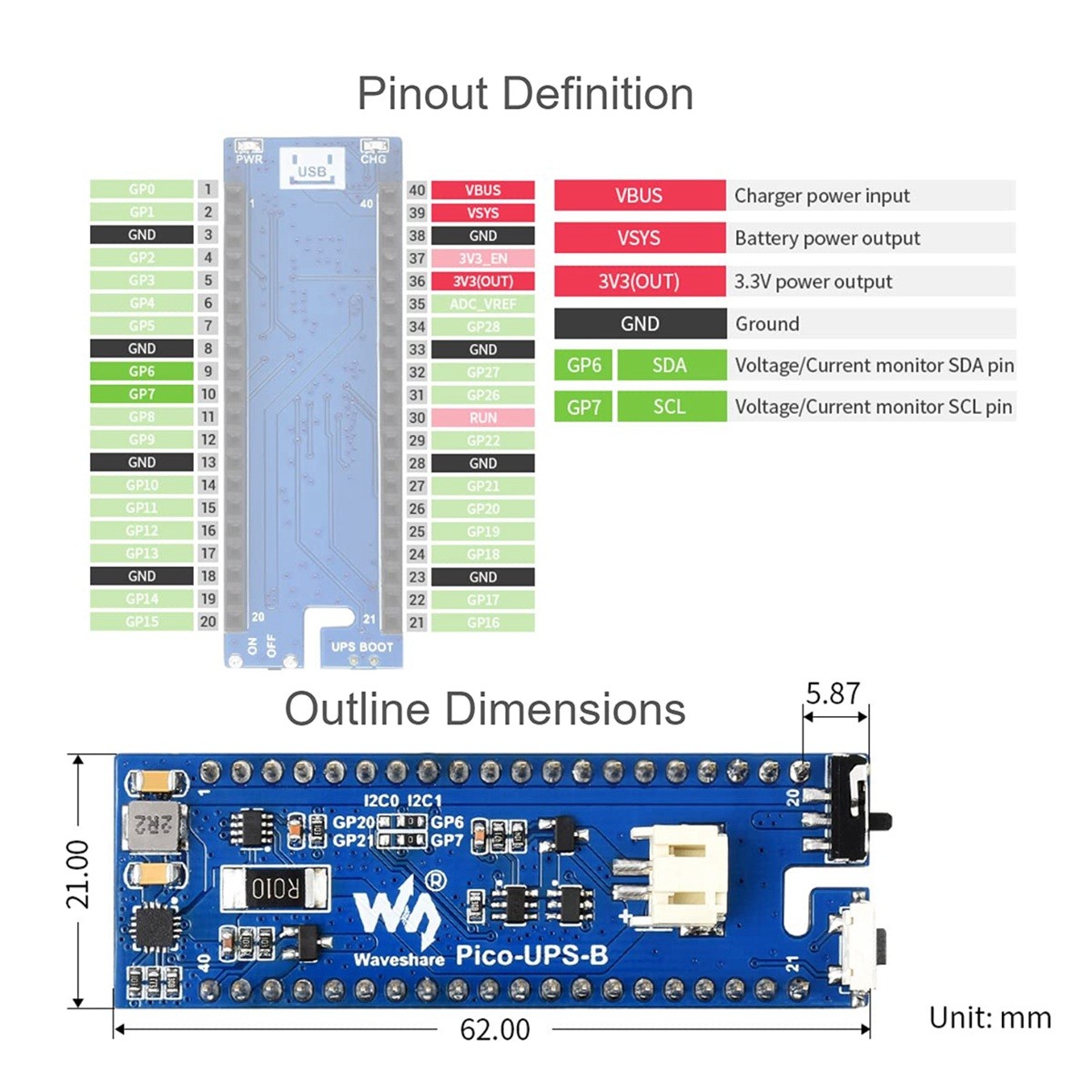

Header Compatibility
Onboard Female Pin Header For Direct Attaching To ,Male Pin Header For Stacking Other Modules
RECHARGE VOLTAGE:5V
CONTROL BUS:
BATTERY SUPPORT:600mAh 3.7V Li-po battery
DIMENSION:62 x 21mm
Note
and Li-ion battery are NOT included.
Colour:blue
Material:PCB
Package Contents:
1 x -UPS-B Board
