DESCRIPTION

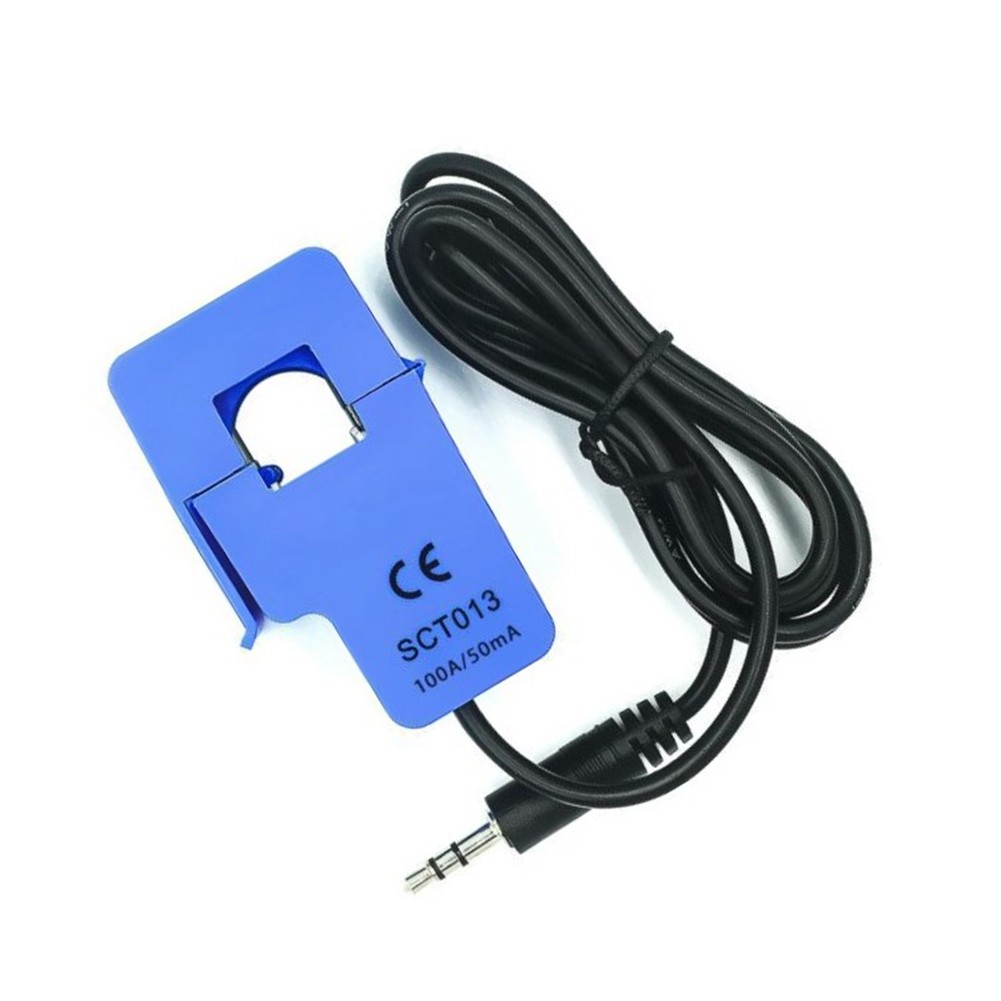

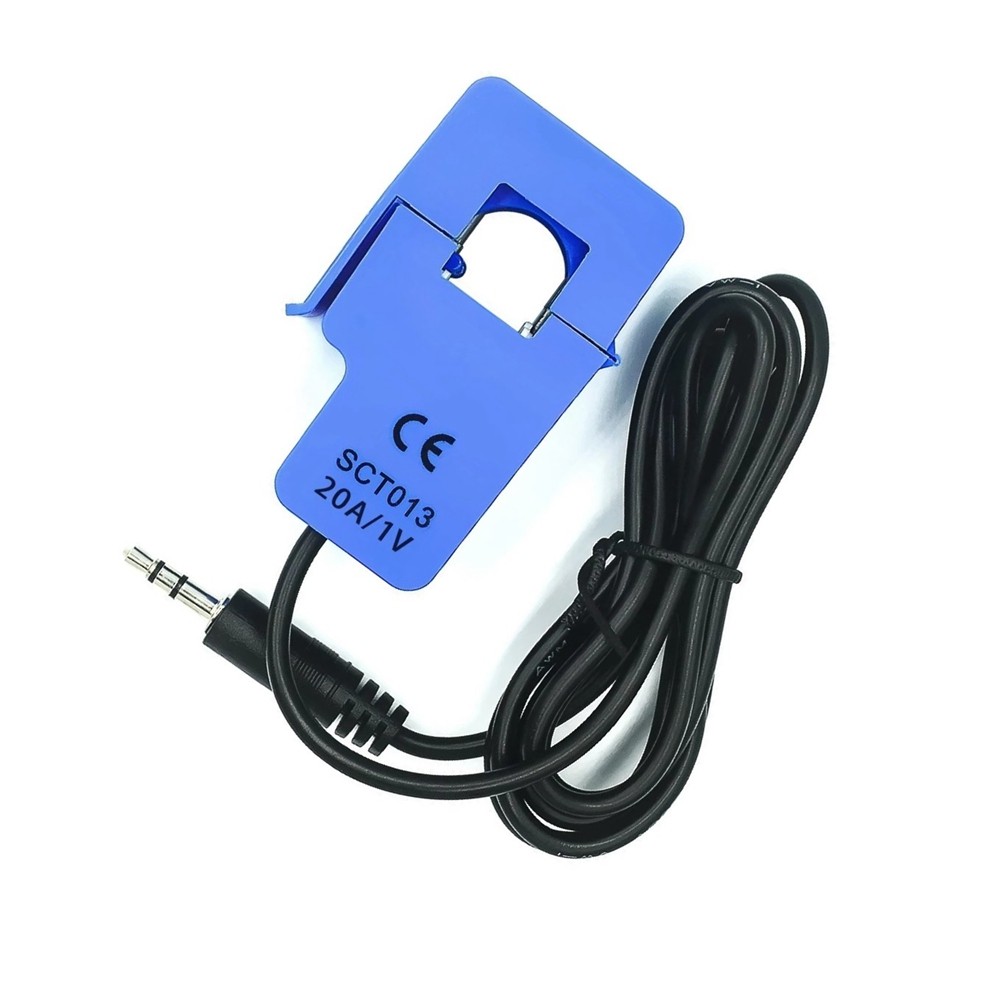

-013-000 Open-Close Current Transformer SCT013 Non-Invasive AC Current1600
Model : SCT013
Frequency : 50HZ-150KHZ
Retractable transformer -013
Opening size:13mmx13mm
Non-linearity 3%(10%-120% rated input current)
1.5m leading wire,Φ3.5 3 core plug standard output.
Two form of output current, voltage (voltage output built-in the sampling resistor).
Core material: ferrite
Mechanical strength: opening and closing times, no less than 1000 times 20 C
Safety indicators: Dielectric strength 6000V AC/1min
Meet UL94-V0 flame retardant properties
Operating Temperature: -25Celsius~ +70Celsius
Applications:
for AC motors, lighting equipment, air compressors
and other current measurement,monitoring and protection.
Colour:blue+black
Material:plastic
type:50A 1V
Package Contents:
1 x Current Transformer
Frequency : 50HZ-150KHZ
Retractable transformer -013
Opening size:13mmx13mm
Non-linearity 3%(10%-120% rated input current)
1.5m leading wire,Φ3.5 3 core plug standard output.
Two form of output current, voltage (voltage output built-in the sampling resistor).
Core material: ferrite
Mechanical strength: opening and closing times, no less than 1000 times 20 C
Safety indicators: Dielectric strength 6000V AC/1min
Meet UL94-V0 flame retardant properties
Operating Temperature: -25Celsius~ +70Celsius
Applications:
for AC motors, lighting equipment, air compressors
and other current measurement,monitoring and protection.
Colour:blue+black
Material:plastic
type:50A 1V
Package Contents:
1 x Current Transformer
