DESCRIPTION

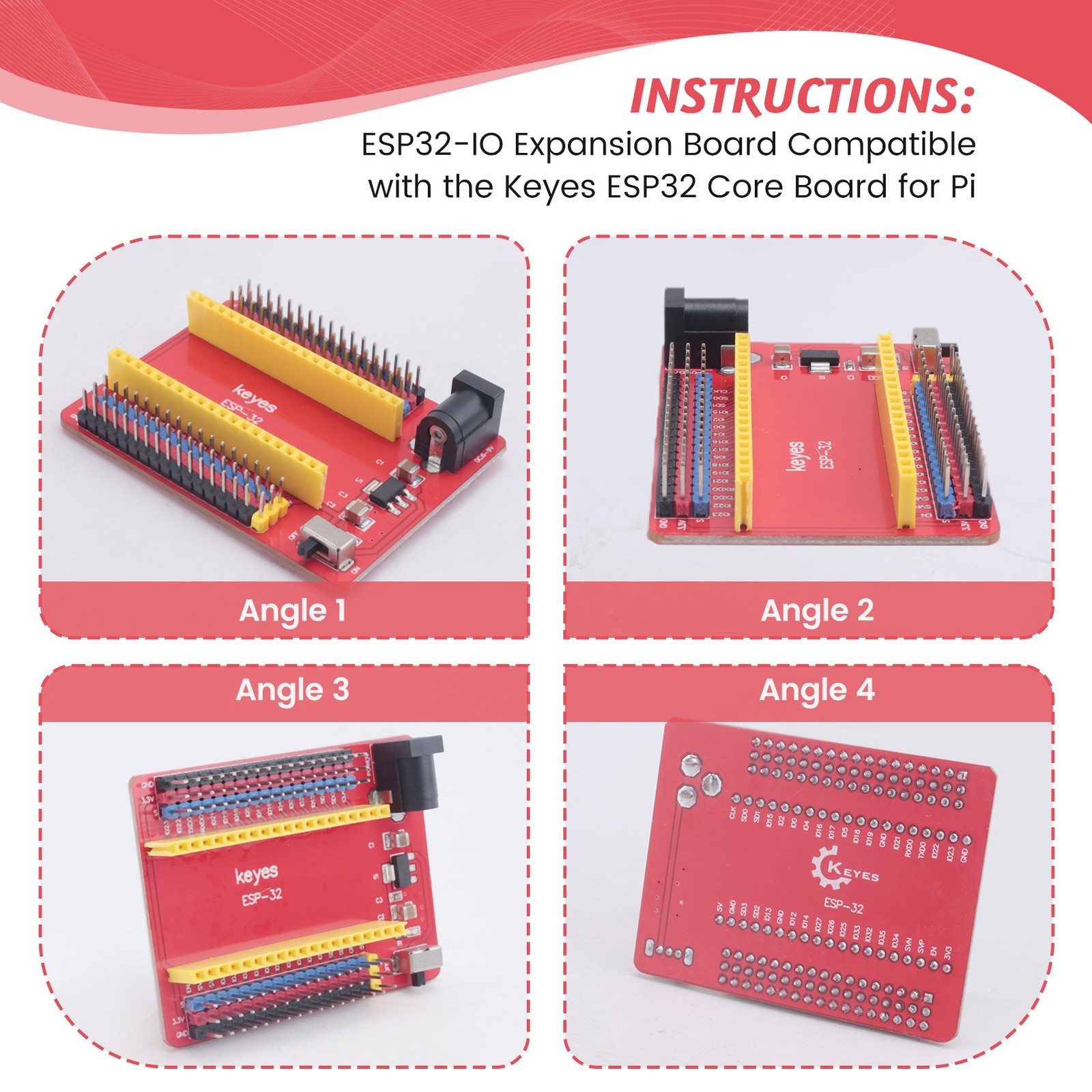

-IO Expansion Board Compatible with the Keyes Core Board for N2U9
The keyes -IO expansion board is compatible with the keyes Core board (KE0162). It breaks out all the pins of the keyes Core board with 2.54mm pitch pins. Two rows of pins with 2.54mm pitch supply DC 3.3V for external sensors and modules.
Simultaneously, keyes Core board can by supplied power by inputting DC 7-12V voltage via DC head of shield. In addition, a DIP switch on the expansion board is used to control the power switch.

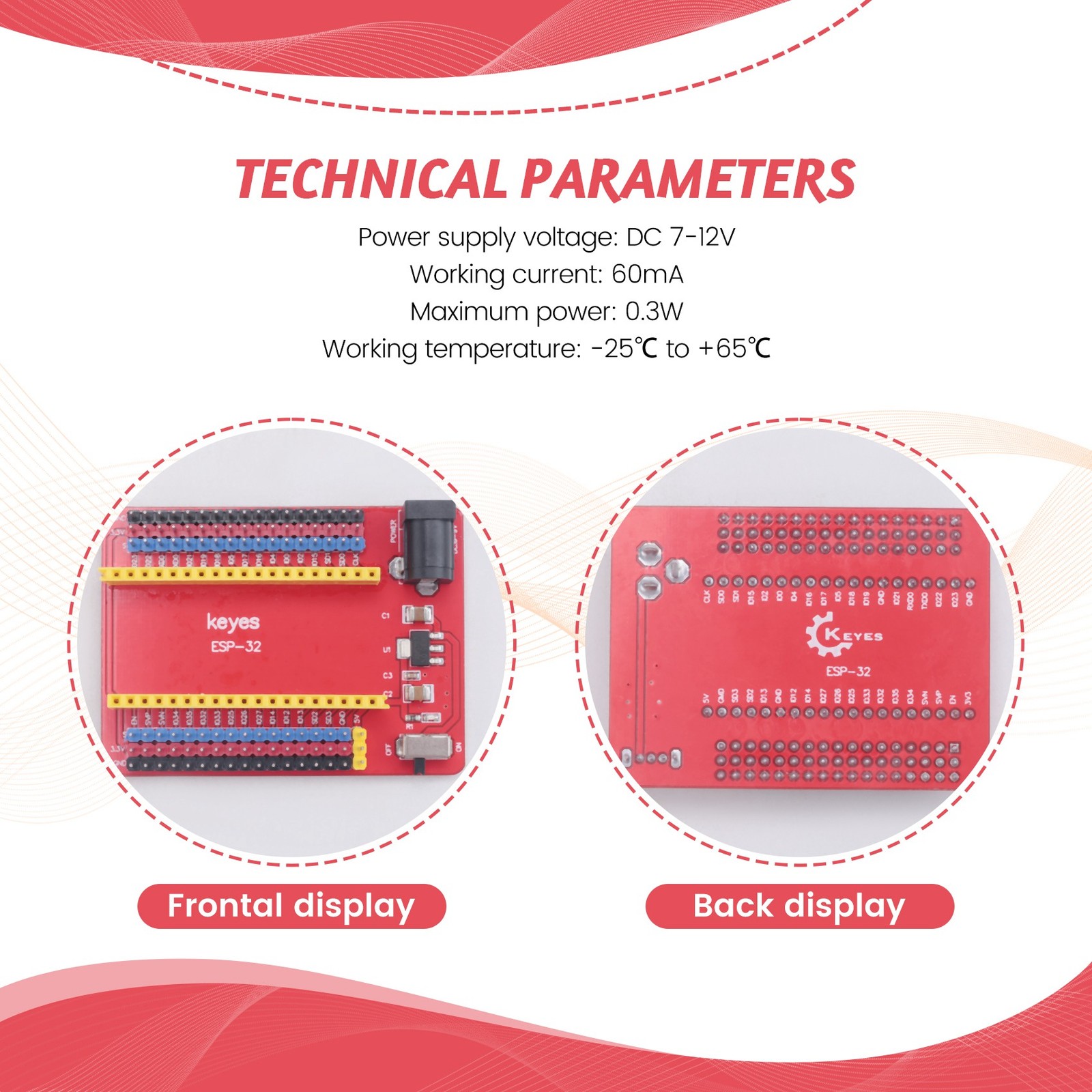

Technical parameters:
Power supply voltage: DC 7-12V
Working current: 60mA
Maximum power: 0.3W
Working temperature: -25℃ to +65℃
Size: 30mm x 20mm
Environmental protection attribute: ROHS
Colour: red
Material: plastic
Package Contents:
1 x -IO Expansion Board
