Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
Automatic test the pin of a component, and display on the LCD
It can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
Measure the gate and gate capacitance of the MOSFET threshold voltage
It can simultaneously measure two resistors and resistor symbol is displayed. It can measure a single diode reverse capacitance

It can be in the correct order and the diode symbol display two diodes, and gives the diode forward voltage
It can measure capacitance of 30pF-100mF, resolution 1pF
It can be obtained with a single measurement rectifier bridge connection
Notice:Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter
One -button operation, automatic shutdown
Only 20nA shutdown current
Automatic identification components pin arrangement
Measuring bipolar transistor current amplification factor and base - emitter threshold voltage
Via the base - emitter threshold voltage and high current amplification factor to identify transistors
Measuring the gate MOS FET threshold voltage and the gate capacitance
Eeverse breakdown voltage is less than 4.5V Zener diode can be identified

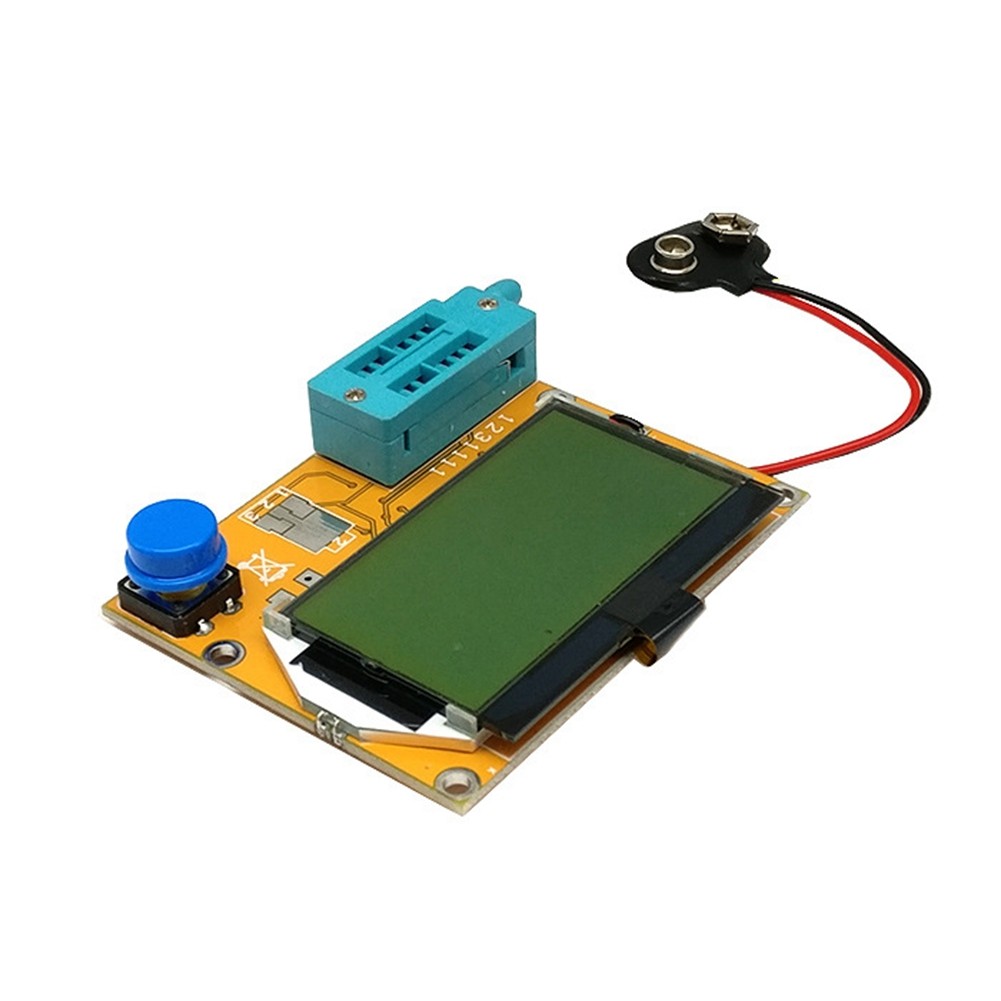

128x64 big Backlight LCD display,only 2mA when stand by
Test range:
Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , , Resistance,Adjustable potentiometer
Resistance:0.1 Ohm resolution, maximum 50M Ohm
Capacitor:25pf -100,000
Inductors:0.01mh-20H
Type:Without Case
Colour:Yellow

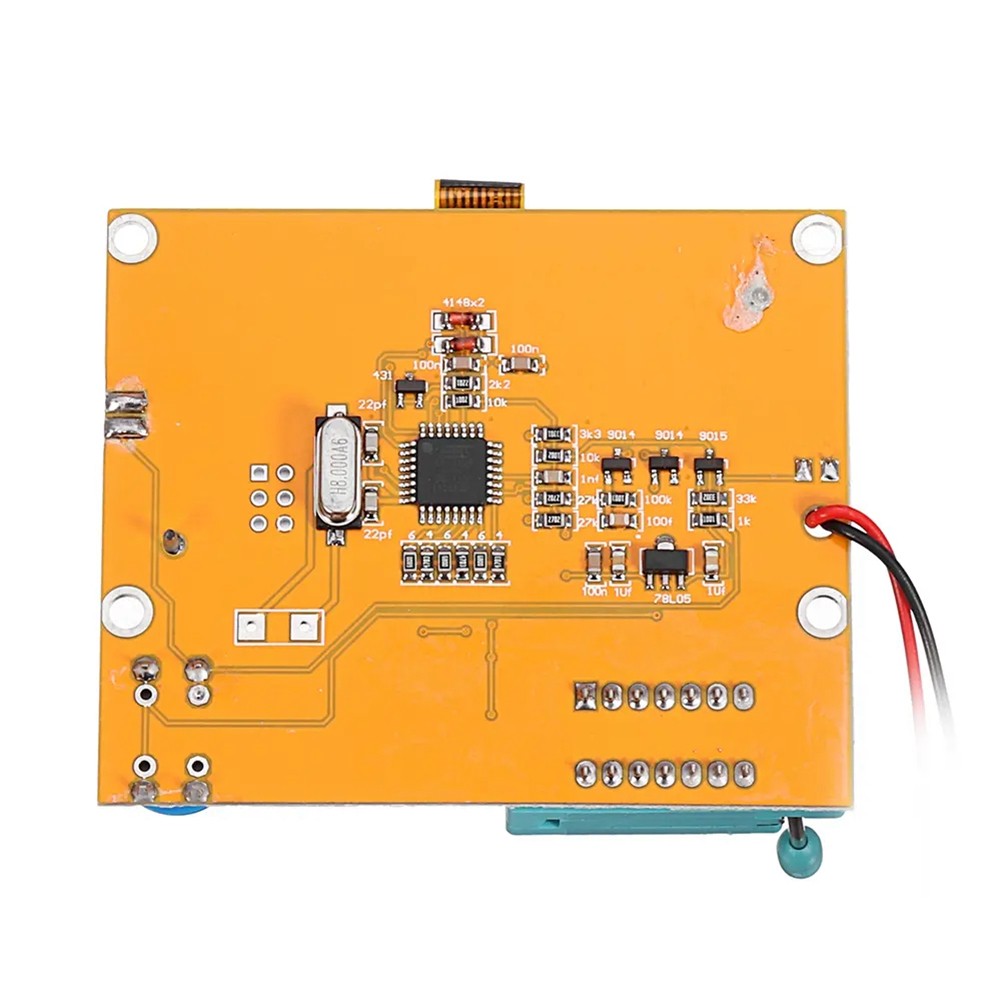

Material:PCB
Size:63x71mm

Package Contents:
1 * Transistor Tester

Only the above package content,
