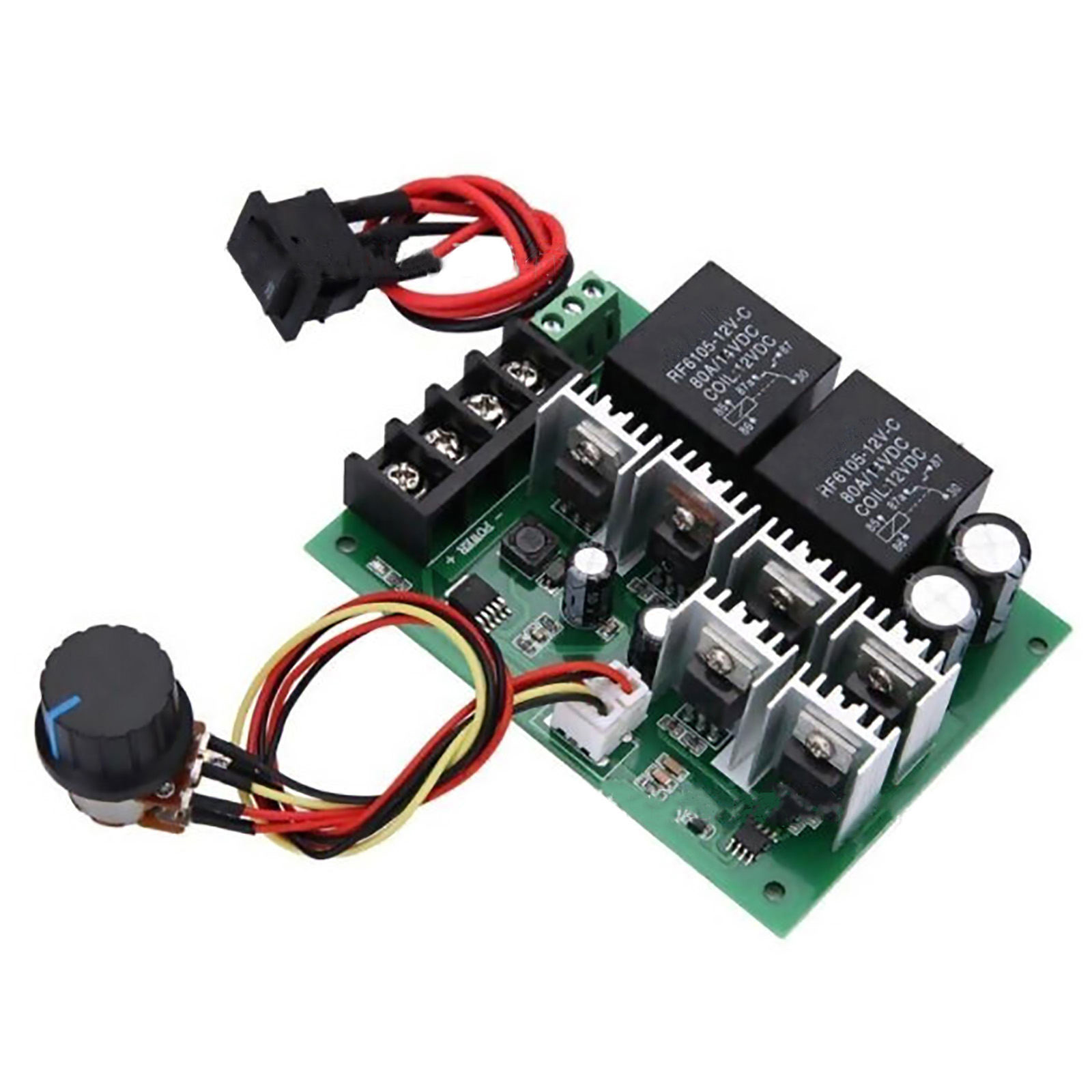

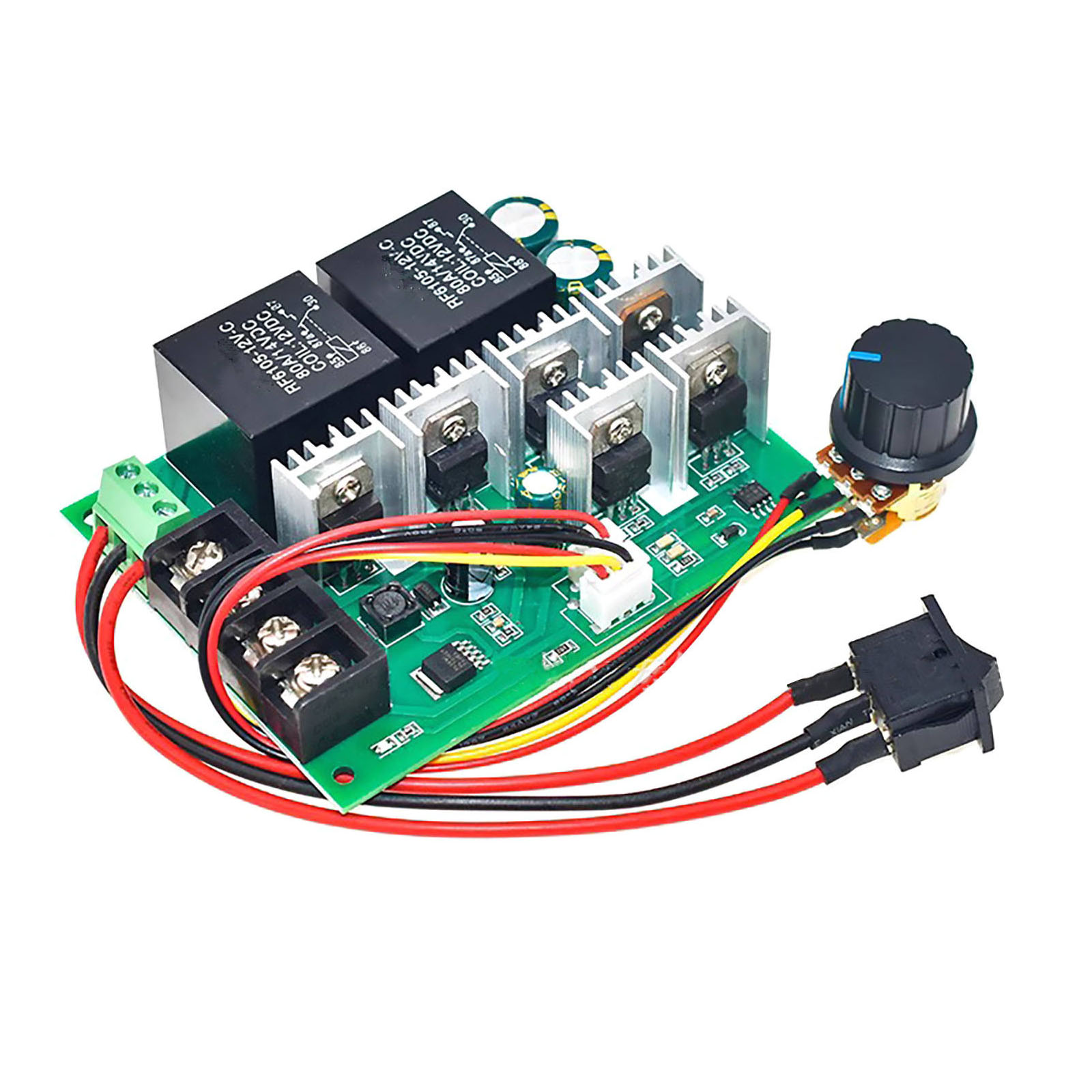

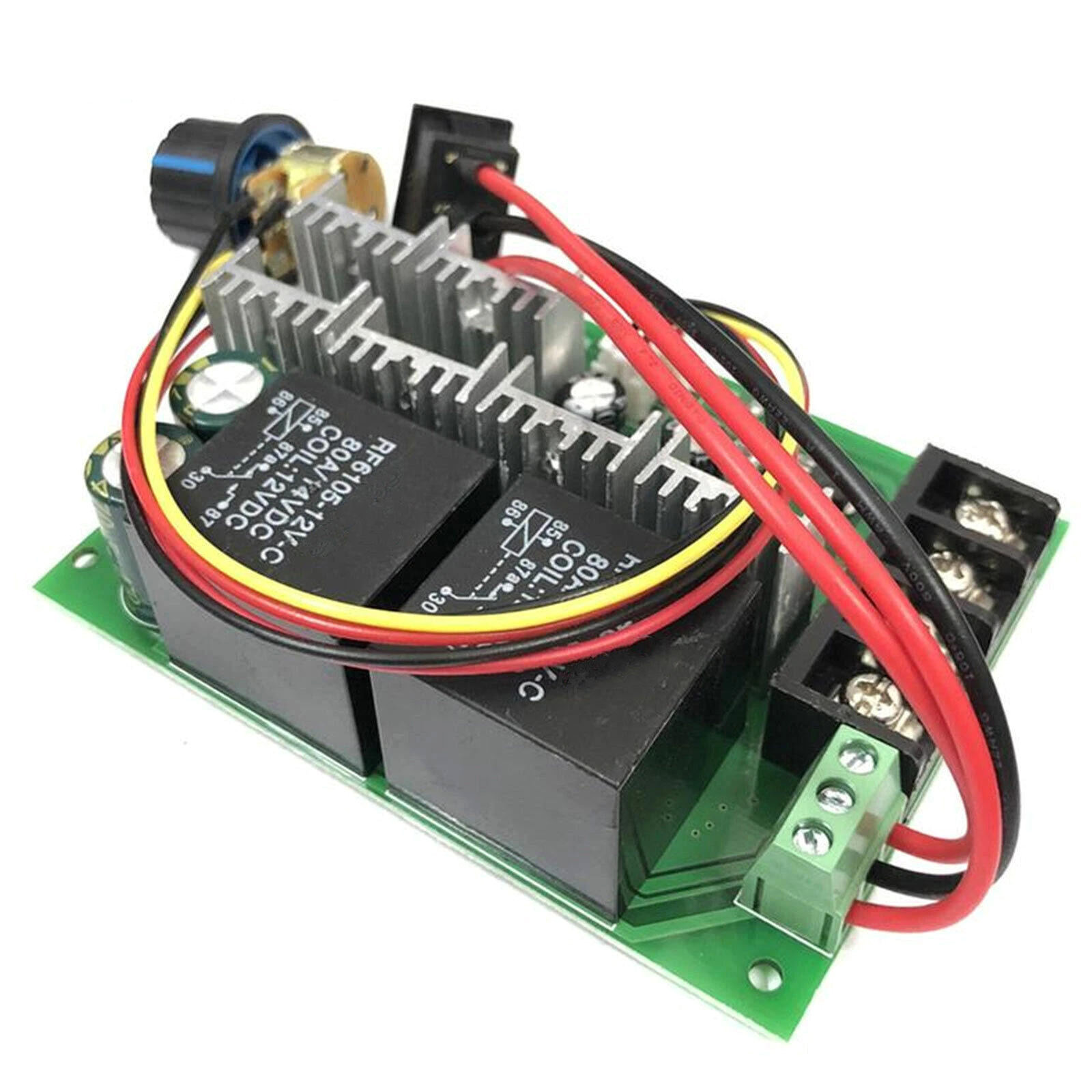

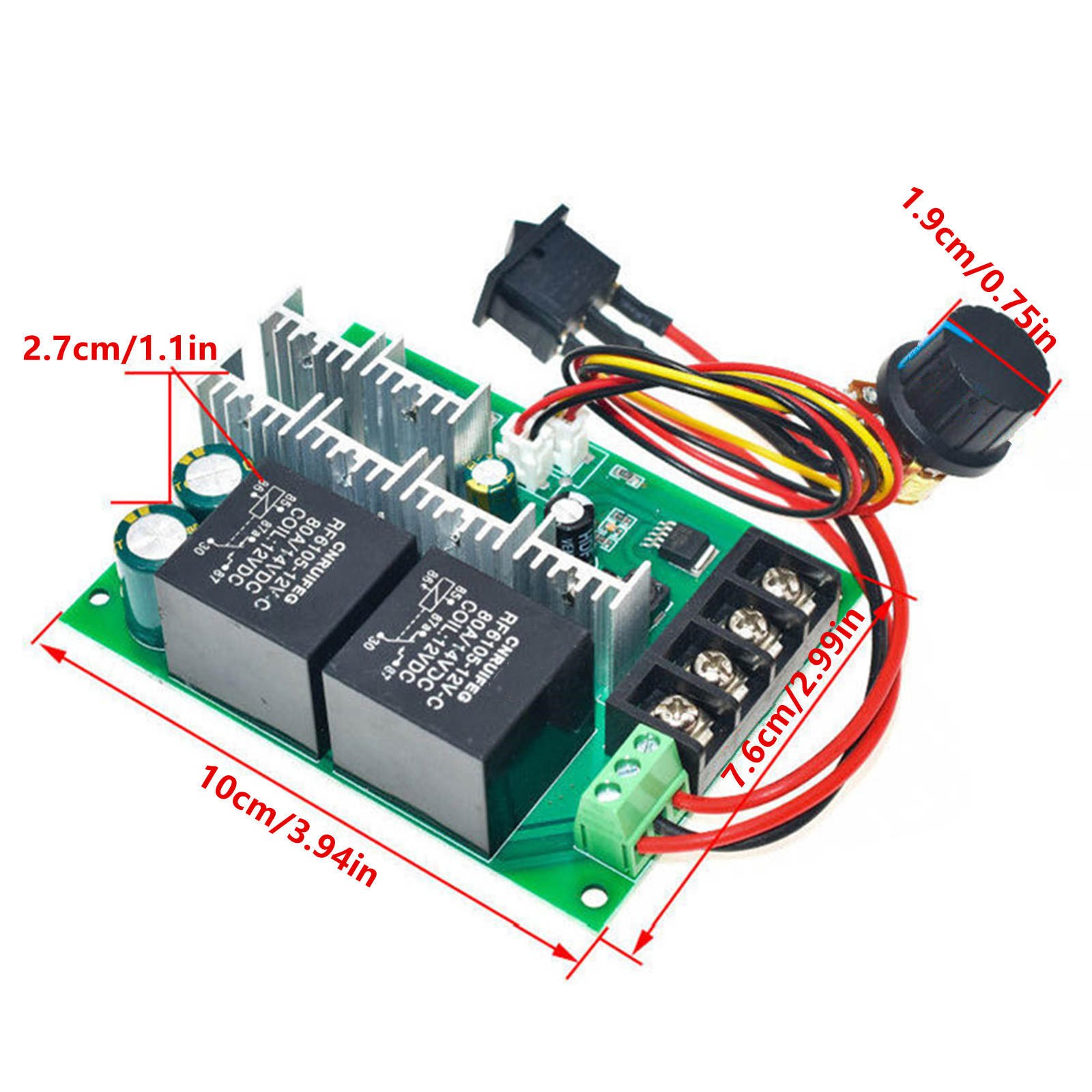

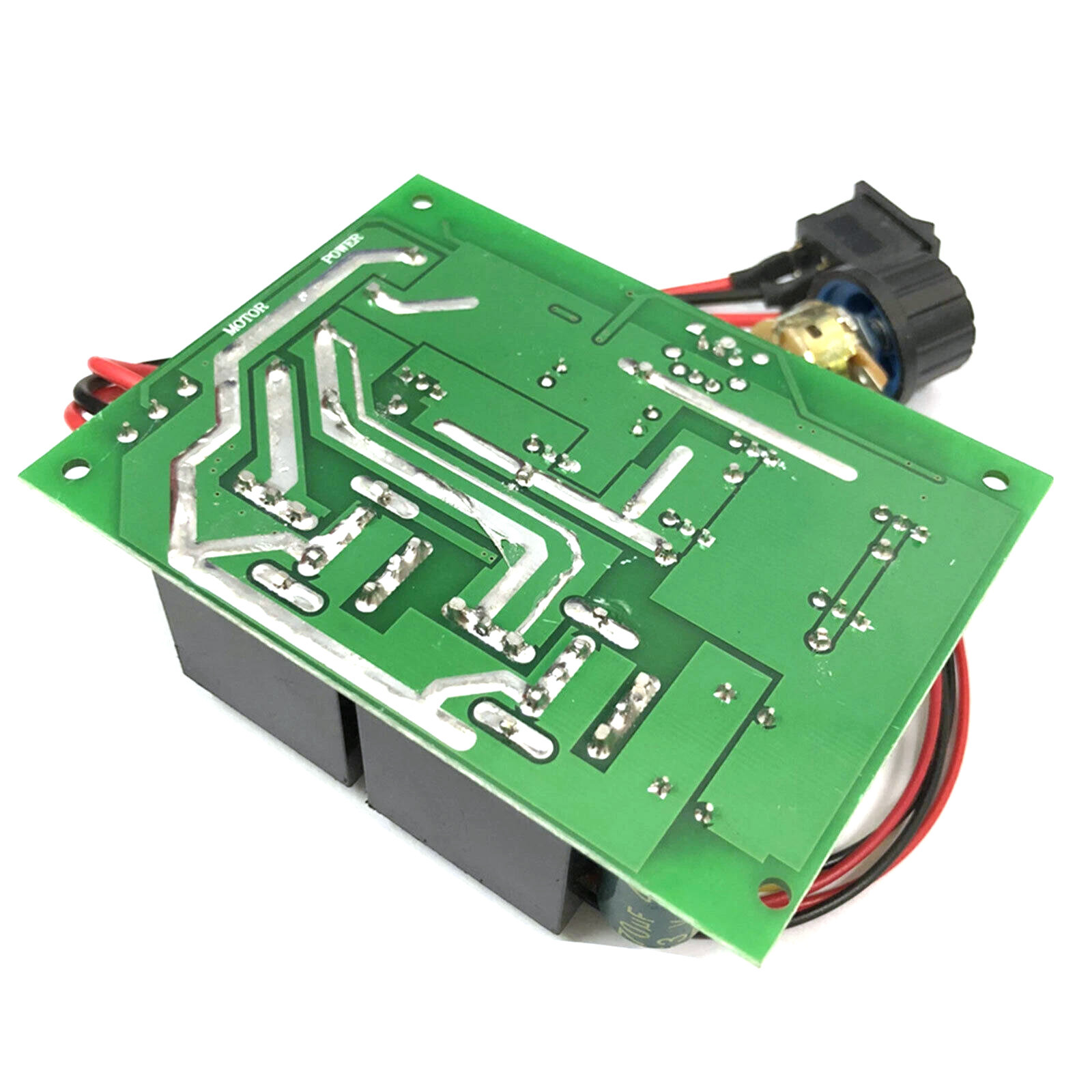

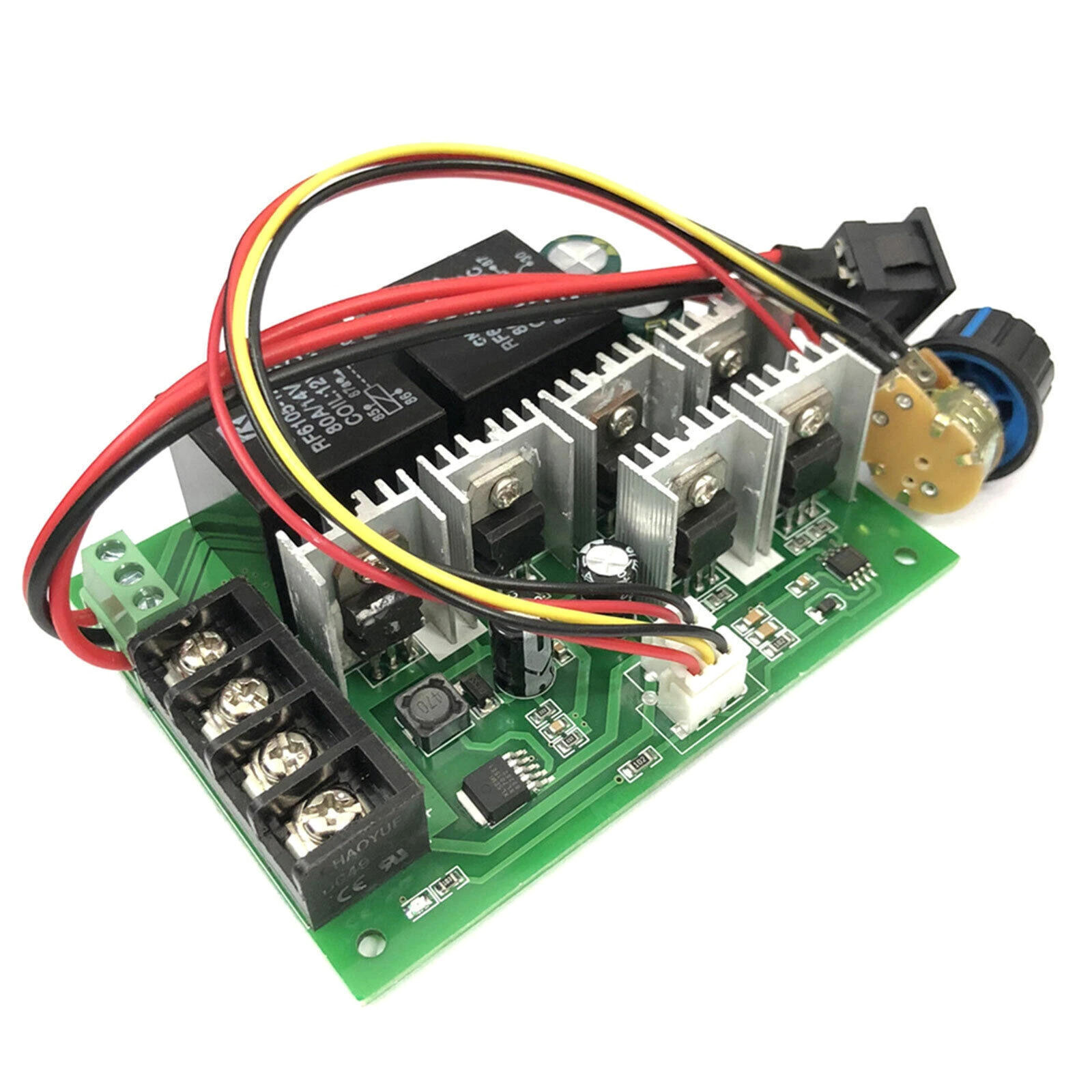

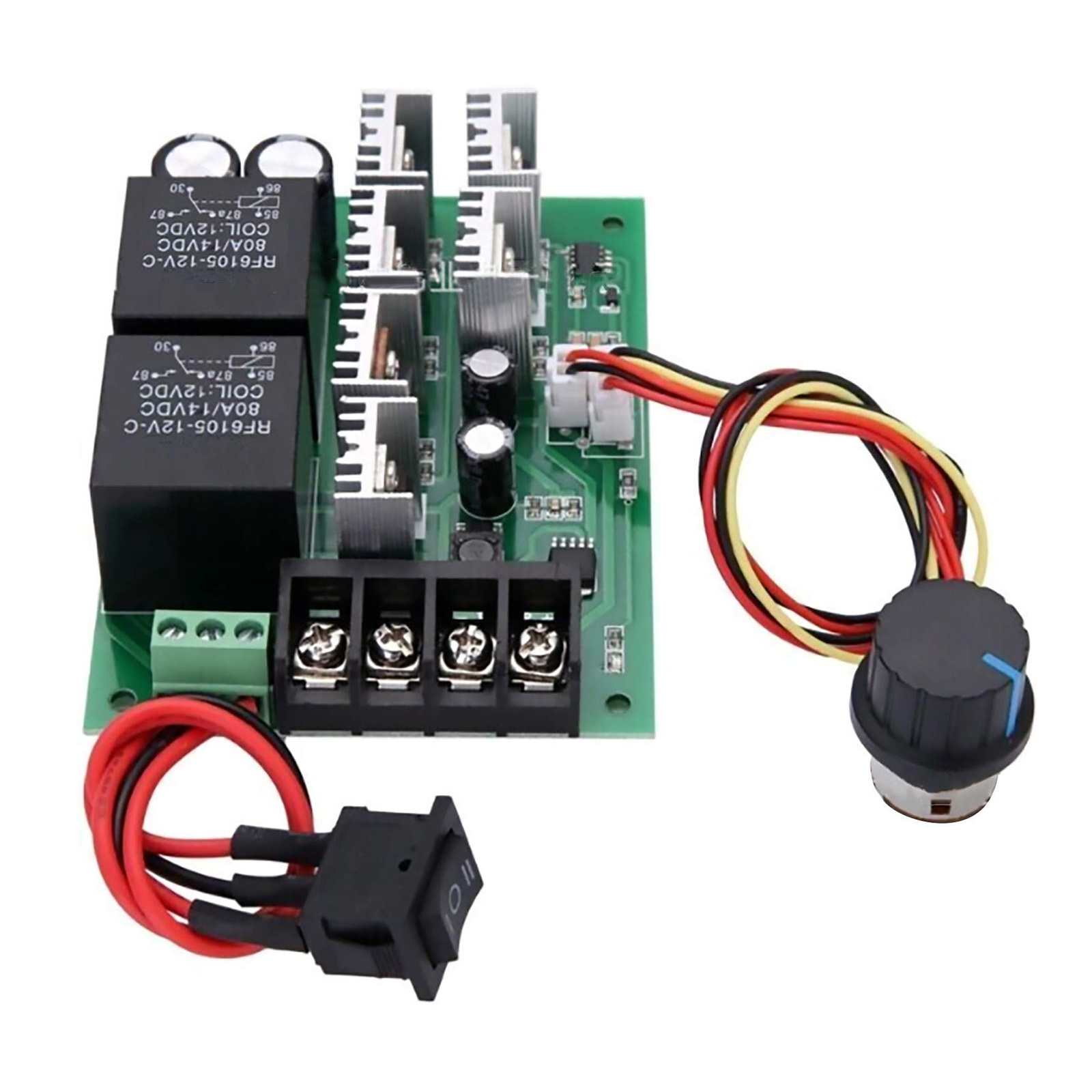

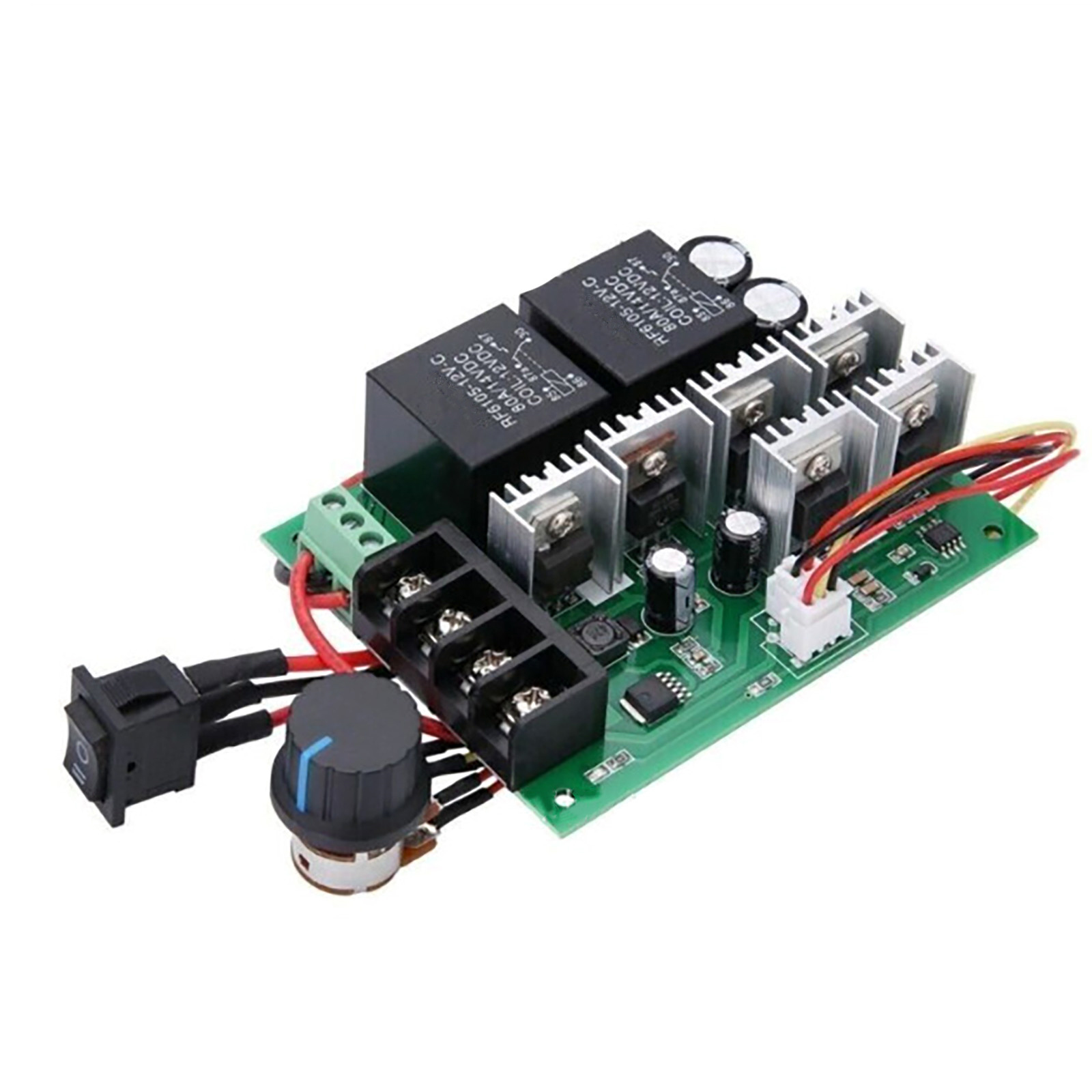

10-50V 40A 2000W PWM DC Motor Controller 25kHz Forward Reverse Potentiometer
Product Description
Features: Pulse-width modulation (PWM) is a modulation technique used to encode a message into a pulsing signal. Although this modulation technique can be used to encode information for transmission, its main use is to allow the control of the power supplied to electrical devices, especially to inertial loads such as motors. You can adjust the speed of the motor and the rotation direction, the max current of this controller is 40A. With positive and negative switch, potentiometer knob with switch, you can use PLC to control positive and negative.
Specifications: Power Requirement: DC 10-50V Rated Current: 40A (Maximum Output Current) Frequency: 25kHz Control Motor Power: 0.01-2000W Regulation Range: 0-100% Function: Forward to Stop to Reverse
Note: Make sure the positive and negative connections are correct before power on. The wiring must not touch the heat sink, and it may burn down the circuit board Note that this is not a power module, it must be connected to the motor to speed. If not, multimeter output won't change Can not be connected to AC power. Suitable for brush motor With positive and negative switch, potentiometer knob with switch, can use PLC to control the positive and negative inversion
Package Include: 1 x DC Motor Speed Controller
