- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

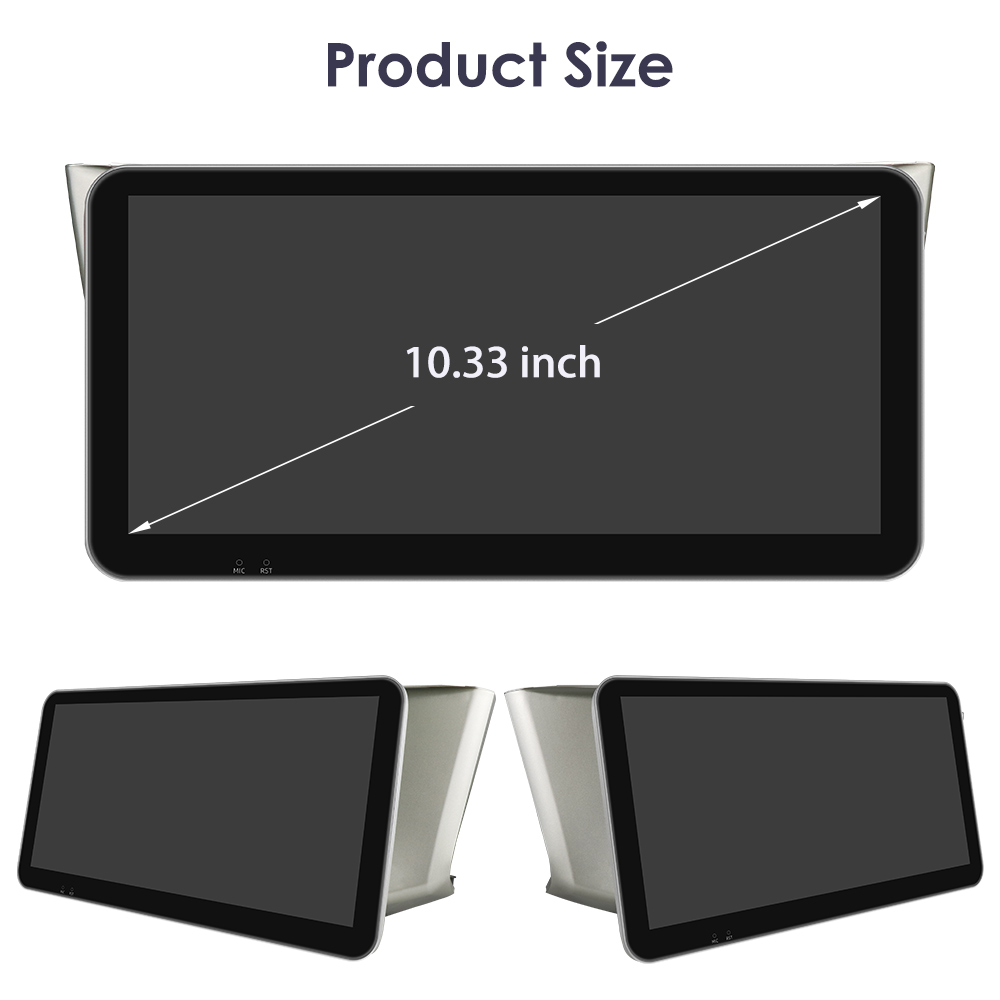

- Screen Size: 10.33 inch
|
General
|
|
- Operation System: Android 12
- Series：S6 Series
- CPU: ARM Coretex UIS 7862S 8 Core（8x2.0GHz）
- RAM: 6GB
- ROM: 64GB
|
System
|
|
- Touch Screen: Yes
- Resolution: 1600*720
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
- Key Backlight Color: NO
|
Display
|
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G LTE module: Built-in
- 4G LTE sim card slot: Yes
- 4G LTE Antenna: YES
- You just need to insert the 4G LTE sim card before you can enjoy the 4G LTE serivce.
|
WiFi/4G LTE
|
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
|
Internet
|
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Amp IC: TDA7851
- SNR: Noise rations:=90dB
|
Audio
|
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
|
Video
|
- Operation System: Android
- Support Maps: Android Map, Sygic, Kudos
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support maps online navigating
|
GPS
|
|
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
- Bluetooth Version: 5.0
|
Bluetooth
|
|
- AM Tuning Range: 531-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RADIO IC: TDA7708
- It doesn't support XM radio, but you can access the same channels using the XM radio app.
|
Radio
|

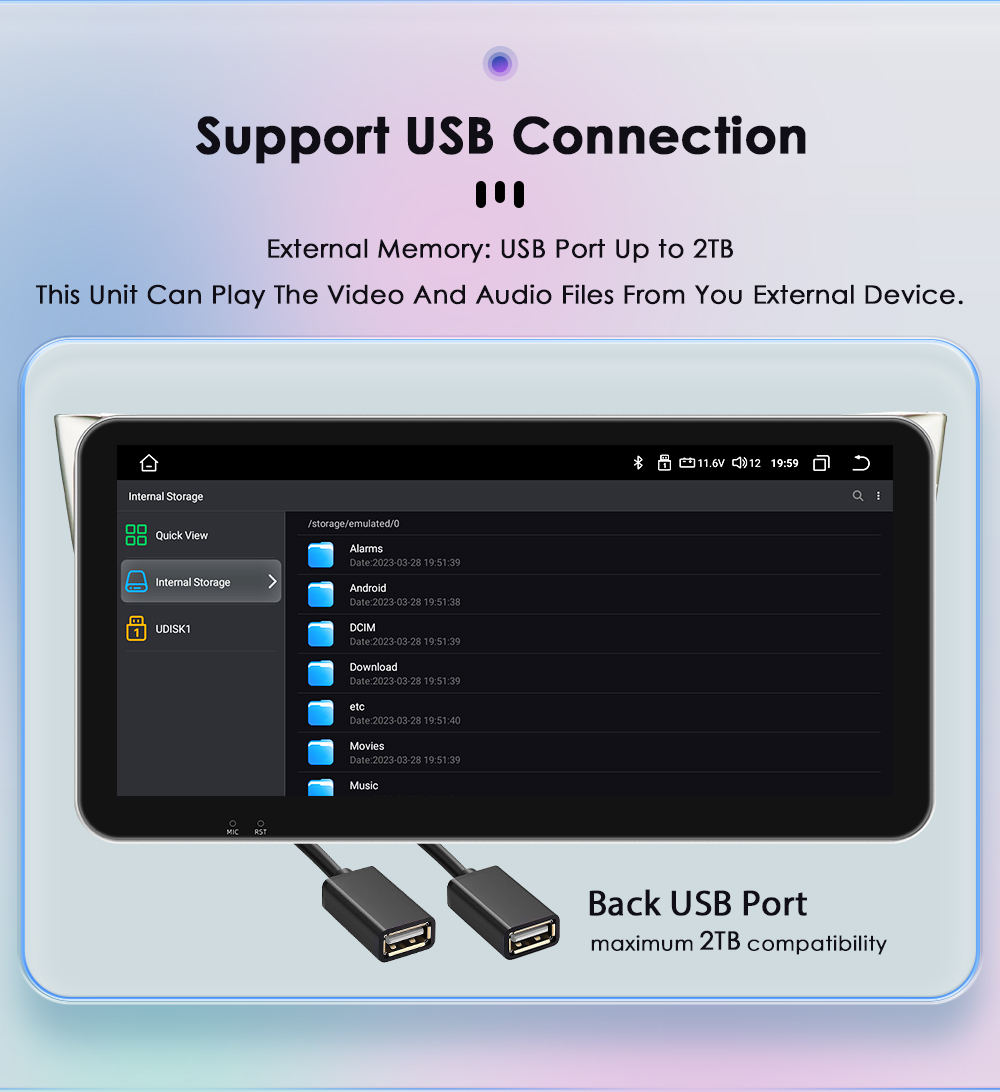

- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box / Smartphone
- Capacity: 2TB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes
|
USB
|
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes, 1080P
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed
|
DVR
|
- Built-in DAB Player App: Yes
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
|
DAB(+)-IN
|
- Built-in Digital TV Tuner: No (you can contact us to buy it together)
- External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
- Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
- Remote Control the TV Box on unit: Yes, you can use the Remoter of the TV Box to achieve this function
|
DTV-IN
|
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone

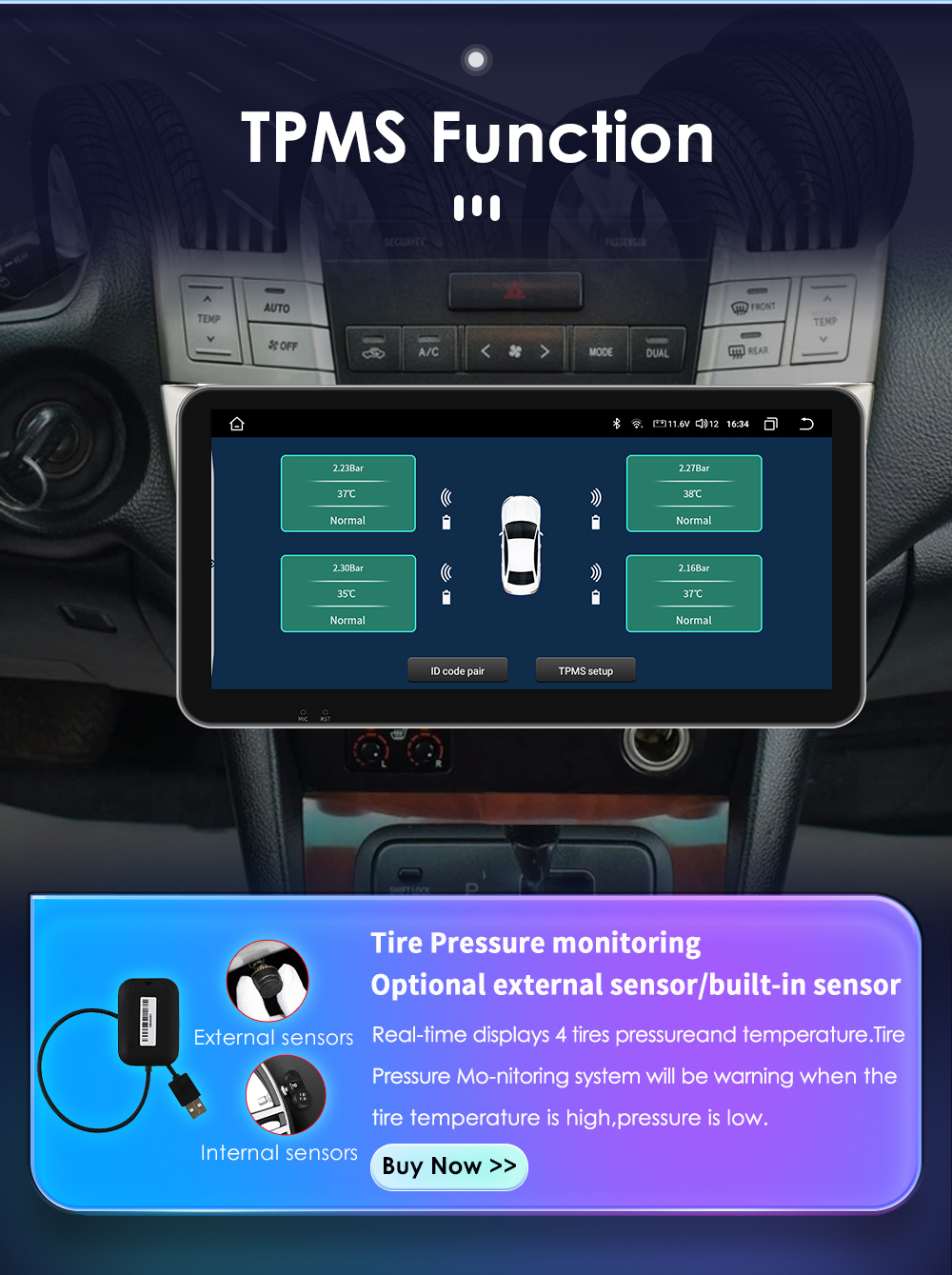

- Support TPMS: YES (Not Included, you can contact us to buy it together)
|
Additional
|
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume
- Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler

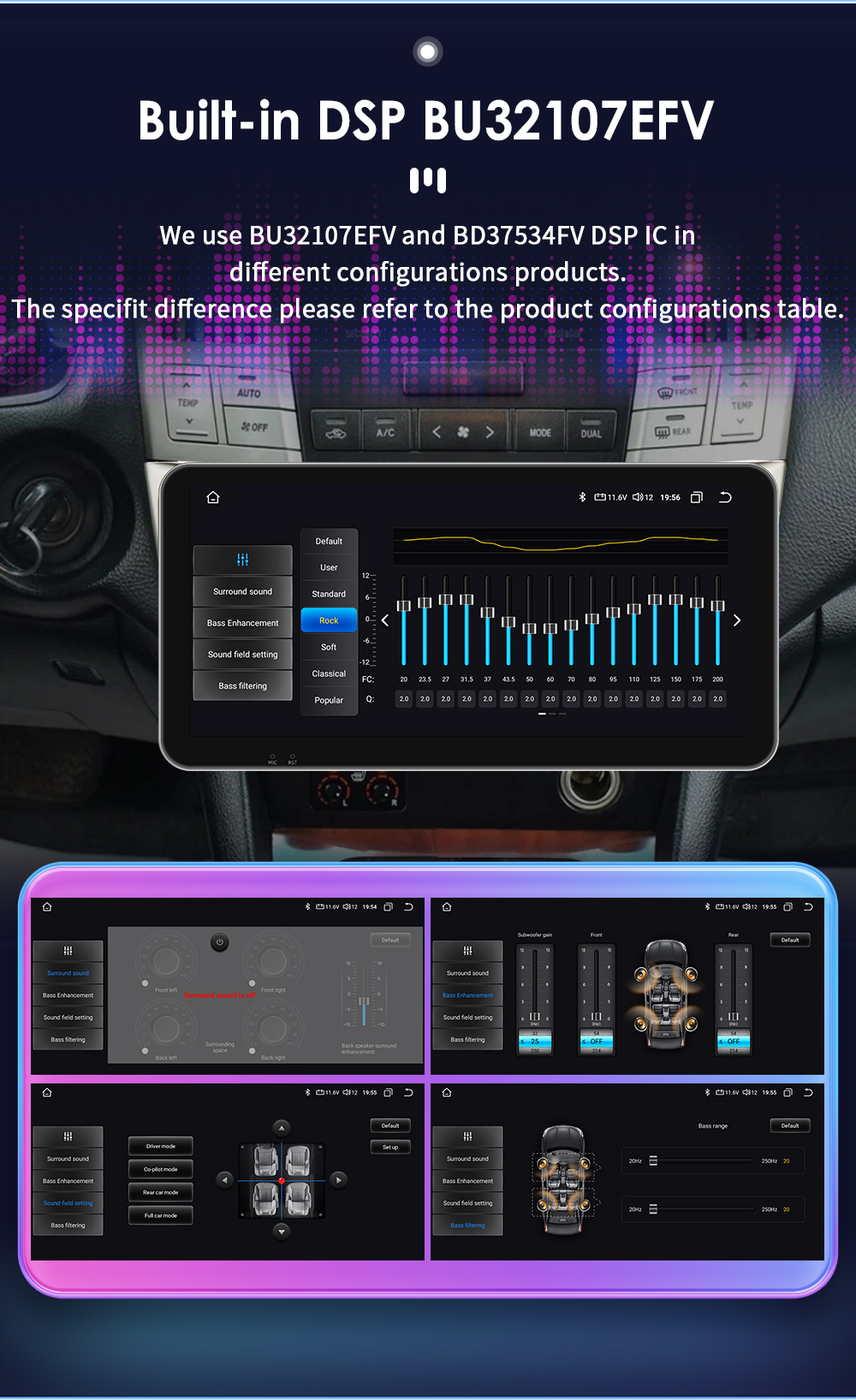

- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes

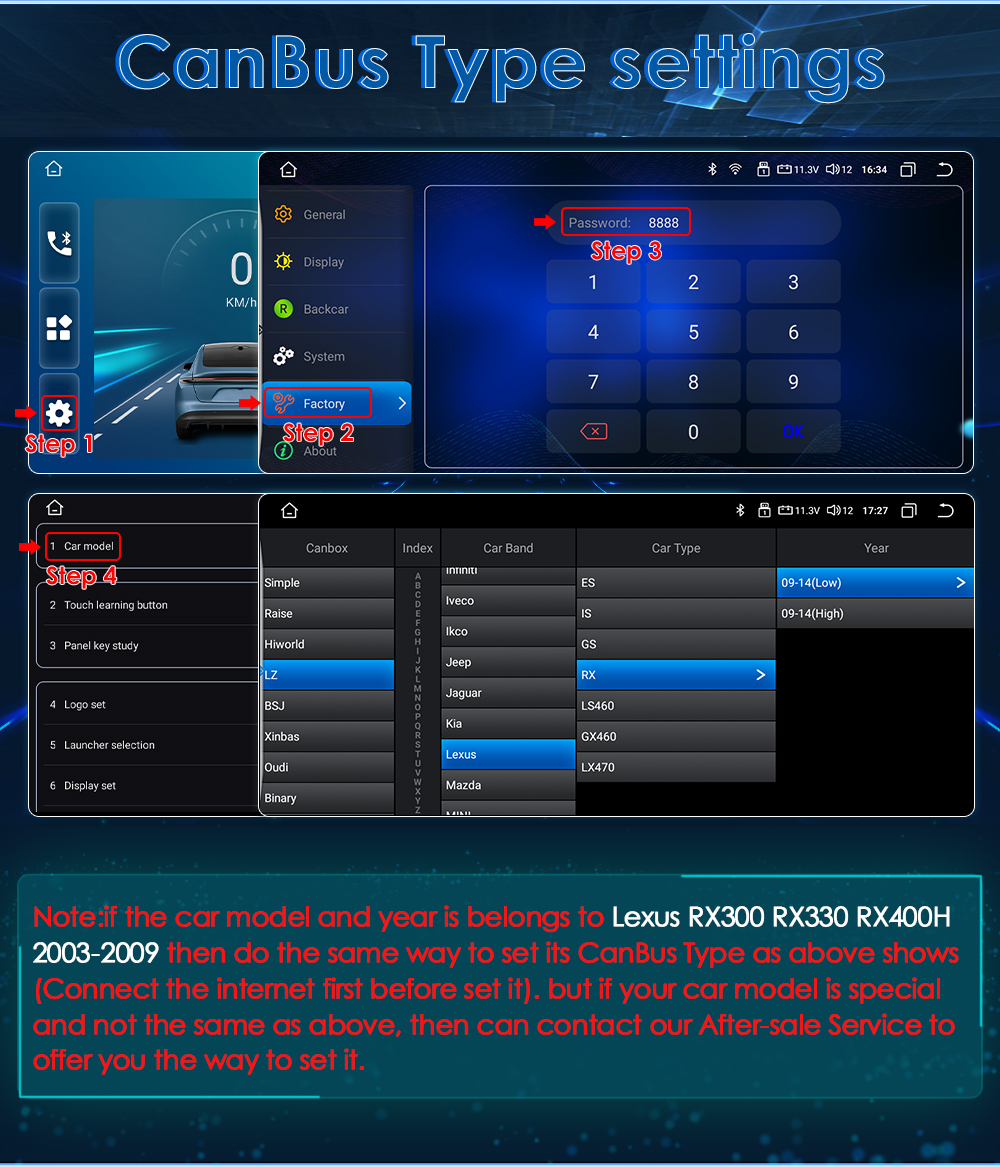

- Factory Settings: choose Radio Band and 88 Open-Unit-Logos
- About Device: Display Parameter Info.
|
Setup
|
|
- AUX Video In: One

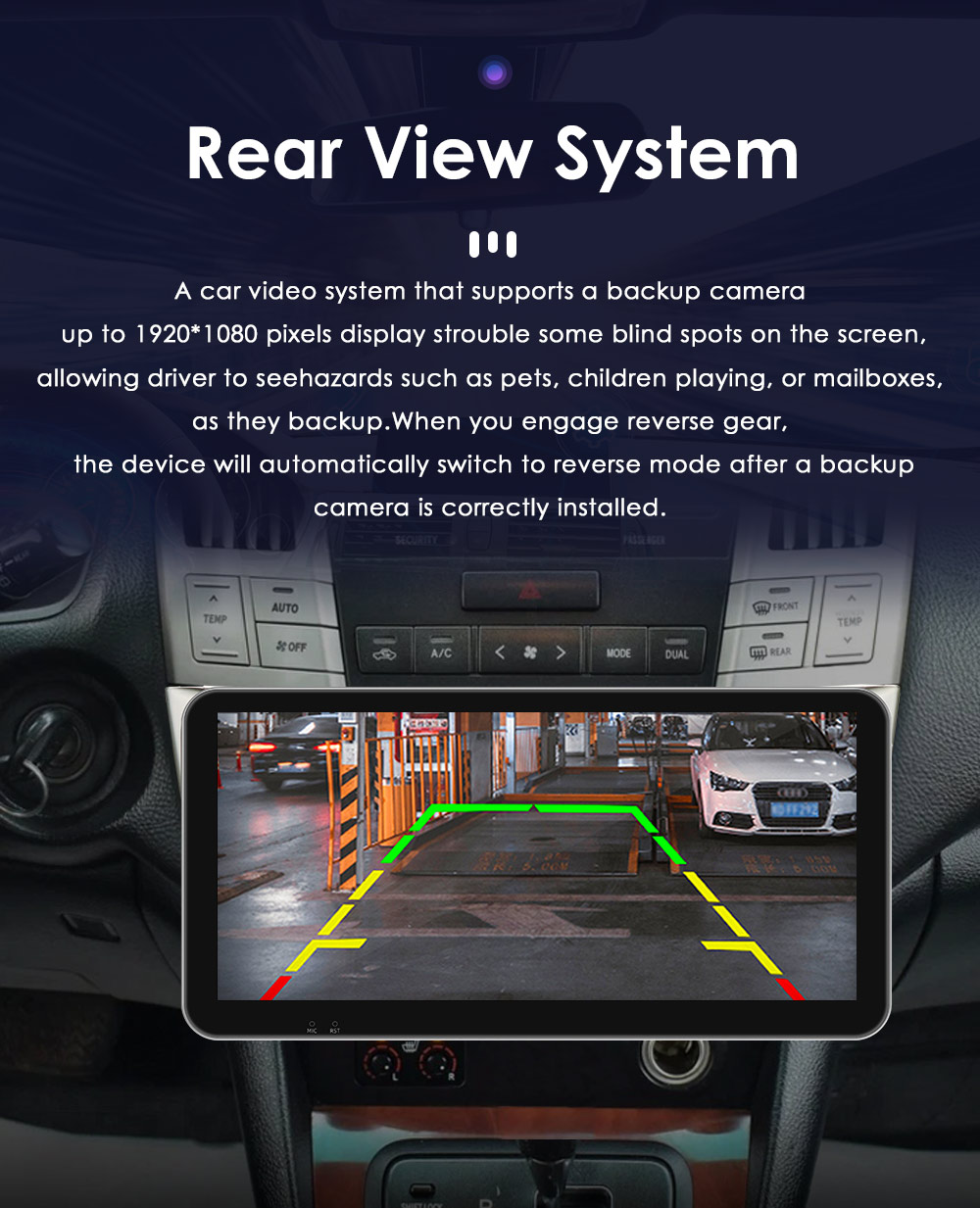

- Rear-View Camera Video In: One
- AUX Audio In: R/L
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One
- Radio Antenna In: One
- GPS Antenna In: One
|
Input
|
|
- Audio Out: R, L
- Subwoofer Output: One
|
Output
|
|
