Two Available leads: 12 feet extendable wiring harness, two Sets of light output connectors for dual light fixtures less than 180W

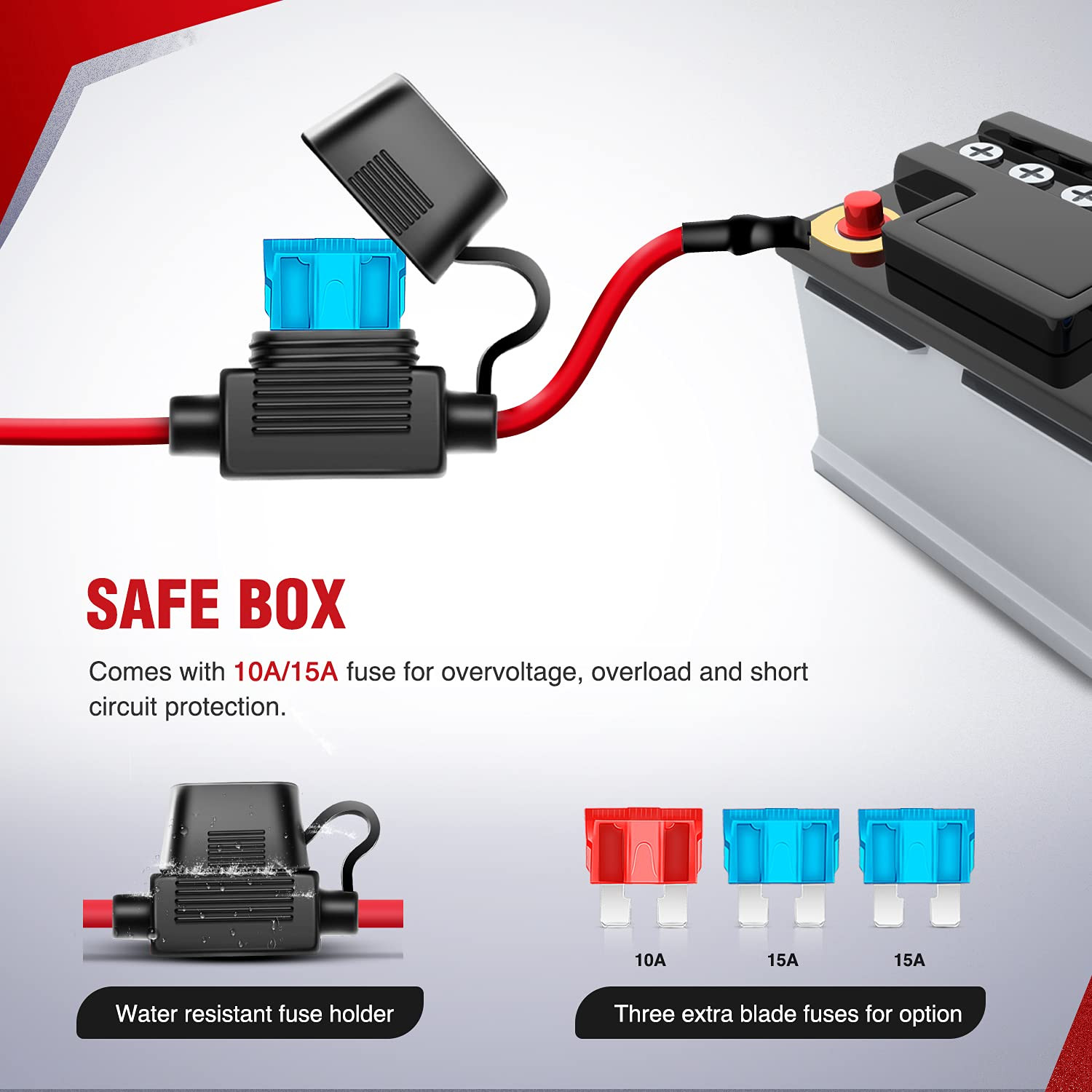

Efficient protection: power relay and inline blade fuse ACT as the first Line of defense against overcurrent and short circuit
Shining in the dark: built-in two premium LEDs emit soft light to illuminate the patterns, easy for you to find the switch in the dark
Wide application: suitable for almost all 12V battery vehicles, such as jeeps, ATVs, UTVs, cars, motorcycles, ships, yachts and trailers
Package include: 1 x wiring harness kit, 1 x 5 pin LED rocker switch, 1 x instructions
Product description
16AWG LED Light Bar Wiring Harness Kit - 2 Leads
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Wire Gauge: 16 AWG , Working Voltage: 12V DC, Max Wattage: 180W, Max Ampere: 15A
Waterproof Rate: IP67 ,Anti-corrosive
Certifications: CE, FCC, RoHS. Lifespan: Over 50, 000 hours
Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.
Features:
Power Rocker Switch
It is designed for easy control of LED lights, which also illuminates charming red to decorate your love car.
Automotive Relay
The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.
Two Leads
With two sets of light output connectors, the wiring harness can hook up two LED lights within 180W at the same time.
Water-resistant Lid
Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance.
How it works?
Working principle and characteristics of the relay
It is actually an "automatic switch" that uses a smaller current to control a larger current. Relay plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.
How Do Fuses Work?
They consist Of a fusible element that melts or vaporizes when the current exceeds the fuse rating, breaking the electrical connection and thus safeguarding electrical devices.

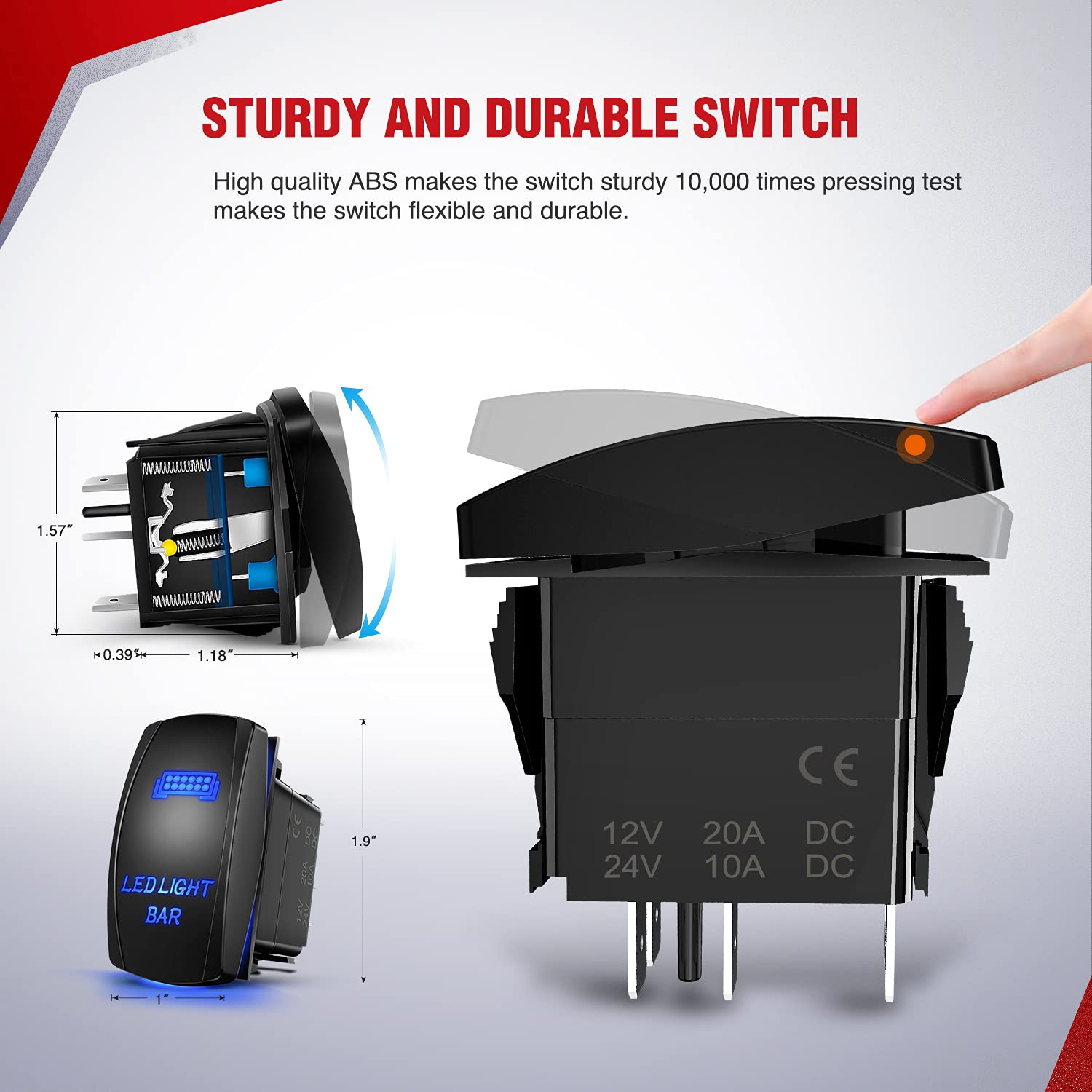

Power 5Pin Rocker Switch
It is designed for easy control of LED lights, also illuminates charming red to decorate your car.
Operating Voltage: 12V DC Power
The relay is made with conductive pins. It effectively protect the circuit and the lighting system.
More scientific and safer
Max Wattage: 180W, Max Ampere: 15A
Fuse acts as the first Line of defense against overcurrent or short circuits to protect the circuit.
Installation Steps
Power Supply
Automotive Relay
Light Output Connectors
Switch Operation On-Off
Upgrade the light save your way in the darkness, rain, and foggy weather
