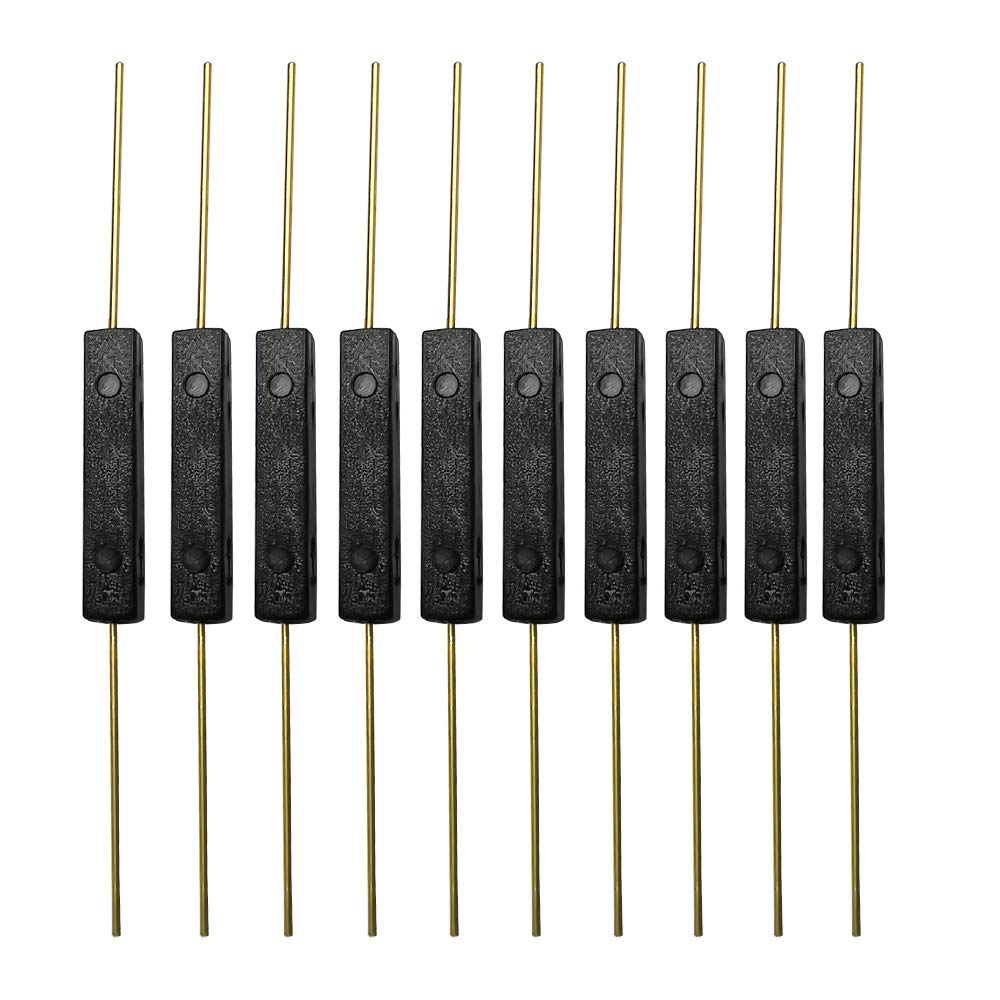

10Pcs Plastic Reed Switch Reed Contact Normally Open (N/O) Magnetic Induction Switch (3Mm×14Mm)
Description
| Current Rating | 0.5 Amps |
| Number of Items | 10 |
| Upper Temperature Rating | 80 Degrees Celsius |
| Material Type | Copper |
| Terminal | Screw |
| Operating Voltage | 250 Volts |
| Number of Positions | 10 |
| Control Type | Passive |
| Connectivity Protocol | X-10 |
| Material | Copper |
| Compatible with Vehicle Type | Any Vehicle |
| Circuit Type | 1-way |
| Unit Count | 10.0 Count |
| Control Method | Touch |
| Connector Type | Micro Usb |
| Model | E254 |
| Part Number | E254 |
| Mounting Type | Flush Mount |
| Color | Black-E254 |
| Wattage | 10 watts |
| Compatible Devices | Devices requiring a normally open switch with a maximum switching voltage of 100VDC and a maximum switching current of 0.5A |
| Operation Mode | ON-OFF |
| Contact Type | Normally Open |
| Contact Material | Metal |
| Switch Type | Reed |
- ✪Package included: 10 × Reed Switch
- ✪Length of glass: 14 mm；Diameter of plastic part: 3 mm
- ✪Maximum switching voltage 100VDC,Working temperature: -20 degrees to 80 degrees
- ✪Max. Switch Current: 0.5A；Maxima charging current: 1.0A
- ✪Maximum contact resistance: 100M；Minimum Insulation Resistance: 1010
Total Length 44mm
Plastic Part Length 14mm
Plastic Part Diameter 3mm
Contact Form A
Maximum power 10W
Maximum switching voltage 100VDC
Working temperature: -20 degrees to 80 degrees
Maximum switching current 0.5A
Maximum load current 1.0A
Maximum contact resistance 100M
Minimum insulation resistance 1010
Action time 1.0ms
Bounce time 0.6ms
Release Time 0.4ms
Response frequency 4000Hz
Maximum operating frequency 500Hz
Sensitive Value 10-15AT
Minimum reset Min Value 4FT
Maximum contact capacitance 0.7PF
life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA)
Test line circle number / Resistance 870/5000Ω
Package included:10 X Reed Switch
