- 【High Efficiency】: Two 80A current relay.
- 【3 Gear Switch】: Accurate adjustment.
- 【Speed Adjustment Knob】：Knob is with switch function, can control motor speed to change from 0 percent to 100 percent , and it is noise free when motor is at low speed.
- 【Advanced Technology】: High-efficiency, large torque governor can control the motor speed, small heat, has been repeatedly revised, has been widely stable applications in industrial.
- 【Greartisan Gurantee】 We only offer high quality motors! Any quality issues, please feel free to contact our customer service!
Descprition:
Model: CCM6DS-B
Knob Potentiometer: Resistance Value B100K; Trepanning 8mm
Work Voltage: DC 10V-60V
Output Voltage: Approx.0%-100% of Input Voltage
Control Power: Recommended within 12V50W, within 24V350W, within 48V 500W
Rated Current: 30A
Max Current: 40A
Speed Range: 10%-100%
PWM Frequency: 16kHz
Module Size: 110*78*38mm
Weight: 250g
Packages:

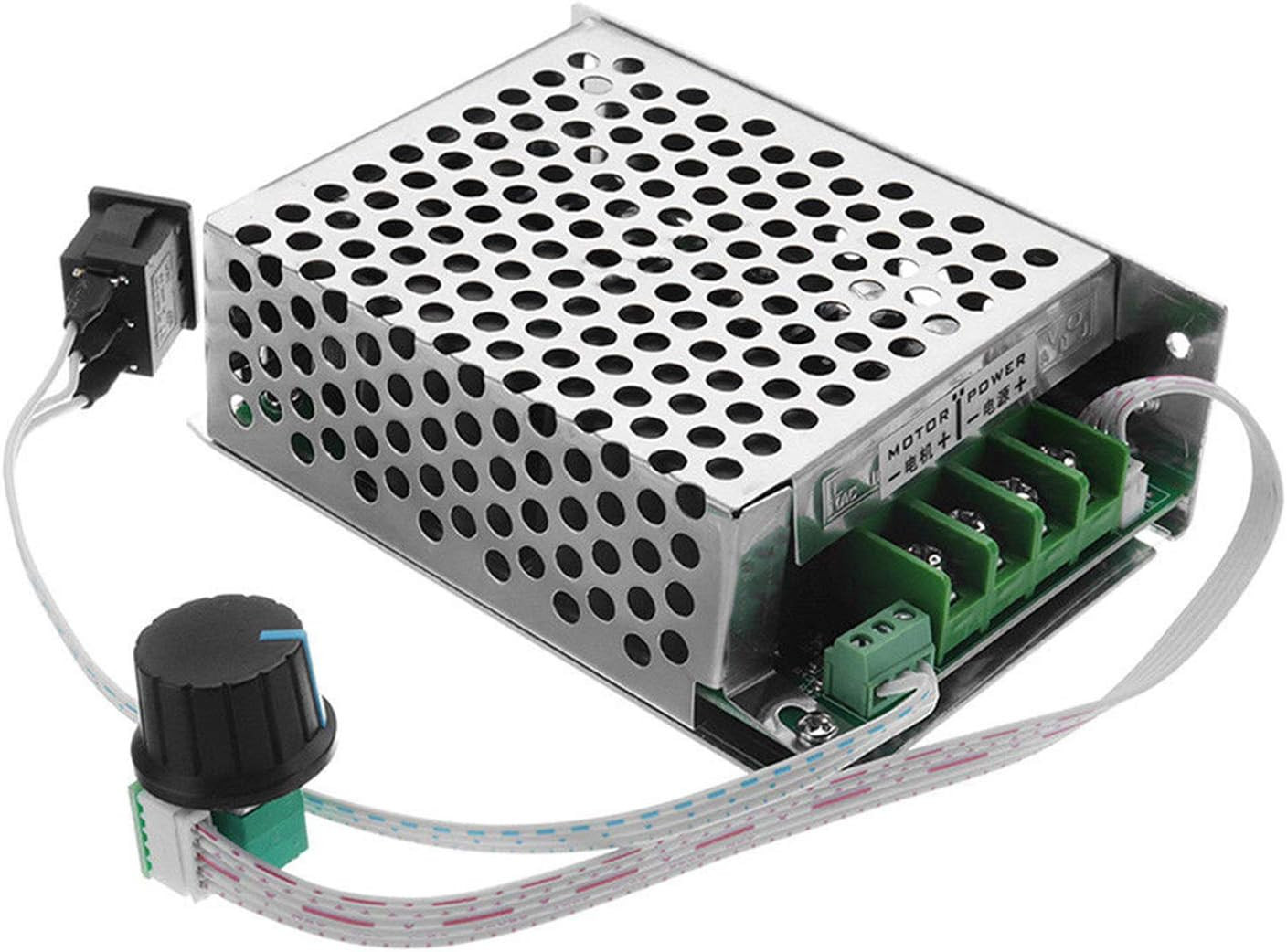

1 x DC Motor Speed Controller
PLEASE NOTE:
1.DC power supply polarity can not be inversed, otherwise is may damage speeder.
2.If need the forward and reverse function, customer can connect the positive and negative switch.
3.Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc.
4.Not suitable for AC power supply.
