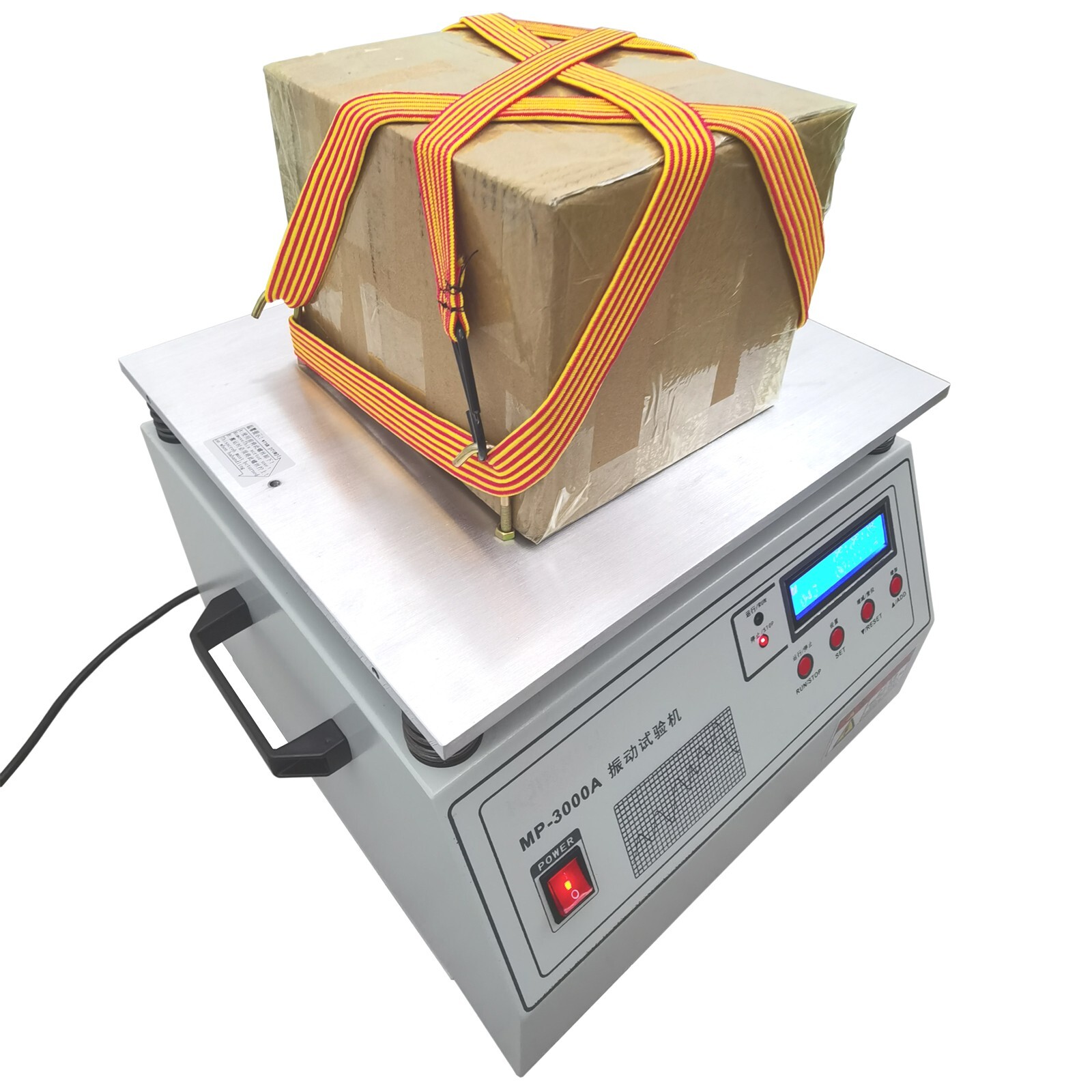

| 110V MP-3000A Electromagnetic Fixed Frequency Vertical Vibration Test Table |
| INTBUYING® |
 |
| Product Overview |
| Electromagnetic vibration test rig for specific to undergo several times after vibration object to be tested whether can achieve ideal standard of a kind of test, simulation products in manufacturing, assembly, transport and use that occur in the execution phase of various vibration environment, to identify whether products bear the ability of environment vibration, mainly for the circuit boards, electronic components, power will be poor contact, desoldering, false welding, etc. |
| Product Parameters |
| Voltage: |
AC110V |
| Power: |
0.9KW |
| No-load vibration amplitude: |
0-0.08" (0-2mm) |
|
Vibration frequency:
|
50hz |
| Table size: |
15.1"*13.8" (38.5cm*35cm) |
| Vibration table material: |
Antirust aluminum plate |
| Vibration wave: |
Sine wave |
| Time setting: |
1 second-99 hours |
| Vibration direction: |
Vertical |
| Amplitude monitoring value: |
Display 1-100% |
| Time display: |
99H: 99M: 99S |
|
Test load:
|
88LB (40kg) |
|
Operating environment:
|
0~+45℃ |
| Control precision: |
±0.1Hz |
| Analytical precision: |
0.01Hz |
| Distribution of precision: |
±0.1Hz |
| Packing size: |
20.5"*18.9"*13.4" (52*48*34) |
| Net weight/Gross weight: |
73LB(33kg)/ 84LB(38kg) |
|
 |
| Product Features & Advantages |
 |
 |
 |
| Intelligent
The use of intelligent digital control circuit, can permanently memory set parameters, can set the number of program segments and program cycles, power off will automatically remember the current vibration data, automatic reset.
|

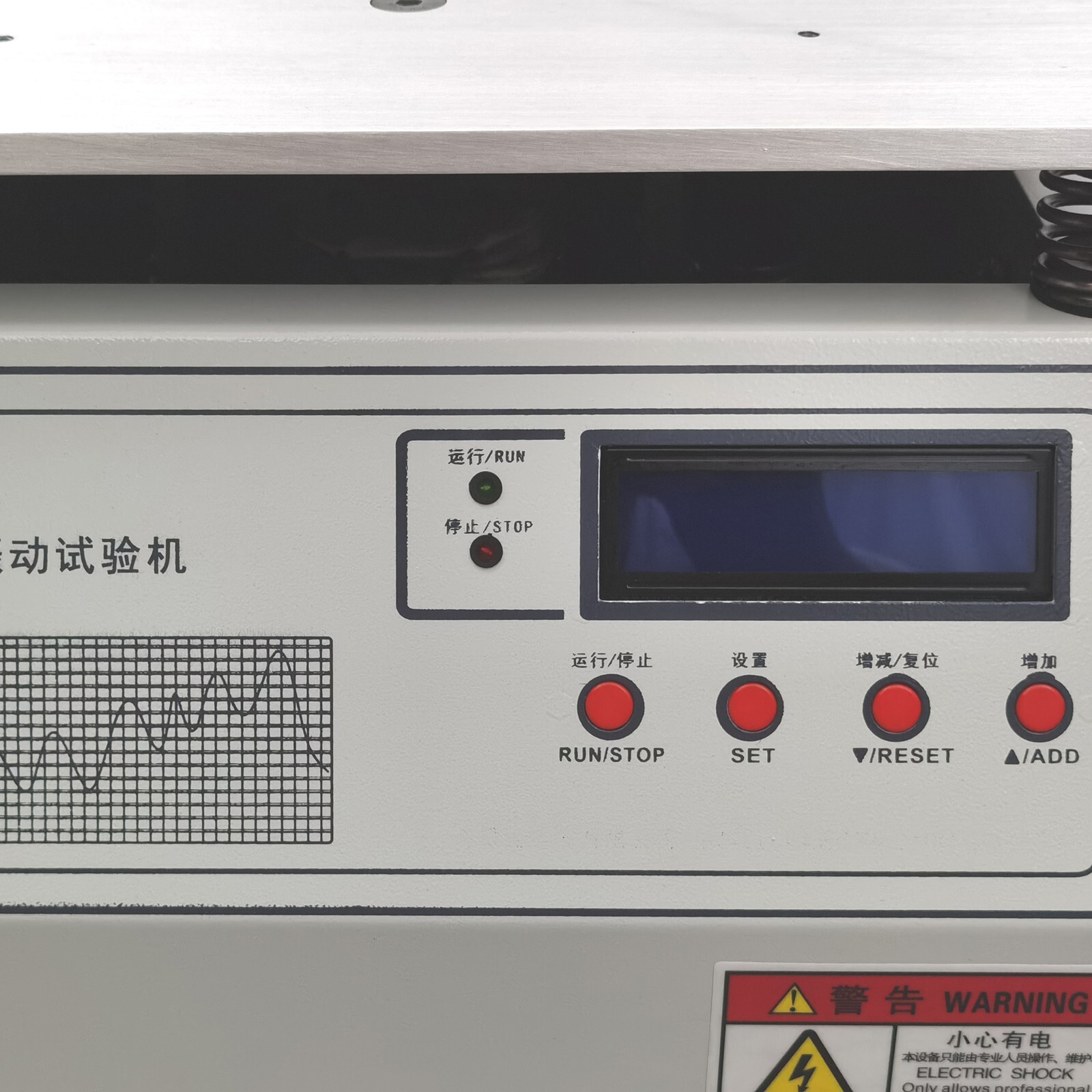

LCD
The use of large screen liquid crystal display, rich content, can store vibration amplitude series, from 0-100 arbitrary continuous adjustable; The set time of vibration test and the current real-time vibration running time can be displayed simultaneously.
|

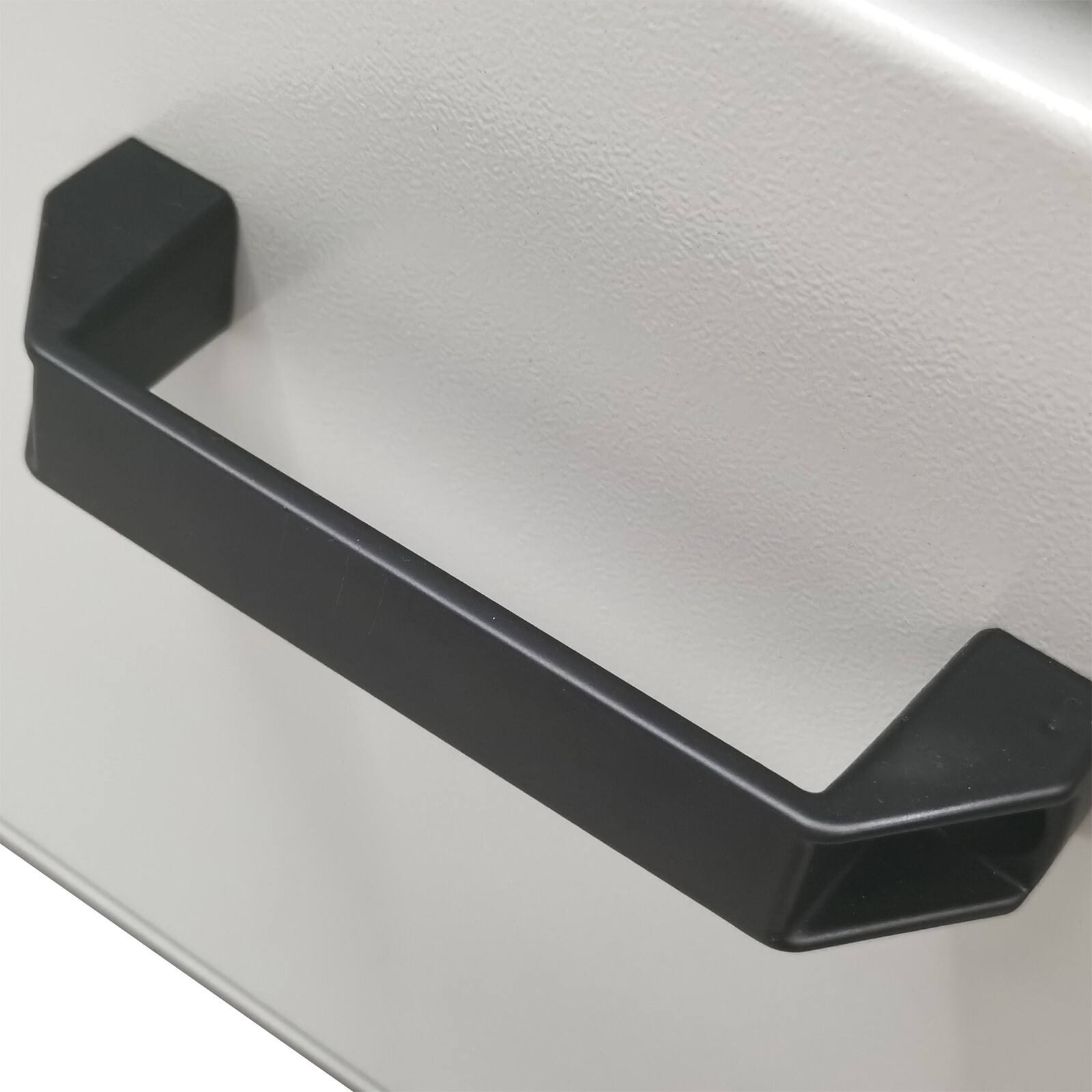

Handles
There are handles on both sides of the machine for easy lifting and handling, and it can be easily moved to the place where it is needed, saving time and effort.
|
 |
 |
 |
| Heat Dissipation
The rear and bottom of the machine are designed with heat dissipation holes, which can dissipate the heat generated inside the machine in time and extend the use time.
|
Plug
Equipped with 110V US standard plug, can be used directly without converter head; Ground cable, safe to use. There is a fuse to prevent abnormal current temperature, and it is safer to use.
|
Non-Slip Foot Mat
There are four foot mats at the bottom of the machine, which are wear-resistant and non-slip, to ensure that the machine is more stable in the work and the results are more accurate.
|
|
- Delayed soft start, the amplitude series set at the start is automatically completed within 3 seconds.
- The use of large screen liquid crystal display, rich content, can store vibration amplitude series, from 0-100 arbitrary continuous adjustable; The set time of vibration test and the current real-time vibration running time can be displayed simultaneously.
- The machine is easy to install and run smoothly. The digital control and display frequency of the control circuit and PID adjustment function make the equipment work stably.
- Fixed frequency operation mode, adapt to the test requirements of different industries, add anti-drying circuit, solve the interference of the control circuit due to strong electromagnetic field; increase the working time setter, so that the test product reaches the accurate test time.
- Electromagnetic vibration table is suitable for aviation, aerospace, communications, electronics, automotive, home appliances, and other industries. |
 |
| Item Included(056592) |
| Instruction manual *1 |
Rubber rope *1 |
Fixed screw hook *4 |
|
|
