Fitment:
2000 - 2001 Dodge RAM 1500 All RWD/2WD Models
Package:
1x Part# Part# Front Suspension Pitman Arm - K7345
1x Part# Part# Front Suspension Idler Arm - K7347

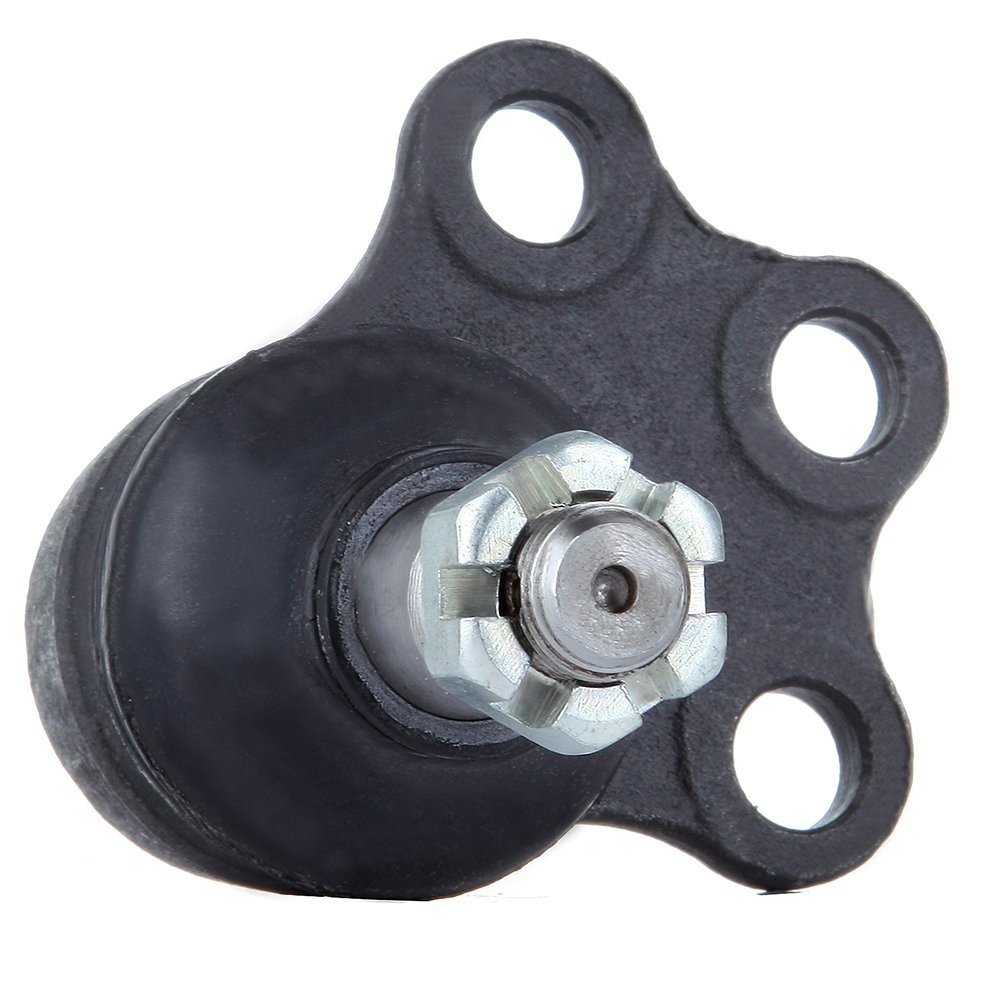

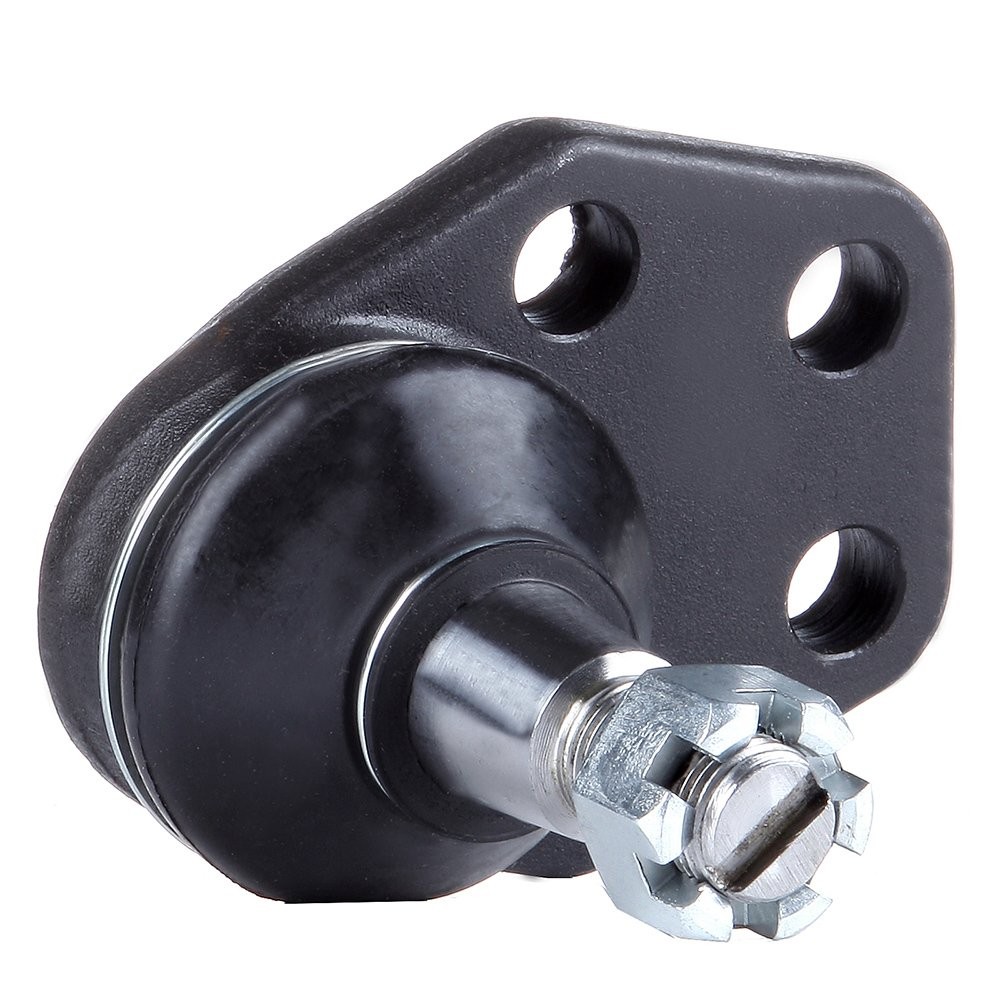

2x Part# Part# Front Suspension Lower Ball Joint - K7365
2x Part# Part# Front Suspension Upper Ball Joint - K7366
2x Part# Part# Front Stabilizer/Sway Bar End Link - K7275
2x Part# Part# Front Outer Tie Rod End Link - ES3540
2x Part# Part# Front Inner Tie Rod End Link - ES3539
2x Part# Part# Front Tie Rod Adjusting Sleeve - ES2080S
Ball Joint Installation Instructions：
Pre-Installation Preparation
- Tools: Torque wrench, socket set, tie rod separator/pickle fork, jack, safety stands, rust inhibitor, thread locker (optional), wire brush, pliers, wheel chocks
- Vehicle: Park on level ground, chock wheels, engage parking brake. Disconnect negative battery terminal for EPS models (per manual).
- Part Check: Match new tie rod end (inner/outer as needed) to vehicle. Ensure ball joint rotates freely, boot is intact, and hardware is complete.
Old Part Removal
- Loosen wheel bolts, lift vehicle with jack, secure with safety stands.
- Remove wheel, extract cotter pin from ball joint nut, then remove the nut.
- Separate tie rod end from steering knuckle with separator (avoid excess impact).
- Mark lock nut position on inner tie rod, then loosen lock nut (hold inner tie rod to prevent rotation) and unscrew old tie rod end.
- Clean inner tie rod connection surface.
New Part Installation Steps
- Clean steering knuckle hole and inner tie rod threads; apply rust inhibitor to knuckle surface.
- Apply thread locker (optional) to inner tie rod, screw on new tie rod end aligned with marked position.
- Hand-tighten lock nut, seat ball joint in steering knuckle, hand-tighten ball joint nut.
- Lower wheel to ground (light load), torque ball joint nut (35-55N·m, follow manual) and install new cotter pin.
- Torque lock nut (40-60N·m, follow manual) while holding inner tie rod.
- Check: Smooth ball joint rotation, undamaged boot, no component interference.
Post-Installation Inspection
- Reinstall wheel, torque bolts (80-120N·m, follow manual).
- Reconnect battery (if disconnected), start vehicle, test full steering lock (≤10s) for smooth operation and no noise.
- Mandatory Four-Wheel Alignment to calibrate toe/camber angles.
- Test drive (20-30km/h then 60-80km/h) for no pulling/vibration; stop if issues arise.
Safety Precautions
- Always use safety stands (never rely on jack).
- Use proper tools to avoid component damage.
- Torque all fasteners to specs (over/under-tightening is dangerous).
- Never reuse cotter pins; replace damaged boots immediately.
- Avoid long/high-speed driving before alignment.
Notice:
Please check the model and important parameters before purchase to avoid unnecessary after-sales problems, if you are not clear, please feel free to contact us, thank you for your cooperation!
| Item Specifics | |
|---|---|
| UPC | Does not apply |
| Brand | VaultPro |
| Manufacturer Part Number | 13774733 |
| Manufacturer Warranty | 1 Year |
| Placement on Vehicle | Left, Right, Front, Upper, Lower |
| Type | Sway Bar Link |
| Universal Fitment | No |
| Items Included | Mounting Hardware |
| Custom Bundle | Yes |
| Interchange Part Number | K7275,ES3539,ES3540,K7366,ES2080S,K7365,K7345,K7347 |
| Bundle Description | Suspension Steering Tie Rod Ends Linkages Assembly |
| Superseded Part Number | Front Driver and Passenger Side Replacements |
| Adjustable | Yes |
| Modified Item | Yes |
| Kit or Single Part | Kit |
| OE Spec or Performance/Custom | OE Spec |
| Surface Finish | Polished, Rust Protected |
| Quantity | 14Pcs |
| Fitment | For Dodge Ram 1500 |
| Features | Greasable |
| Finish | Coated |
| Material | Alloy Steel |
| Mounting Style | Bolt-On |
| Cotter Pin Hole | Yes |
