Features:
- Integrated 256 Mbit memory ensures real-time data sampling up to 1.6 Gbps. Basic logic analyzers often compromise on bandwidth or memory depth, significantly reducing their practicality. For example,
real-time data transfer to host storage via USB flash drive is an effective solution to memory depth issues, but due to the limited bandwidth of USB, its sampling bandwidth is only 200-300 Mbps;
Open Workbench Logic Sniffer uses internal FPGA BRAM as storage, achieving a sampling bandwidth of 1.6 Gbps, but its memory depth is only 216 Kbit.
Multi-layer Protocol Analysis: DSLogic analyzers simplify data interpretation through their protocol analysis capabilities.
Rugged ABS Design: DSLogic USB analyzers are constructed from ABS material, durability and protection.
Wide Bandwidth Range: DSLogic analyzers offer 100MHz bandwidth for detailed signal analysis.
Electrostatic Discharge Protection: Utilizing electrostatic discharge protection technology, the analyzer's lifespan is extended.
High-Speed Analysis: digital signals up to 100MHz using the DSLogic 100M Logic Analyzer.
Protocol Analysis and Intuitive Visualization** DSLogic is more than just a logic analyzer;
it's a powerful tool capable of analyzing multiple protocols and presenting data in a clear and understandable way.
It can handle highly complex protocols, making it for ideal for engineers and technicians seeking accuracy and efficiency in diagnostic and development work.
Specifications:
Part Name: USB Logic Analyzer
Material: ASB
size: As shown
Color: Black
Bandwidth: Signal acquisition bandwidth up to 100M
Sampling Depth: 16G, enabling fine analysis

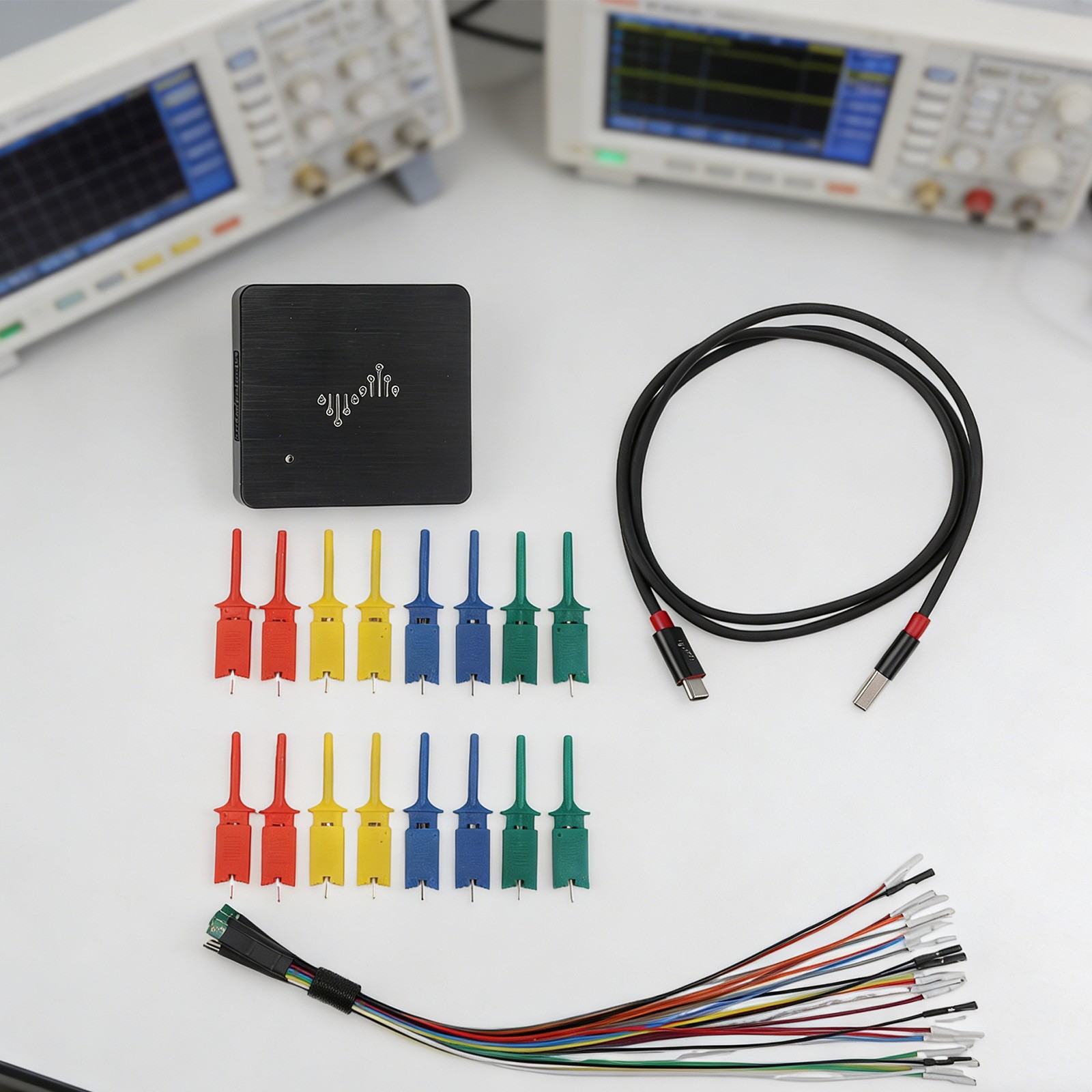

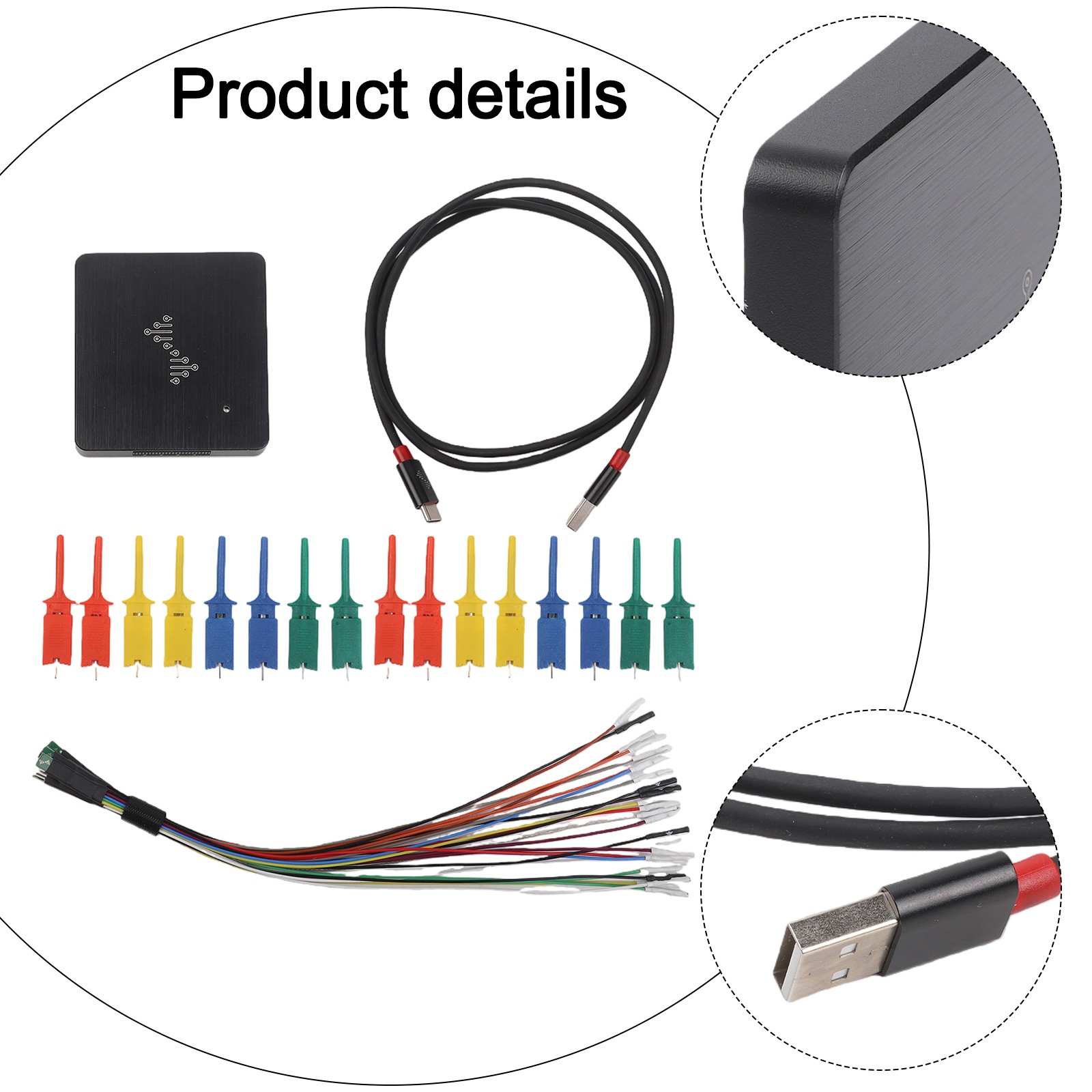

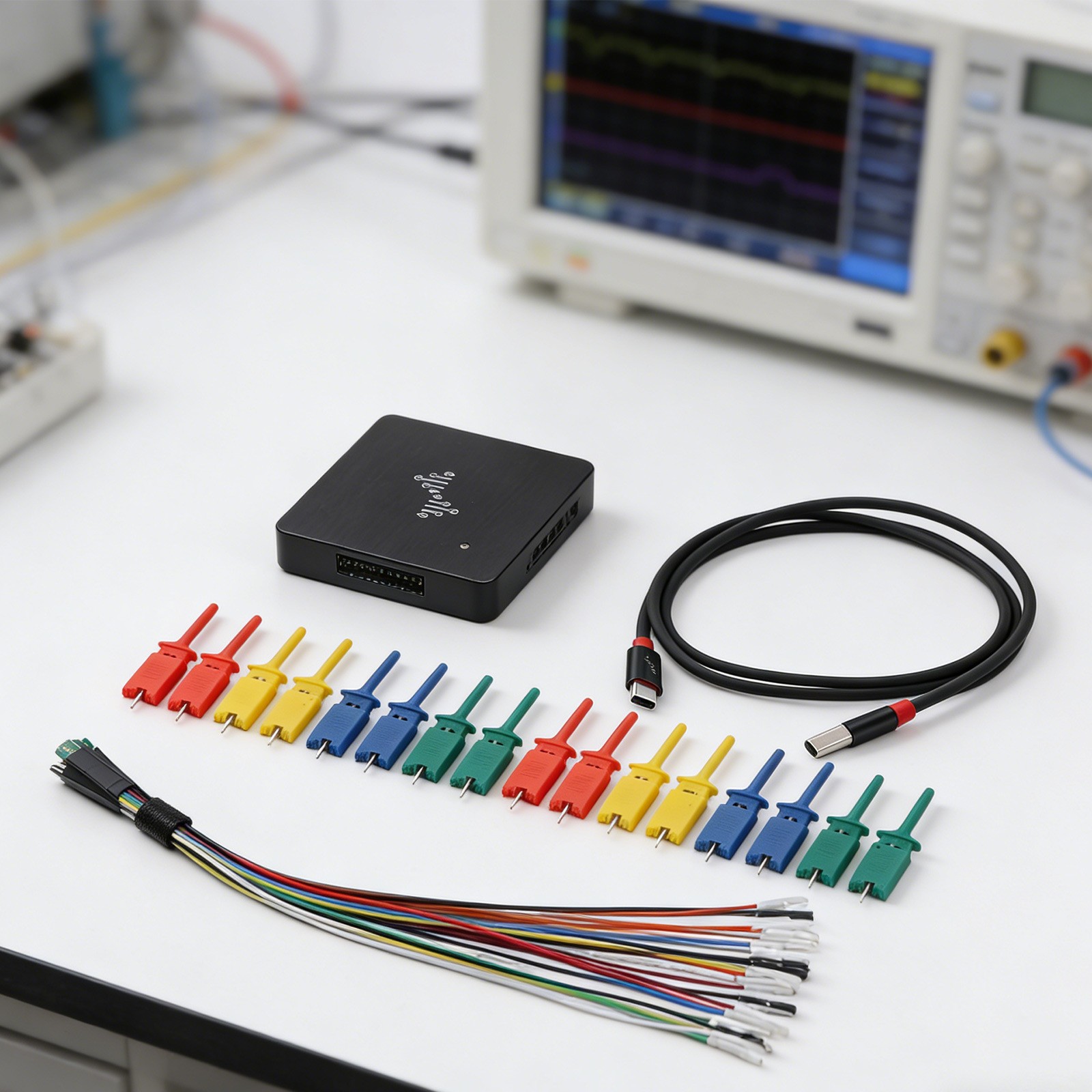

Package Contents:
1 set DSLogic Logic Analyzer
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
