AHD 1920x1080P CVBS Night Vision 170 Degree Fisheye Lens Reverse Camera HD Vehicle Backup Rear View Camera Waterproof
Add our listing to Watchlist Or Add to Cart , you will get more discount
Real 170° wide viewing angle ,Adjustable Angle.Gold Fisheye Lens
Pixel: AHD 1920*1080P ,CVBS 1280*720P
Support parking reference line switch on/off
Support Mirror control (Rear→Front）
High grade of waterproofing: IP67.
Low-light Level Night Vision, 15m visible distance for night.
Tips, About AHD1080P Style:
Please check whether the Android unit supports AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
CVBS video cameras are universal for all monitors, but AHD will only work with an AHD monitor!
Package Include:
1 x Camera
1 x Video Cable
1X power cable
FAQ:
After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?
A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.
B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.
After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?
A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

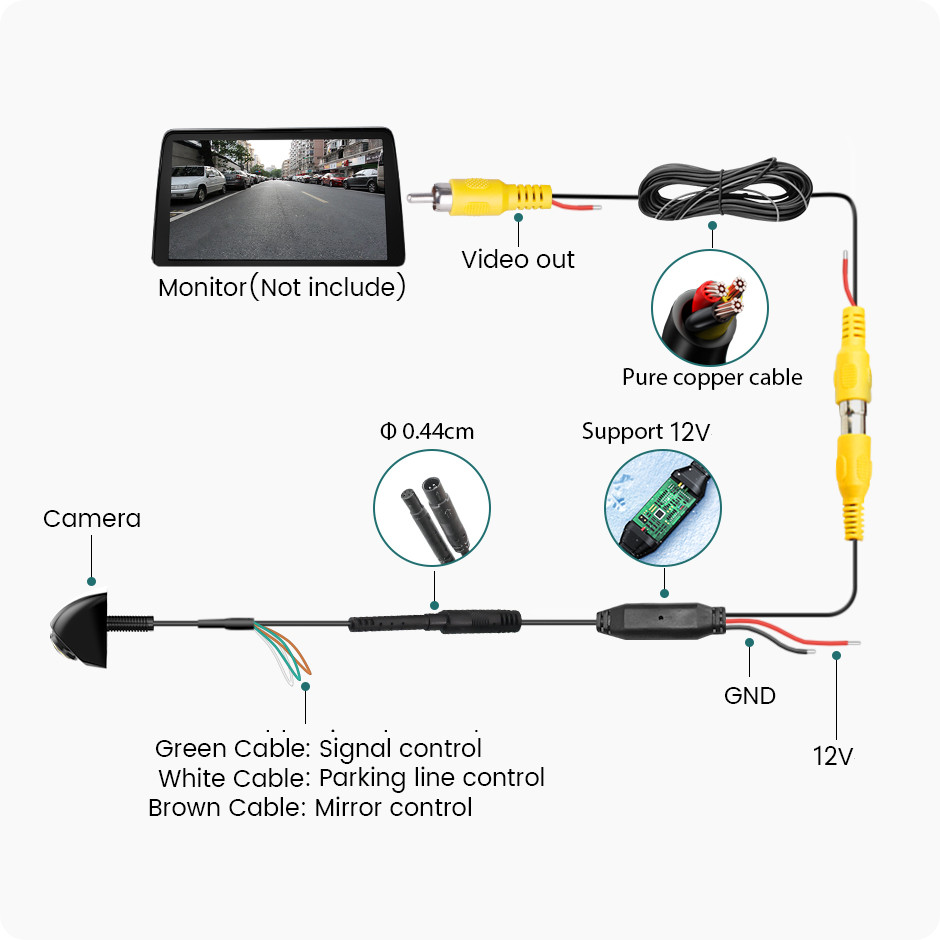

What functions are controlled by each of the 3 cables of the rear view camera?
Green Cable: Video Signal Control
• AHD1080P Camera:
Default ( AHD1080P )+( 1920x1080 )+( 175° )
Cut the Green cable→
( CVBS )+( 1280x720 )+( 125° )
Brown Cable: Mirror Control
• The default is the rear view camera (Mirroring).
Cut the Brown cable→
Front view camera ( Non-mirroring )

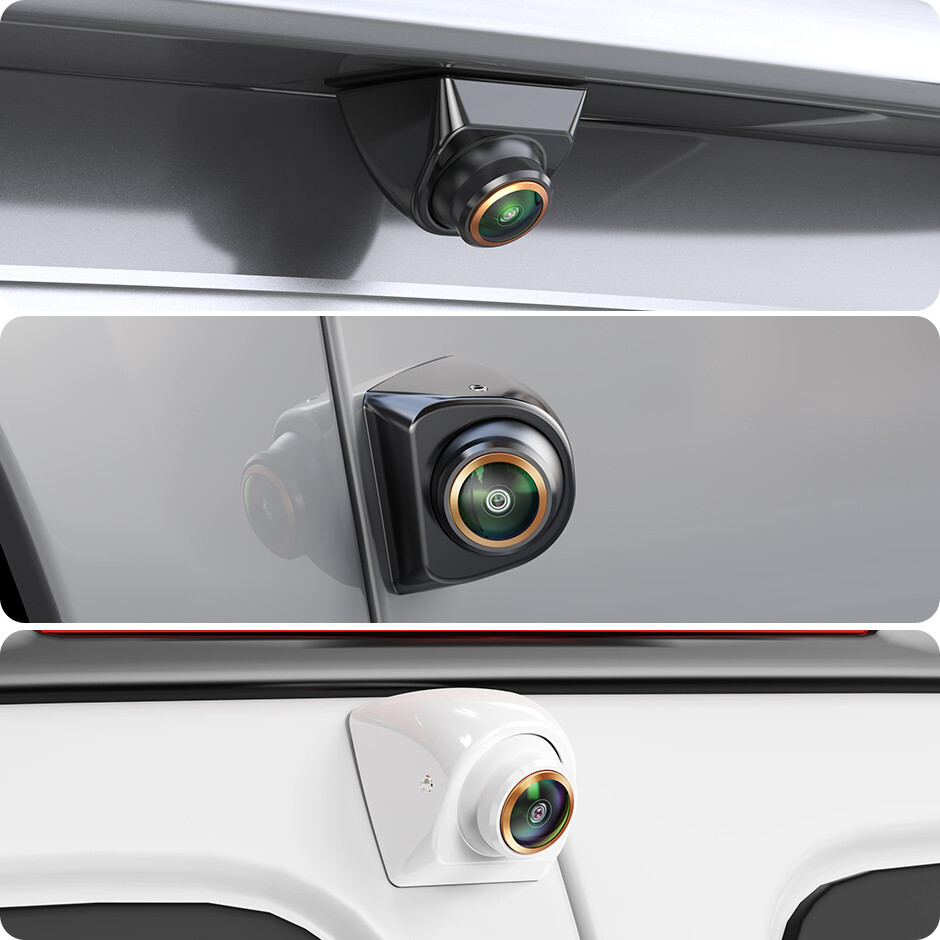

You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera
White Cable: Parking Line Control
• Camera with parking line, you can cut the White cable, then without parking line.
