Professional Installation is Highly Recommended (No Instructions Included)This is for a brand new, A - F - X Body 2" Drop disc brake conversion kit with Red Wilwood Calipers. A-Body cars include the 1967 1968 1969 Pontiac Firebird, as well as Chevelle, El Camino, Monte Carlo, Lemans, GTO, Cutlass, Skylark, and more. Any 1964 1965 1966 1967 1968 1969 1970 1971 1972 GM A-Body style car. This will also work for your 1967 1968 1969 F-Body as well as 1968 1969 1970 1971 1972 1973 1974 X-Body..
This kit includes all the following:
- 11" Cross-Drilled Slotted Rotors 5 x 4.75" (Chevy Pattern)
- Red Wilwood D-52 Loaded Calipers 140-11291-R
- Forged 2" Drop Spindles
- Bearings and Seals
- Dust Caps
- Hardware
- Caliper Brackets & Mounting Pins
- Backing Plates/Dust Shields
- Master Cylinder

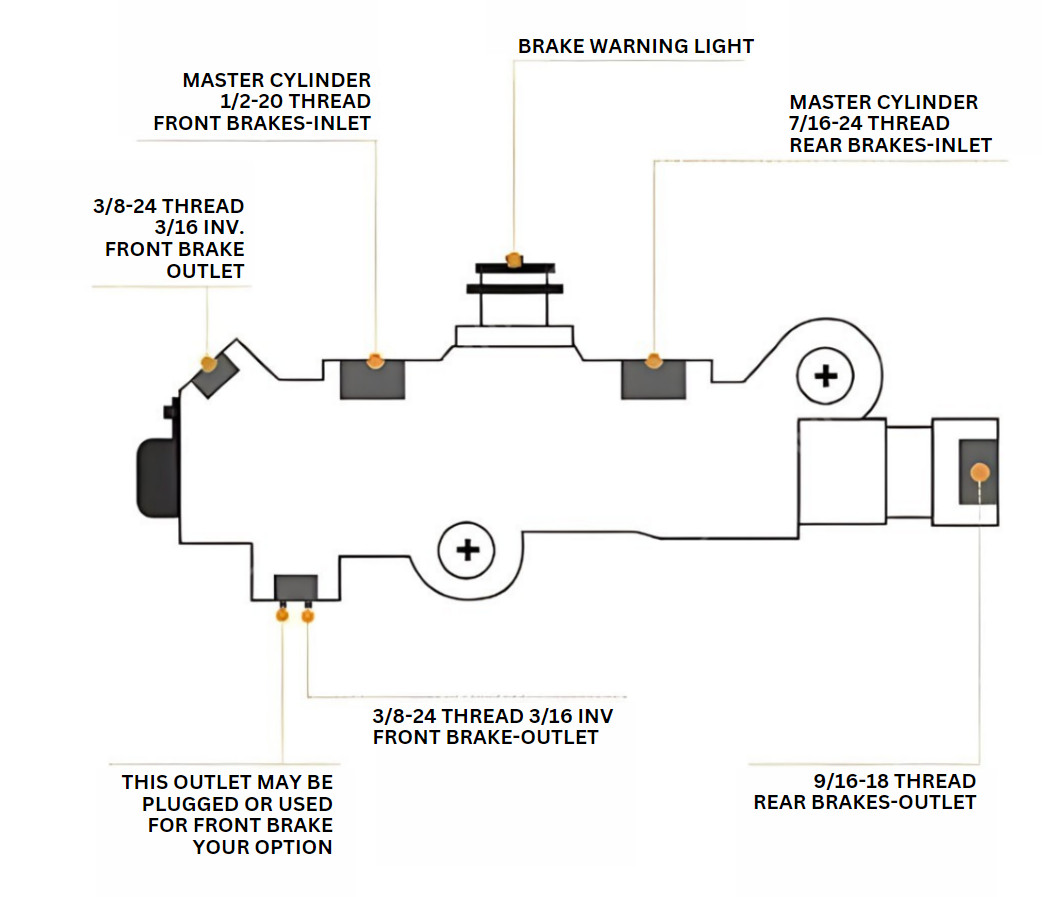

- Disc Drum Proportioning Valve kit
- Stainless Braided Caliper lines with Banjo Fittings (4777)
Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00" piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood's hardened slide pins and BP-10 high friction pads.
Specs:
- Caliper Pistons: Two
- Caliper Finish: Powder Coated Red
- Bore Size: 2"
- Inlet Fitting: 7/16-20 Inlet Thread Size
- Rotor Thickness: 1.04" Finish
- Powder Coated Material Type: Aluminum
- Total Piston Area: 6.28 sq. in.
- Pad Area: 10 sq. in.
- Pad Volume: 3.9 cu. in.
- Mount Type: Floating
- Caliper Type: D52
- Piston Type: Stainless
- Brake Pad Compound: BP-10
- Position: Front
Installation of this kit is very straight forward, but we do recommend professional installation with any brake parts. We do not offer instructions with this kit, but 100's of websites have detailed information on these kits.
